📅 August 28, 2026 | 👤 Author: Gavin
💡 Key Takeaways for Fleet Operators
- Primary Application: Common heavy-duty diesel engines, such as the Caterpillar C9, Isuzu 6HK1, and Perkins 1106 series, working under high-ambient temperature and heavy-load construction environments.
- The Diagnostic Core: Sudden engine overheating under load, combined with coolant boiling in the expansion tank, usually points to a hydraulic cooling fan pump failure or a compromised cylinder head gasket.
- Tatan Professional Engineering Standard: To prevent thermal fatigue, Tatan Machinery supplies high-performance hydraulic fan pumps, gear pumps, and multi-layer steel (MLS) head gaskets. Our MLS gaskets are coated with high-temp fluororubber to withstand peak combustion pressures and temperatures exceeding 250 degrees Celsius.

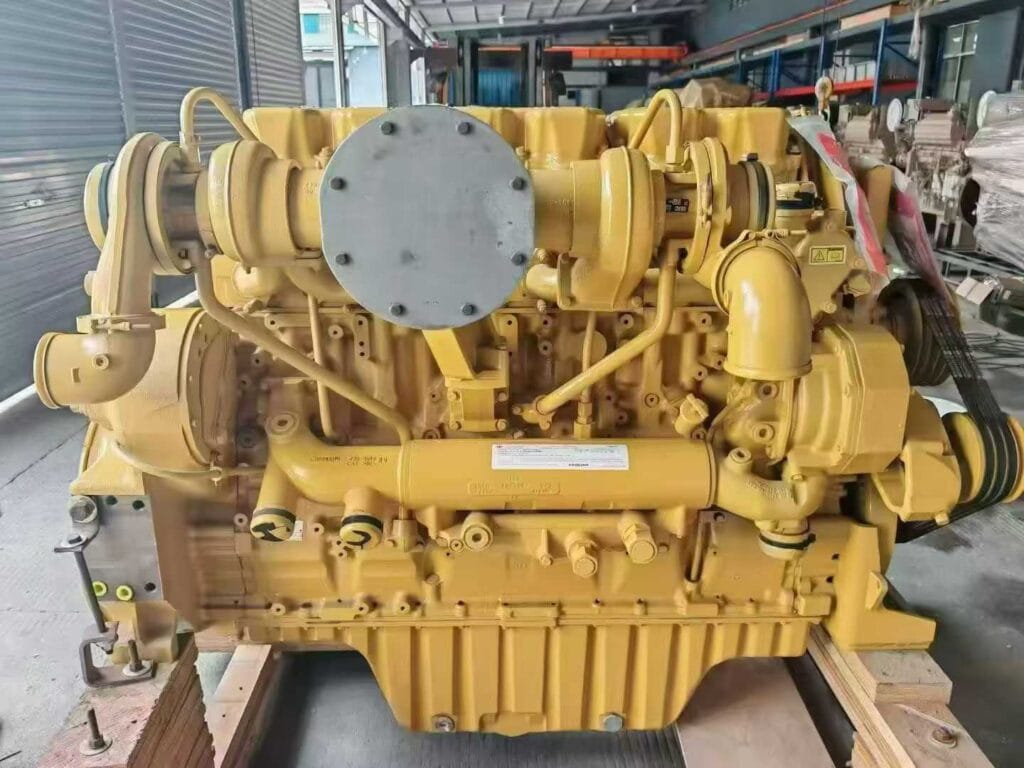

The Thermal Battle: How Heavy Excavators Manage Extreme Heat
In modern construction sites, heavy crawler excavators and wheel loaders must operate continuously for 10 to 12 hours a day. Under heavy loads, these machines generate immense thermal energy. To keep the engine cool, high-performance machines rely on a hydraulically driven demand cooling fan rather than a traditional belt-driven fan. This hydraulic fan adjusts its rotational speed dynamically based on engine oil, coolant, and intake manifold temperatures.
However, when a machine begins to overheat under load, operators often experience sudden power loss as the engine’s electronic control unit (ECU) enters “derate” protection mode to prevent complete engine seizure. If left unresolved, severe thermal cycles will warp the cylinder head, rupture the head gasket, and mix coolant with engine oil—leading to a catastrophic engine overhaul.
As senior diesel mechanics on Heavy Equipment Forums frequently emphasize:
“Never assume a cooling problem is just a stuck thermostat. If your excavator is overheating only when working hard, check the output pressure of your hydraulic fan pump. If the pump cannot build pressure, the fan won’t spin fast enough to clear the heat from the radiator cores.”
The Hydraulic Side of Cooling: Troubleshooting Worn Fan Pumps
The hydraulic fan cooling system relies on a dedicated fan pump (typically a piston pump or a heavy-duty gear pump) and a fan motor. The system is controlled by an electro-proportional pressure relief valve. When the ECU detects rising engine temperatures, it closes the valve, forcing the fan pump to build maximum pressure and spin the fan blade at maximum RPM.
Over thousands of operating hours, internal wear inside the fan pump’s gear chambers or cylinder block increases tolerances. As the hydraulic oil gets hot and thins out, high-pressure oil slips past the worn gear faces back to the low-pressure intake side (internal bypass). Consequently, even when the ECU calls for maximum cooling, the worn fan pump cannot build the pressure required to spin the fan at its design speed, leading to progressive overheating under load.
The Mechanical Consequence: How Warped Heads and Blown Gaskets Happen
When an engine experiences consistent overheating, the cylinder head expands at a faster rate than the cast-iron engine block. This thermal mismatch creates massive clamping force variations, crushing the cylinder head gasket and allowing combustion gases to leak into the cooling passages.
To diagnose this before a catastrophic failure occurs, mechanics must check for head gasket flatness. According to the official Isuzu Industrial Engine Workshop Manual (available via Isuzu Global Service Portal), the maximum allowable warpage for an Isuzu 6HK1 cylinder head is strictly set to 0.05 mm (0.002 inches) across the entire mating surface. Any warpage exceeding this limit will prevent a new head gasket from sealing, leading to immediate combustion gas leakage and recurrent overheating.
For high-durability cylinder head gaskets, water pumps, and dynamic fan pumps built to precise OEM tolerances, visit the Tatan Machinery Catalog.
Step-by-Step Diagnostic Sequence for Engine Overheating
If your excavator engine is running hot under load, follow this systematic diagnostic sequence to isolate the failure:
Step 1: Perform the Fan Speed Test
Use a digital non-contact laser tachometer to measure the fan RPM at full engine load. Compare the measured speed to the manufacturer’s specification. For example, according to the Caterpillar Service Information System (SIS), a Cat C9 cooling fan must reach a minimum of 1,650 RPM when the coolant temperature reaches 95 degrees Celsius. If the fan RPM is significantly lower, the fan pump or motor is worn out.
Step 2: Check the Radiator Core Temperature Drop
Use an infrared laser thermometer to measure the temperature at the radiator’s inlet hose and outlet hose. A healthy cooling system should show a temperature drop of 6 to 10 degrees Celsius across the core. If the temperature drop is minimal, it indicates a clogged water radiator or a failing water pump.
Step 3: Test for Combustion Gas in the Cooling System (Bottle Test)
Fill a clean plastic bottle with water, insert the radiator overflow tube into the bottle, and run the engine at high idle under load. Continuous, rapid bubbling inside the water bottle indicates that high-pressure combustion gases are leaking past the cylinder head gasket into the cooling jacket.
Official Technical Specifications: Cooling & Engine Sealing Standards
| Engine Model | Typical Application | Fan Pump Max Pressure | Head Flatness Limit | Recommended Rebuild Part |
|---|---|---|---|---|
| Caterpillar C9 | CAT 330D Excavator | 19.0 MPa (2,755 psi) | 0.05 mm (0.002 in) | Tatan MLS Gasket & Water Pump Kit |
| Isuzu 6HK1 | Hitachi ZX240 Excavator | 17.5 MPa (2,538 psi) | 0.05 mm (0.002 in) | Tatan High-Temp Head Gasket |
| Perkins 1106 | Lovol / JCB Loaders | 18.0 MPa (2,610 psi) | 0.06 mm (0.002 in) | Tatan Precision Water Pump & Seals |
Keep Your Engine Running Cool with Tatan Machinery
Preventing high-cost engine failures requires using premium replacement parts that can withstand extreme pressures and thermal cycling. Whether you need high-temp multi-layer steel cylinder head gaskets, durable water pumps, precision gear pumps, or dynamic fan pumps, Tatan Machinery provides reliable, OEM-standard solutions for Isuzu, Caterpillar, Perkins, and Yanmar engines.
To explore our full range of engine thermal components and request a custom quote, visit Tatan Machinery and contact our technical support team today.
(For further reading on mobile hydraulic cooling design, consult technical documents at SAE International or refer to sealing standards from the International Organization for Standardization (ISO).)
