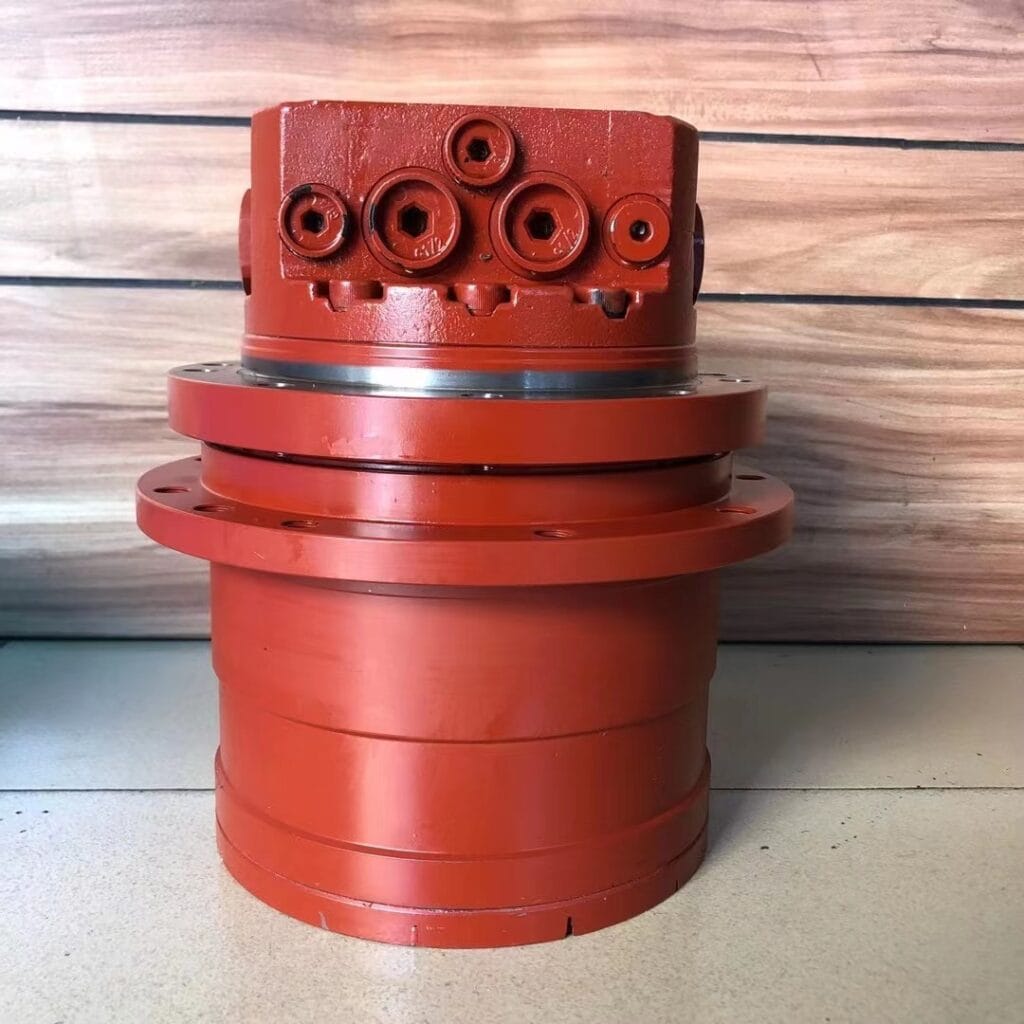

Excavator Final Drive Travel Motor FAQs
Q: What are the main failure modes of an excavator final drive gearbox?
A: The most common failure mode is wear on the Duo-Cone floating seal, allowing gear oil to leak out and water/mud to enter. This emulsifies the gear oil, leading to rapid bearing degradation and tooth shearing of the planetary gears under heavy load. Routine oil changes and seal inspections are essential.
Q: How do I troubleshoot a travel motor that lacks power or fails to shift to high speed?
A: Low tractive power is usually caused by worn piston shoes or cylinder blocks in the motor rotary group. A failure to shift to high speed indicates a malfunctioning dual-speed solenoid valve or a stuck swashplate actuator. Checking pilot pressure and flushing the control lines can resolve these shifting issues.
Q: Why does my final drive leak oil from the sprocket mating face or main hub?
A: Oil leaking from the sprocket face indicates a failed floating seal or damaged main angular contact bearings. Over-tensioned tracks put excessive radial loads on the main hub, causing bearing deformation and seal misalignment. Always maintain the recommended track sag (typically 25–40 mm).
Q: How can I verify final drive compatibility if the motor ID plate is missing?
A: Simply measure the mounting hole count and diameter on your track frame, the sprocket bolt pattern diameter, and the number of teeth on the drive pinion shaft. Providing these physical dimensions allows our engineering desk to verify and match the correct final drive.
Q: What is the recommended gear oil grade and service interval for final drives?
A: We recommend high-pressure SAE 80W-90 or SAE 90 gear oil. The initial gear oil change should be performed after the first 100 operating hours, and subsequent oil changes should occur every 1,000 to 1,500 operating hours to minimize planetary gear wear.
A Guide to Excavator Final Drive Travel Motor and Their Uses
Construction Machinery Hydraulic Travel Motor Applications
Trenching & Road Construction
Ensures smooth track maneuverability and precise automatic dual-speed shifting during high-cycle trenching and loading.
Heavy-Duty Mining & Extraction
Withstands extreme drawbar pull and severe radial shock loads when traveling over rough rock and blast quarry terrain.
Steep Slopes & Dynamic Holding
Secures drift-free track holding on inclines up to 35 degrees using integrated wet multi-disc parking brakes.
Overhaul & Workshop Fleet Support
Provides direct bolt-on travel motor assemblies, gearsets, and floating seal groups for fast excavator undercarriage service.
A Comprehensive Guide to Heavy Equipment Planetary Final Drives & Travel Motors
The hydraulic final drive and travel motor convert fluid power into high tractive torque, allowing heavy crawler excavators to travel over rough terrain. Operating as the primary tractive mechanism, travel drive efficiency dictates climbing power, track speed, and holding stability. Tatan Machinery supplies genuine and OEM-standard swashplate axial piston travel motors integrated with multi-disc brakes and planetary gearboxes to handle continuous high-vibration mining and construction environments.
"As documented in Eaton Hydraulic Travel Drive Technical Publications and Nabtesco Final Drive Manuals: 'Dynamic track motor assemblies must utilize carburized planetary gearsets and precise Duo-Cone floating seal clearances to withstand extreme drawbar pull and prevent dirt/water ingress under heavy mud and water immersion on jobsites.'"
Ancillary Hydraulic Component Classifications We Support
Below is a summary of the core final drive and travel motor components supported by Tatan Machinery:
| Component Category | Engineering Function in Heavy Crawler Machinery | Available Materials & Specifications |
|---|---|---|
| Axial Piston Motor | Converts hydraulic fluid pressure into high-speed rotational mechanical energy | Hardened piston shoes, lead-bronze cylinder blocks, swashplates |
| Planetary Gearbox | Multiplies rotational torque (reduction ratio up to 84:1) for track sprocket rotation | Carburized 20CrMnTi steel planet/sun gears, nitrided teeth |
| Duo-Cone Floating Seal | Isolates external dirt/water and retains lubricating oil inside the planetary gearbox | Precision metallic seal rings, high-resilience nitrile O-rings |
| Integrated Parking Brake | Holds the crawler track statically on slopes when hydraulic pilot pressure is released | Wet multi-disc friction plates, spring-applied brake piston |
| Pinion/Sun Shaft | Transmits the travel motor's high-speed rotational torque into the planetary gearbox input | Induction-hardened spline shafts, ground teeth patterns |

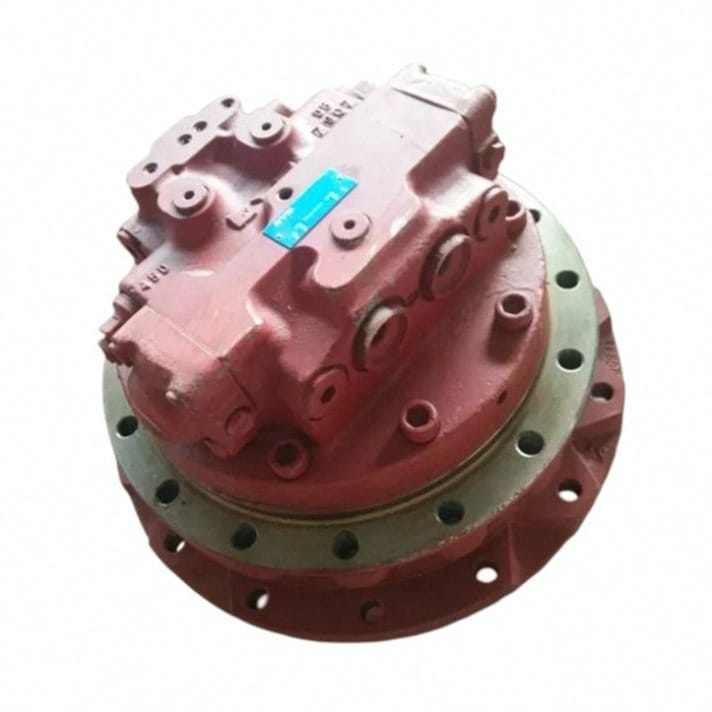

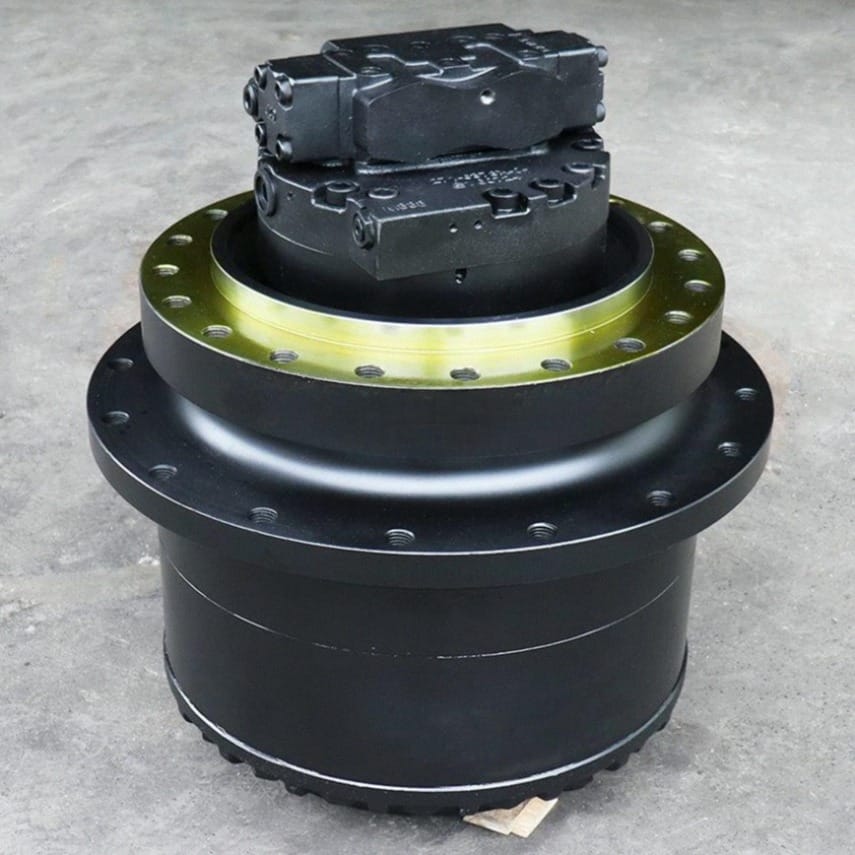

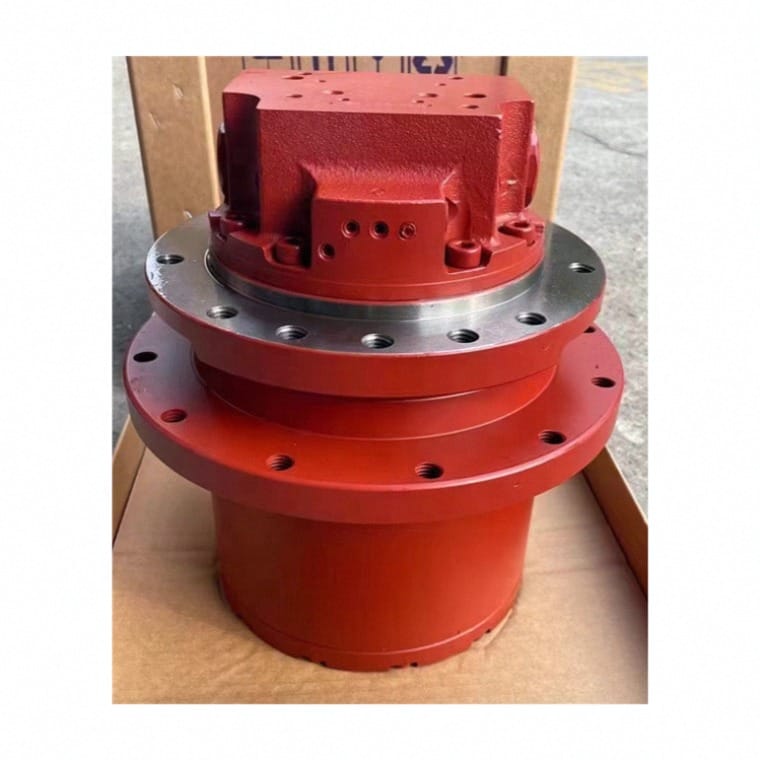

1. Caterpillar (CAT): CAT 320D (326-4635 / SBS120), CAT 323D, CAT 330D (MAG-170), 345D, 349D Final Drive Assembly

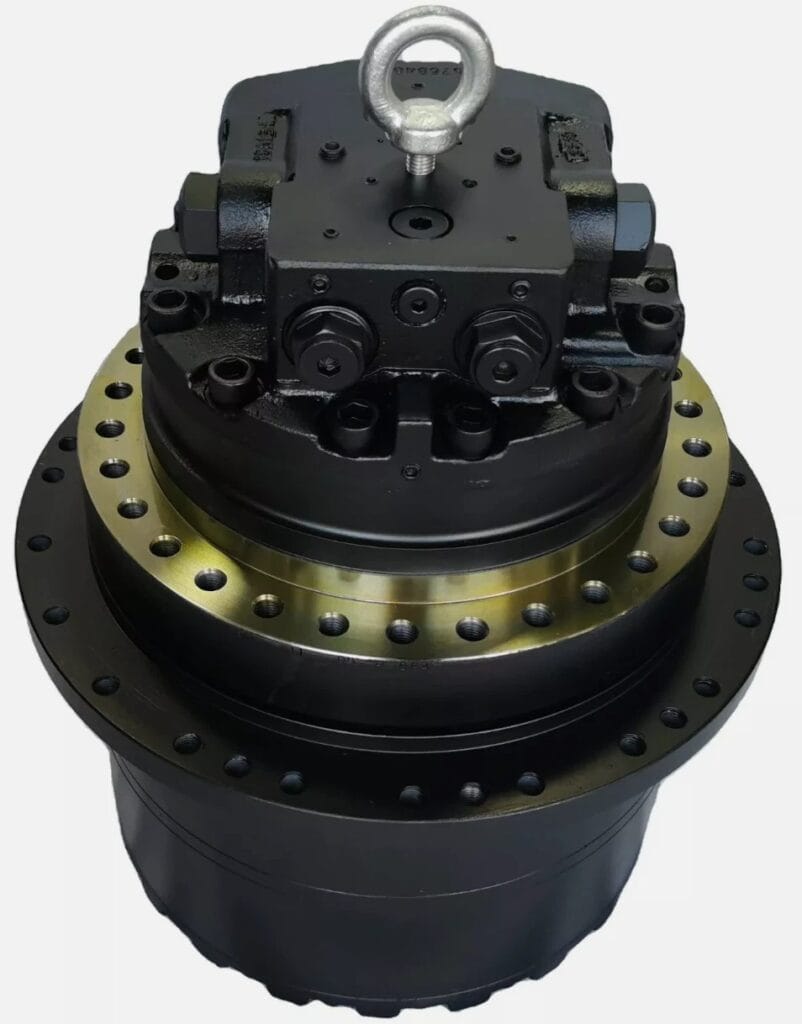

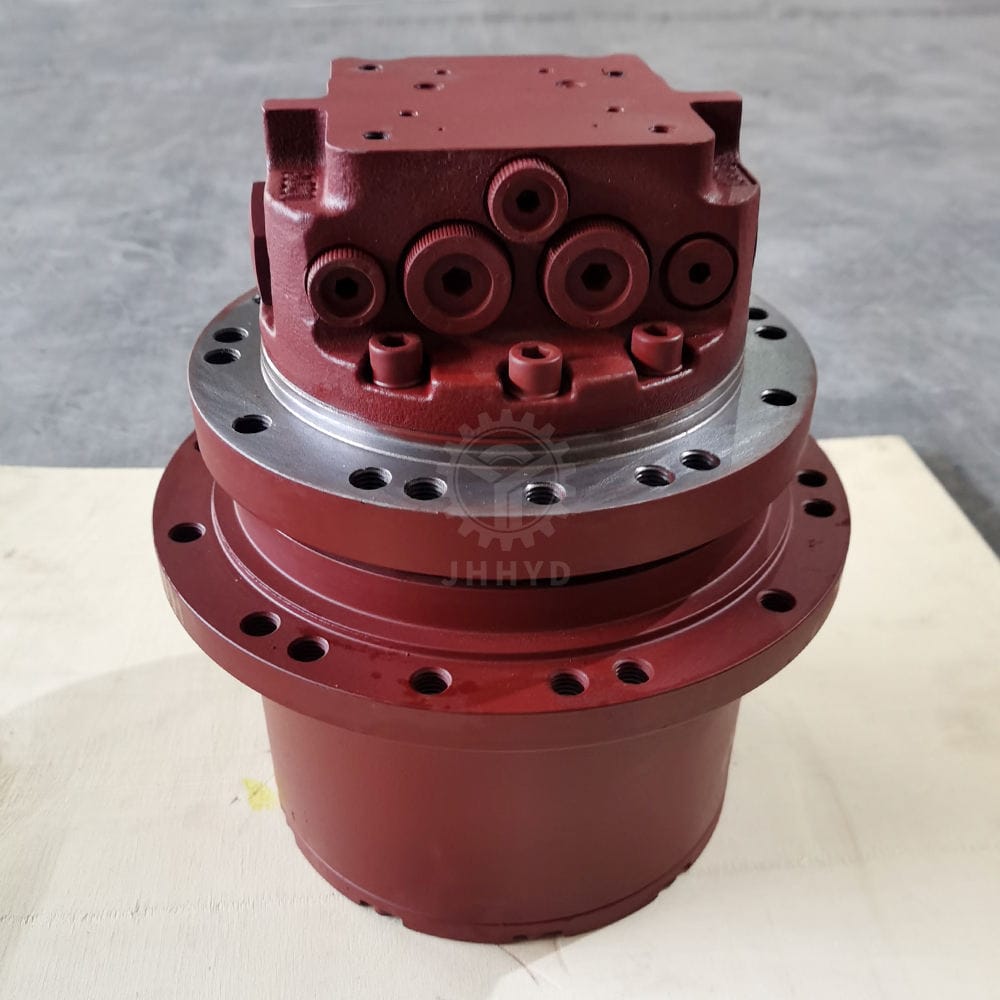

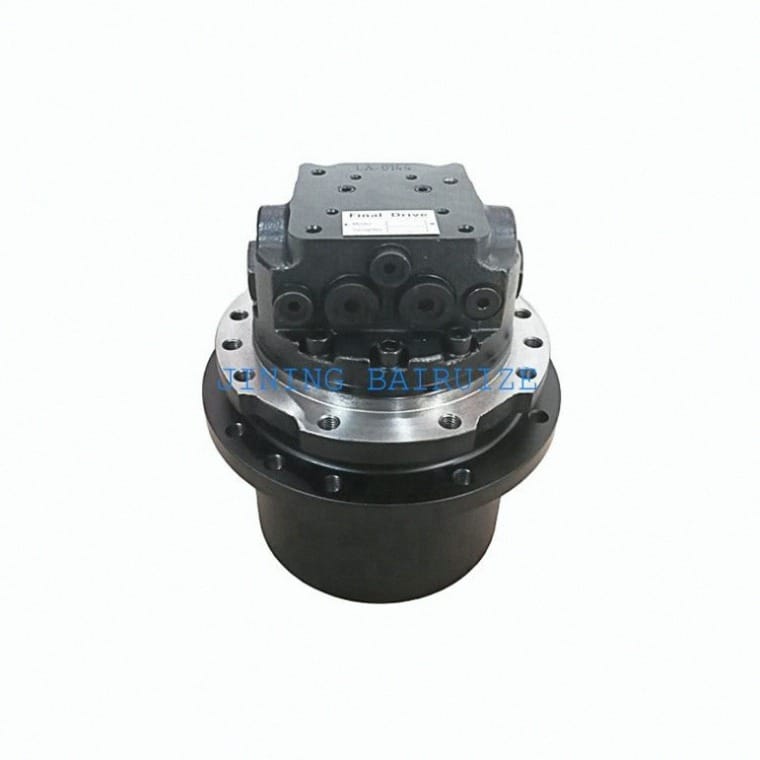

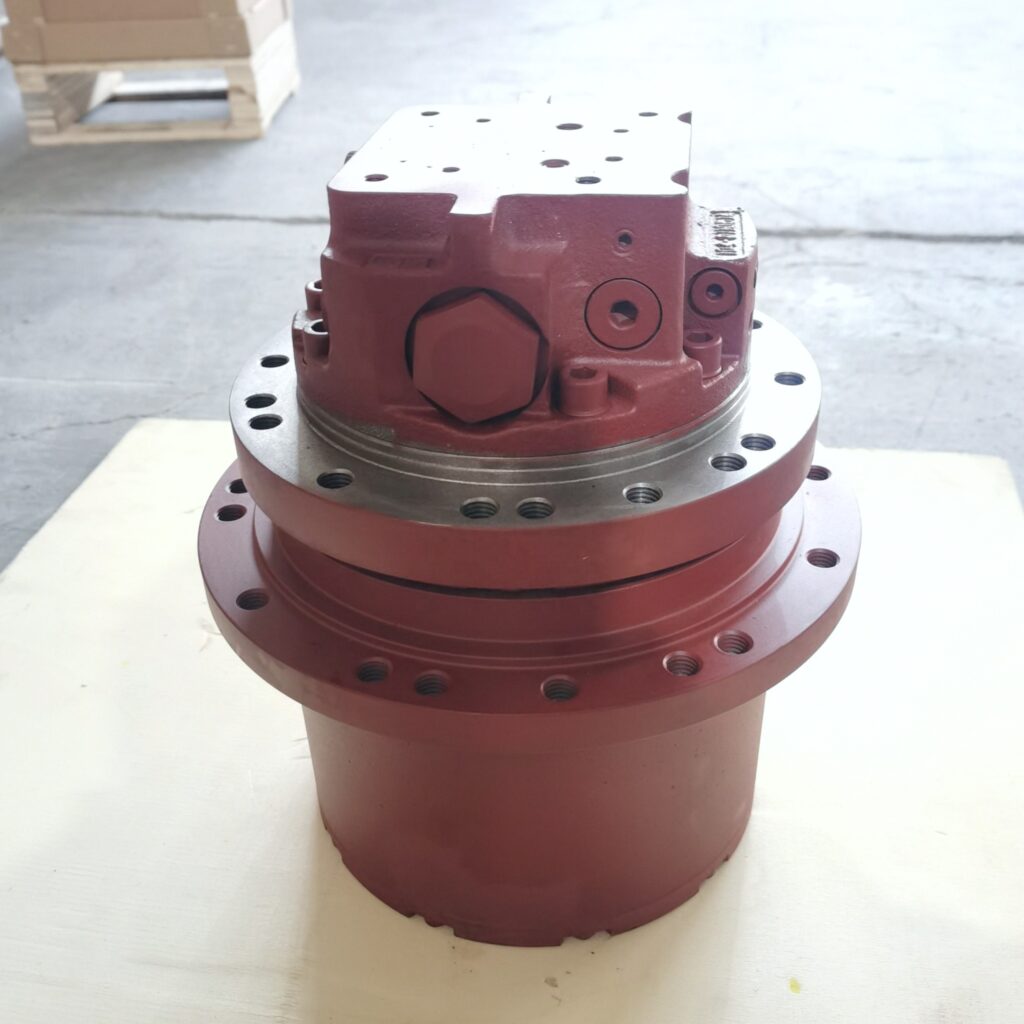

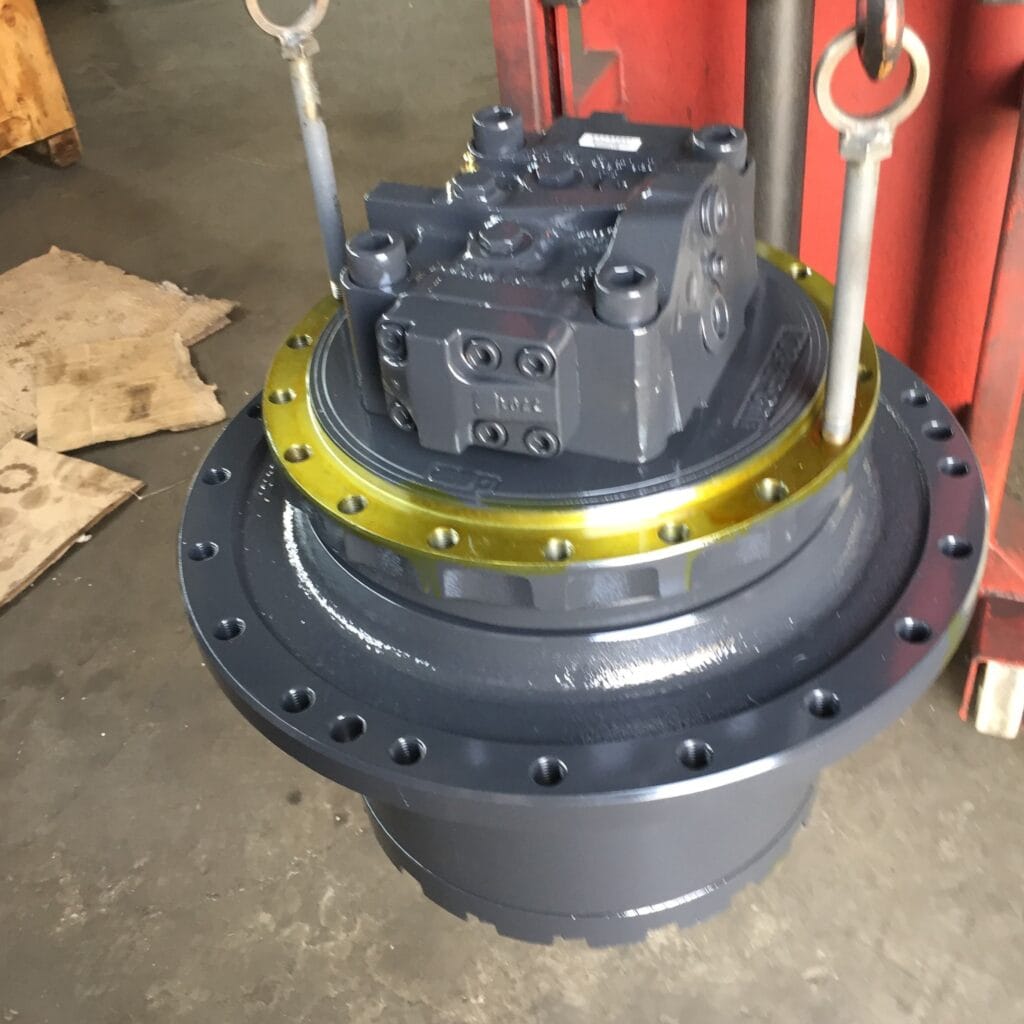

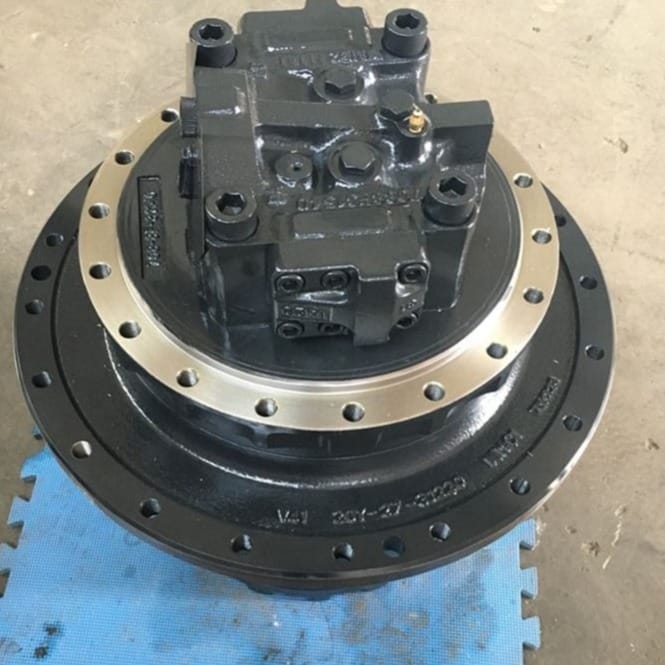

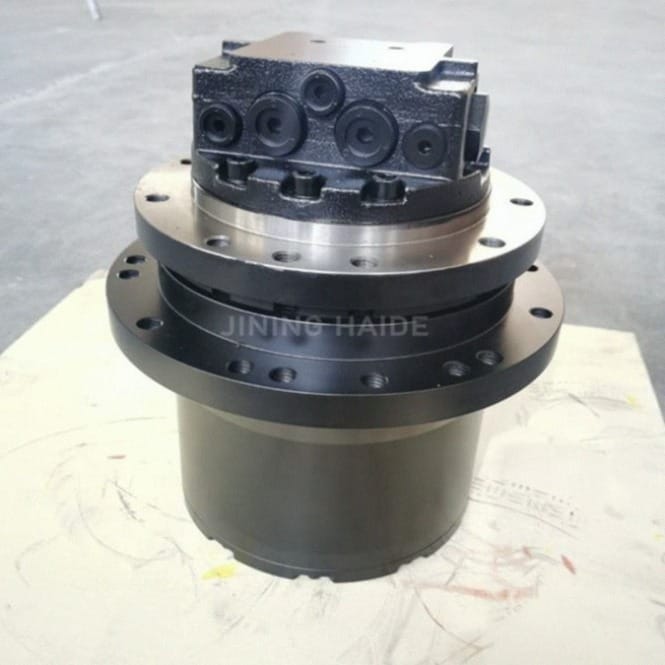

2. Komatsu: Komatsu PC200-8 (708-8F-00190), PC220-8, PC300-8 (708-8F-00200), PC400-8 Track Drive Motor

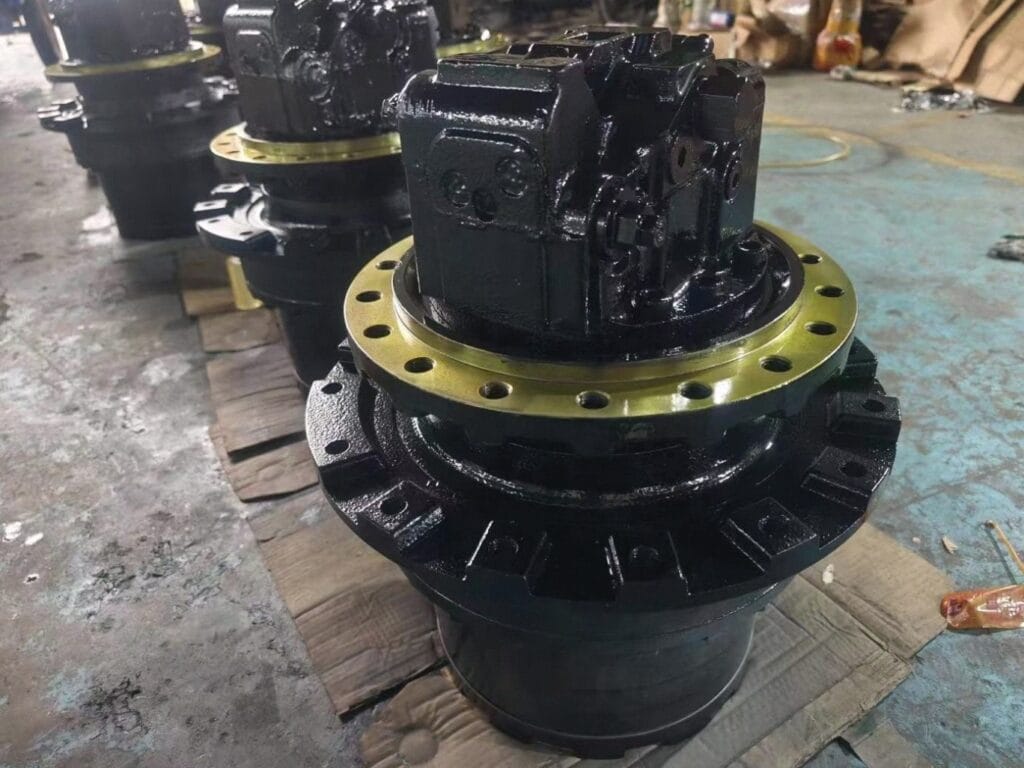

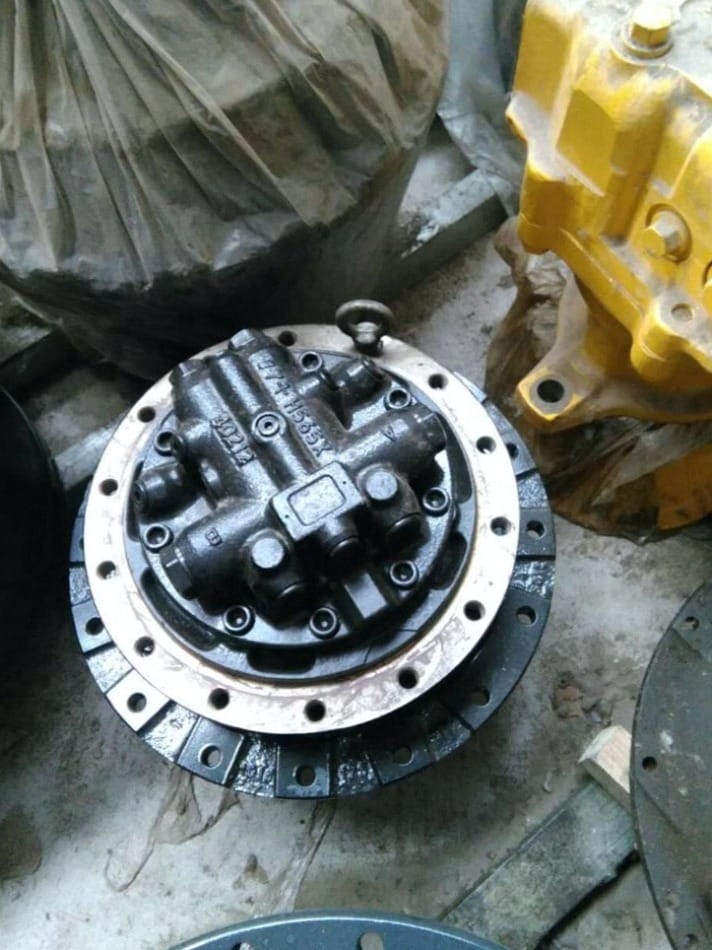

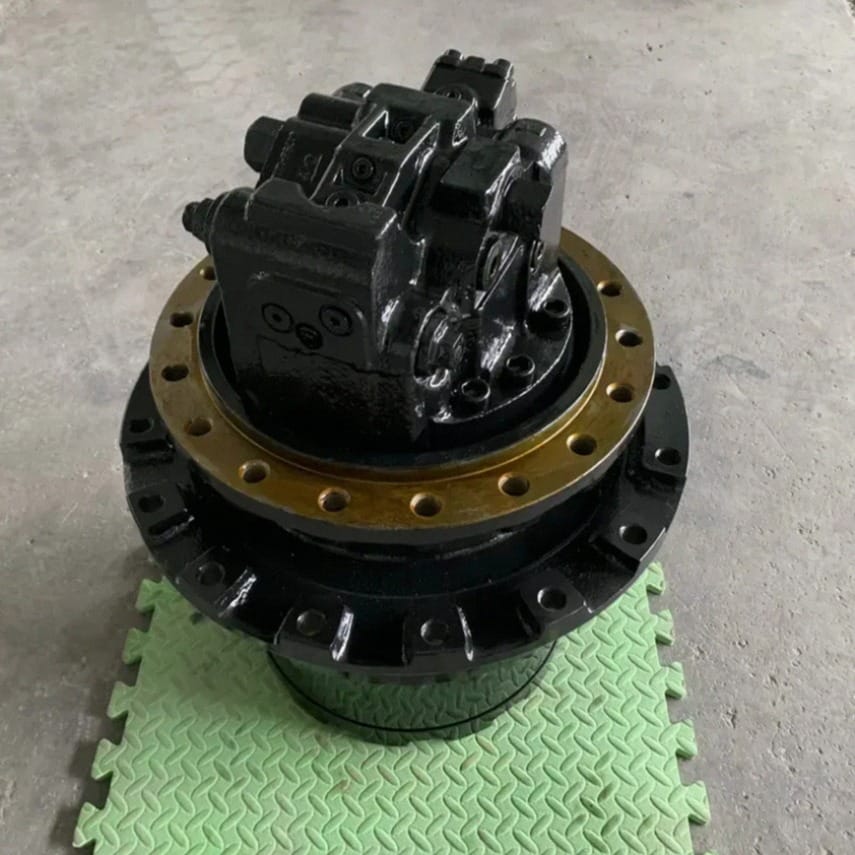

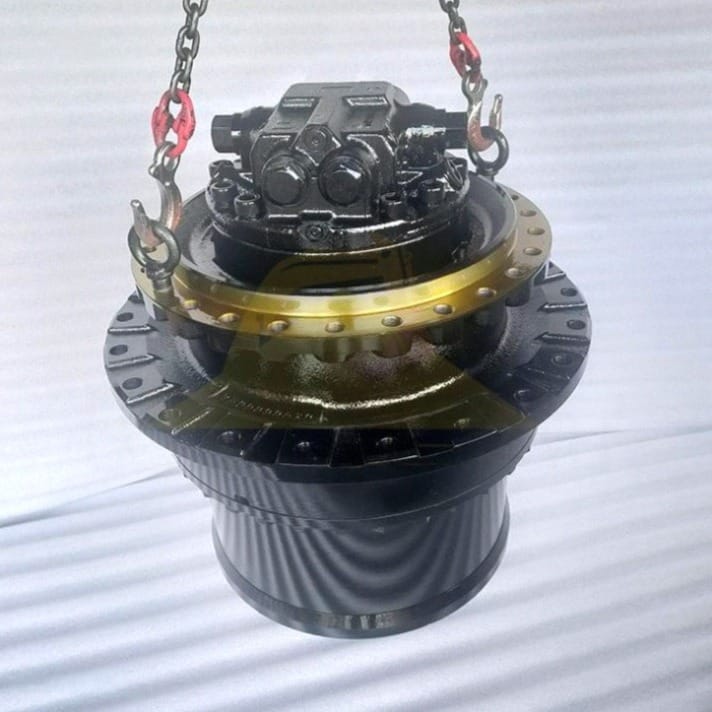

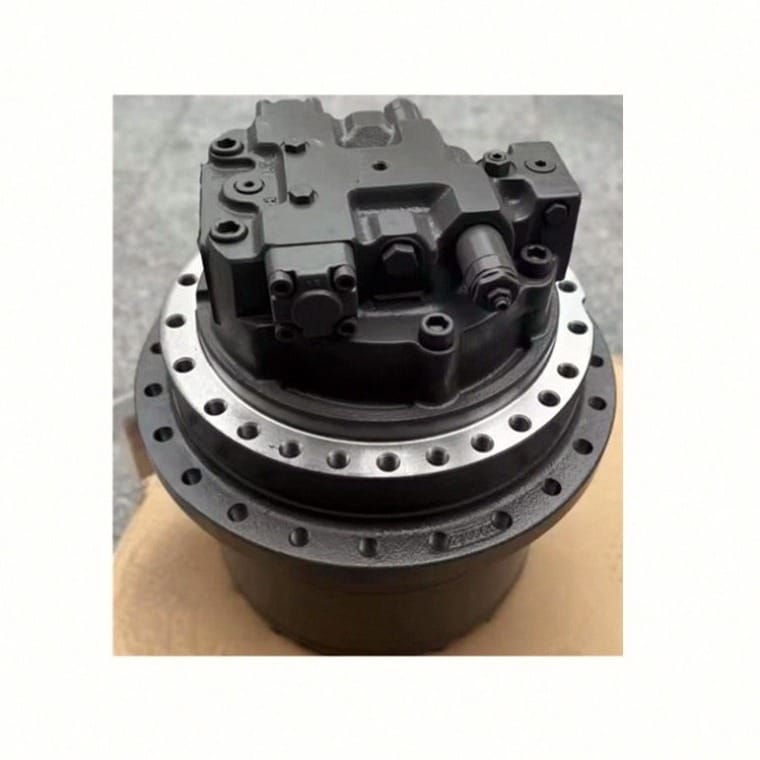

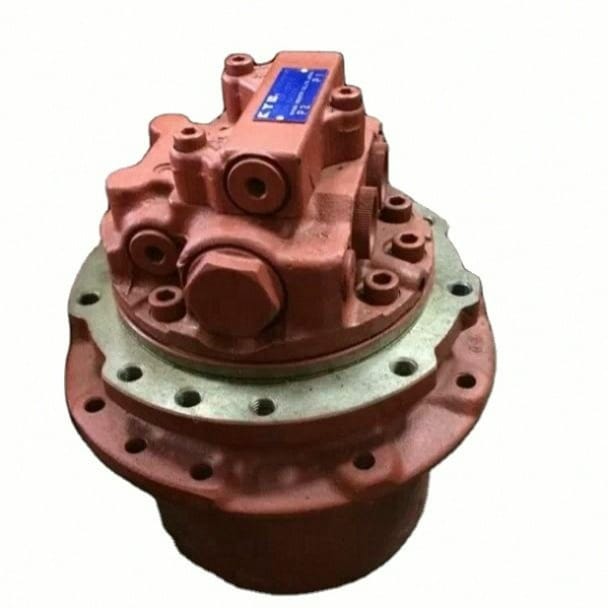

3. Hitachi: Hitachi ZX200-3 (4645227 / HMGC32), ZX210-5G, ZX330-3, EX200-5 Travel Motor Assembly
4. Volvo: Volvo EC210B (VOE14528731 / MAG-85), EC240B, EC290B, EC380D (MAG-170) Travel Motor Assembly
5. Kobelco: Kobelco SK200-8 (YN15V00021F1 / MSG-27P), SK210-8, SK350-8 Travel Motor Assembly

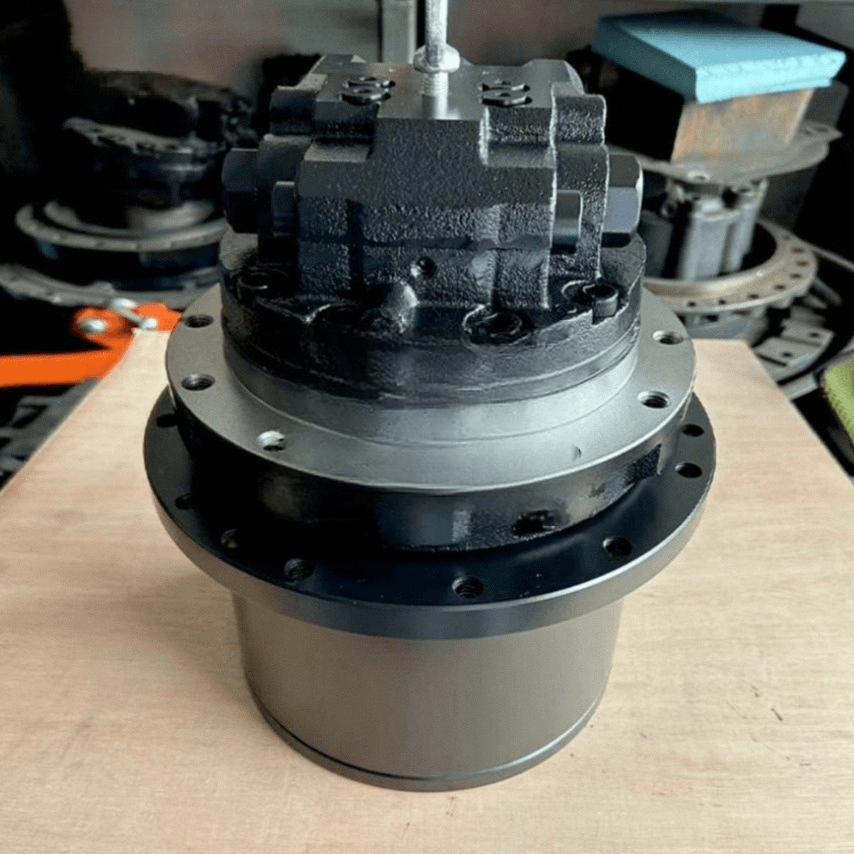

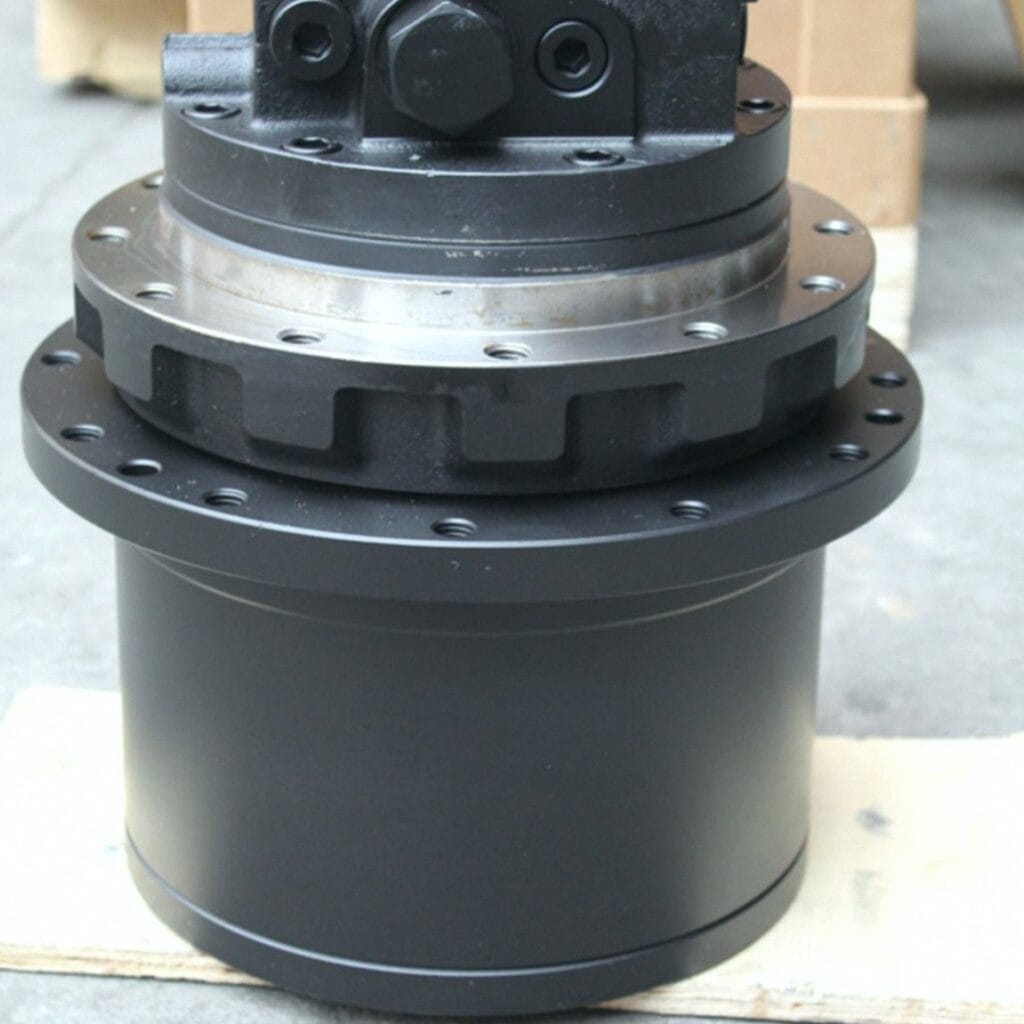

6. Doosan: Doosan DX225LC-5, DX300LC (TM40), DH220-5 (2401-9287) Hydraulic Travel Motor Assembly
7. Hyundai: Hyundai R210LC-7 (31N6-10110), R220LC-9S (31Q6-10110), R305-7 Travel Motor Assembly
8. SANY: Sany SY215C, SY235C, SY365H, SY500H Hydraulic Travel Motor Assembly
9. Kubota & Yanmar Mini: Kubota KX161 (MAG-18), U35, Yanmar ViO35, ViO55 Mini Excavator Travel Motors
10. JCB & Takeuchi: JCB JS220 (332/K1200), JS330, Takeuchi TB175 Hydraulic Travel Motor
Key Takeaways for Sourcing Excavator Final Drives
- Dual-Speed Swashplate Shift: Dynamic dual-displacement swashplates allow the track motor to shift automatically between high-speed travel and high-torque climbing modes.
- Precise Gearing Clearance: Carburized planetary gears are machined to strict backlash tolerances, preventing severe teeth impact wear under reverse traction.
- Induction Spline Hardening: Drive sun shafts are induction-hardened to HRC 58-62, helping reduce spline scuffing under severe dynamic loading.
- High-Spec Duo-Cone Sealing: Double-metallic floating ring faces isolate gear lubricants from muddy soil, keeping the reduction gearbox clear of contaminants.
- Case Drain Flow Validation: Verifying travel motor casing drain flow under maximum operating load is critical to prevent high-pressure shaft seal blowout.
Technical Specifications of Excavator Final Drives
High-Pressure Dynamic Sealing and Gear Metallurgy Standards
Ancillary planetary gearboxes and travel motors are highly sensitive to dirt ingress and metal particulate wear. Using the incorrect gear hardness or poor floating seals leads to tooth chipping, bearing deformation, and eventual reduction drive failure.
| Component / Steel Grade | Hardness & Gearing Tolerances Standards |
|---|---|
| Planetary Gears (20CrMnTi) | Hardness: HRC 58–62 (Carburized depth 1.2–1.6mm); high impact resistance |
| Drive Pinion Spline | Hardness: HRC 56–60 (Induction-hardened spline shaft); ground profile |
| Duo-Cone Metallic Ring | Hardness: HRC 65–72 (High-alloy cast iron); precision-ground flat face |
| Main Hub Bearings | Double-row angular contact ball bearings; designed for extreme radial tension loads |
Planetary Travel Motor Operational Specifications
| Machinery Operating Class | Gearing Reduction Ratio | Rated Output Torque | Brake Release Pressure | Casing Leakage Limit |
|---|---|---|---|---|
| 3.5 – 8 Ton Mini Excavator | 30:1 – 45:1 ratio range | 5,590 – 8,830 N·m | 1.8 – 2.5 MPa (25 bar) | < 1.0 L/min under load |
| 13 – 22 Ton Medium Excavator | 50:1 – 68:1 ratio range | 18,200 – 34,300 N·m | 2.5 – 3.2 MPa (32 bar) | < 2.5 L/min under load |
| 24 – 35 Ton Heavy Excavator | 60:1 – 76:1 ratio range | 34,300 – 37,300 N·m | 2.8 – 3.5 MPa (35 bar) | < 3.5 L/min under load |
| 38 – 50+ Ton Mining Excavator | 70:1 – 84:1+ ratio range | 40,000 – 60,000+ N·m | 3.0 – 3.8 MPa (38 bar) | < 4.5 L/min under load |
Technical Feature Matrix: Nabtesco GM35VL & Caterpillar SBS120 Standards
Below is a detailed technical matrix comparing standard auxiliary hydraulic components:
| Technical Feature | Engineering Specification & Operational Standard |
|---|---|
| Standard Travel Motor Models | Nabtesco GM35VL (Komatsu PC200-8 equivalent) / Caterpillar SBS120 (326-4635) |
| Maximum Output Torque | 34,300 N·m (3,500 kgf·m / 25,300 lbf·ft) at maximum relief limits |
| Reduction Gearing Ratio | 66.0 : 1 double-stage epicyclic reduction gearbox configuration |
| Recommended Lubrication Oil | ISO VG 220 / SAE 90 Gear Lubricant (Service interval every 1,500 operating hours) |
| Rotary Group Displacement | 140.5 cc/rev maximum / 82.5 cc/rev minimum dual-displacement axial piston |
Practical Guide to Sourcing Heavy Equipment Hydraulic Travel Motors
1. Verifying Case Drain Backpressure and Shaft Seal Integrity
When installing replacement excavator travel motors, checking case drain pressure is the single most critical diagnostic task. Partner with suppliers who provide full-flow test bench reports. Tatan Machinery Subjects every complete final drive assembly to 100% pre-shipment tests to confirm casing leakage limits are well within standard parameters under full load.
"As documented in Bosch Rexroth Mobile Hydraulics Technical Guidelines: 'Pre-installation hydraulic circuit flushing, cleaning the main casing return filter, and measuring travel motor case drain pressure are critical to prevent dynamic shaft seal blowout and safeguard the internal motor rotary group from cavitation wear under continuous load.'" — Official Source: Bosch Rexroth Mobile Hydraulics Technical Publications
2. Troubleshooting Sluggish Crawling or Planetary Gear Stripping
Sluggish crawling or uneven track tracking is often caused by an internal hydraulic oil leak in the travel motor. Active field technicians on Heavy Equipment Forums state: "A clogged casing drain filter or a leaking Duo-Cone seal is the primary cause of final drive failure. Elevated case drain pressure blows out the main shaft seal, allowing hydraulic oil to wash into the gearbox, dilute the gear lubricants, and cause the planetary gears to strip under traction."
3. Preventing Mud Packing and Final Drive Seizure
Operating excavators in wet clay or sand can cause soil to pack inside the sprocket teeth, putting excessive radial loads on the main hub bearings. Always adjust your track chain tension to standard factory sag specifications (typically 25–40 mm track sag) and flush out the track frame regularly to prevent bearing seizure and Duo-Cone seal face misalignment.
Why Choose Tatan Machinery: Final Drive Supplier Comparison
Below is an objective comparison showing why repair workshops, mining operators, and fleet managers trust Tatan Machinery over generic traders:
| Key Metric | Tatan Machinery Standard | Typical Generic Traders | Buyer Advantage |
|---|---|---|---|
| Gear Steel & Hardness | Forged 20CrMnTi steel planetary gears carburized to HRC 58-62 | Cast iron or shallow induction-hardened gears | 2x Longer service life in rock environments |
| Dynamic Sealing | Precision Duo-Cone floating seals with high-resilience nitrile O-rings | Low-grade standard NBR rubber rings only | Zero mud or water ingress, protecting gears |
| Testing Verification | 100% Bench tested for casing drain, shift solenoid, and torque hold | Visual inspection or brief no-load spinning only | Guarantees complete drive performance on site |
| Technical Support | Dynamic Specialists (Sprocket/Pinion Match < 1 Hr) | Sales Representatives with no engineering background | Ensures correct gear ratios and bolt-on fit |
| Consolidated Sourcing | Consolidated packing with Remanufactured Engines or Main Pumps | Single product category supply only | Cuts shipping costs and simplifies logistics |
