Isuzu Engine Application Solutions
Heavy Excavation
High-durability engine kits for Isuzu 6HK1 engines used in 30-ton Hitachi and Sumitomo machines.
Mining & Bulk Loading
Reliable rotating groups for Isuzu 6WG1 engines in ultra-class excavators working in extreme dust.
Urban Construction
Fuel-efficient components for Isuzu 4HK1 and 4JJ1 series in medium excavators and loaders.
Logistics & Support
Strategic engine maintenance groups designed to extend Isuzu service life and reduce cost-per-hour.
Isuzu Metallurgical Standards & Combustion Efficiency
The longevity of an Isuzu engine in heavy construction depends on the precise management of Exhaust Gas Temperatures (EGT) and cylinder pressure. Maintaining this requires Isuzu Engine Parts with high-silicon alloy content and micron-lapped surfaces. Tatan Machinery ensures that every rotating assembly is balanced to within 0.5 grams to prevent crankshaft torsional vibration.
"Correct fuel injector calibration (± 1.0 micron) and the use of centifugal cast liners are the primary factors in preventing liner cavitation and piston seizing in high-output Isuzu 6HK1 series."— Technical Expert Insight: Isuzu Engine Rebuild Discussion, Heavy Equipment Forums
Comparative Matrix: Isuzu Genuine vs. Tatan Technical vs. Standard Aftermarket
| Technical Metric | Isuzu Genuine (OEM) | Tatan Technical Grade | Standard Aftermarket |
|---|---|---|---|
| Crankshaft Steel | Forged Micro-Alloy | Forged 42CrMo Steel | Nodular Cast Iron |
| Injector Precision | ± 1.0 micron | ± 1.2 microns | ± 5.0+ microns |
| ROI / Price Ratio | 100% (High Cost) | 40% - 55% Savings | Lowest (High Risk) |
| Liner Casting | Centrifugal / Boron | Centrifugal Cast | Standard Static Cast |
Critical Component Cross-Reference for Supported Isuzu Engines
| Isuzu Engine Model | Common Machine Fitment | Critical Part (Part No. Ref) | Technical Spec |
|---|---|---|---|

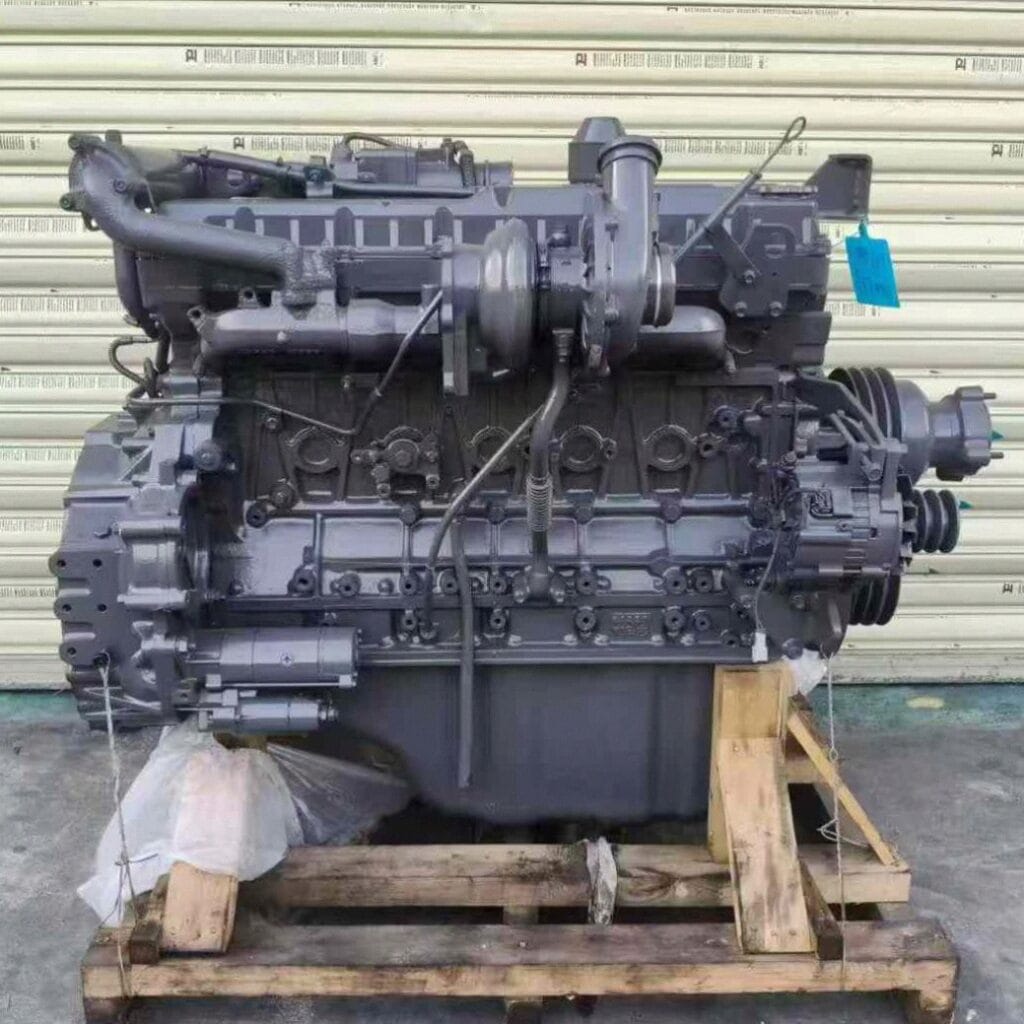

| Isuzu 4HK1 / 6HK1 | Hitachi ZX200/ZX330, JCB JS200 | Turbocharger 114400-3890 | 180,000 RPM Balanced |
| Isuzu 6WG1 | Hitachi ZX470, Sumitomo SH460 | Engine Overhaul Kit | Anti-Warping Head Gaskets |

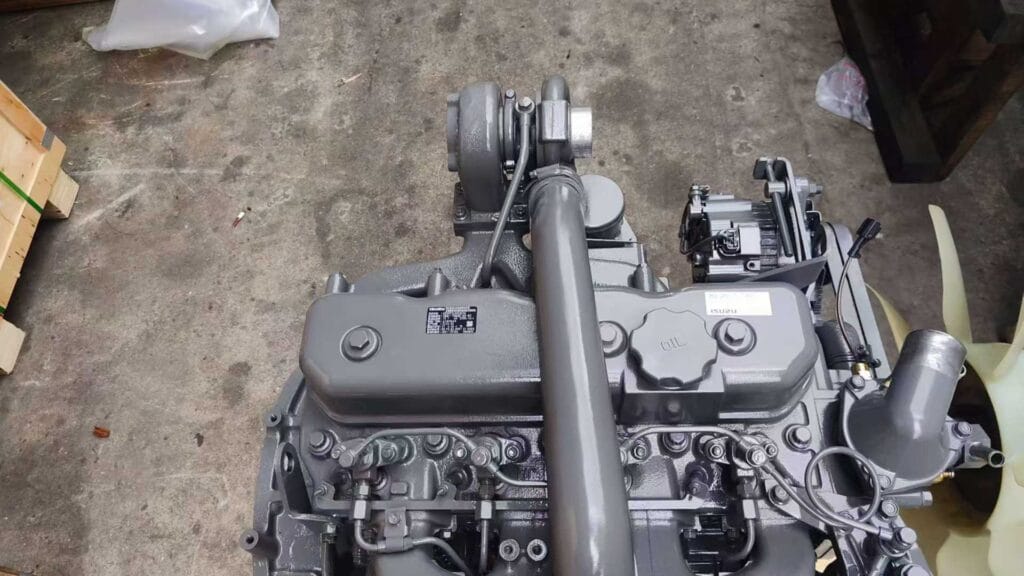

| Isuzu 4JJ1 / 4BG1 | Mini Excavators, Skid Steers | HPCR Injector 8-98284393-0 | 1600 Bar Pressure Tested |
Advanced Quality Control for Isuzu Components
- Engine Serial Number (ESN) Cross-Ref: We utilize Isuzu's official database to cross-reference your ESN (e.g., 6 digits found on the block) to ensure 100% arrangement harmony.
- Denso-Compatible Calibration: Our fuel system parts are tested on bench stands that replicate Denso’s original solenoid pulse logic, preventing ECU fault codes.
- Heat Treatment Verification: Connectings rods are verified for HRC 28-32 core hardness to maintain structural rigidity under extreme combustion strokes.
Technical FAQ: Isuzu Engine Maintenance
Why do Isuzu 6HK1 common rail injectors fail early?
Most Isuzu HPCR injector failures are due to fuel contamination causing erosion of the 1-micron internal nozzle surfaces. Tatan’s technical-grade injectors are tested at 1800 bar, but we highly recommend using high-efficiency 2-micron separators to protect the fuel system's volumetric precision.
Are Hitachi-Isuzu engine parts different from Case-Isuzu parts?
Yes. While the core block may be the same, the arrangement (turbo orientation, flywheel housing, and electronic sensor logic) often differs. Always provide your Machine Model and Engine Serial Number to verify electrical and mechanical compatibility.
What is the benefit of Tatan's "Forged" crankshafts for Isuzu?
Isuzu engines in excavators face rapid load changes. Our forged 42CrMo crankshafts undergo deep induction hardening of journals, providing the necessary core toughness to resist torsional snapping during heavy excavation stalls.
Official Isuzu Support Data: Isuzu Engines Global | Engineering Forum: Heavy Equipment Forums
