Hydraulic Parts FAQs
Q: What smaller and auxiliary hydraulic parts do you supply for excavators?
A: Tatan Machinery supplies a full range of ancillary parts, including pilot gear pumps, cooling fan pumps, main and pilot relief valves, cylinder seal kits, rotary center joint manifolds, and high-pressure hose and O-ring assortments.Q: How do you verify O-ring and seal kit compatibility for my heavy equipment?
A: We verify exact seal kit fitment by cross-referencing your machinery model and cylinder part numbers against OEM catalogs. This ensures that rod diameters, piston bores, and groove widths match standard tolerances.Q: My excavator is experiencing slow, sluggish joystick controls. Is this caused by the pilot pump?
A: Sluggish joystick controls are often a symptom of low pilot pressure (which should operate between 3.9 and 4.5 MPa). Internal gear wear in the pilot pump is a common cause, and replacing the pilot gear pump is usually the standard solution to restore prompt responsiveness.Q: What seal materials do you use to prevent hydraulic oil leaks in hot mining environments?
A: Our premium seal kits utilize High-Modulus Polyurethane (95 Shore A) and Fluorocarbon (FKM) elastomer compounds. These high-grade polymers withstand continuous hydraulic oil temperatures up to 120°C and transient peaks of 135°C without hardening or cracking.Q: Are your replacement relief valve cartridges pre-calibrated to factory specifications?
A: Yes. All our main and port relief valves are calibrated on our hydraulic test benches to standard factory cracking pressures (typically 32 to 35 MPa for main relief circuits). Each valve is shipped ready for direct, plug-and-play installation.
A Guide to Hydraulic Parts and Their Uses
Construction Machinery Hydraulic Parts Applications
Pilot & Control Circuits
Delivers consistent, low-pulsation oil flow via pilot gear pumps to ensure swift and accurate joystick responsiveness.
High-Pressure Overload Safety
Utilizes hardened relief valves to absorb extreme pressure spikes, protecting valuable main pumps and cylinders.
Dynamic Cylinder Sealing
Maintains high pressure boundaries on boom, arm, and bucket cylinders with high-elasticity polyurethane seal kits.
Regular Fleet Overhaul & Service
Provides direct-replacement gear pumps, O-ring assortments, and hose fittings for routine undercarriage or chassis service.
A Comprehensive Guide to Heavy Equipment Auxiliary Hydraulic Parts & Seals
While the main piston pump provides primary hydraulic energy, a network of smaller auxiliary components determines the control accuracy and sealing integrity of heavy machinery. Pilot gear pumps, fan pumps, relief valves, and dynamic cylinder seals serve as the primary barriers preventing internal pressure drop, dynamic drift, and high-temperature oil leaks. Tatan Machinery supplies precision auxiliary hydraulic components and complete seal repair kits engineered to withstand continuous high pressure and severe environmental abrasion."As documented in Parker Hannifin O-Ring Engineering Manuals: 'High-pressure dynamic seals, cylinder packings, and O-rings operating in heavy construction equipment require high-modulus polyurethane (95 Shore A) and fluorocarbon (FKM) elastomer compounds to withstand high-velocity oil jets and continuous fluid shear up to 135°C, preventing system pressure decay.'" — Official Source: Parker Hannifin Hydraulic Sealing Technical Publications

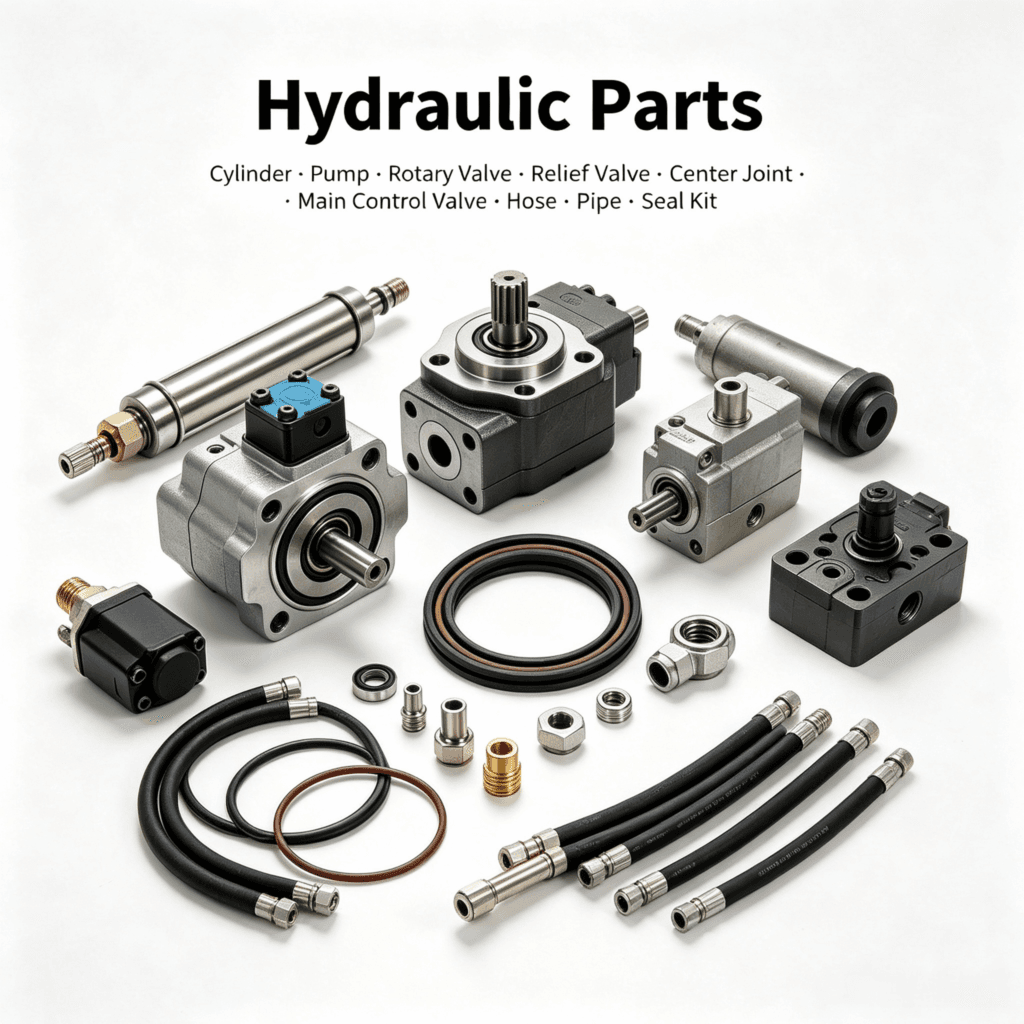

Ancillary Hydraulic Component Classifications We Support
Below is a summary of the high-frequency auxiliary hydraulic parts and sealing components supported by Tatan Machinery:| Component Category | Engineering Function in Construction Machinery | Available Materials & Specifications |
|---|---|---|
| Pilot Gear Pump | Pressurizes and supplies steady oil flow (3.9 - 4.5 MPa) to pilot control lines | Alloy gear steel housing, low-pulsation displacement |
| Main / Pilot Relief Valve | Relieves excessive circuit pressure to protect main components | Hardened spools (HRC 58-62), calibrated cracking pressure |
| Dynamic Cylinder Seal Kit | Prevents internal oil bypass across boom, arm, and bucket pistons | Polyurethane (PU 95 Shore A), PTFE-based buffer rings |
| Fan Pump Assembly | Supplies pressurized hydraulic fluid to cooling fan drive systems | Alloy gear or small axial piston configuration |
| Hoses & Fittings | Transfers pressurized fluid between pilot, fan, and main circuits | Steel wire reinforced hoses, standard SAE / metric threads |
1. Caterpillar (CAT): CAT 320D (SBS120 Pilot Gear Pump), CAT 336D Pilot Relief Valve, 349D Cylinder Seal Kits, SAE O-Ring Assortments
2. Komatsu: PC200-8 (HPV95 Pilot Pump Gear), PC300-8 (708-2L seals), Main Relief Cartridge, NBR 90 Shore Gaskets
3. Hitachi: ZX200-3 Pilot Gear Pump, ZX330-3 Main Safety Relief Valve, Center Joint Seal Repair Group
4. Volvo: EC210B (VOE14528731 Fan Pump), EC240B, EC380D Boom/Arm Cylinder Seal Kits, Metric Hose Fittings
5. Kobelco: SK200-8 Pilot Relief Valve Cartridge, SK210-8, SK350-8 Slew Motor Oil Seal Kits, O-Ring Boxes
6. Doosan: DX225LC Pilot Valve Block Solenoids, DX300LC Cylinder Gland Seals, PTFE Buffer Rings
7. Hyundai: R210LC-7 Pilot Gear Pump, R220LC-9S Main Control Valve Seal Kit, High-Pressure Relief Cartridge
8. SANY: SY215C, SY235C, SY365H Pilot Gear Pump Assemblies, Dynamic Cylinder Packing repair sets
9. JCB & Takeuchi: JCB JS220 Pilot Relief Valve, JS330 Travel Motor Seal Kit, Dynamic O-Ring Assortment
10. Kubota & Yanmar: Kubota KX161 Pilot Gear Pump, Yanmar ViO55 Mini Excavator Sealing O-Rings, Bottom Roller Seals
Key Takeaways for Sourcing Sealing & Auxiliary Hydraulic Parts
- Volumetric Gear Accuracy: Replacement pilot gear pumps must maintain low mechanical play, delivering steady pilot oil pressure of 3.9–4.5 MPa.
- Induction Spool Hardness: Relief valve spools are hardened to HRC 58-62, helping prevent internal metal scoring from abrasive suspended particles.
- Dynamic Seal Temperature Limits: Polyurethane (PU) and FKM rubber cylinder seals retain elasticity in operating environments up to 120°C.
- Hose Wire Reinforcement: High-pressure hydraulic hoses utilize steel-wire braids, matching standard SAE working pressure ratings.
- Thread Pattern Verification: Confirming port thread geometries (SAE Flange, BSPP, or Metric) prevents fluid turbulence and external leak paths.
Technical Parameters of Auxiliary Hydraulic Parts & Seals
High-Pressure Sealing Compounds and Material Standards
Ancillary hydraulic components, particularly O-rings and cylinder packings, are highly sensitive to thermal degradation and friction wear. Using the incorrect material compound leads to seal hardening, fragmentation, and subsequent internal leakage.| Seal Compound Material | Hardness & Temperature Range Standards |
|---|---|
| Polyurethane (PU) | Hardness: 92–95 Shore A; Temperature: -35°C to 110°C (Standard cylinder U-cups) |
| Fluorocarbon (FKM / Viton) | Hardness: 80–90 Shore A; Temperature: -20°C to 200°C (High-temperature relief valves and pump ports) |
| Nitrile Rubber (NBR) | Hardness: 70–90 Shore A; Temperature: -30°C to 100°C (Standard pilot O-ring boxes and dust wipers) |
| PTFE (Teflon) Buffer Rings | Hardness: Rigid low-friction compound; Temperature: -50°C to 200°C (Cylinder piston sealing glide rings) |
Auxiliary Hydraulic Part Specifications
| Ancillary Part Category | Displacement / Flow Limit | Standard Relief Pressure | Max Fluid Temperature (°C) | Internal Leakage Limit |
|---|---|---|---|---|
| Pilot Gear Pump | 10 – 25 L/min | 3.9 – 4.5 MPa (45 bar) | 90°C continuous limit | < 0.5 L/min at max pressure |
| Cooling Fan Pump | 15 – 40 L/min | 20 – 25 MPa (250 bar) | 100°C continuous limit | < 1.0 L/min at max load |
| Main Relief Valve | Standard system flow limit | 32 – 35 MPa (350 bar) | 120°C peak limit | No physical oil bypass before cracking |
| Pilot Relief Cartridge | Pilot control flow limit | 3.5 – 4.5 MPa (45 bar) | 100°C standard limit | Zero drip below cracking threshold |
Technical Feature Matrix: Pilot Pump & Relief Valve Standards
Below is a detailed technical matrix comparing standard auxiliary hydraulic components:| Technical Feature | Engineering Specification & Operational Standard |
|---|---|
| Standard Pilot Pump Models | Caterpillar SBS120 gear style pilot pump, Komatsu PC200-8 integrated pilot pump |
| Rated Relief Cracking Limits | 34.3 MPa (Standard system relief) / 3.9 MPa (Pilot control relief) |
| Dynamic Hose Standards | SAE 100R2 double steel wire braided hydraulic hose specifications |
| Recommended Fluid Cleanliness | ISO 18/16/13 target cleanliness level (Zinc-free AW 46 mineral-based oil) |
| Center Joint Seal Limits | PTFE dynamic rotatory seals with high-pressure NBR backing O-rings |
Practical Guide to Sourcing Sealing & Auxiliary Hydraulic Parts
1. Checking Seal Compound Integrity & Dynamic Tolerances
When sourcing hydraulic cylinder seal kits or O-rings internationally, verifying compound specifications is essential. Partner with suppliers who utilize high-modulus polyurethane and FKM elastomers with verified hardness and thermal limits. Tatan Machinery Subjects all seal groups and valve spools to strict dimensional and compound audits prior to export."As documented in Bosch Rexroth Mobile Hydraulics Technical Guidelines: 'Pre-installation hydraulic system cleaning, regular maintenance of pilot oil filtration systems, and the use of exact-compound polyurethane and FKM seal packs are critical to prevent dynamic pressure drops and protect control valves from abrasive particulate wear.'" — Official Source: Bosch Rexroth Mobile Hydraulics Technical Publications
2. Troubleshooting Sluggish Joystick Controls (Pilot Pressure Drop)
Slow or unresponsive excavator controls are often caused by low pilot line pressure. Sourcing specialists on Heavy Equipment Forums point out: "Internal gear wear in the pilot pump or a leaking pilot relief valve cartridge is the main cause of sluggish controls. Testing pilot circuit pressure (which should read between 3.9 and 4.5 MPa) is the standard method to identify and resolve this issue before replacing expensive control blocks."3. Preventing Dynamic Thread Stripping & Flange Leaks
Using incorrect thread patterns or fittings during maintenance can damage component housing threads. European, Japanese, and American excavators utilize metric, BSPP, and SAE thread specifications, respectively. Verify all fitting thread standards and utilize corresponding NBR O-rings to ensure a secure, leak-free connection under high pressure.Why Choose Tatan Machinery: Auxiliary Hydraulic Parts Comparison
Below is an objective comparison showing why repair workshops, mining operators, and fleet managers trust Tatan Machinery over generic traders:| Key Metric | Tatan Machinery Standard | Typical Generic Traders | Buyer Advantage |
|---|---|---|---|
| Material Grade | High-Modulus PU (95 Shore A) & FKM (Viton) seals, HRC 58-62 hardened spools | Standard NBR rubber, soft steel spools (HRC < 50) | 2x Longer seal and valve service life |
| Fitment Verification | Free OEM part cross-referencing and technical parameter verification | Generic catalog listing only | 100% Precision fitment on site |
| Dynamic Bench Testing | 100% Bench tested for cracking pressure, pilot flow, and seal hold | Visual inspection / Static checking only | Ensures component performance upon installation |
| Technical Support | 24/7 Dedicated Hydraulic Engineers (Reply < 1 Hr) | Standard Sales Representatives | Fast, professional system troubleshooting |
| Export Packaging | Internally cleaned & port plugged + VCI anti-rust film + sturdy wooden box | Standard cardboard / loosely packed boxes | Zero transit corrosion or damage to ports |
