Excavator Hydraulic Pump Repair Kit & Spare Parts FAQs
Q: Can I replace only a single piston or a single valve plate during a hydraulic pump rebuild?
A: We highly recommend replacing the entire rotating group as a matched set. Mixing old pistons with a new cylinder block or installing a new valve plate against a worn barrel face causes uneven clearances, resulting in rapid micro-scoring and loss of volumetric efficiency.Q: What is the most critical technical parameter to inspect when overhauling a cylinder block?
A: Mating face flatness is the most critical parameter. The surface mating with the valve plate must be flat within 1-2 microns. Any warp or scratch greater than 3 microns will fail to maintain the necessary high-pressure oil wedge, causing immediate internal leakage.Q: Why does my excavator lose hydraulic power and slow down when the oil gets hot?
A: SLuggishness when hot is caused by internal fluid bypass. As the hydraulic oil heats up and viscosity drops, the oil slips through enlarged clearances between worn pistons and cylinder bores, or across scored valve plates. Replacing the rotary group restores tight clearances.Q: How do I verify the spline diameter and shaft length of a drive shaft before ordering?
A: Count the drive spline teeth (e.g. 13T, 14T, 15T) and measure the shaft's overall length and shoulder diameters. Provide your excavator serial number, and Tatan's technical desk will cross-reference the original engineering drawings to confirm fitment.Q: What are the symptoms of a worn ball guide or cylinder spring set?
A: A worn ball guide or fatigued cylinder springs fail to apply adequate preload force holding the cylinder block against the valve plate and the pistons against the swashplate. This causes chattering noises, pressure fluctuations, and catastrophic shoe slippage at startup.
A Guide to Excavator Hydraulic Pump Repair Kit & Spare Parts and Their Uses
Construction Machinery Hydraulic Pump Repair Applications
Dynamic Overhaul & Rebuilds
Restores pump pressure and eliminates internal hydraulic slip by replacing complete matching rotating groups.
Sluggish Power & Speed Recovery
Eliminates pressure drops when oil is hot by restoring the micron-level flatness of valve-plate-to-barrel surfaces.
Severe Pressure Fluctuations
Resolves system pulsation and chattering noises by replacing fatigued cylinder springs and scored piston shoes.
Preventative Workshop Fleet Stocking
Maintains high fleet availability by keeping replacement pistons, bearings, and shafts ready for rapid rebuild turnaround.
A Comprehensive Guide to Sourcing Heavy Equipment Hydraulic Pump Repair Kits
The main hydraulic pump converts engine output torque into high-pressure fluid energy, driving all primary actuator circuits in tracked excavators. Continuous dynamic loading causes high frictional shear and micro-scratch wear on cylinder blocks, pistons, valve plates, and swashplates. Rather than purchasing a costly complete new pump, rebuilding with matched rotary group components restores system pressure, minimizes power dissipation, and halts internal fluid drift."As documented in Kawasaki Precision Machinery Technical System Guidelines: 'Within the K3V112 axial piston pump, dynamic volumetric efficiency relies entirely on maintaining a microscopic oil wedge clearance between the Cylinder Block and the Valve Plate. Replacing these items as a matched set is the only reliable way to ensure proper balance and prevent catastrophic friction seizure under maximum relief load.'"

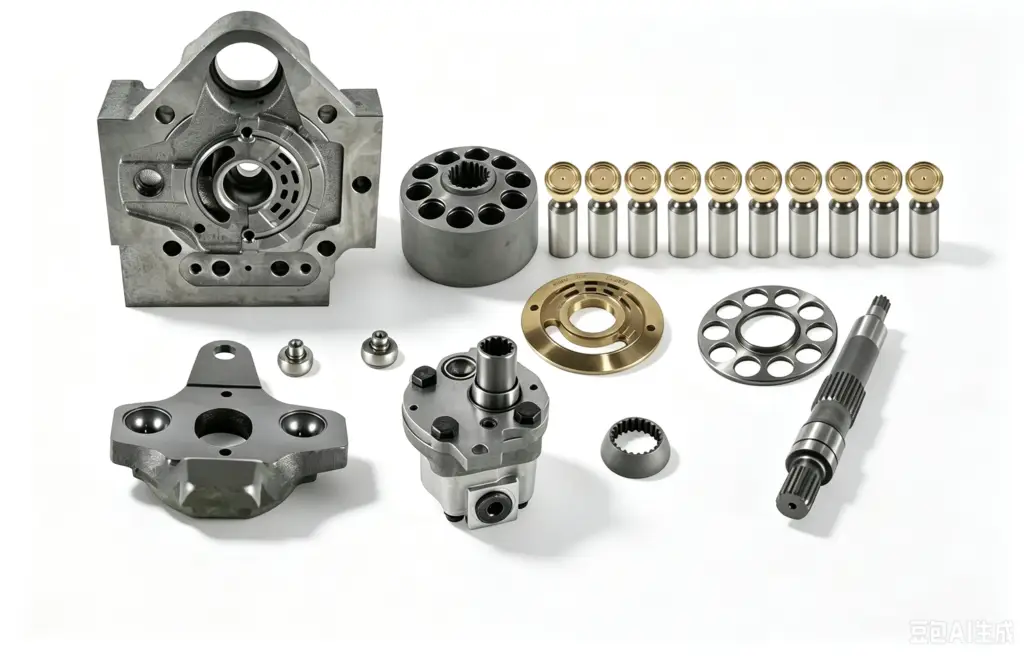

Hydraulic Pump Spare Parts Classifications We Support
Below is a summary of the heavy-duty pump overhaul components and rotating group parts supported by Tatan Machinery:| Component Name | Engineering Function in Heavy Axial Piston Pumps | Available Rebuild Specifications |
|---|---|---|
| Cylinder Block / Barrel | Houses the reciprocating pistons and rotates with the spline drive shaft | Bimetallic lead-bronze alloy lined bores, micro-lapped mating face |
| Piston & Shoe Assembly | Reciprocates inside block bores to generate and maintain fluid pressure | Forged steel pistons, swaged copper-alloy shoes with labyrinth grooves |
| Valve Plate / Port Plate | Controls fluid intake and high-pressure discharge timing cycles | Nitrided hardened surface (HRC 58-62), ground flatness (1-2μm) |
| Retainer / Shoe Plate | Holds the nine piston shoes in secure alignment against the swashplate | Nitrided carbon steel plate, precision-bored shoe holes |
| Ball Guide / Ball导向 | Transmits cylinder spring preload force to the shoe retainer plate | Nitrided alloy steel ball joint, hardened surface finish |
| Cylinder Spring Set | Applies critical preload force to keep block and valve plate seated at startup | High-tensile spring steel wire, calibrated preload rate |
| Swash Plate & Cradle | Alters piston stroke length to regulate variable oil displacement | Forged alloy steel body, super-finished flat sliding face |
| Servo Piston & Pin | Actuates the swashplate angle under pilot pressure to regulate pump flow | Ground steel piston, matched clearance pilot bore |
| Main Drive Shaft | Transfers rotational mechanical power from the engine to the block | Forged 40CrMo alloy steel, carburized spline teeth |
| Bearing & Needle Bearings | Support shaft rotation and cradle movement under high radial/axial loads | Premium bearing steel, high-precision cage and rollers |
1. Caterpillar (CAT): CAT 320D (326-4635 / SBS120) Rotary Group Rebuild Parts, SBS140 Piston Set, AP12 Valve Plate
2. Komatsu: Komatsu PC200-8 (708-2L-00300 / HPV95) Cylinder Block, PC300-8 (HPV132) Valve Plate, HPV160 Shaft
3. Hitachi: Hitachi ZX200-3 (XJBN-00060 / K3V112) Piston & Shoe Set, ZX330-3 (K5V140) Cylinder Barrel, Ball Guide
4. Volvo: Volvo EC210B (VOE14541875 / K3V112) Cylinder Block, EC380D (K5V160) Swash Plate & Retainer Assembly
5. Kobelco: Kobelco SK200-8 (YN15V00021F1 / K3V112) Rebuild Kit, SK350-8 Valve Plate, Cradle Bearing Sets
6. Doosan: Doosan DX225LC (K3V112) Cylinder Block, DX300LC (K5V140) Pistons & Shoe Assembly, Swash Plate
7. Hyundai: Hyundai R210LC-7 (31N6-10050) Cylinder Block, R220LC-9S Piston Shoe sets, Valve Plate LH/RH
8. SANY: Sany SY215C (K3V112) Rotating Group rebuild kit, SY365H (K5V160) Cylinder block, Ball Guide, Drive Shaft
9. JCB: JCB JS220 (Kawasaki K3V112) Cylinder Block, JS330 (K3V140) Pistons, Retainer Plate & Cylinder Springs
10. Yanmar: Yanmar ViO55 (Yanmar Pump Series) Rebuild components, Piston shoes, block spring, swashplate assembly
Key Takeaways for Sourcing Pump Repair Kits
- Mating Surface Flatness: The cylinder block face mating with the valve plate must be flat within 1–2 microns to maintain high-pressure boundaries.
- Centrifugal Bimetal Barrel Bores: Premium cylinder blocks utilize lead-bronze linings fused inside iron blocks to optimize lubrication and heat dissipation.
- Piston Shoe Play: The clearances between pistons and their swaged ball-joint shoes must be uniform to prevent shoe detachment at high RPMs.
- Nitrided Hardness layer: Wear-prone components like valve plates and retainer plates require nitriding to reach a surface hardness of HRC 58-62.
- Preload Spring Stiffness: fatigueless cylinder springs are critical to hold the block against the valve plate and prevent slippage during startup.
Understanding Axial Piston Pump Overhaul Metrology
Preload Spring Compression and Hardness Guidelines
Internal rebuild spare parts undergo continuous friction under maximum load. Selecting components machined to exact original drawings determines whether the pump overshoots or drops pressure boundaries during high-temperature cycles.| Component Metric | Engineering Standard & Material Specification |
|---|---|
| Cylinder Block Face Flatness | Ground and micro-lapped to ≤ 0.002 mm flatness, measured via optical flat rings. |
| Piston Shoe Spherical Clearance | Maintained within 0.015 – 0.035 mm axial play after hydraulic swaging. |
| Valve Plate Surface Hardness | Nitrided layer depth > 0.3mm with surface hardness HRC 58 – 62. |
| Drive Shaft Spline Material | Forged 40CrMo alloy steel with carburized spline teeth (tensile strength ≥ 1000 MPa). |
Axial Piston Pump Internal Fitting Clearances
| Rebuild Tolerance Metric | K3V63 / A10VO45 Class Parts | K3V112 / HPV95 Class Parts | K5V160 / HPV132 Class Parts |
|---|---|---|---|
| Piston-to-Block Bore Clearance | 0.015 – 0.022 mm | 0.020 – 0.028 mm | 0.025 – 0.035 mm |
| Piston Shoe Axial Play Limit | < 0.05 mm | < 0.06 mm | < 0.08 mm |
| Cylinder Block Spring Preload Rate | 150 – 180 N | 200 – 240 N | 260 – 320 N |
| Drive Shaft Radial Runout Limit | < 0.015 mm | < 0.020 mm | < 0.025 mm |

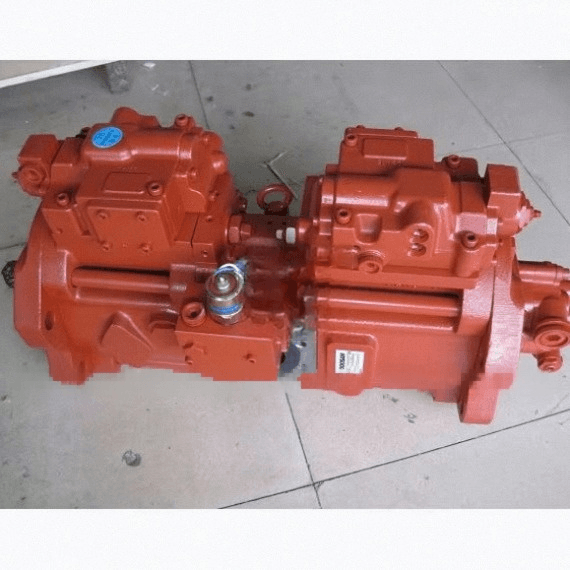

Technical Feature Matrix: Kawasaki K3V112 & Bosch Rexroth A10VO45 Repair Standards
Below is a detailed technical matrix comparing two common main pump rebuild designs:| Technical Feature | Engineering Specification & Operational Standard |
|---|---|
| Standard Pump Models | Kawasaki K3V112DT (Tandem Pump Rebuild) / Bosch Rexroth A10VO45 (Single Pump Rebuild) |
| Cylinder Block Alloy Sleeve | Bimetallic lead-bronze composite block sleeves / Monoblock cast iron cylinder |
| Piston Shoe Design | Labyrinth slipper design with double balancing lubrication grooves |
| Retainer System Style | Central spherical ball guide with flat nine-hole shoe retainer plate |
| Shaft Connection Type | Spline shaft connection matching engine elastic coupler (14T, 15T, or 17T) |
Practical Guide to Sourcing Heavy Excavator Hydraulic Pump Repair Kits
1. Verifying Gasket Seals & Dynamic Rotary Group Backing
When sourcing hydraulic pump repair components internationally, verification of dynamic tolerances is paramount. Partner with suppliers who subject cylinder blocks and piston sets to micrometer dimensional matching. Tatan Machinery subjects all rotating rebuild components to strict blueprint inspections and hardness checks prior to export."As documented in Bosch Rexroth Mobile Hydraulics Technical Publications: 'When re-assembling axial piston pumps, the cylinder block flatness, valve plate mating profile, and swaged piston shoe clearances must be verified in accordance with micron-level tolerances. Contaminated hydraulic fluids scratch cylinder barrel bores, leading to local thermal friction hotspots and dynamic cylinder seizure under heavy load.'"
2. Troubleshooting Pressure Fluctuation & Slack Joystick Response
Unsteady system pressure or slow hydraulic speed under load is often caused by internal pressure bypass. Sourcing specialists on Heavy Equipment Forums state: "Never mix and match old and new piston shoes or rebuild with a warped valve plate. Flatness must be within 1-2 microns, and piston shoe clearances must be uniform, otherwise, the high-pressure oil wedge will fail, resulting in rapid scoring and pump destruction under 35 MPa operating load."3. The Role of Cylinder Springs & Ball Guides in Preventing Startup Damage
Cylinder springs and the spherical ball guide hold the rotating barrel against the valve plate and maintain piston shoe alignment with the swashplate before system pressure builds. If springs are fatigued or the ball guide exhibits wear play, the rotating group may lift or tilt at startup. This misalignment ruins seal surfaces, causing rapid pressure loss or piston shoe detachment.Why Choose Tatan Machinery: Pump Repair Components Comparison
Below is an objective comparison showing why repair workshops, mining operators, and fleet managers trust Tatan Machinery over generic traders:| Key Metric | Tatan Machinery Standard | Typical Generic Traders | Buyer Advantage |
|---|---|---|---|
| Lapping Face Flatness | Precision-ground and micro-lapped to ≤ 0.002 mm flatness limit | Standard surface grinding (flatness > 0.005 mm) | Consistent pressure retention & zero drift |
| Hardened Layers | Nitrided wear plates and spools (HRC 58-62) with > 0.3mm case depth | Shallow induction hardening or raw alloy plates | Superior scratch and contamination resistance |
| Tolerance Auditing | 100% Dimensional checks against original equipment specifications | Visual inspection / Basic caliper measurements only | Ensures component performance upon installation |
| Consolidated Sourcing | Consolidated packing with Remanufactured Engines or Final Drives | Single product category supply only | Cuts shipping costs and simplifies logistics |
| Packaging Security | Anti-rust oiled + heavy plastic vacuum sealed + custom padded box | Loose cartons / Thin packing paper | Zero transit oxidation or scratch damage to lapped faces |
