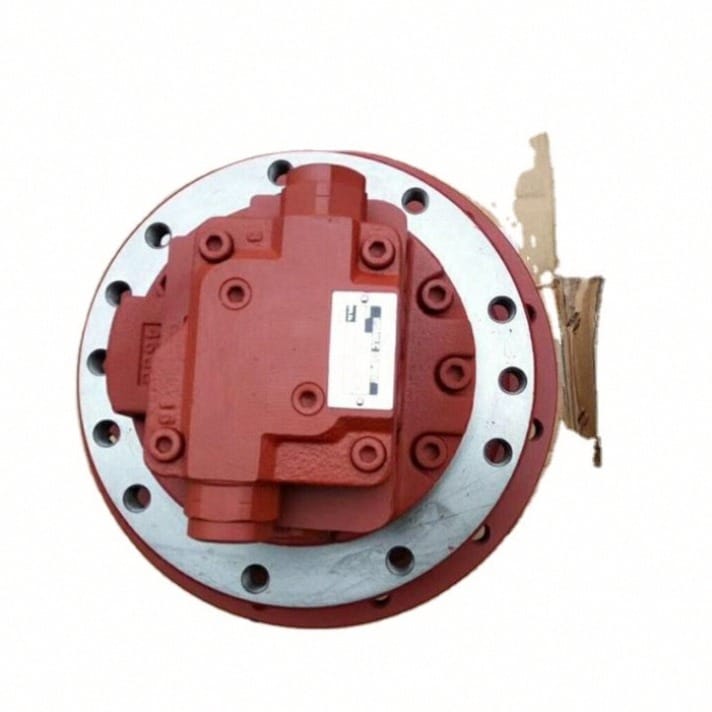

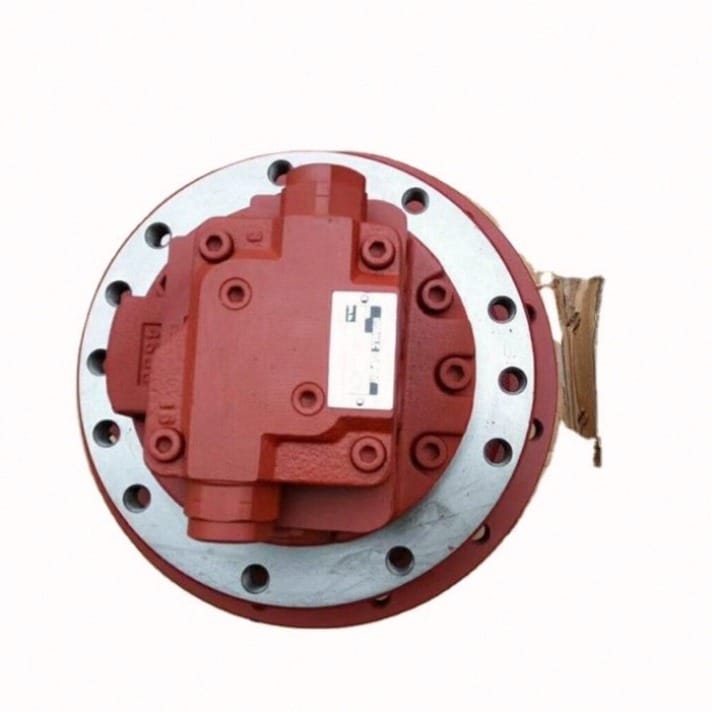

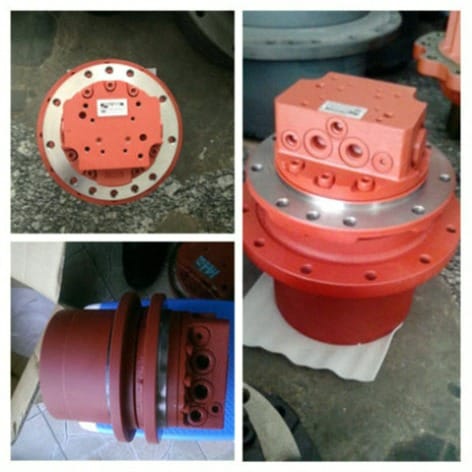

HMGF68 9281921 Travel Motor Assembly Overview
The HMGF68 9281921 Travel Motor Assembly manufactured by Tatan is an integrated hydraulic final drive unit designed for 30-35 ton class heavy-duty tracked mining machinery. Belongs to our Excavator Final Drive Travel Motor classification, replacing a failing drive with this complete HMGF68 9281921 Travel Motor Assembly unit eliminates straight-line travel deviation, high-pressure motor bypass, and catastrophic planetary gear failure on Hitachi ZX300-3, ZX330-3, ZX350-3, and ZX350H-3 30-35 ton excavators.
Engineered strictly to original reduction gear tolerances with a total shipping weight exceeding 400 kg, this complete unit integrates heavy-duty planetary carriers, high-torque sun gears, mechanical duo-cone floating seals, and integrated counterbalance valves into a single ready-to-bolt assembly, matching original 30-ton track frame bolt patterns and drive sprockets seamlessly.
Key Attributes & Parameters for HMGF68 9281921 Travel Motor Assembly
| Product Category | Excavator Final Drive Travel Motor | Warranty | 1 Year / 12 Months |
| Specific Motor Model | Hitachi HMGF68 / HMGF68BA Final Drive Motor | Brand Name | Tatan |
| Compatible Equipment | Hitachi ZX300-3 | ZX330-3 | ZX350-3 | OEM Part Number | HMGF68 / 9281921 / 9281920 |
| Rated Working Pressure | 34.3 MPa (343 Bar / 4975 PSI) | Braking System | Hydraulic Release Parking Brake |
| Reduction Mechanism | Heavy-Duty Multi-Stage Planetary Reduction (400kg+) | Travel Speed Modes | Automatic High (5.5) / Low (3.2 km/h) Speed |
| Machinery Test Report | Provided (100% Bench Torque Tested) | Video Outgoing-Inspection | Provided Before Shipping |
| Seal Configuration | Large-Diameter Floating Duo-Cone Seals | Place of Origin | Guangdong, China |
| Quality Status | 100% Brand New Final Drive Unit | Packaging | Export Reinforced Wooden Box Packaging |
Supported Machinery Brands & Final Drive Coverage
In addition to Hitachi, Tatan manufactures replacement complete travel motors, planetary gearboxes, and undercarriage components for leading machinery brands:
Application Scenarios & Buyer Value
When resolving track drive failures with our HMGF68 9281921 Travel Motor Assembly, workshops and equipment contractors eliminate operational downtime:
| Application Scenario | Value Delivered to Buyer |
|---|---|
| Hitachi ZX300-3 Final Drive Replacement | Installing the HMGF68 9281921 Travel Motor Assembly restores straight tracking immediately, cutting repair downtime by 80% compared to field gear overhauls on 30-ton units. |
| Mining Equipment Service Workshops | Eliminates the high risk of catastrophic secondary planetary failure caused by reusing spalled sun gears or worn needle roller bearings under 30-ton loads. |
| Quarry & Heavy Earthmoving Fleets | Delivers reliable 34.3 MPa tractive drawbar pull without track speed degradation under deep mud, blasted rock tramming, and steep grades. |
| Global Heavy Machinery Stockists | Pre-tested, fully crated final drive inventory ready for immediate air express or ocean container dispatch to international contractors. |
HMGF68 9281921 Travel Motor Assembly OEM Diagnostic Guide
Use this technical diagnostic guide to identify final drive and tracking faults on your Hitachi ZX300-3 excavator:
| Tracking Symptom | Technical Cause Analysis | Tatan Factory-Grade Solution |
|---|---|---|
| 1. Machine constantly veers to one side during forward travel | High internal oil bypass across worn valve plates and piston shoes in the weaker motor, dropping circuit pressure below 26.0 MPa. | Replace with a complete factory-tested HMGF68 9281921 Travel Motor Assembly. |
| 2. Travel motor fails to shift between low and high speeds | Two-speed pilot shift spool jammed by fluid contaminants, or hardened swashplate servo control piston seal rings. | Inspect two-speed solenoid valve signal, flush pilot hoses, or install a new pre-calibrated drive motor. |
| 3. Black gear oil leaking from the sprocket hub wheel face | Cracked mechanical duo-cone floating seal ring or abrasive rock slurry intrusion compromising internal elastomer O-ring tension. | Drain and inspect hub gear oil for metal debris, flush hub, and replace with a brand new sealed drive unit. |
| 4. Loud metallic grinding or clicking noise under tracking load | Severe spalling on the planetary gear needle bearings or fractured gear teeth on the central sun gear shaft under heavy quarry torque. | Halt operation immediately to prevent planetary carrier fracturing and swap to a new complete final drive unit. |
Transport Packaging & Fast Global Shipping
To ensure 100% damage-free international transport, every Tatan final drive assembly is preserved with anti-corrosion fluid, capped with steel port plugs, wrapped in heavy waterproof barrier film, and strapped inside an export-grade reinforced wooden crate.
✈️ Express Air Courier
Partnered with DHL, FedEx, UPS, and TNT for 3-7 day express door-to-door delivery worldwide.
🚢 Sea Cargo Freight
LCL and FCL ocean container shipping for heavy 400kg+ final drive units and bulk fleet inventory orders.
📦 Export Wooden Cases
Fumigated solid wooden boxes with custom high-density foam inserts to prevent shipping shock.
Quality Control & International Certificates
Tatan hydraulic and undercarriage components are manufactured under ISO 9001 certified quality control systems and strictly comply with CE industrial safety directives.
HMGF68 9281921 Travel Motor FAQ & Related Categories
* Note: Wholesale Reference Price Starts From $300.00. Please contact Gavin for a final customized quote.
