📅 August 28, 2026 | 👤 Author: Gavin
💡 Key Takeaways for Fleet Operators
- Primary Application: Heavy tracked crawler equipment, such as the Shantui SD16/SD22/SD32 bulldozers and Komatsu PC300-8/Caterpillar 330D excavators operating on abrasive terrains like sand, rocks, and mud.
- The Diagnostic Core: Premature link pitch elongation, squeaking rollers, and track throwing are caused by worn track pins and bushings, seized internal roller bearings, or failing floating seals.

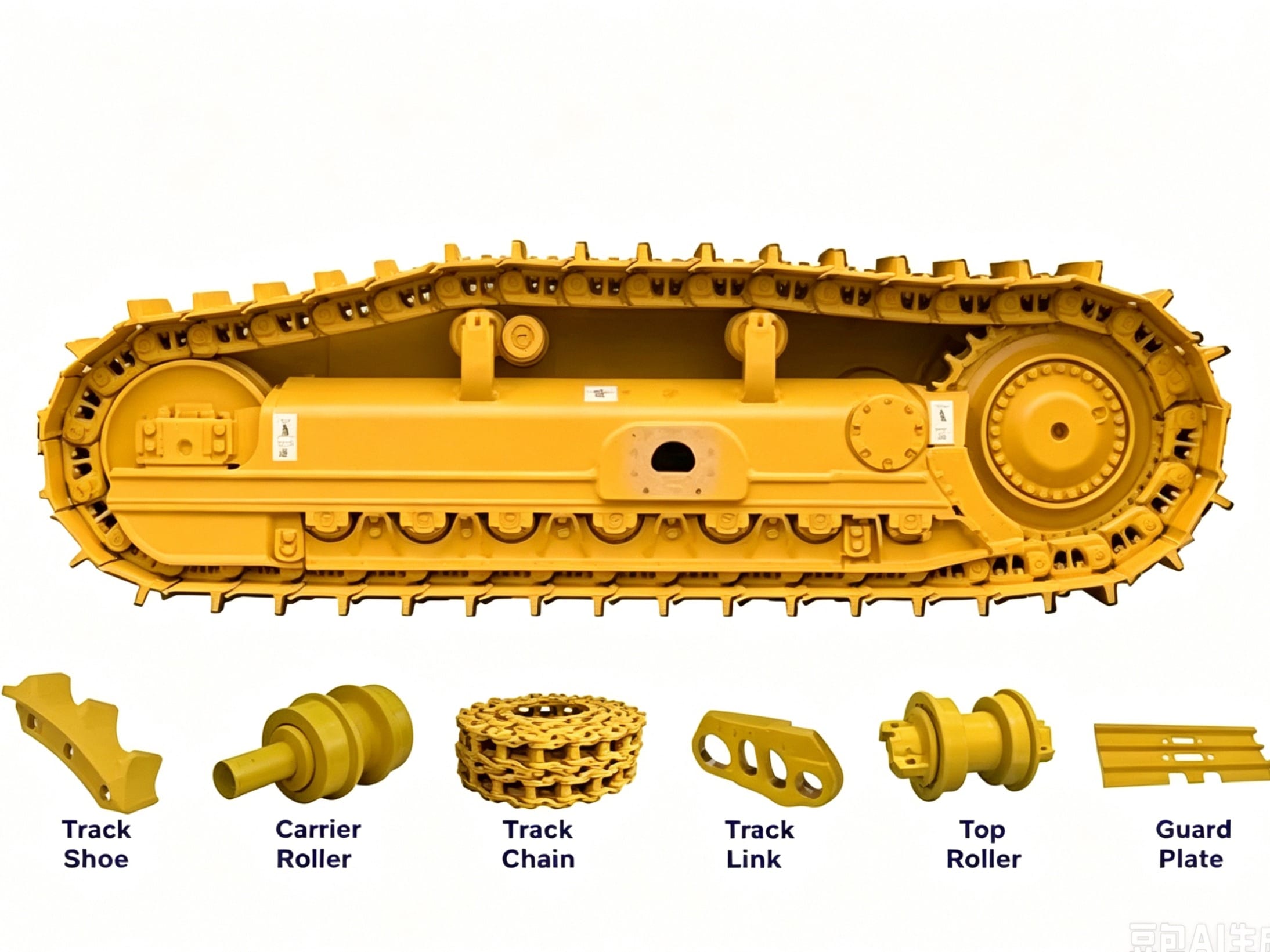

- Tatan Professional Engineering Standard: To maximize structural wear life, Tatan Machinery supplies heavy-duty track link assemblies, track rollers, carrier rollers, and front idlers. Our track links undergo deep induction hardening (case depth of 8 to 12 mm with a hardness of HRC 52-58) to resist severe impact and abrasive wear.
The Cost of Crawling: Why Undercarriage Maintenance Dictates Fleet Profitability
For crawler bulldozers and heavy tracked excavators, the undercarriage is the single most expensive wear system on the machine. Operating in abrasive mud, sharp rock quarries, and sandy construction environments, the undercarriage system is subjected to constant friction, high-impact loads, and structural twists. In fact, undercarriage wear and maintenance typically account for 50% of the total lifetime operating costs of a tracked crawler machine.
When a track chain becomes loose, or when a track roller (支重轮) seizes, the machine will suffer from tracking issues, reduced fuel efficiency, and a high risk of throwing a track (脱轨)—causing immediate, expensive downtime. Understanding how to identify, measure, and replace worn links, pins, and rollers is key to reducing your fleet’s total cost of ownership (TCO).
As senior field service engineers on Heavy Equipment Forums frequently point out:
“Never ignore a squeaking track roller. That squeak means the internal duo-cone seal has failed, the lubricating oil has leaked out, and the shaft is grinding against the bushing. A seized roller will quickly wear a flat spot on your track links, destroying the entire chain.”
The Anatomy of Link Pitch Elongation and Bushing Wear
The core of a track chain’s wear life is the interaction between the track pin and the bushing. As the track chain wraps around the drive sprocket and front idler, the pin rotates inside the bushing. In standard dry chains, this rotation creates metal-on-metal wear, slowly grinding away the inner wall of the bushing and the outer surface of the pin. This wear is called **link pitch elongation** (commonly referred to as “track stretch”).
To mitigate this in heavy dozers like the Shantui SD16, manufacturers utilize **lubricated track systems (SALT)**. These systems contain a reservoir of synthetic oil trapped inside the pin and bushing assembly by highly specialized polyurethane seal kits. If these seals fail, the oil leaks out, water and abrasive dust enter, and the internal wear rate increases by 300%—rapidly stretching the chain and causing misalignment on the drive sprocket.
According to the Caterpillar CustomTrack Service Wear Manual, managing link pitch is critical; when link pitch increases by just 3% to 4%, the track bushing will no longer mesh correctly with the sprocket teeth, leading to accelerated tooth wear and chain skipping.
The Defensive Barriers: Track Roller Duo-Cone Seals
Track rollers, carrier rollers, and front idlers are designed to support the massive weight of the machine. To ensure they rotate freely, they are filled with lubricating oil and sealed with high-durability **duo-cone (floating) seals** (浮动油封). These seals feature two mirror-polished alloy steel rings kept in contact by rubber toric rings.
If the machine is operated continuously in muddy terrain, packed mud can dry around the roller. When the machine moves again, the hardened mud pulls at the rubber toric rings, warping the seal and allowing oil to escape. Once the oil is gone, the roller bushing grinds against the shaft, leading to roller seizure and uneven link wear.
To inspect your undercarriage components and source high-durability, induction-hardened track links and rollers, visit the Tatan Machinery Homepage.
Step-by-Step Diagnostic Sequence for Undercarriage Wear
To maximize undercarriage life, conduct this systematic wear inspection every 500 operating hours:
Step 1: Measure Track Link Pitch (Elongation)
Use a caliper to measure the distance across 4 consecutive track pins (pin center to pin center). Divide the total measurement by 4 to find the average link pitch. For example, according to the official Shantui SD16 Maintenance Manual, the standard link pitch is 203.2 mm. If your average measurement exceeds 207.5 mm, the internal pins and bushings are severely worn, and the chain must be turned or replaced.
Step 2: Check for Seized or Flat-Spotted Rollers
Walk beside the machine while it moves slowly. Listen for squeaking noises and look for rollers that fail to rotate. If a roller does not turn, inspect the tread surface. A seized roller will show a flat worn spot where the track links have slid over it. These seized rollers must be replaced immediately to protect the track chain.
Step 3: Measure Track Sag (Tension)
Park the machine on flat, level ground. Place a straightedge across the track from the carrier roller to the front idler. Measure the distance from the straightedge down to the lowest point of the track link. For standard excavators (like the Komatsu PC300-8), standard track sag should register between 40 and 55 mm. Too much sag causes track throwing; too little sag accelerates link and bushing wear.
Official Wear Specifications: Heavy Machinery Undercarriage Parameters
| Machine Model | Standard Link Pitch | Track Sag Spec | Recommended Link Case Depth | Key Replacement Part |
|---|---|---|---|---|
| Shantui SD16 | 203.2 mm (8.00 in) | 50 to 65 mm | 8 to 10 mm | Tatan Lubricated Track Chain Assembly |
| Shantui SD22 | 216.0 mm (8.50 in) | 55 to 70 mm | 9 to 11 mm | Tatan Heavy-Duty Carrier & Track Rollers |
| Komatsu PC300-8 | 215.9 mm (8.50 in) | 40 to 55 mm | 9 to 12 mm | Tatan Induction-Hardened Track Group |
Maximize Your Undercarriage Lifespan with Tatan Machinery
A high-quality undercarriage is the foundation of your machine’s efficiency. By sourcing precision-manufactured, induction-hardened track links, high-durability track rollers, and reliable duo-cone sealed idlers, you can extend your fleet’s working life and avoid expensive downtime. Tatan Machinery provides OEM-standard undercarriage parts for Shantui, Komatsu, Caterpillar, and SDLG machinery, built to withstand the harshest construction environments.
To find the exact undercarriage components for your machinery fleet and request a custom quote, visit Tatan Machinery today.
(For further reading on crawler undercarriage wear standards, consult custom track service guidelines from SAE International or refer to material hardness testing guidelines from the International Organization for Standardization (ISO).)
