Caterpillar C9 injector troubleshooting procedures are critical when a mid-to-large-size crawler excavator exhibits low engine compression, excessive black smoke under load, or a sudden loss of hydraulic lifting speed. The Cat C9 engine utilizes a Hydraulically Actuated Electronically Controlled Unit Injector (HEUI) system, which relies on high-pressure engine oil to pressurize the diesel fuel inside the injector body. When clearances inside the injector spill valve or nozzle needle wear out, the injection pressure drops, causing incomplete combustion and power loss.
Before purchasing a complete replacement diesel engine assembly, fleet operators must perform systematic electrical and hydraulic tests to isolate the faulty component. This guide breaks down the physical wear mechanisms, diagnostic pressure specs, and critical clearance tolerances required during a successful fuel system overhaul.
The Physics of HEUI System Wear and Power Loss
Unlike standard high-pressure common rail fuel systems, the HEUI system in the Cat C9 uses the engine’s lubrication oil, pressurized by an Hydraulic Actuation Pump, to drive the injector plungers. The pressure of this actuation oil varies from 6.0 to 28.0 MPa (approx. 870 to 4,060 psi) depending on engine speed and load. Under these extreme pressures, any internal oil leakage across the injector’s spool valves directly reduces the nozzle injection pressure, leading to poor fuel atomization and heavy black exhaust smoke.
To restore combustion synchronization and cylinder compression, mechanics rely on high-precision excavator engine parts such as replacement pistons, cylinder liners, and piston ring packs. Sourcing matched rebuild components is essential to maintaining the strict compression standard required to ignite the fuel. If your excavator is also experiencing hydraulic speed loss, refer to our diagnostic guide on excavator hydraulic oil overheating troubleshooting to rule out hydraulic system thermal bypass.
Whether overhauling a Caterpillar parts engine or overhauling Cummins engine parts systems, verifying component surface tolerances is critical to prevent blow-by. For more detailed instructions on engine block measurements, you can consult our comprehensive excavator diesel engine overhaul guide.
Step-by-Step Caterpillar C9 Injector Troubleshooting and Testing
When executing Caterpillar C9 injector troubleshooting, check the electronic controls and oil pressure systems using these three diagnostic steps:
Step 1: Perform the Cylinder Cutout Test
Connect a diagnostic scanner (such as Caterpillar Electronic Technician – Cat ET) to the machine’s service tool connector. Run the engine at high idle and execute the cylinder cutout test, disabling one fuel injector at a time.
Diagnostic Result: Monitor the engine RPM drop and exhaust gas temperature (EGT) for each cylinder. If cutting out a specific cylinder does not cause a drop in engine RPM or a change in exhaust sound, the injector for that cylinder has failed internally and must be replaced.
Step 2: Test Injector Solenoid Coil Resistance
Remove the valve cover to access the injector wiring harness. Use a digital multimeter set to ohms to measure the electrical resistance across the two solenoid terminals on each injector.
Diagnostic Result: The standard solenoid coil resistance for a Cat C9 injector must remain between 1.5 and 2.5 ohms at 20 degrees Celsius. If the meter reads infinity (open circuit) or less than 1.0 ohm (short circuit), the solenoid coil is defective, and the injector will not open.
Step 3: Measure the Injection Actuation Pressure
Monitor the Injection Actuation Pressure (IAP) sensor reading on your diagnostic scanner while cranking the engine.
Diagnostic Result: The Cat C9 engine requires a minimum actuation oil pressure of 6.0 MPa (approx. 870 psi) during cranking to actuate the injectors. If the pressure during cranking stays below this limit, the hydraulic actuation pump is worn, the IAP control valve is stuck, or there is severe high-pressure oil leakage past the injector seals inside the cylinder head.
Official OEM Technical Specifications: Cat C9 Fuel System
When overhauling or adjusting Caterpillar fuel injection systems, always adhere to the following factory specifications to ensure optimal combustion and engine response:
| Testing Parameters | Standard Specification Value | Minimum Starting Limit | Required Oil Cleanliness | Fuel System Type |
|---|---|---|---|---|
| Solenoid Coil Resistance | 1.5 – 2.5 Ohms (at 20 °C) | 1.2 Ohms (Min) | N/A | HEUI / Common Rail |
| Injection Actuation Pressure (IAP) | 6.0 – 28.0 MPa (870 – 4,060 psi) | 6.0 MPa (Cranking) | ISO 18/16/13 (Max) | HEUI / Common Rail |
| Fuel Transfer Pump Pressure | 0.45 – 0.55 MPa (65 – 80 psi) | 0.35 MPa (Min) | 4 Microns Filtration | Mechanical Gear Type |
| Cylinder Compression Pressure | 3.0 MPa (435 psi) | 2.6 MPa (Min) | N/A | Standard Stroke |
Sourcing Heavy-Duty Rebuild Components for Excavator Engines
To help you complete these complex repairs, Tatan Machinery stocks a comprehensive range of high-durability replacement parts and assemblies. Using precision-ground components prevents combustion leaks and ensures consistent power output under heavy loads.
| Recommended Rebuild Parts | Application Specification | Sourcing Category Links |
|---|---|---|

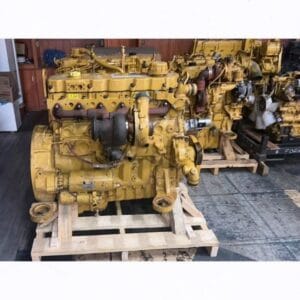

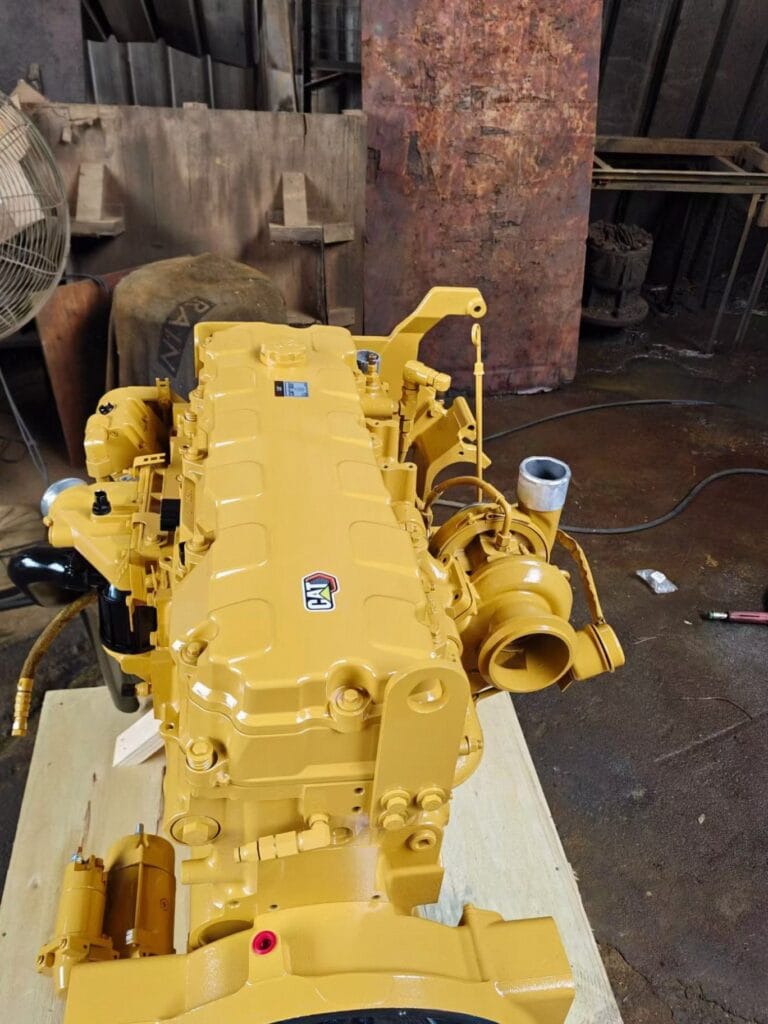

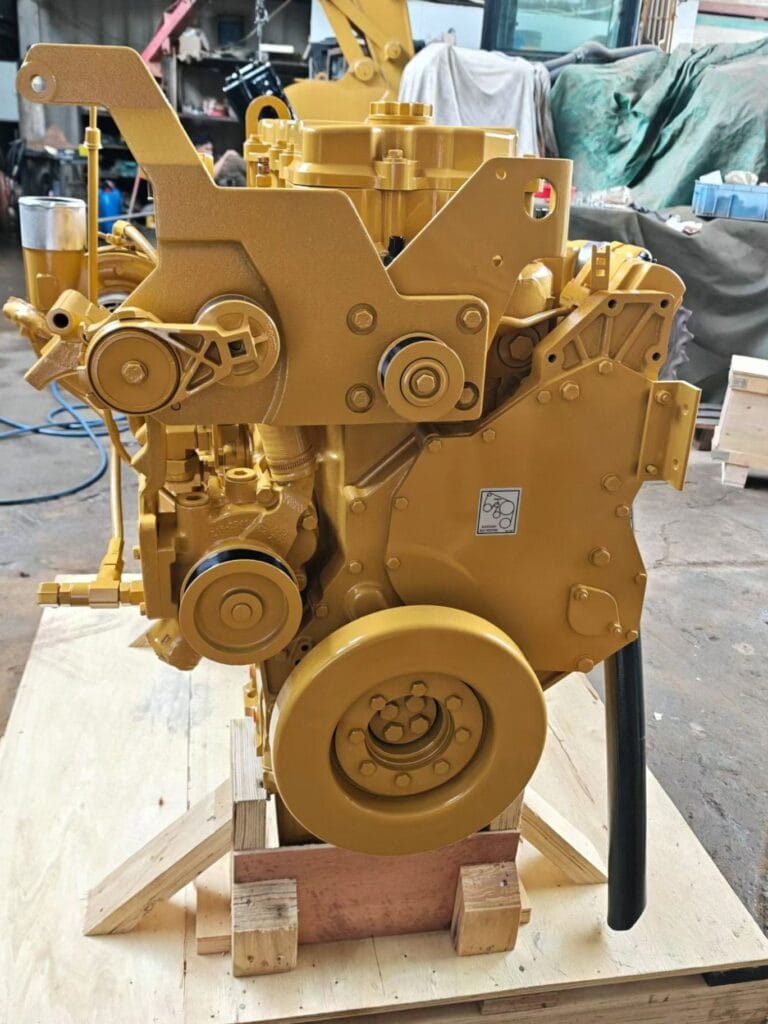

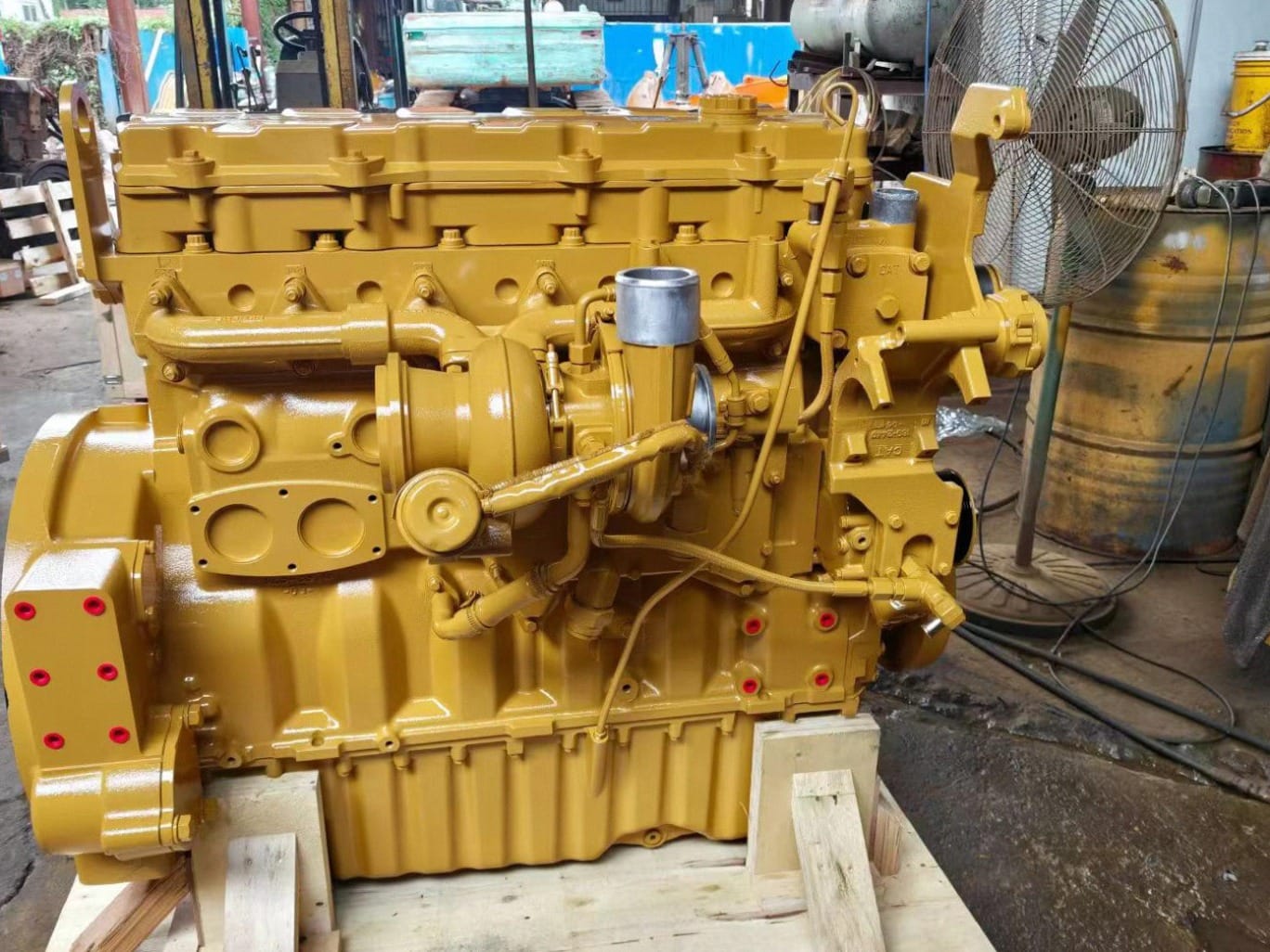

| Complete Replacement Diesel Engine Assembly | Fully assembled diesel engines for Caterpillar, Isuzu, and Cummins | Diesel Engine Assembly Catalog |
| High-Pressure Fuel Injectors & Pump Parts | Precision-machined pistons, cylinder liners, and fuel system parts | Excavator Engine Parts Inventory |
| Excavator Hydraulic & Solenoid Seal Kits | High-temperature HNBR and Viton O-rings and gasket sets | Excavator Hydraulic Parts & Seal Kits |
