September 8, 2026 | Author: Gavin
Komatsu PC200-8 hydraulic pump troubleshooting procedures are highly searched by field technicians when the excavator’s hydraulic system exhibits slow cycle times, engine stalling under load, or a sudden drop in operating pressure. The Komatsu PC200-8 utilizes the HPV95 double axial piston pump, which relies on a precise balance of hydraulic pressure and engine output torque. When internal clearances between the piston shoes and swash plate exceed factory wear limits, the pump loses volumetric efficiency, converting pressure energy directly into system heat.
Before deciding to replace the entire hydraulic pump assembly, mechanics must isolate whether the performance drop is caused by the electronic control solenoids, the hydraulic regulators, or internal mechanical wear. This guide breaks down the diagnostic pressure specs, control solenoids, and rotary group tolerances required to restore hydraulic power.
The Mechanics of Komatsu HPV95 Pump Flow Control
The Komatsu HPV95 pump is an open-circuit, variable displacement piston pump controlled by two key hydraulic signals: Load Sensing (LS) pressure and Torque Limit (PC) pressure. These pressures act on the pump regulators to adjust the swash plate angle, matching the pump’s oil flow output to the load on the work equipment. If the excavator stalls the engine under heavy load (“憋车”), the PC regulator or the proportional solenoid valve is failing to destroke the pump.
To diagnose these complex issues, technicians must check the electronic PC-EPC solenoid valve. The standard coil resistance for a healthy PC-EPC solenoid must be between 18 and 22 ohms at 20 degrees Celsius. If the coil resistance is out of spec, the controller cannot adjust the pump’s displacement, leading to engine overload. If you are also experiencing high hydraulic oil temperatures, refer to our technical guide on excavator hydraulic oil overheating troubleshooting to isolate internal shear heating.
Field Procedures for Komatsu PC200-8 Hydraulic Pump Troubleshooting
To systematically troubleshoot the HPV95 hydraulic pump on a Komatsu excavator parts machine, execute the following three diagnostic steps:
Step 1: Test the LS Differential Pressure
Install two pressure gauges: one on the pump discharge pressure port and the other on the control valve LS pressure inlet port. Start the engine, run at high idle, and measure the difference between the two gauges (LS differential pressure) during a fine control operation.
Diagnostic Result: According to the official Komatsu PC200-8 Shop Manual, the standard LS differential pressure must remain between 2.1 and 2.5 MPa. If the differential pressure is below 1.8 MPa, the machine will feel slow and weak. If the pressure is too high, the pump will output excessive flow, causing jerky movements and engine overload.
Step 2: Inspect the Unloading Valve and Main Relief Pressure
Connect a 400-bar pressure gauge to the pump outlet test port. Relief the boom cylinder at the end of its stroke and read the maximum pressure.

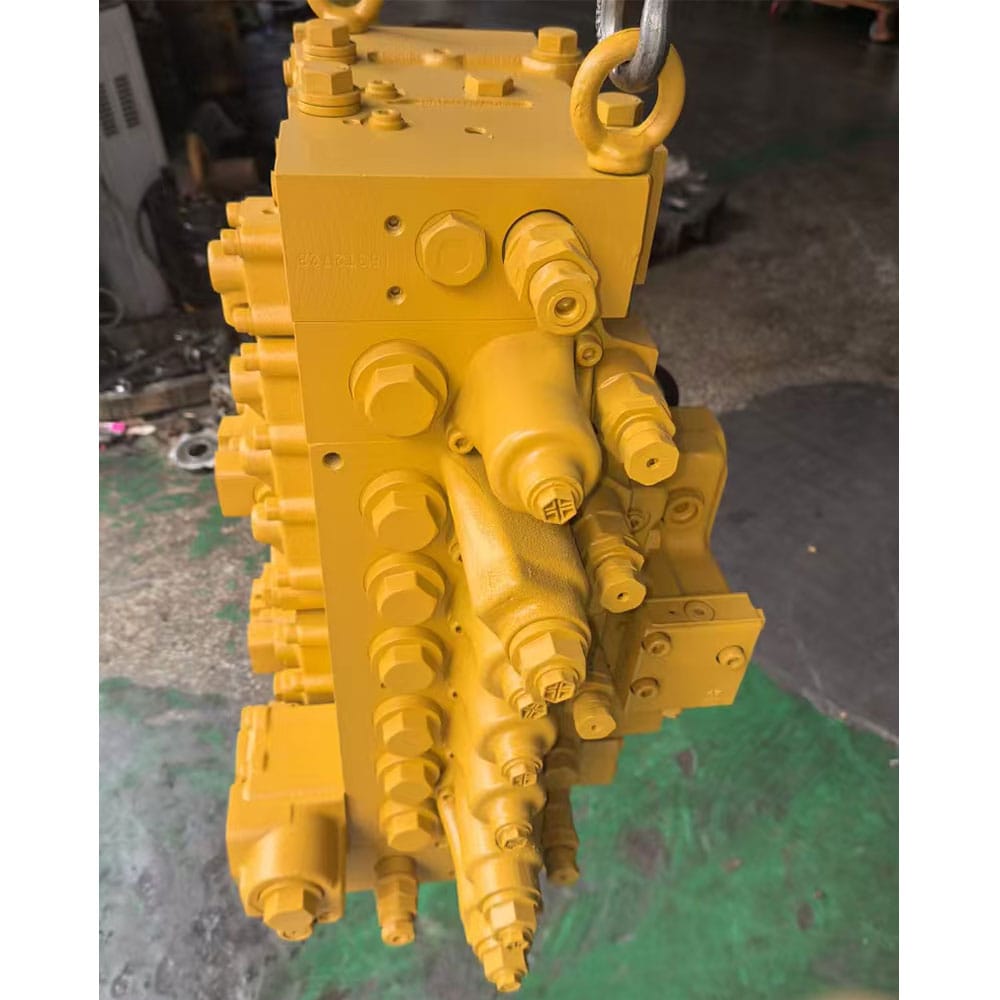

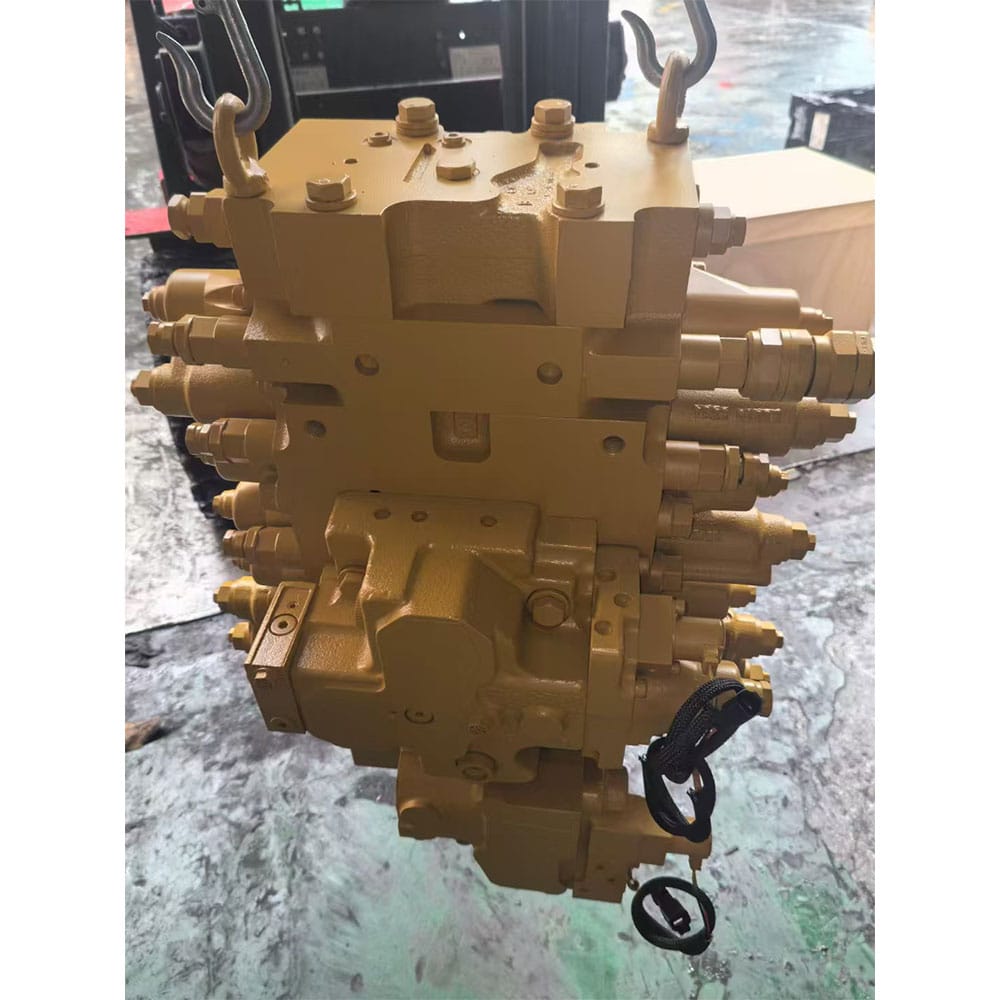

Diagnostic Result: The main relief pressure in active mode should reach 37.3 MPa (approx. 5,410 psi). If the relief pressure is low across all functions, the main relief valve inside the main control valve assembly is leaking or stuck. Additionally, if the pilot control joysticks are stiff or do not return to neutral, perform excavator hydraulic accumulator troubleshooting before adjusting the relief valves.
Step 3: Measure the Pump Case Drain Flow
Disconnect the case drain hose from the pump housing. Run the engine at high idle, relieve the bucket circuit at 37.3 MPa, and measure the leakage volume over one minute.
Diagnostic Result: The standard case drain flow for a healthy HPV95 pump must not exceed 15 L/min at an oil temperature of 50 degrees Celsius. If the leakage rate is above 20 L/min, the clearances between the pistons and cylinder bore are worn beyond limit. Resolving this requires installing a high-quality excavator hydraulic pump repair kits containing a matched cylinder block, valve plate, and piston group.
Official OEM Technical Specifications: Komatsu PC200-8 Hydraulic System
When rebuilding or adjusting the Komatsu hydraulic system, always refer to the factory specification limits to ensure correct power matching:
| Testing Component | Standard Specification Value | Permissible Wear Limit | Hydraulic Oil Viscosity | System Pressure (Max) |
|---|---|---|---|---|
| LS Differential Pressure | 2.1 – 2.5 MPa (304 – 362 psi) | 1.8 MPa (Min) | ISO VG 46 (46 cSt) | N/A |
| Main Relief Valve (Active Mode) | 37.3 MPa (5,410 psi) | 35.5 MPa (Min) | ISO VG 46 (46 cSt) | 37.3 MPa |
| PC-EPC Solenoid Resistance | 18.0 – 22.0 Ohms (at 20 °C) | Over 35 Ohms (Failed) | N/A | N/A |
| Pump Case Drain Flow | Under 15 L/min (4.0 GPM) | 20 L/min (Max) | ISO VG 46 (46 cSt) | 37.3 MPa |
Sourcing Premium Replacement Parts for Komatsu Hydraulics
To help you perform these critical repairs, Tatan Machinery stocks a complete line of high-durability hydraulic components. Using matched components prevents dynamic pressure leaks and minimizes mechanical friction inside the pump core.
| Recommended Rebuild Parts | Application Specification | Internal Sourcing Links |
|---|---|---|
| Komatsu HPV95 Main Hydraulic Pump | Complete replacement pump assembly for PC200-8 / PC220-8 | Hydraulic Pump Assembly Catalog |
| HPV95 Rotary Group Rebuild Kit | Includes cylinder block, pistons, valve plate, and set plate | Excavator Hydraulic Pump Repair Kits |
| HPV95 High-Pressure Seal O-Ring Kit | Includes HNBR shaft seals and high-temperature O-rings | Excavator Hydraulic Parts & Seal Kits |
