Yanmar 4TNV98 piston ring gap specification measurements must be executed precisely when compact excavators experience hard starting in cold weather, excessive oil consumption, or heavy blow-by from the crankcase breather. The Yanmar 4TNV98 is a direct-injection diesel engine that relies on high cylinder compression to ignite fuel. If the gap between the piston rings and the cylinder liner wall exceeds wear limits, combustion gases leak into the oil pan, dropping compression pressure below the ignition threshold.

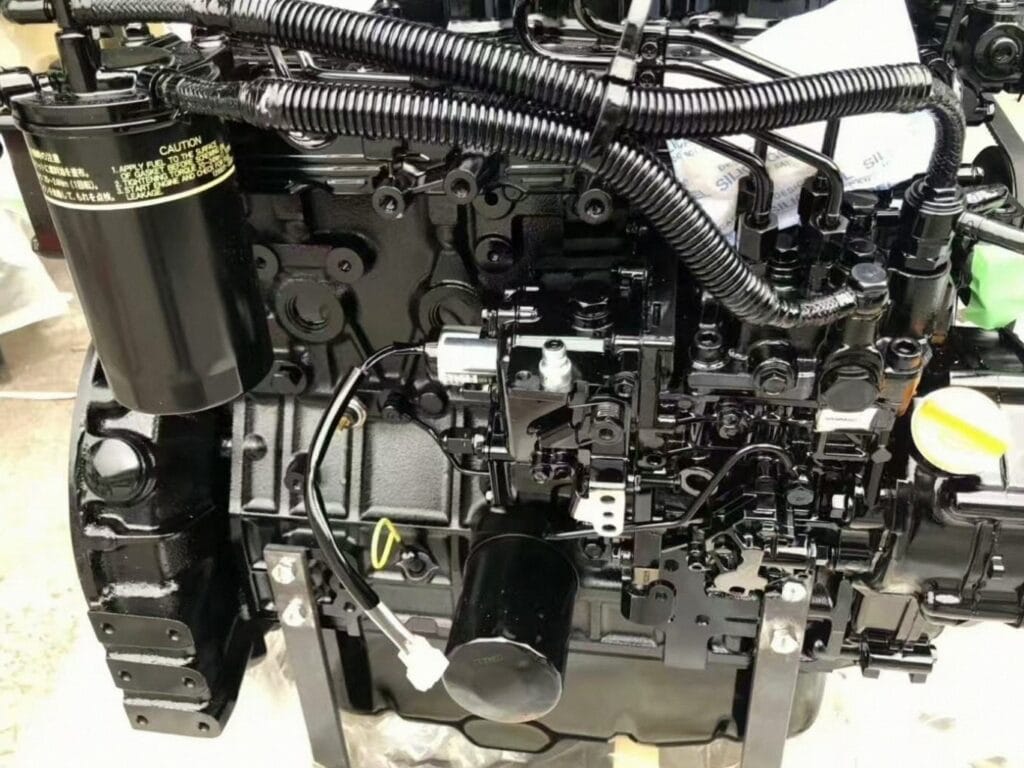

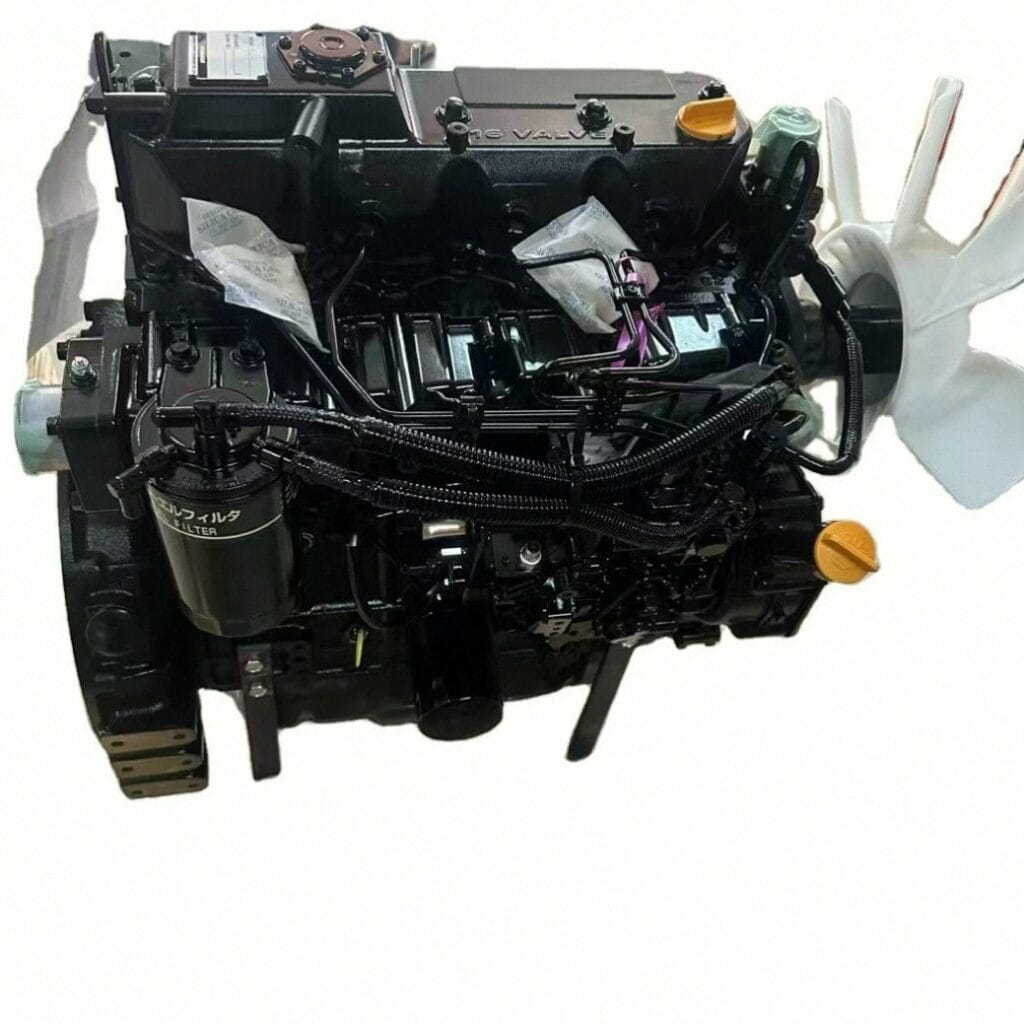

When rebuilding these high-efficiency power units, sourcing premium excavator engine parts such as piston ring packs, pistons, and pin bushings is essential to restoring factory-spec clearances. In cases of severe block wear, replacing the entire worn unit with a complete diesel engine assembly is often more cost-effective than continuous machining. This guide details the exact clearance specifications, ring measuring procedures, and rebuilding tolerances for Yanmar engines.
The Tribology of Piston Ring Sealing and Cylinder Wear
The piston rings perform three critical functions: sealing the combustion chamber, transferring heat from the piston to the cylinder liner, and regulating the oil film on the cylinder wall. To allow for thermal expansion under heavy loads, the piston rings must have a precise end gap when installed inside the cylinder bore. If this gap is too narrow, the ring ends will butt together as the engine warms up, causing severe cylinder wall scoring and piston seizure.
Conversely, if the end gap is too wide, high-pressure combustion gas bypasses the ring pack, eroding the lubricating oil film and causing carbon deposits to accumulate in the ring lands. This compression loss directly reduces the engine’s power output under heavy hydraulic loads. Whether you are rebuilding a Yanmar engine parts assembly or overhauling Caterpillar parts systems, checking these clearances is essential to prevent premature engine failure.
Measuring the Yanmar 4TNV98 Piston Ring Gap Specification
To accurately measure the Yanmar 4TNV98 piston ring gap specification during an engine overhaul, follow this technical procedure:
Step 1: Clean and Prepare the Cylinder Bore
Clean all oil and carbon deposits from the cylinder liner walls. Inspect the bore for scratches, scoring, or glazing. If the bore is glazed, a flexible hone must be used to recreate the correct cross-hatch pattern before measuring.
Step 2: Position the Piston Ring in the Cylinder
Insert the piston ring into the cylinder bore. Use an inverted piston head to push the ring down approximately 30 mm into the bore, ensuring that the ring is perfectly square to the cylinder wall.
Step 3: Measure the End Gap with a Feeler Gauge
Slide a feeler gauge into the gap between the ends of the piston ring. Compare the measured value with the standard specifications. For a standard Yanmar 4TNV98, the top compression ring end gap must remain between 0.20 and 0.35 mm, with a maximum wear limit of 0.51 mm.
Official Yanmar 4TNV94 and 4TNV98 Engine Clearance Specifications
Refer to these official manufacturing tolerances when performing an engine rebuild to ensure proper compression sealing and long-term reliability:
| Engine Model | Top Ring End Gap Spec | Second Ring End Gap Spec | Oil Ring End Gap Spec | Piston-to-Liner Clearance |
|---|---|---|---|---|
| Yanmar 4TNV94 | 0.20 – 0.35 mm (Limit: 0.51 mm) | 0.35 – 0.50 mm (Limit: 0.66 mm) | 0.20 – 0.40 mm (Limit: 0.56 mm) | 0.06 – 0.08 mm (Limit: 0.15 mm) |
| Yanmar 4TNV98 | 0.20 – 0.35 mm (Limit: 0.51 mm) | 0.35 – 0.50 mm (Limit: 0.66 mm) | 0.20 – 0.40 mm (Limit: 0.56 mm) | 0.06 – 0.08 mm (Limit: 0.15 mm) |
| Caterpillar C3.3 | 0.25 – 0.40 mm (Limit: 0.60 mm) | 0.30 – 0.45 mm (Limit: 0.65 mm) | 0.25 – 0.50 mm (Limit: 0.70 mm) | 0.08 – 0.10 mm (Limit: 0.18 mm) |
Restore Engine Compression with Tatan Machinery
Adhering to the standard Yanmar 4TNV98 piston ring gap specification is critical to achieving complete combustion and preventing blow-by. To ensure your engine rebuild projects deliver maximum torque and durability, Tatan Machinery supplies high-precision piston ring sets, pistons, pin bushings, and complete engine rebuild gasket kits. Our replacement parts are manufactured to meet or exceed strict OEM specifications, preventing premature cylinder liner wear.
