Komatsu PC30-7 Main Control Valve Assembly (OEM 709-37-12101)

Tatan Machinery supplies 100% Brand New hydraulic main control valve assemblies (OEM part numbers: 709-37-12101 / 709-37-12100, interchangeable with 7093712101 / 723-19-13901) engineered for Komatsu PC30-7, PC35-7, and PC40-7 mini excavators. As the hydraulic command center of your 3-ton machine, this multi-spool monoblock assembly directs pump oil flow to the boom, arm, bucket, boom swing, auxiliary attachment, and dual travel motors. Backed by our 12-Month Comprehensive Replacement Warranty, each assembly is pre-fitted with factory-calibrated main and port relief valves, dynamically bench-tested for zero internal spool bypass drift.

Supplier Information & Build Status

When to Replace the Main Control Valve on Komatsu PC30-7: Field Diagnostics

The Komatsu PC30-7 works in aggressive urban trenching and civil excavation. When internal valve body wear or metal contamination occurs, replacing individual seals rarely stops internal bypass. Replace the complete assembly under these severe symptoms:

• Uncontrolled Boom & Arm Drift Under Suspended Bucket: When lifting a trench box or bucket of gravel, the boom steadily creeps down with joysticks in neutral. Spool-to-bore clearances have worn past service limits (>0.015mm), allowing high-pressure oil to bypass to tank.
• Sticking Spools & Jerky Cylinder Motion: Fine metal filings scoring valve bores, causing spools to bind. Operators experience sudden jerking or refusal of the boom to compound smoothly while tracking.
• High Hydraulic Oil Temperature & Digging Weakness: Main relief valve seats washed out by contaminated oil, continuously dumping pressurized pump flow directly back to tank, pushing oil temperature past 85°C and killing digging breakout force.
• Internal Cast Partition Fracture: Micro-cracking between adjacent spool oil galleries, causing uncommanded boom movement when the bucket or swing joystick is actuated.

Workshop Bench Testing & 12-Month Warranty Guarantee

Every 100% Brand New 709-37-12101 control valve supplied by Tatan Machinery comes backed by a 12-Month Comprehensive Replacement Warranty. Before crate packaging, our hydraulic engineers complete a 5-point quality validation:

1. Main & Port Overload Relief Pressure Calibration: Main relief valve calibrated to exact Komatsu PC30-7 factory specifications (24.5 MPa / 250 bar) on a digital hydraulic test bench.
2. Spool Neutral Holding & Bypass Leakage Test: Individual circuit testing under full working pressure to verify zero cylinder creeping and tight check-valve seat sealing.
3. Pilot & Manual Spool Centering Response: Confirming all spools return smoothly to precise neutral positions under return spring tension without mechanical sticking.
4. Port Thread Gauge & Sealing Inspection: Checking all O-ring boss and BSPP/Metric port threads to ensure leak-free field hose installation.
5. Internal Gallery Flushing & Cleanliness Verification: Ultrasonic cleaning followed by high-velocity oil flushing to ensure zero particulate contamination before sealing.

Export Heavy-Duty Packaging Process

Precision valve spools must be guarded against particulate contamination and rough transit:

• 100% Sealed Port Caps: Every hydraulic work port, pump inlet, tank return, and pilot hose port is sealed with heavy-duty threaded protective plugs.
• Anti-Corrosion VCI Foil Wrapping: The valve block is sprayed with rust-preventive hydraulic oil and sealed inside moisture-proof VCI film.
• Custom Internal High-Density Cushioning: Bolted securely onto structural base timbers inside the crate to prevent any shift.
• ISPM 15 Fumigation-Free Solid Plywood Box: Fully enclosed export crate banded with high-tensile galvanized steel straps.

Actual sealed port caps and heavy-duty crating for 709-37-12101 control valve

Global Shipping & Customs Documentation

Fast, reliable dispatch tailored for commercial contractors and parts wholesalers worldwide:

• Emergency Machine Down Air Cargo: Fast air express via DHL Aviation, FedEx Freight, or international airlines within 3–7 business days.
• Consolidated Ocean Sea Freight (LCL / FCL): Direct containerized shipping to worldwide commercial ports.
• Clean Customs Clearance Paperwork: Commercial Invoices with correct HS Code (8481.20 – Valves for Oleohydraulic Transmission), Packing Lists, and Certificates of Origin for tariff optimization.

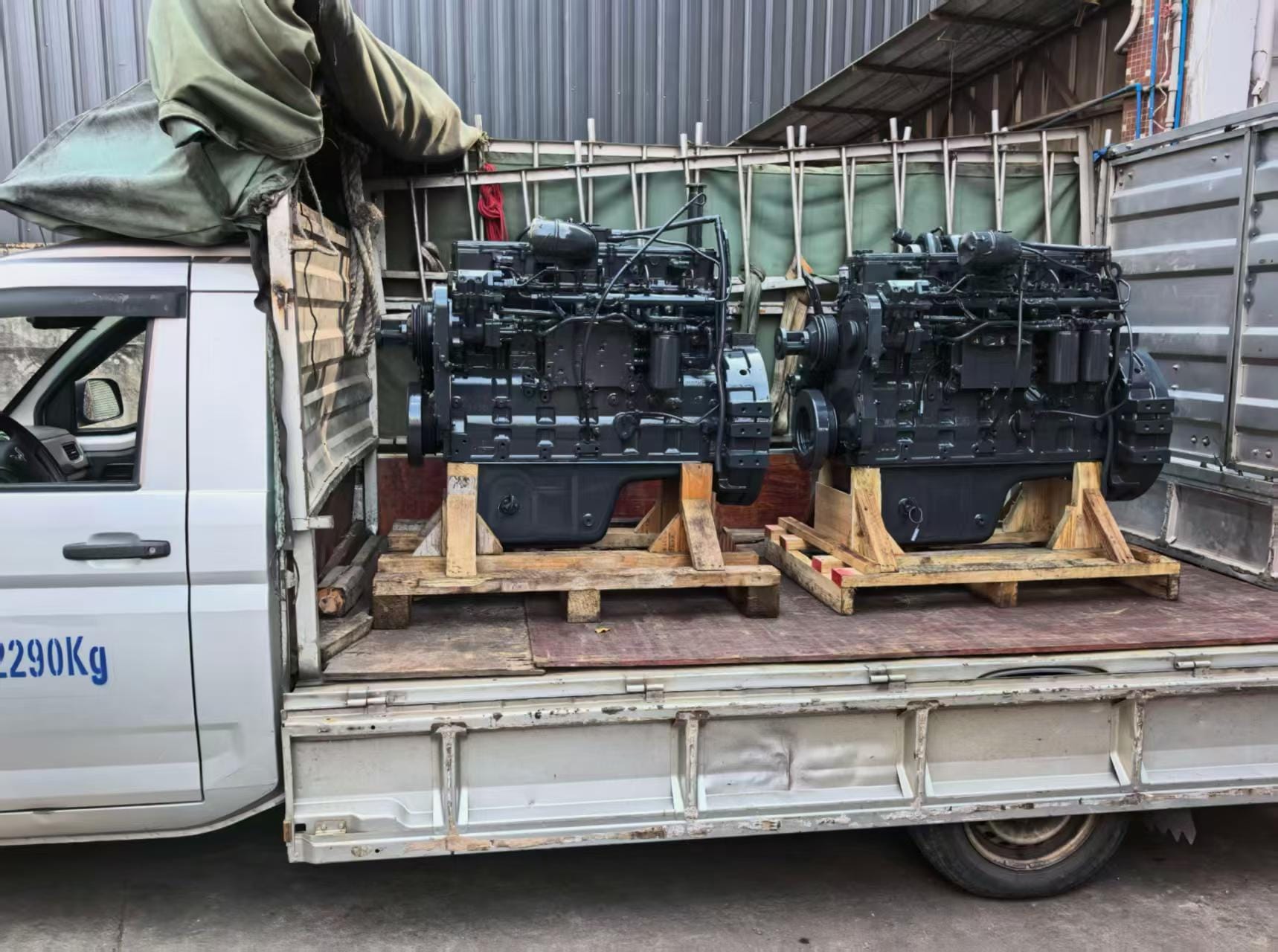

Container loading and air freight dispatch supported by global logistics partners

Critical Installation Guidelines (PC30-7 Hydraulic Technician Checklist)

To prevent instant spool contamination and maintain your 12-month warranty, technicians MUST adhere to these field rules:

1. MANDATORY: Drain & Clean Hydraulic Oil Reservoir: If the previous valve suffered from pump debris or cylinder packing failure, metal glitter lines the hydraulic tank. You MUST drain the fluid, clean the tank floor with lint-free towels, and install brand-new suction and return filter cartridges!
2. Flush All Main Hydraulic Lines Before Reconnecting: Blow out all high-pressure lines leading to the boom, arm, and travel motors with clean oil. Never connect dirty old hoses to a brand-new valve block!
3. Pilot & Linkage Alignment: If your PC30-7 uses mechanical control rods, ensure linkage clevis pins are lubed and do not bind. Over-tightening rod ends will side-load the spools, causing them to stick.
4. Bleed Air from Hydraulic Cylinders: Cycle all boom, arm, and bucket cylinders slowly to both end-stops without hitting relief pressure to purge trapped air back to tank.
5. Check Relief Pressure on Test Port: Hook up a 40 MPa pressure gauge to the pump delivery test port. Verify that main relief operates at 24.5 MPa before placing machine under heavy breakout force.
