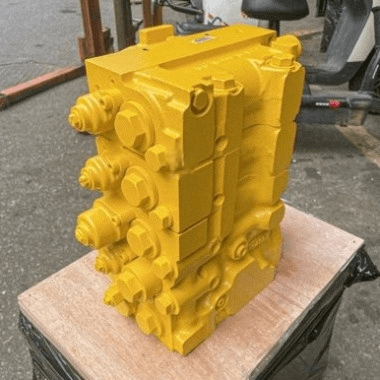

Komatsu PC15-3 Main Control Valve Assembly (OEM 709-32-11100)

Tatan Machinery supplies 100% Brand New multi-spool hydraulic main control valve assemblies (OEM part numbers: 709-32-11100 / 709-32-11101, interchangeable with 7093211100 / 723-18-11101) specifically built for Komatsu PC15-3 and PC12R-8 compact excavators. Serving as the primary hydraulic control center on 1.5-ton mini excavators, this multi-circuit block regulates pressure oil from the main gear pump to the boom, arm, bucket, dozer blade, boom swing offset, and independent track drives. Backed by our 12-Month Comprehensive Replacement Warranty, each assembly is pre-fitted with factory-calibrated main relief and port check valves, dynamically bench-tested for zero spool bypass creep.

Supplier Information & Build Status

When to Replace the Main Control Valve on Komatsu PC15-3: Field Diagnostics

The Komatsu PC15-3 operates with small hydraulic fluid capacity (only ~20L total reservoir). Contaminants quickly circulate and cause severe internal valve wear. Replace the complete assembly under these severe symptoms:

• Dozer Blade Creep & Loss of Machine Jacking Support: When raising the machine off the ground using the front dozer blade to clear tracks, the blade slowly bleeds down within 2 minutes. The pilot-operated check valve seat or blade spool bore is scored past salvage limits.
• Boom & Arm Dropping Under Load (Micro-Spool Galling): Fine sand or dirt entering the hydraulic system cuts deep axial grooves along the tiny 1.5-ton valve spools, causing the boom to drop uncontrollably when holding an attachment suspended.
• Mechanical Control Lever Binding & Sticky Joysticks: Dirt packing behind the spool rubber dust boots combined with warped valve body sections causes spools to stick, preventing the machine from stopping track movement when levers are released.
• High Fluid Temperature & Digging Weakness: Eroded main relief cartridge seats continuously dumping pressurized gear pump flow directly to tank, pushing hydraulic temperature past 80°C and crippling breakout power.

Workshop Bench Testing & 12-Month Warranty Guarantee

Every 100% Brand New 709-32-11100 control valve supplied by Tatan Machinery comes backed by a 12-Month Comprehensive Replacement Warranty. Before export packaging, our technicians complete a 5-point quality validation:

1. Main & Port Overload Relief Pressure Calibration: Main relief valve calibrated to exact Komatsu PC15-3 factory specifications (17.2–20.6 MPa) on a digital hydraulic test bench.
2. Spool Neutral Holding & Bypass Leakage Test: Individual circuit testing under full working pressure to verify zero cylinder creeping and tight check-valve seat sealing.
3. Dozer Blade Lock Valve Pressure Hold Test: Testing the dedicated pilot check valve section to certify zero bleed-down under full load simulation.
4. Mechanical Spool Centering & Return Spring Force: Confirming all spools return smoothly to neutral without mechanical sticking under full stroke.
5. Port Thread Gauge & Flange Inspection: Checking all O-ring boss and BSPP port threads to ensure leak-free field hose installation.

Export Heavy-Duty Packaging Process

Precision micro-excavator valve spools must be guarded against particulate contamination and rough transit:

• 100% Sealed Port Caps: Every hydraulic work port, pump inlet, tank return, and auxiliary line port is sealed with heavy-duty threaded protective plugs.
• Anti-Corrosion VCI Foil Wrapping: The valve block is sprayed with rust-preventive hydraulic oil and sealed inside moisture-proof VCI film.
• Custom Internal High-Density Cushioning: Bolted securely onto structural base timbers inside the crate to prevent any shift.
• ISPM 15 Fumigation-Free Solid Plywood Box: Fully enclosed export crate banded with high-tensile galvanized steel straps.

Actual sealed port caps and heavy-duty crating for 709-32-11100 control valve

Global Shipping & Customs Documentation

Fast, reliable dispatch tailored for commercial contractors and parts wholesalers worldwide:

• Emergency Machine Down Air Cargo: Fast air express via DHL Aviation, FedEx Freight, or international airlines within 3–7 business days.
• Consolidated Ocean Sea Freight (LCL / FCL): Direct containerized shipping to worldwide commercial ports.
• Clean Customs Clearance Paperwork: Commercial Invoices with correct HS Code (8481.20 – Valves for Oleohydraulic Transmission), Packing Lists, and Certificates of Origin for tariff optimization.

Container loading and air freight dispatch supported by global logistics partners

Critical Installation Guidelines (PC15-3 Hydraulic Technician Checklist)

To prevent instant spool contamination and maintain your 12-month warranty, technicians MUST adhere to these field rules:

1. MANDATORY: Drain Small Reservoir & Replace Filter: Because the PC15-3 oil reservoir is only ~20 liters, particulate concentrations are double that of large machines. You MUST drain all old fluid, clean the reservoir floor, and install a brand-new suction strainer and return filter element!
2. Dozer Blade & Boom Swing Hose Tagging: The PC15-3 valve compartment is very tight. Tag each hose carefully before unbolting. Swapping the dozer blade lines with the boom swing lines will cause immediate control confusion and cylinder over-extension!
3. Mechanical Linkage Freedom Check: If your PC15-3 uses mechanical floor levers, lubricate all linkage pins. Never allow bent rods to side-load the spool ends, as lateral binding will jam the spools inside the valve bores.
4. Bleed Air from Hydraulic Cylinders: Cycle all boom, arm, bucket, and blade cylinders slowly to both end-stops without hitting relief pressure to purge trapped air back to tank.
5. Check Relief Pressure on Test Port: Hook up a 30 MPa pressure gauge to the pump delivery test port. Verify that main relief operates at 17.2–20.6 MPa before placing machine under heavy digging load.

Buyer Frequently Asked Questions (Purchasing FAQ)
