Description

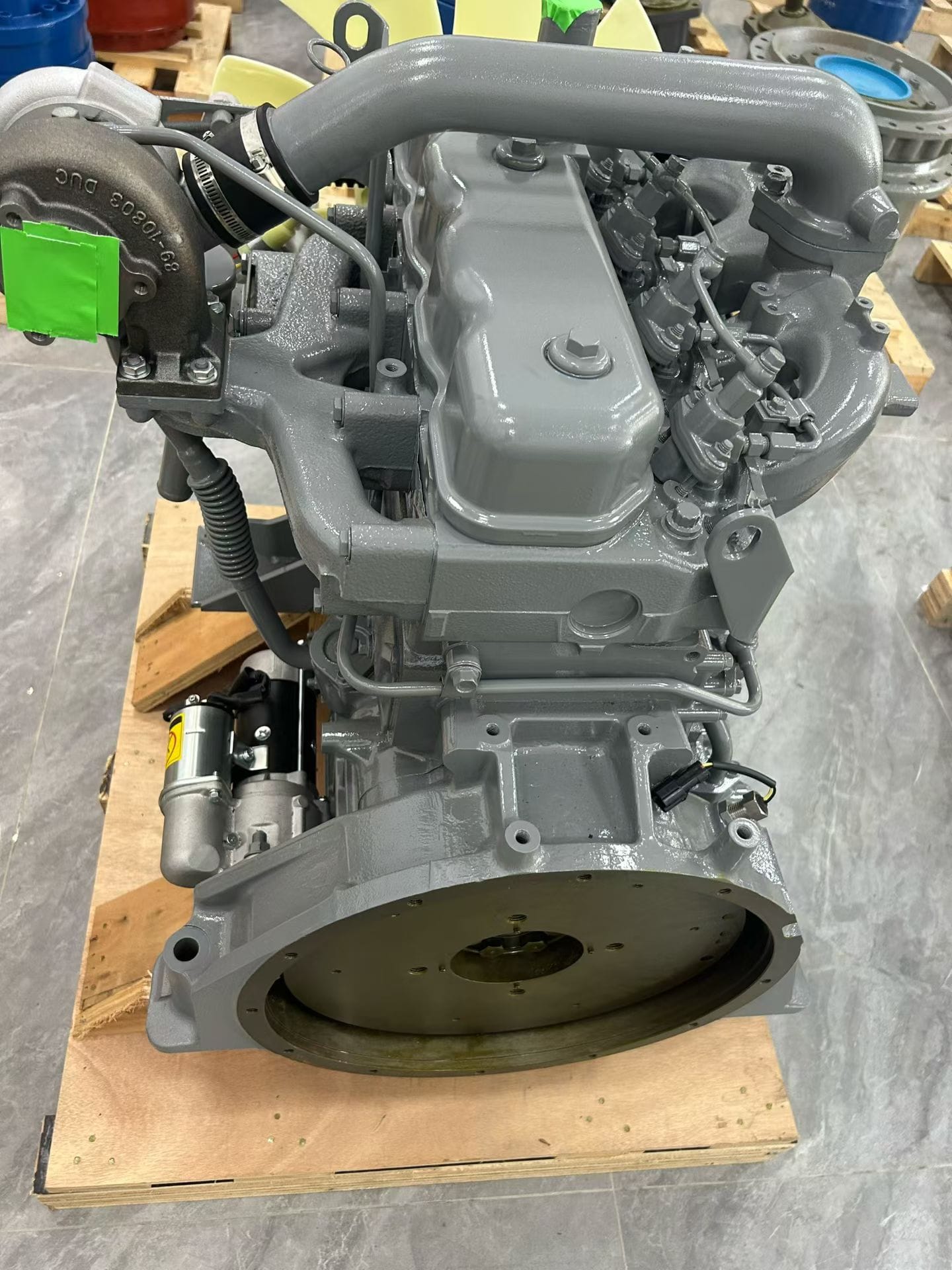

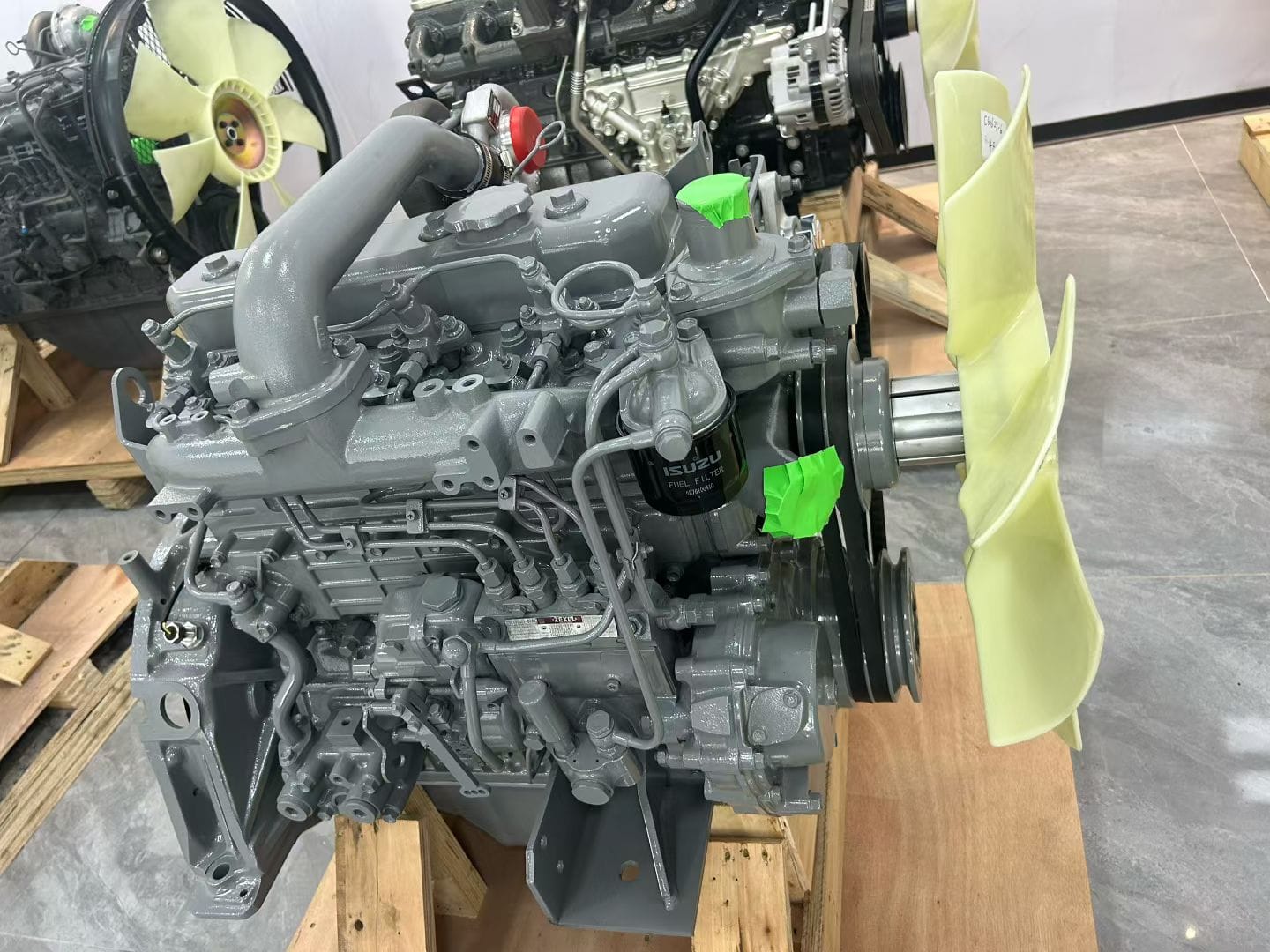

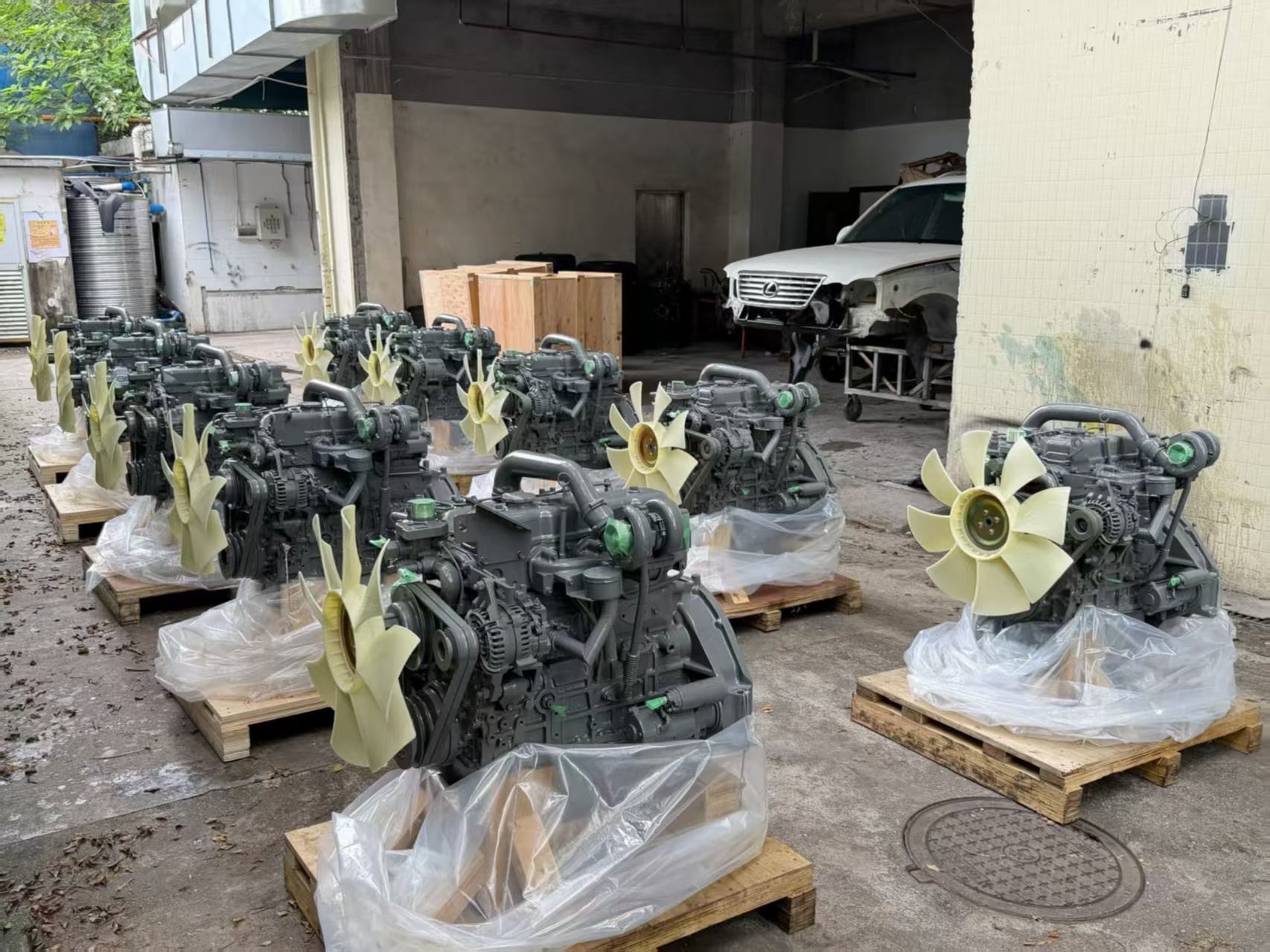

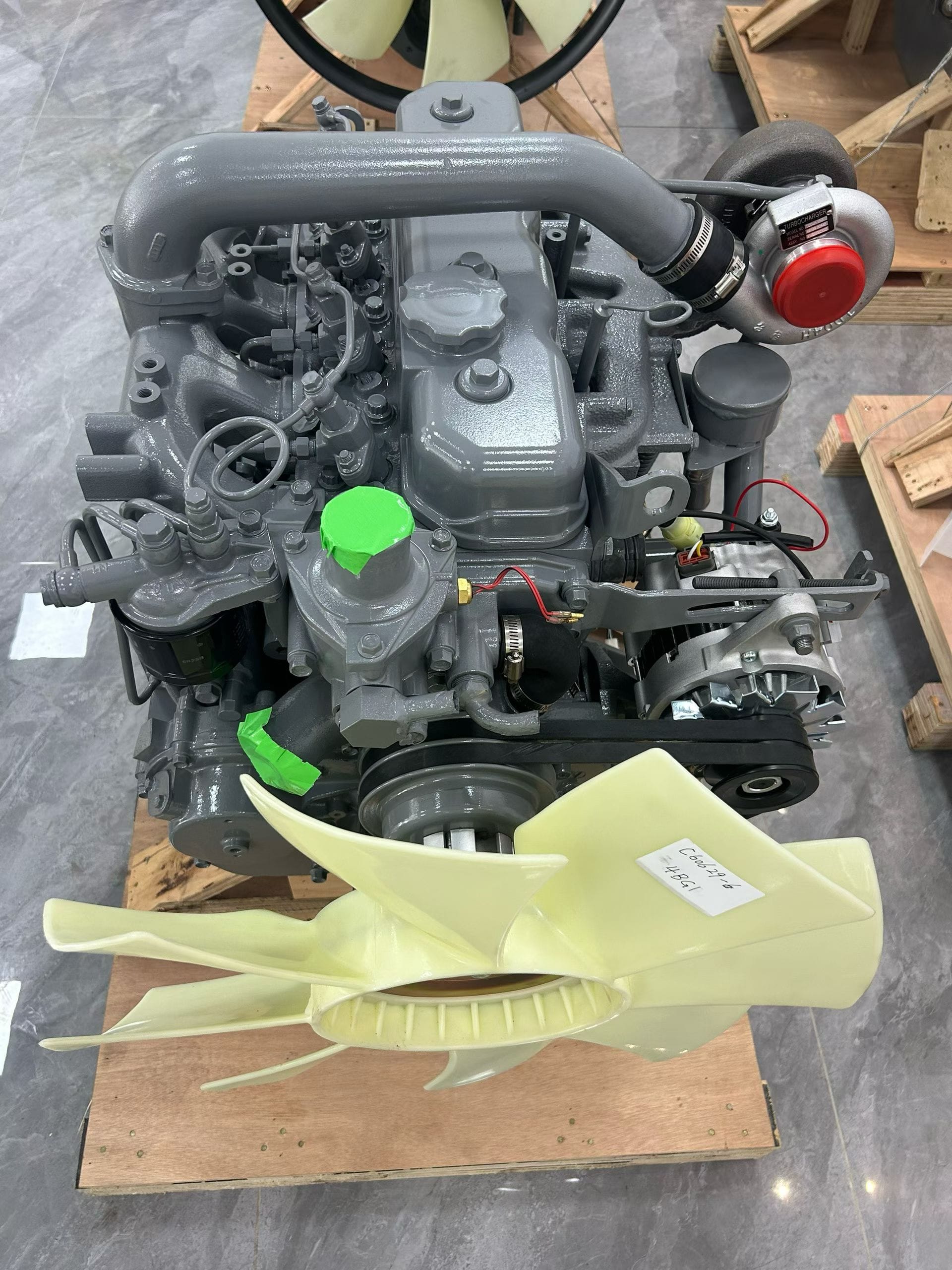

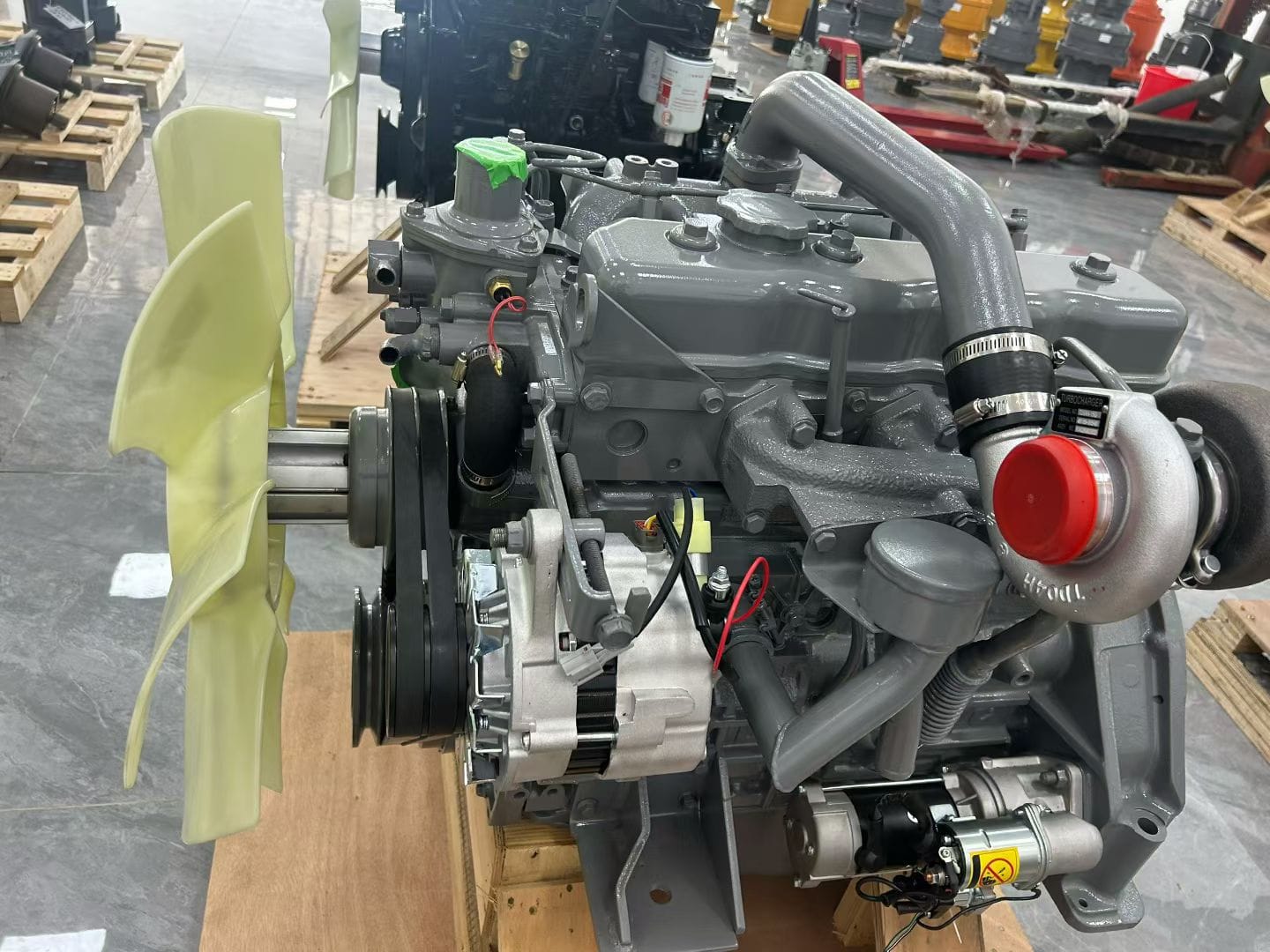

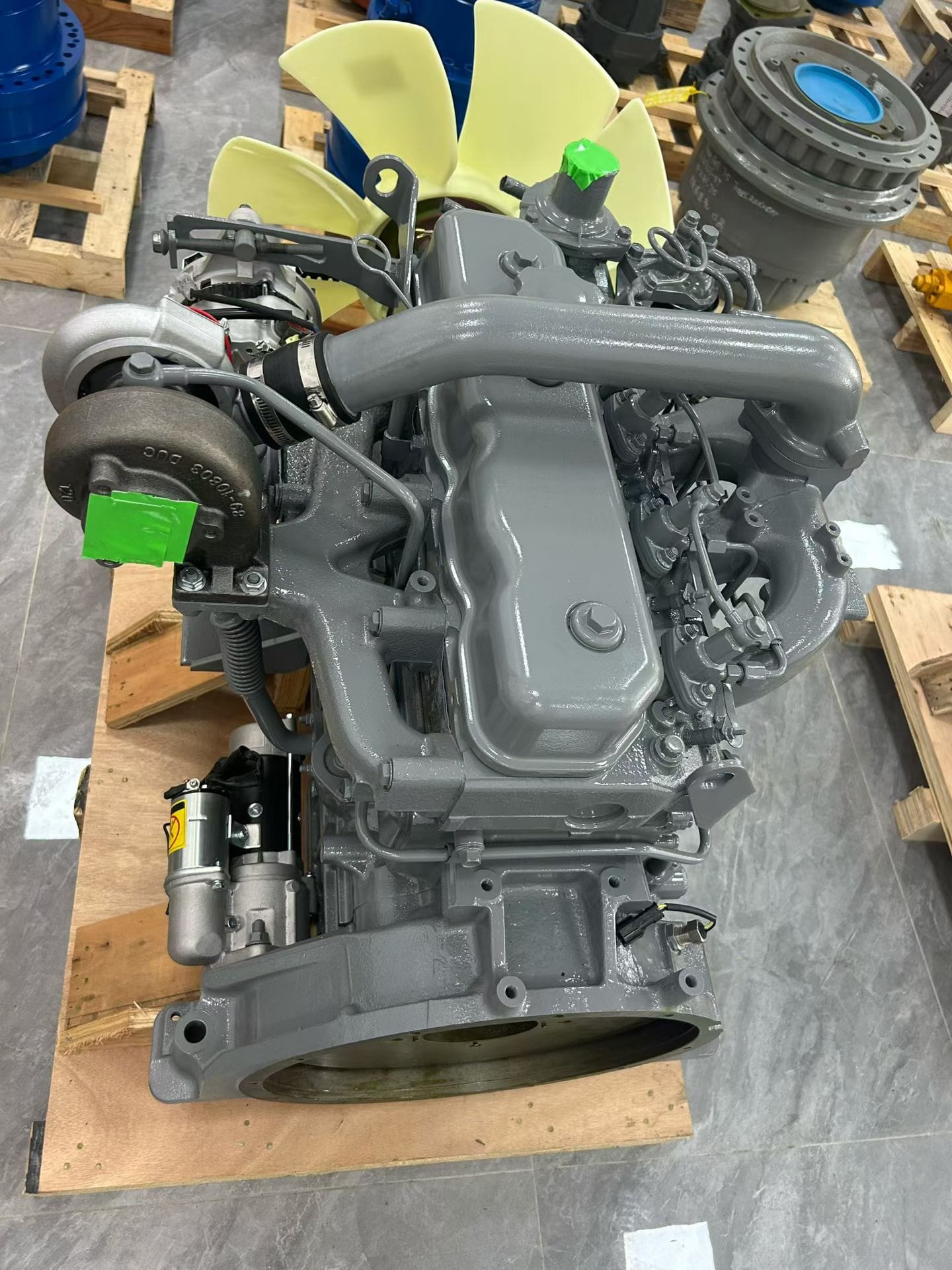

CC-4BG1TC 8980045430 Diesel Engine Assembly Overview
The CC-4BG1TC 8980045430 Engine assembly manufactured by Tatan is a heavy-duty 4.329-liter inline 4-cylinder turbocharged and intercooled water-cooled industrial diesel powerplant belonging to our Diesel Engine Assembly classification. Engineered specifically for Hitachi ZX130-5G, ZX130K-5G, and ZX135US-5B 13-ton crawler excavators, replacing your worn or failed engine core with a Tatan complete turnkey assembly stops crankcase oil blow-by, restores 66 kW (89 HP) rated output at 2150 RPM, and cures hot-idle oil pressure loss under continuous hydraulic pump load.
Coupled directly to the machine’s main hydraulic pump and governing the HCV06 main control valve, this CC-4BG1TC 8980045430 Engine incorporates an induction-hardened forged steel crankshaft, a direct-injection crossflow cylinder head, an internal gear oil pump, a wastegated turbocharger, and an in-line mechanical Zexel A-type fuel injection pump, ensuring 100% direct bolt-on installation with flywheel housings and chassis mounts.
Key Attributes & Technical Parameters for CC-4BG1TC 8980045430 Engine
| Product Category | Diesel Engine Assembly | Warranty | 1 Year / 12 Months |
| Specific Valve Model | Isuzu CC-4BG1TC Turbo Intercooled Diesel | Brand Name | Tatan |
| Compatible Equipment | Hitachi ZX130-5G | ZX130K-5G | ZX135US-5B | OEM Part Number | 8980045430 / 8-98004543-0 / 4654522 |
| Matched Engine Series | Isuzu 4BG1 Series (4-Cylinder Turbo Intercooled) | Place of Origin | Guangdong, China |
| Max Relief Pressure | 66 kW (89 HP) Net / 71 kW Gross @ 2150 RPM | Pilot Control Pressure | 4.329 Liters (105mm × 125mm) |
| Spool Precision Spec | Chromed Dry Liners < 0.003 mm Tolerance | Quality Status | 100% Brand New Turnkey Assembly |
| Machinery Test Report | Provided (100% Dyno Bench Tested) | Video Outgoing-Inspection | Provided Before Shipping |
| Hydraulic Fluid Spec | 15W-40 Heavy-Duty Diesel Engine Oil | Packaging | Export Wooden Box Packaging |
Multi-Machinery Fleet Support & Engine Assembly Inventory
Tatan supplies factory-built turnkey diesel engines, cooling packages, water pumps, and internal overhaul rebuild parts for excavators, wheel loaders, and compact rollers globally:
Supported Excavator Machinery Brands & Global Coverage
In addition to Hitachi crawler excavators, Tatan manufactures and supplies replacement complete diesel engines, short blocks, and overhaul parts across major equipment brands:
Application Scenarios & Buyer Value
When contractors search to compare Hitachi ZX130-5G engine replacement cost and upgrade their machine with our CC-4BG1TC 8980045430 Engine, they secure measurable field reliability and lower cost per hour:
| Application Scenario | Value Delivered to Buyer |
|---|---|
| Hitachi ZX130-5G Engine Repowering | 1:1 direct bolt-on installation eliminates starting delays and restores full 66 kW power for continuous 0.59 m³ rock bucket trenching. |
| Heavy Equipment Repair Workshops | Avoids the complex labor of block re-boring and injector pump calibration; installs as a pre-timed turnkey unit. |
| Tropical Quarry & Earthmoving Fleets | Heavy-duty forged pistons and multi-layer steel head gaskets withstand continuous hydraulic breaker hammer operations in 50°C ambient heat. |
| Machinery Parts Stockists | High-demand 4.3L turbo intercooled engine inventory packaged in solid export wooden crates ready for immediate global air or sea dispatch. |
CC-4BG1TC 8980045430 Engine OEM Diagnostic & Troubleshooting Guide
Use this technical guide to diagnose common Isuzu CC-4BG1TC diesel engine symptoms on your Hitachi ZX130-5G excavator:
| Engine Fault Symptom | Technical Cause Analysis | Tatan Factory-Grade Solution |
|---|---|---|
| 1. Severe engine lugging & black smoke under load | In-line A-type injection pump boost compensator diaphragm rupture or intercooler hose crack dropping boost below 170 kPa. | Replace with Tatan complete CC-4BG1TC 8980045430 Engine assembly fitted with factory-calibrated Zexel injection pump and matched turbocharger. |
| 2. Coolant boiling & expansion tank bubbling | Combustion gas blown past cylinder head gasket on rear cylinder 4 due to thermal concentration under continuous rock hammer work. | Install Tatan new engine with factory-torqued MLS head gasket and precision surface-milled parent block face. |
| 3. Heavy crankcase blow-by & oil spitting | 105mm cylinder dry liner wall micro-scoring or stuck keystone compression rings allowing combustion pressure into the oil pan. | Install Tatan new engine assembly; flush radiator cooling fins and install fresh dual-element air filters. |
| 4. Oil pressure lamp flickers at hot idle (< 0.12 MPa) | Excessive crankshaft main journal bearing clearance or worn oil pump rotor losing delivery volume under operating heat. | Replace complete engine assembly to maintain factory oil pressure (> 0.38 MPa rated / > 0.15 MPa idle) and prevent crankshaft seizure. |
Transport Packaging & Certified Quality Assurance
Every Tatan diesel engine undergoes internal anti-corrosion fogging, heat-sealed plastic wrap, and solid timber export crating:
✈️ Express Air Courier
Partnered with DHL, FedEx, and UPS for 3-7 day priority delivery worldwide.
🚢 Sea Cargo Freight
LCL and FCL container ocean freight for bulk equipment parts replenishment.
📦 Export Wooden Crates
Solid fumigated timber cases lined with thick shockproof foam to prevent transit damage.
CC-4BG1TC 8980045430 Engine FAQ & Related Categories
* Note: Wholesale Reference Price Starts From $300.00. Please contact Gavin for a final customized quote.
