6SD1-T 1-11110-912-0 Engine Assembly Overview

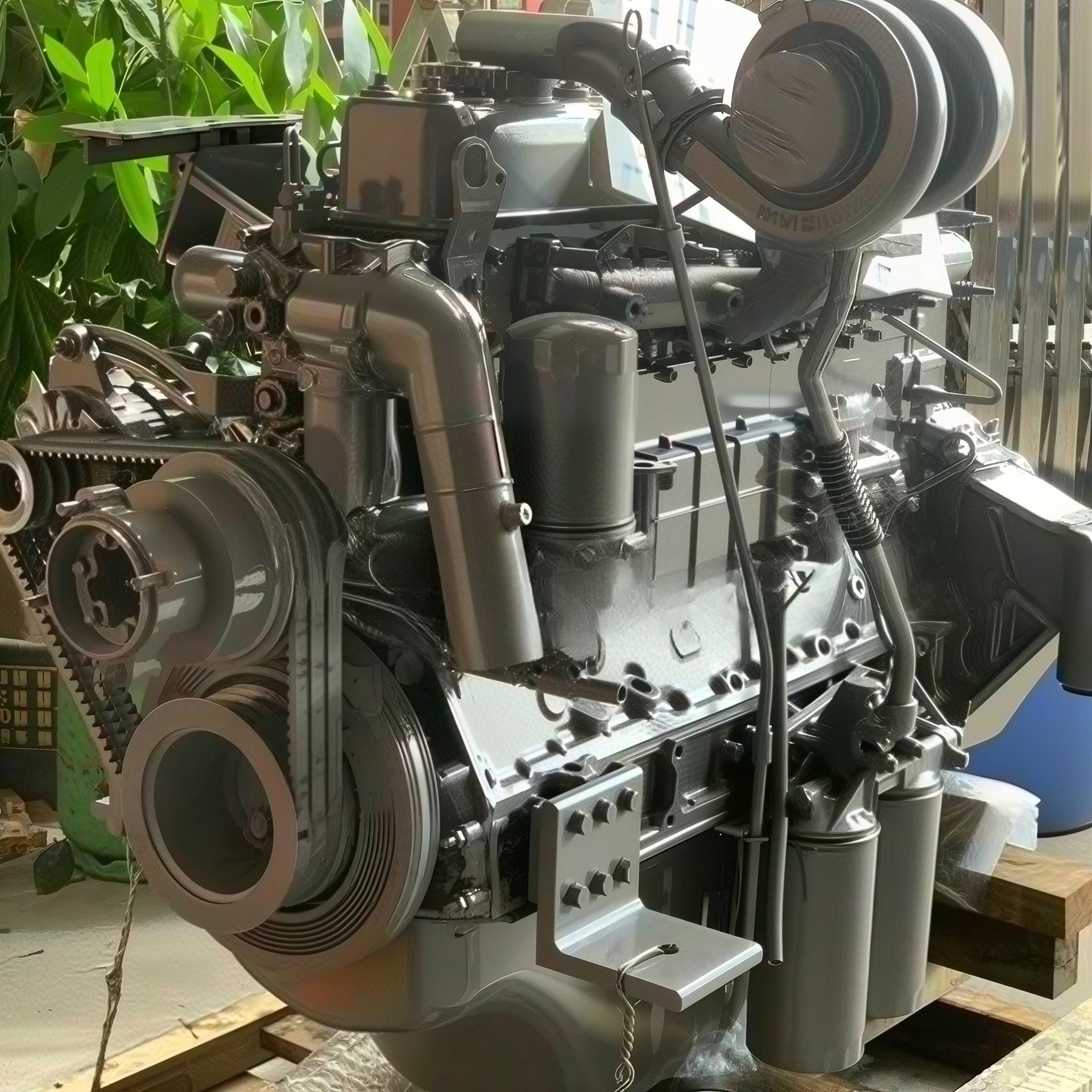

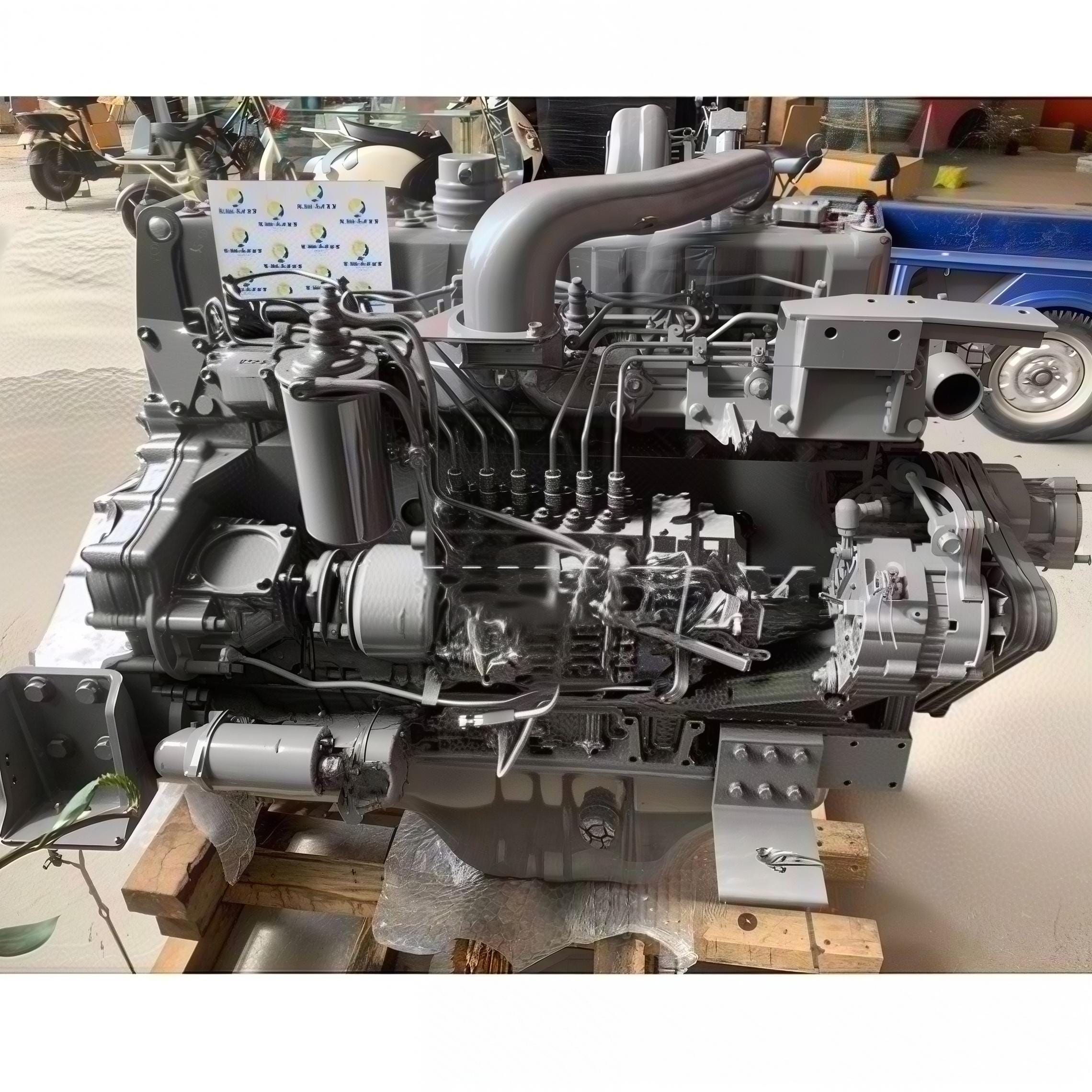

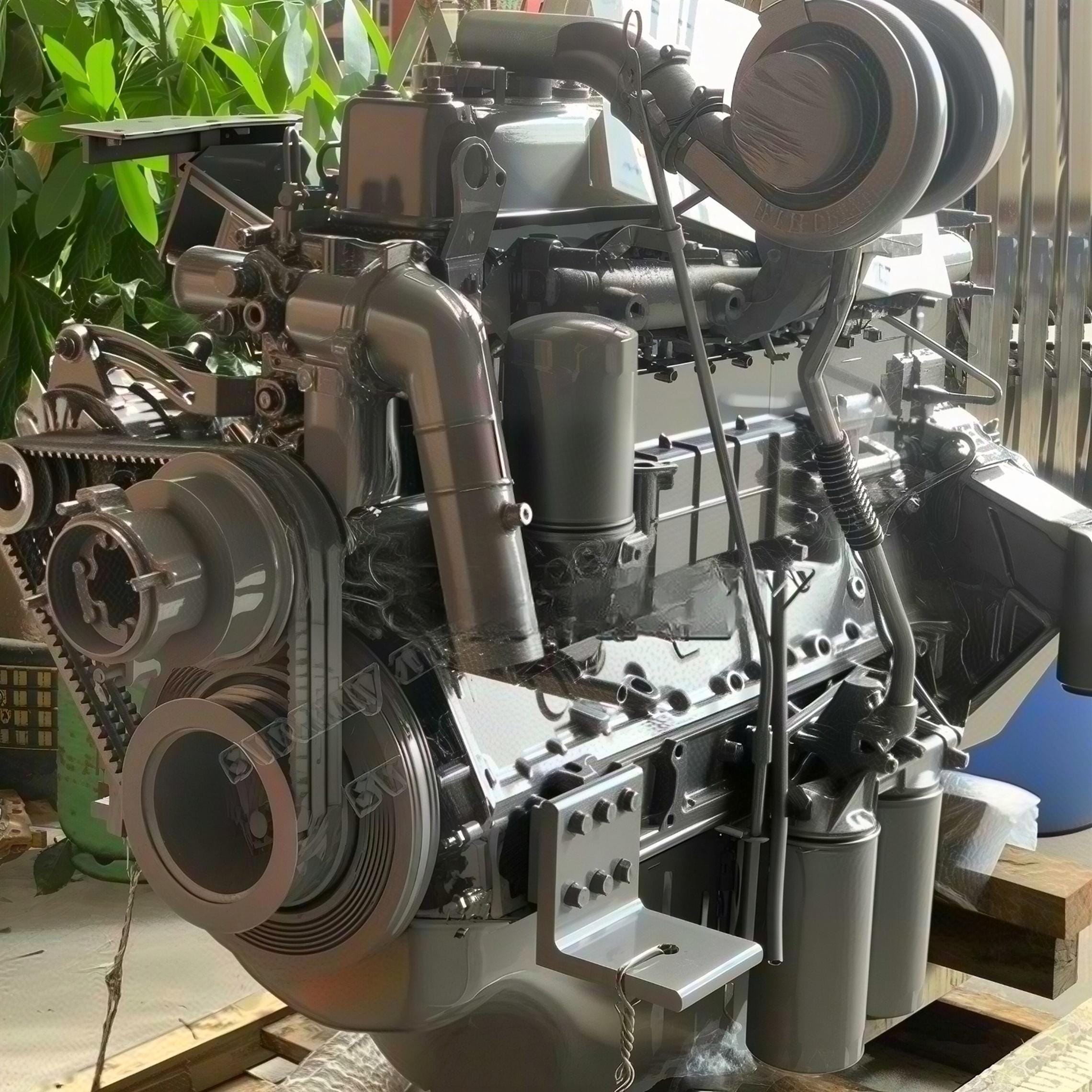

The 6SD1-T 1-11110-912-0 Engine Assembly manufactured by Tatan is a heavy-duty 9.839L 6-cylinder turbocharged water-cooled diesel powerplant belonging to our Diesel Engine Assembly classification. Engineered specifically for Hitachi EX300, EX300-2, EX300-3, and EX300LC 30-ton class excavators, swapping your worn powerplant with this complete 6SD1-T 1-11110-912-0 Engine Assembly unit eliminates costly jobsite downtime, severe crankcase blow-by, and hydraulic stall under continuous 30-ton quarry and mining loads.
Built strictly according to original Isuzu OEM specifications, this complete engine assembly is pre-fitted with a mechanical in-line PE-6P injection pump, turbocharger, 24V starter motor, and alternator, ensuring 100% direct mechanical alignment with Hitachi dual HPV145 main hydraulic pump dampener couplings and mounting brackets.
Key Attributes & Parameters for 6SD1-T 1-11110-912-0 Engine Assembly
| Product Category | Diesel Engine Assembly | Warranty | 1 Year / 12 Months |
| Specific Engine Model | Isuzu 6SD1-T / 6SD1-TC Turbocharged Engine | Brand Name | Tatan |
| Compatible Equipment | Hitachi EX300 | EX300-2 | EX300-3 Excavator | OEM Part Number | 6SD1-T / 1-11110-912-0 / 4281928 |
| Engine Displacement | 9.839 Liters (9839 cc / 9.8L) | Cylinder Arrangement | 6 Cylinders Inline (I-6) 4-Stroke |
| Horsepower & RPM | 165 – 172 kW (225 – 235 HP) @ 2000 RPM | Cooling System | Heavy-Duty Water-Cooled / Liquid Cooled |
| Machinery Test Report | Provided (100% Dyno Tested under Load) | Video Outgoing-Inspection | Provided Before Shipping |
| Aspiration Type | Turbocharged & Intercooled (增压中冷) | Place of Origin | Guangdong, China |
| Quality Status | 100% Brand New Engine Assembly | Packaging | Export Wooden Box Packaging |
Supported Machinery Brands & Engine Coverage
In addition to Isuzu, Tatan manufactures replacement complete diesel engines and overhaul components for leading machinery brands:
Application Scenarios & Buyer Value
When rebuilding or replacing aging powerplants with our 6SD1-T 1-11110-912-0 Engine Assembly, workshops and equipment owners eliminate repetitive downtime:
| Application Scenario | Value Delivered to Buyer |
|---|---|
| Hitachi EX300 Engine Replacement | Swapping to the 6SD1-T 1-11110-912-0 Engine Assembly cuts machine repair downtime by up to 75% compared to trial-and-error field block rebuilding. |
| Heavy Mining Overhaul Centers | Avoids the high cost and failure rate of line-boring cracked main bearing saddles and grinding undersized crankshafts on high-hour 9.8L blocks. |
| Quarry & Hard-Rock Excavation Fleets | Restores full 172 kW high-stall torque, driving dual main hydraulic pumps simultaneously without engine RPM dipping under massive 1.5 m³ bucket penetration. |
| International Machinery Stockists | Ready-to-ship replacement engine inventory for overseas contractors maintaining working fleets of classic 30-ton Hitachi machinery. |
6SD1-T 1-11110-912-0 Engine Assembly OEM Diagnostic Guide
Use this technical diagnostic guide to identify engine failures on your Hitachi EX300 excavator:
| Engine Symptom | Technical Cause Analysis | Tatan Factory-Grade Solution |
|---|---|---|
| 1. Hard cold starting & dense white unburned fuel smoke | Mechanical PE-6P injection pump delivery timing retarded or cylinder compression falling below 2.9 MPa due to 120 mm piston ring and liner wear. | Adjust injection timing or replace with a complete 6SD1-T 1-11110-912-0 Engine Assembly. |
| 2. Severe RPM drop & heavy black smoke under hydraulic load | Turbocharger wastegate failure leading to low manifold boost pressure (<1.2 bar) or injection pump mechanical governor spring fatigue. | Inspect turbocharger boost pressure or swap to a factory pre-tested complete replacement engine. |
| 3. Excessive oil consumption & high crankcase blow-by pressure | Scored 9.8L cylinder liners, stuck oil scraper rings, or deteriorated valve stem seals allowing engine oil into combustion chambers. | Install a new complete engine assembly; flush oil cooler lines and replace oil filter cartridges. |
| 4. Engine coolant overheating & continuous radiator bubbling | Water pump impeller cavitation erosion, clogged radiator core tubes, or cylinder head gasket leaking high-pressure combustion gas into the water jacket. | Replace thermostat (82°C), flush cooling system, or install a brand new complete engine unit. |
Transport Packaging & Fast Global Shipping
To ensure 100% damage-free international transport, every Tatan 6SD1-T engine assembly is preserved with anti-corrosion fluid, sealed in heavy poly film, and strapped inside an export-grade reinforced wooden crate.
✈️ Express Air Courier
Partnered with DHL, FedEx, UPS, and TNT for 3-7 day express door-to-door delivery worldwide.
🚢 Sea Cargo Freight
LCL and FCL ocean container shipping for heavy 9.8L engine assemblies and bulk fleet orders.
📦 Export Wooden Cases
Fumigated solid wooden boxes with custom high-density foam inserts to prevent shipping shock.
Quality Control & International Certificates
Tatan hydraulic and engine components are manufactured under ISO 9001 certified quality control systems and strictly comply with CE industrial safety directives.
6SD1-T 1-11110-912-0 Engine FAQ & Related Categories
* Note: Wholesale Reference Price Starts From $300.00. Please contact Gavin for a final customized quote.
