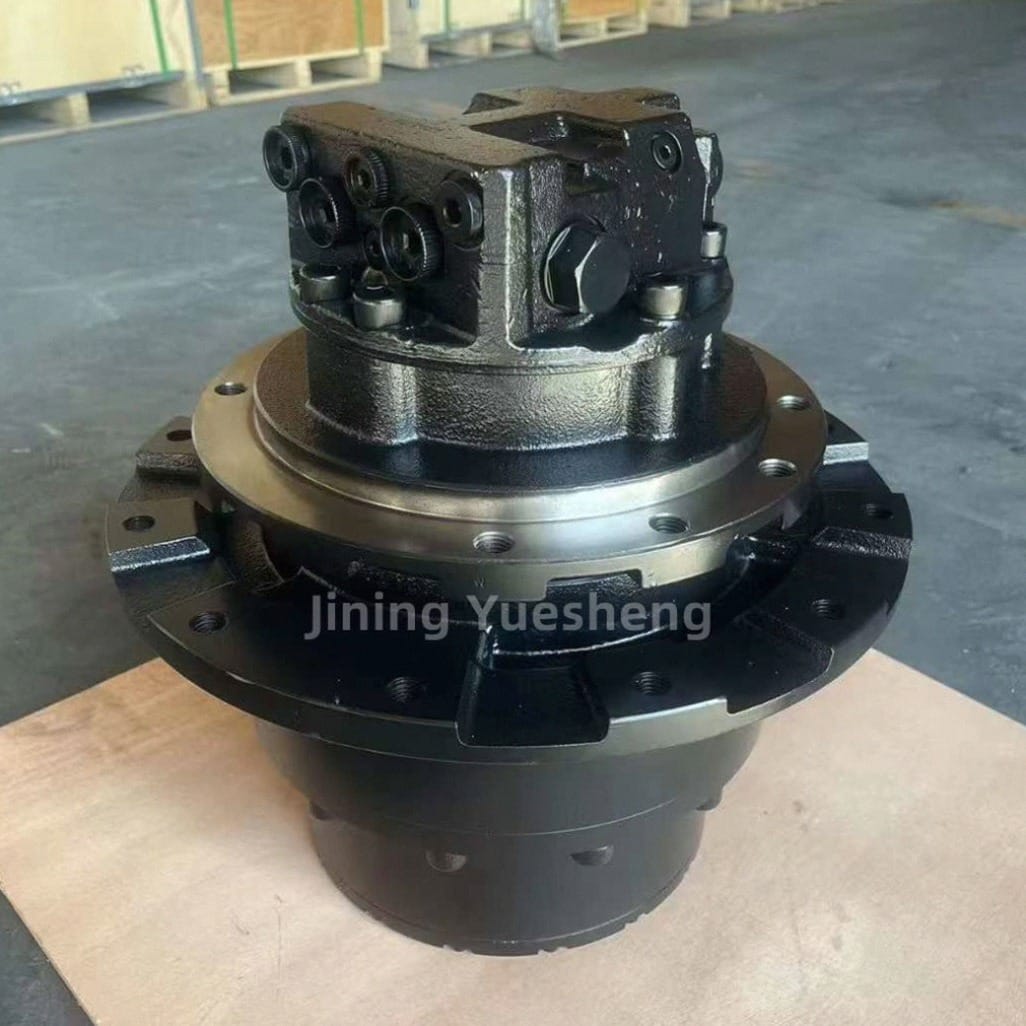

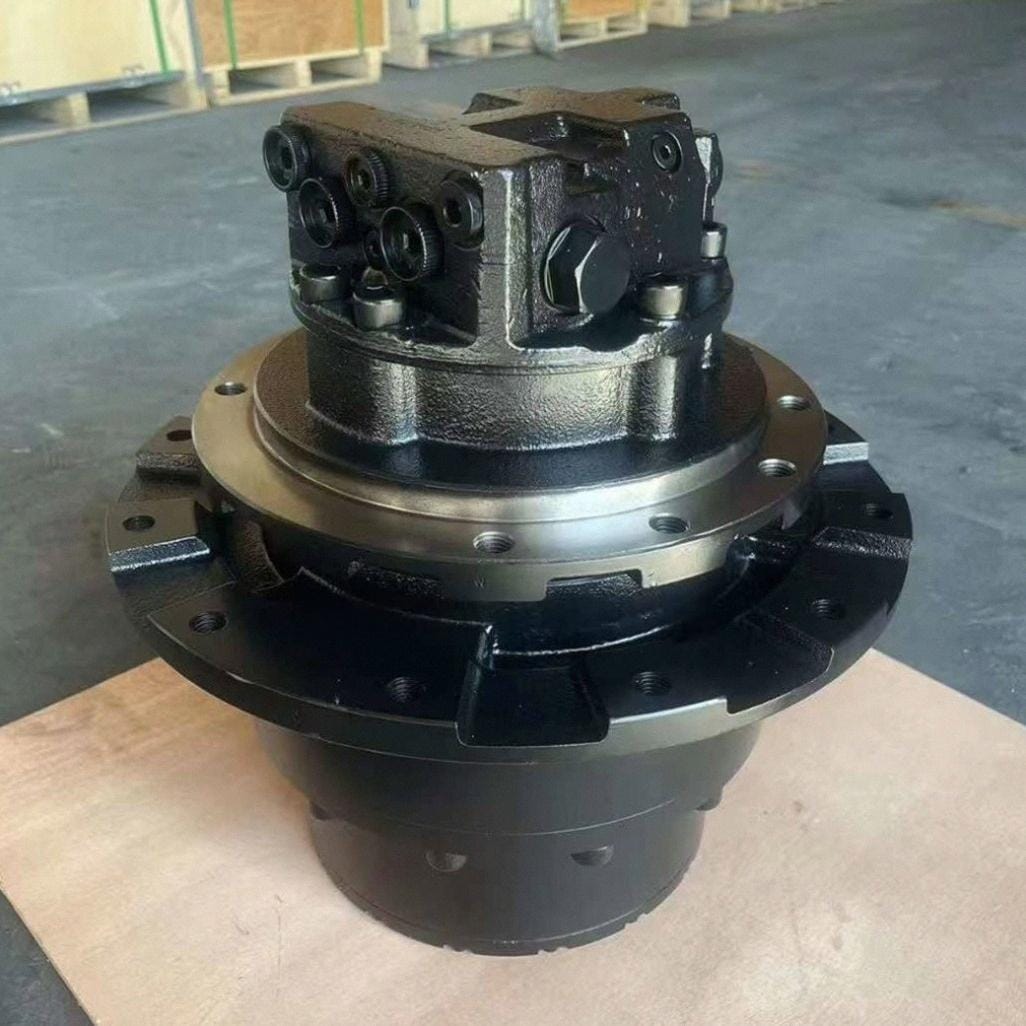

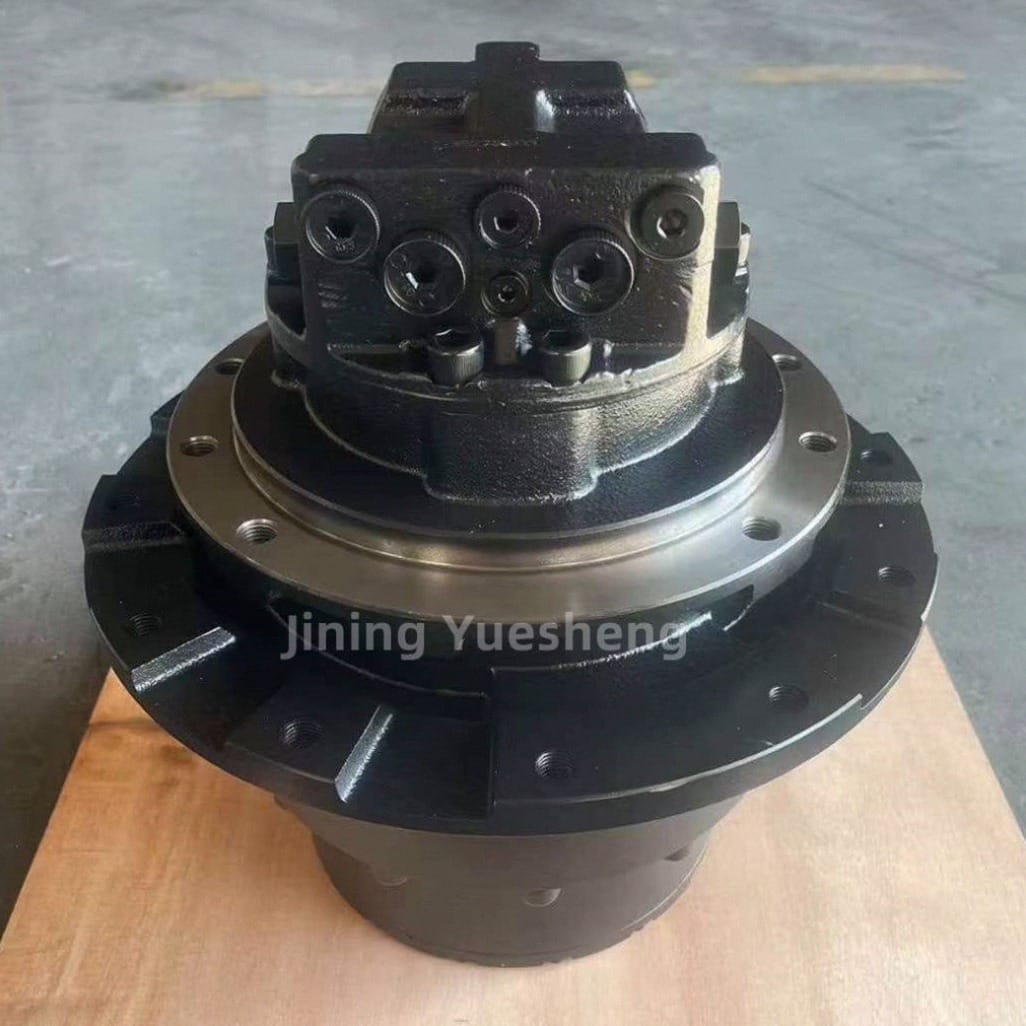

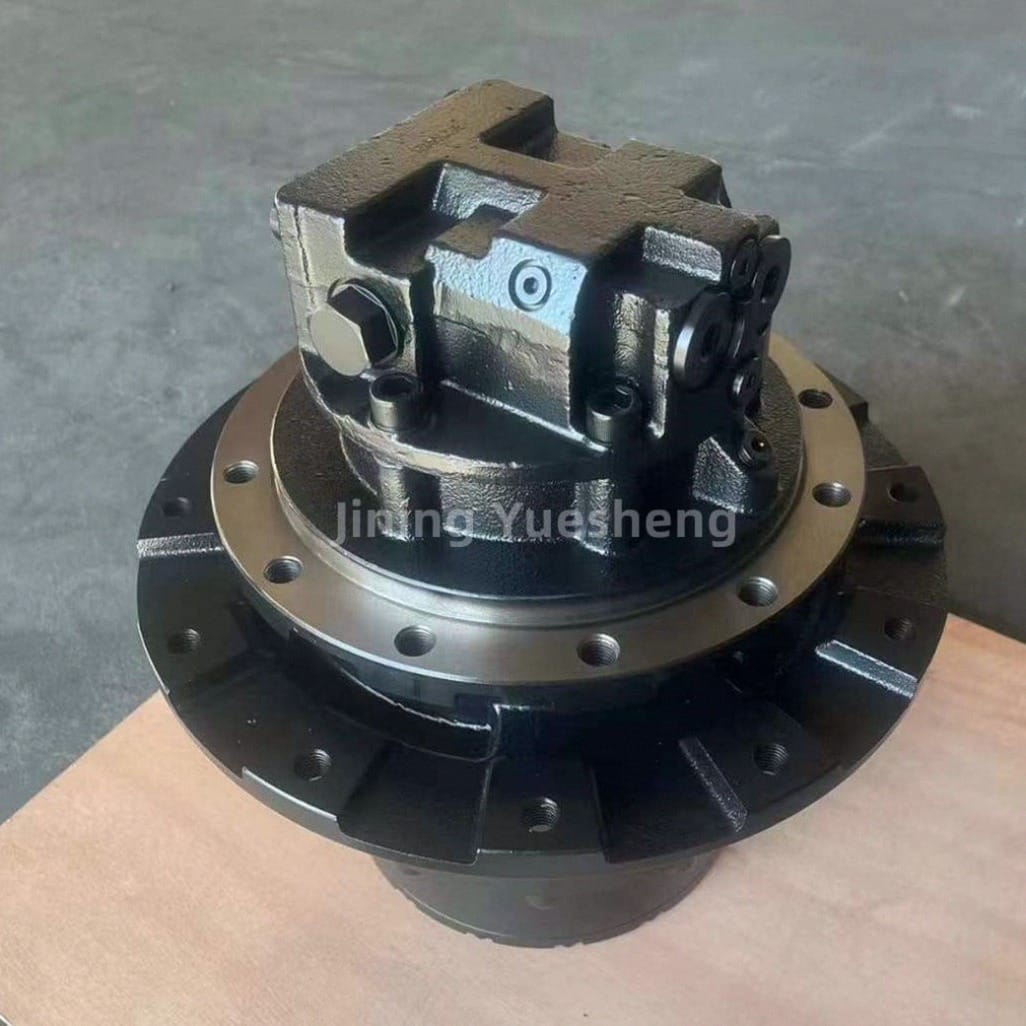

MAG-33VP 9224123 Travel Motor Assembly Overview
The MAG-33VP 9224123 Travel Motor assembly manufactured by Tatan is a heavy-duty integrated hydraulic final drive unit combining a dual-speed axial piston motor and planetary reduction gearbox. Belongs to our Travel Motor Final Drive Assembly classification. Engineered specifically for Hitachi ZX70, ZX70LC, ZX70-3, and ZX75US 7-ton midi excavators, replacing your worn final drive with a Tatan complete assembly eliminates single-side track pulling, restores crawling gradeability on muddy slopes, and cures planetary gear grinding across demanding civil excavation applications.
Driven directly by the machine’s main hydraulic pump and routed through the main control valve assembly, this travel drive incorporates 20CrNiMo carburized planetary gears, Duo-Cone mechanical face seals, a hydraulic parking brake pack, and a built-in counterbalance valve, ensuring 100% direct bolt-on installation with track frames, drive sprockets, and chassis hydraulic lines.
Key Attributes & Technical Parameters for MAG-33VP 9224123 Travel Motor
| Product Category | Travel Motor Final Drive Assembly | Warranty | 1 Year / 12 Months |
| Specific Valve Model | KYB MAG-33VP Dual-Speed Motor + Gearbox | Brand Name | Tatan |
| Compatible Equipment | Hitachi ZX70 | ZX70LC | ZX70-3 | ZX75US | OEM Part Number | 9224123 / 9190694 / 9224241 |
| Matched Engine Series | Isuzu 4JG1 / Yanmar 4TNV98 Diesel (40.5 – 42.4 kW) | Place of Origin | Guangdong, China |
| Max Relief Pressure | 24.5 – 26.0 MPa (245 – 260 bar / 3770 PSI) | Pilot Shift Pressure | 3.9 MPa (39 bar Shift Line) |
| Spool Precision Spec | Micro-Lapped < 0.003 mm Clearance | Quality Status | 100% Brand New Motor & Gearbox Unit |
| Machinery Test Report | Provided (100% Bench Tested) | Video Outgoing-Inspection | Provided Before Shipping |
| Gear Oil Spec | SAE 80W-90 / SAE 85W-140 EP | Packaging | Export Wooden Box Packaging |
Comprehensive Hydraulic Drive & Component Inventory
Tatan maintains extensive stock of complete multi-spool control valves, main pumps, regulators, pilot gear pumps, and internal seal kits across global excavator lines:
Supported Excavator Machinery Brands & Final Drive Lineup
In addition to Hitachi midi excavators, Tatan manufactures and supplies replacement travel motors, planetary gearboxes, and track drive components across global equipment brands:
Application Scenarios & Buyer Value
When upgrading or replacing your 7-ton excavator undercarriage drive with our MAG-33VP 9224123 Travel Motor, machine operators and workshop mechanics secure measurable field uptime:
| Application Scenario | Value Delivered to Buyer |
|---|---|
| Hitachi ZX70 Drive Replacement | 1:1 direct bolt-on installation eliminates track wandering on muddy terrain and restores full 5.0 km/h high-gear travel speed. |
| Compact Machinery Repair Workshops | Avoids the complex labor of pressing planetary gear carriers and setting bearing preload shims; drops on as a sealed unit. |
| Civil Trenching & Earthmoving Fleets | Carburized planetary gears and heavy Duo-Cone mechanical face seals withstand continuous mud immersion and rocky trail crawling. |
| Equipment Parts Stockists | High-demand 7-ton final drive inventory packaged in solid export wooden crates ready for immediate global dispatch. |
MAG-33VP 9224123 Travel Motor Diagnostic & Troubleshooting Guide
Use this technical guide to diagnose common travel motor and planetary reduction gearbox issues on Hitachi ZX70 series midi excavators:
| Hydraulic Fault Symptom | Technical Cause Analysis | Tatan Factory-Grade Solution |
|---|---|---|
| 1. Machine tracks to one side when dozer blading under load | Travel motor valve plate scoring causing excessive case-drain bypass, or counterbalance spool sticking partially closed on weak side. | Replace with Tatan 9224123 complete final drive assembly or flush counterbalance valve pilot galleries. |
| 2. Motor fails to shift between Low (Tortoise) and High (Hare) speed | Two-speed shift pilot spool jammed by oil contamination, or swashplate minimum angle control piston seals degraded. | Inspect 3.9 MPa shift pilot pressure at motor port, clean 2-speed selector valve, or replace travel drive unit. |
| 3. Black gear oil leaking from sprocket hub into track chains | Duo-Cone mechanical face floating seal rings worn out or wire/packing rope wrapped around sprocket cutting O-rings. | Stop machine immediately to prevent planetary gear seizure; install fresh Tatan factory-sealed final drive. |
| 4. Loud grinding & clunking sound from track drive hub | Planetary sun gear tooth fracture or needle roller bearing failure caused by operating with low gear oil level. | Drain gear oil to check for metal debris; replace complete gearbox assembly to prevent main track frame lockup. |
Transport Packaging & Certified Quality Assurance
Heavy-duty undercarriage drives require absolute vibration and contamination protection. Every unit is bolted in solid export timber crates:
✈️ Express Air Courier
Partnered with DHL, FedEx, and UPS for 3-7 day priority delivery worldwide.
🚢 Sea Cargo Freight
LCL and FCL container ocean freight for bulk equipment parts replenishment.
📦 Export Wooden Crates
Solid fumigated timber cases lined with thick shockproof foam to prevent transit damage.
MAG-33VP 9224123 Travel Motor FAQ & Related Categories
🔗 Frequently Purchased Together with ZX70 Travel Motor:
* Note: Wholesale Reference Price Starts From $300.00. Please contact Gavin for a final customized quote.
