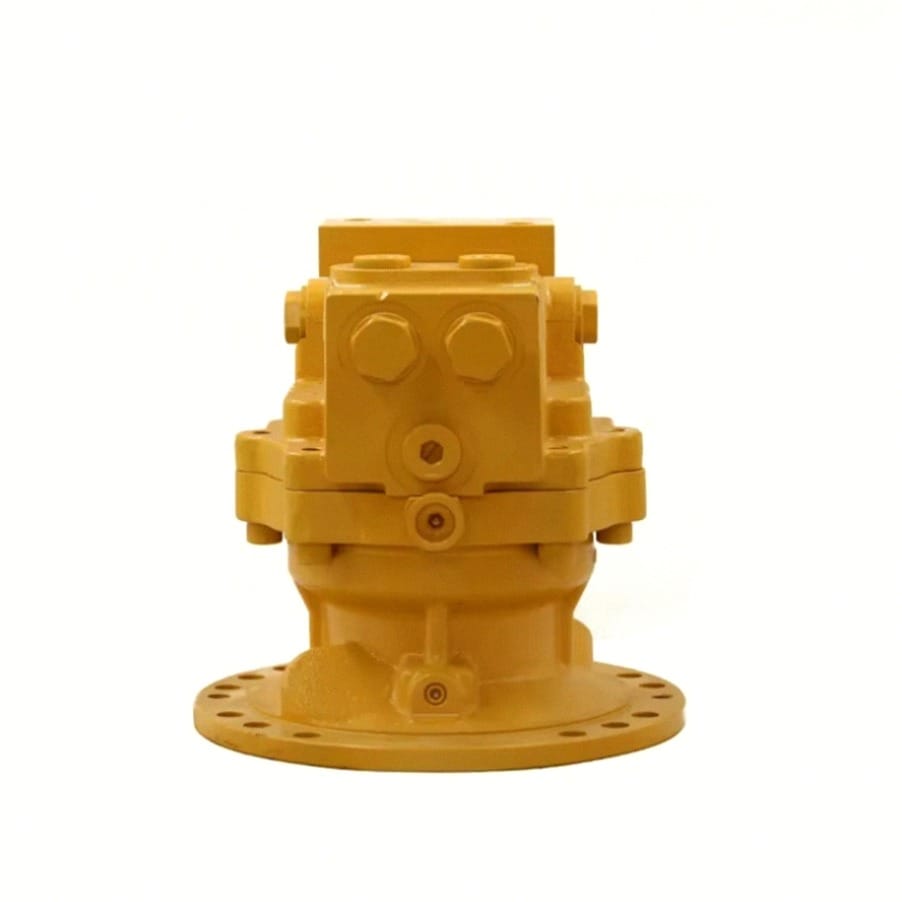

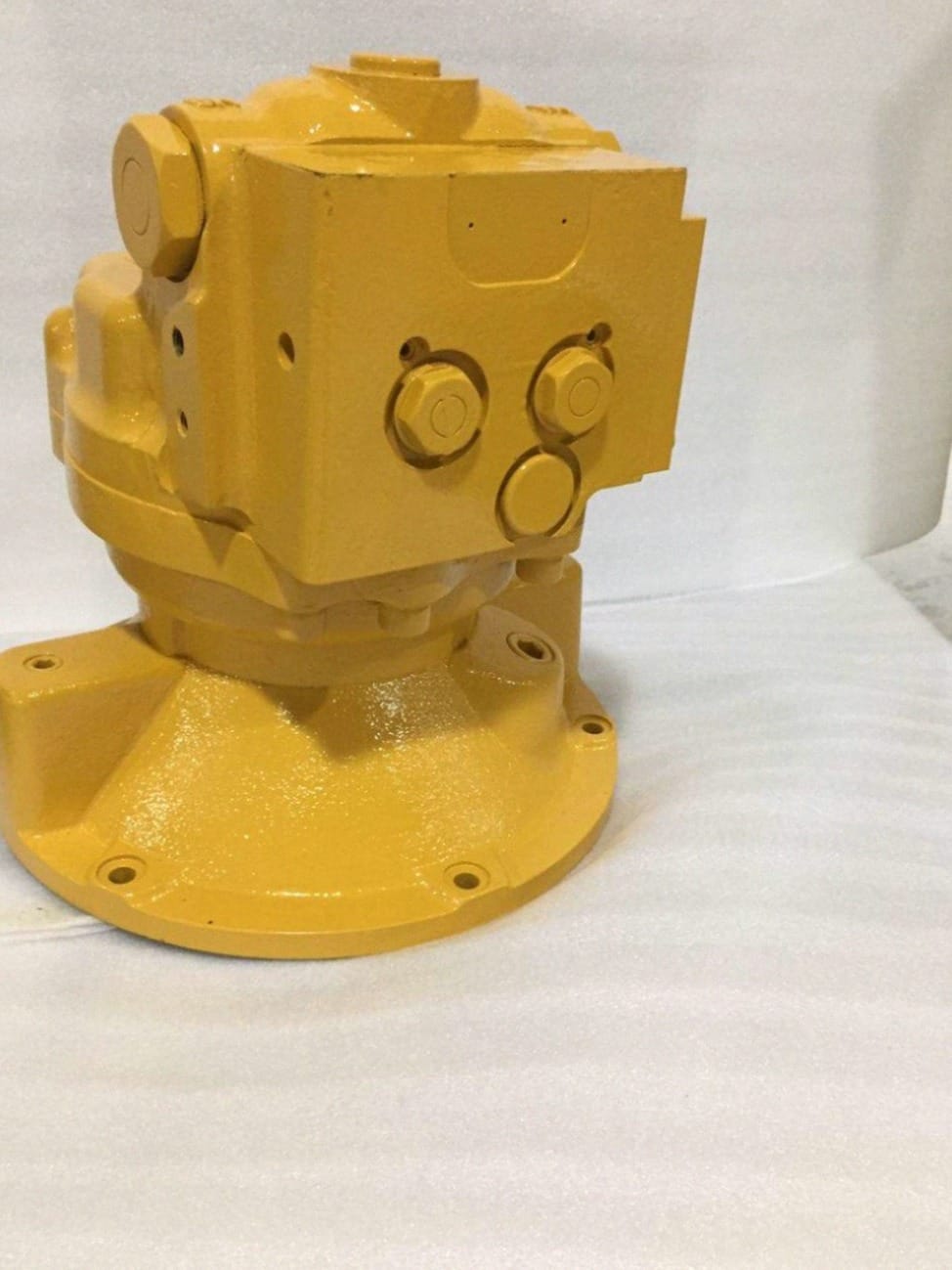

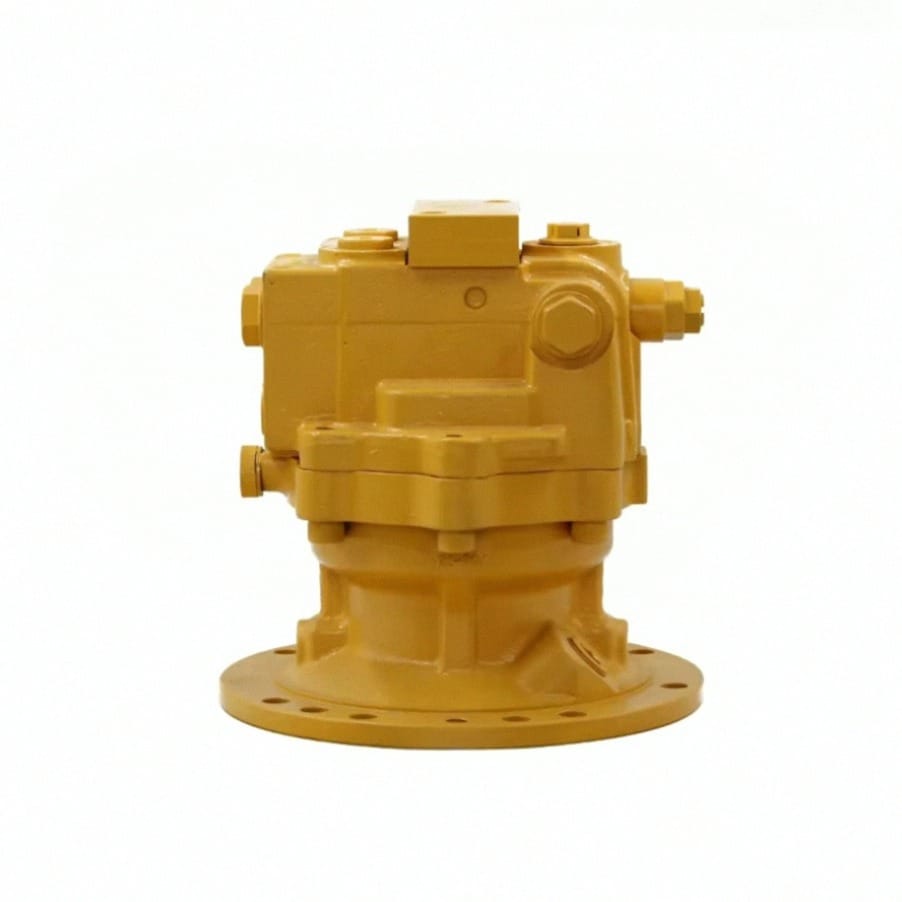

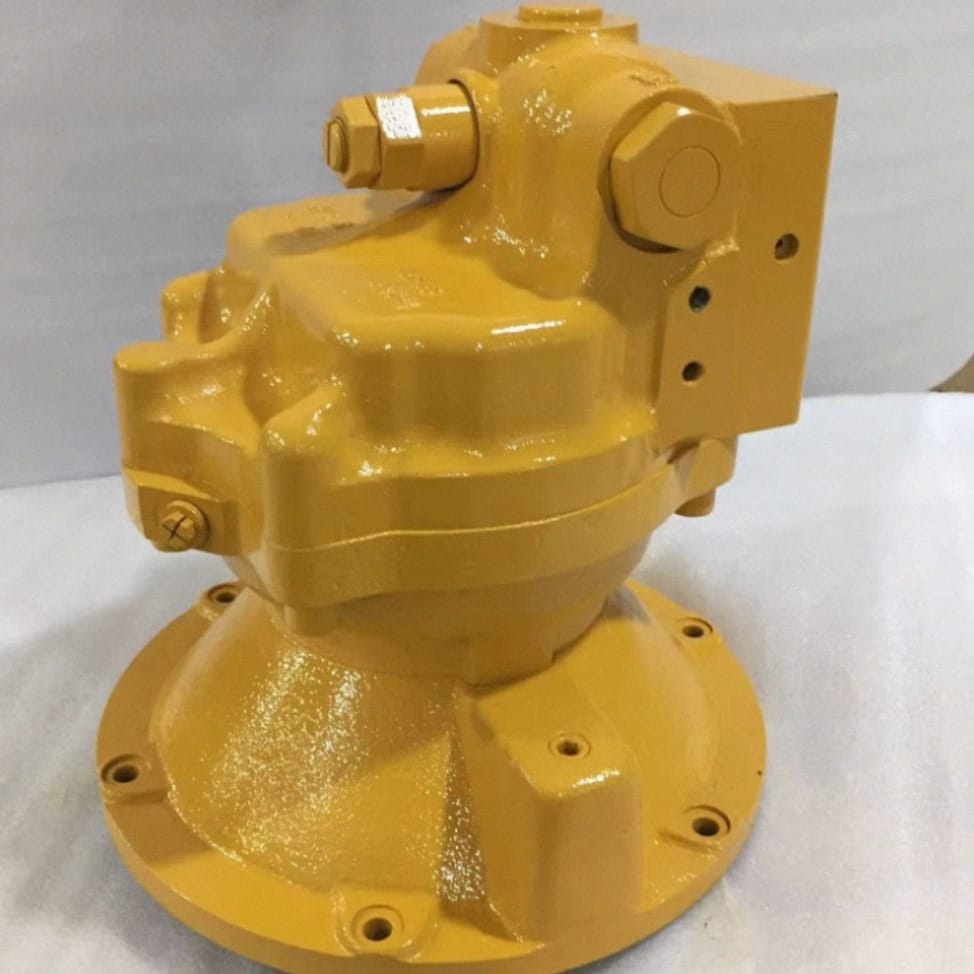

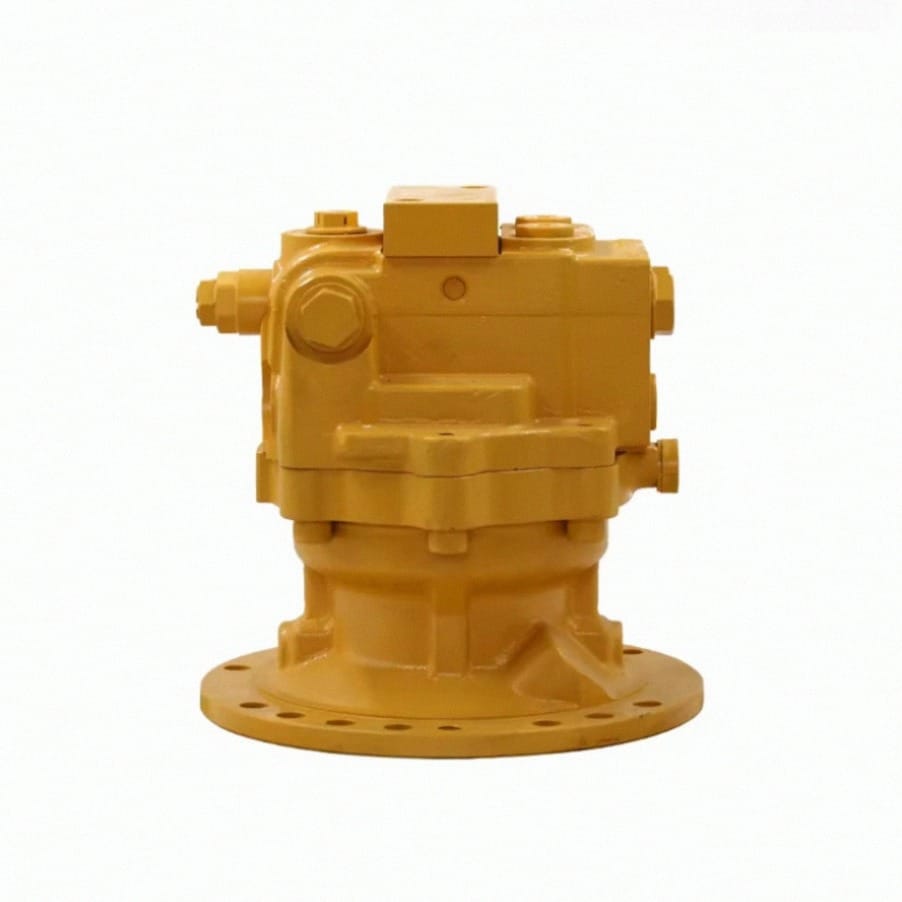

M5X130CHB 4625367 Swing Motor Assembly Overview
The M5X130CHB 4625367 Swing Motor Assembly manufactured by Tatan is a heavy-duty axial piston rotary hydraulic motor belonging to our Excavator Swing Motor Assembly classification. Engineered specifically for Hitachi ZX250-3, ZX250LC-3, ZX250H-3, and ZX250K-3 25-ton mining excavators, swapping a worn or internally leaking motor with this complete M5X130CHB 4625367 Swing Motor Assembly unit resolves turntable drift, sluggish slewing acceleration, and hydraulic chatter under heavy 25-ton quarry cycles.
Constructed strictly to original Kawasaki M5X130 engineering tolerances, this complete unit integrates a 130 cc axial piston cylinder block, precision-lapped bi-metal valve plate, dual anti-shock crossover relief valves, and an internal multi-disc mechanical parking brake. It delivers immediate hydraulic response and mounts directly to the original Dash-3 reduction gearbox with zero bracket modifications.
Key Attributes & Parameters for M5X130CHB 4625367 Swing Motor Assembly
| Product Category | Swing Motor Assembly | Warranty | 1 Year / 12 Months |
| Specific Motor Model | Kawasaki M5X130CHB / M5X130CHB-10A Slewing Motor | Brand Name | Tatan |
| Compatible Equipment | Hitachi ZX250-3 | ZX250LC-3 | ZX250H-3 | OEM Part Number | M5X130CHB / 4625367 / 4729033 |
| Rated Working Pressure | 31.4 – 34.3 MPa (314 – 343 Bar / 4975 PSI) | Braking System | Integrated Multi-Disc Mechanical Brake |
| Crossover Relief Pressure | 30.5 MPa (305 Bar) Pre-Calibrated | Drive Spline Shaft | Standard Involute Spline for ZX250-3 Reducer |
| Machinery Test Report | Provided (100% Bench Torque Tested) | Video Outgoing-Inspection | Provided Before Shipping |
| Housing Metallurgy | High-Density Nodular Cast Iron Body | Place of Origin | Guangdong, China |
| Quality Status | 100% Brand New Swing Motor Unit | Packaging | Export Reinforced Wooden Box Packaging |
Supported Machinery Brands & Swing Motor Coverage
In addition to Hitachi, Tatan manufactures replacement complete swing motors, rotary groups, and brake valves for leading machinery brands:
Application Scenarios & Buyer Value
When resolving turntable rotation and drift issues with our M5X130CHB 4625367 Swing Motor Assembly, workshops and equipment contractors secure measurable operational advantages:
| Application Scenario | Value Delivered to Buyer |
|---|---|
| Hitachi ZX250-3 Turret Drift Repair | Installing the M5X130CHB 4625367 Swing Motor Assembly restores 100% mechanical holding force immediately, stopping hazardous cab creeping on side inclines under heavy 1.3 m³ bucket loads. |
| Hydraulic Component Overhaul Centers | Eliminates high-cost trial-and-error rebuilding of scored cylinder blocks, worn brake pistons, and warped valve plates on old core units. |
| Quarry & Earthmoving Fleets | Restores crisp swing acceleration and smooth deceleration without violent hydraulic shudder during rapid truck loading cycles. |
| International Machinery Importers | Pre-tested, export-grade crated replacement units ready for immediate deployment to regional construction jobsites worldwide. |
M5X130CHB 4625367 Swing Motor Assembly OEM Diagnostic Guide
Use this technical diagnostic guide to identify slewing circuit and braking faults on your Hitachi ZX250-3 excavator:
| Slewing Symptom | Technical Cause Analysis | Tatan Factory-Grade Solution |
|---|---|---|
| 1. Superstructure drifts or creeps when parked on an incline | Worn mechanical parking brake friction discs or fatigued brake return springs failing to clamp the rotating group when pilot pressure drops. | Replace with a complete factory-tested M5X130CHB 4625367 Swing Motor Assembly. |
| 2. Sluggish slewing acceleration or weak rotation breakout torque | High internal oil bypass across scored valve plates and worn piston shoes, dropping motor working pressure below 23.0 MPa. | Inspect pilot control line pressure (3.9 MPa) and replace with a brand new high-torque Tatan swing motor. |
| 3. Violent mechanical shudder or banging noise when stopping swing | Crossover shockless relief valve cartridge jammed with metal contaminants or cracked relief poppet springs. | Flush motor drain gallery, replace hydraulic return filters, and install a pre-calibrated replacement motor. |
| 4. External hydraulic oil leaking past the motor output shaft seal | Excessive casing backpressure (> 0.25 MPa) blowing out the high-pressure shaft seal due to a restricted or pinched case-drain line. | Check and clear case-drain line restrictions and install a new sealed motor unit with dual lip seals. |
Transport Packaging & Fast Global Shipping
To ensure 100% damage-free international transport, every Tatan swing motor assembly is preservation-oiled, sealed with steel port plugs, wrapped in heavy waterproof film, and bolted inside an export-grade reinforced wooden crate.
✈️ Express Air Courier
Partnered with DHL, FedEx, UPS, and TNT for 3-7 day express door-to-door delivery worldwide.
🚢 Sea Cargo Freight
LCL and FCL ocean container shipping for heavy swing drive assemblies and bulk inventory orders.
📦 Export Wooden Cases
Fumigated solid wooden boxes with custom high-density foam inserts to prevent shipping shock.
Quality Control & International Certificates
Tatan hydraulic and slewing components are manufactured under ISO 9001 certified quality control systems and strictly comply with CE industrial machinery safety directives.
M5X130CHB 4625367 Swing Motor FAQ & Related Categories
* Note: Wholesale Reference Price Starts From $300.00. Please contact Gavin for a final customized quote.
