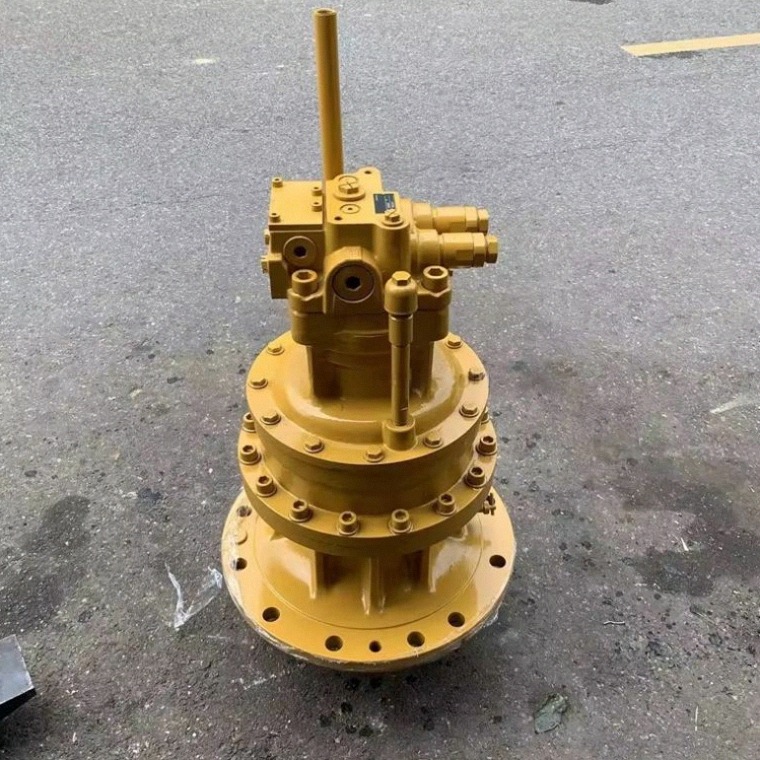

M5X130 259-0816 Swing Motor Assembly Overview
The M5X130 259-0816 Swing Motor Assembly manufactured by Tatan is an axial piston rotary hydraulic drive unit built in accordance with ISO fluid power standards. Engineered specifically for Caterpillar 323D, 323D L, and 323D LN 23-ton excavators, installing this complete M5X130 259-0816 Swing Motor Assembly unit eliminates superstructure drift on inclines, slow slewing acceleration, and mechanical parking brake slippage.
Constructed strictly according to Caterpillar OEM dimensional standards, this unit integrates high-strength alloy cylinder barrels, a pre-adjusted mechanical multi-disc parking brake pack, and dual anti-cavitation crossover relief valves. It provides a direct bolt-on interface with original CAT planetary swing reduction gearboxes without requiring line or wiring alterations.
Key Attributes & Parameters for M5X130 259-0816 Swing Motor Assembly
| Product Category | Excavator Swing Motor Assembly | Warranty | 1 Year / 12 Months |
| Specific Motor Model | M5X130 / M5X130CHB Slewing Motor | Brand Name | Tatan |
| Compatible Equipment | Caterpillar 323D | 323D L Excavator | OEM Part Number | 259-0816 / 295-9676 / 191-5542 |
| Rated Working Pressure | 31.5 MPa (315 Bar / 4568 PSI) | Braking System | Mechanical Multi-Disc Parking Brake |
| Displacement Type | Fixed Displacement Axial Piston Motor | Relief Valve Configuration | Dual Anti-Shock Crossover Valves |
| Machinery Test Report | Provided (Bench Torque Tested) | Video Outgoing-Inspection | Provided Before Shipping |
| Application System | Turret Rotation & Slewing Mechanism | Place of Origin | Guangdong, China |
| Quality Status | Brand New Replacement Motor | Packaging | Export Wooden Box Packaging |
Supported Machinery Brands & Slewing Motor Coverage
In addition to Caterpillar, Tatan manufactures replacement complete swing motors, hydraulic pumps, and rotary components for leading machinery brands:
Application Scenarios & Buyer Value
When resolving slewing and turret brake failures with our M5X130 259-0816 Swing Motor Assembly, workshops and contractors gain tangible operational benefits:
| Application Scenario | Value Delivered to Buyer |
|---|---|
| CAT 323D Swing Motor Replacement | Swapping to a complete M5X130 259-0816 Swing Motor Assembly cuts excavator repair downtime by up to 75% compared to internal field rebuilds. |
| Hydraulic Component Workshops | Avoids the complex and high-risk machining of scratched valve plates and uncalibrated brake spring packs. |
| Earthmoving & Quarry Fleets | Eliminates dangerous upper carriage downhill drift during side-slope trenching and precise 23-ton bucket positioning. |
| Global Heavy Parts Stockists | Ready-to-ship replacement inventory supporting high-population Caterpillar 323D series machines worldwide. |
M5X130 259-0816 Swing Motor Assembly OEM Diagnostic Guide
Use this technical diagnostic guide to identify rotation and braking failures on your Caterpillar 323D excavator:
| Slewing Symptom | Technical Cause Analysis | Tatan Factory-Grade Solution |
|---|---|---|
| 1. Turret creeps or drifts when swing joystick is released | Friction disc lining wear in the mechanical parking brake pack or excessive high-pressure bypass across the piston block. | Replace with a complete pre-tested M5X130 259-0816 Swing Motor Assembly. |
| 2. Weak swing acceleration and heavy shudder under load | Anti-shock crossover relief valve poppet erosion or spring fatigue failing to hold rated 31.5 MPa working pressure. | Inspect pilot control signals, flush lines, or install a calibrated complete motor unit. |
| 3. Grinding noise and metal shavings in swing gear oil | Input pinion bearing failure or cracked planetary sun gear teeth inside the mating reduction gearbox. | Clean reduction gearbox sump thoroughly, flush gear oil, and install a fresh motor assembly. |
| 4. High hydraulic oil leakage from motor output shaft | Motor case-drain line backpressure restriction blowing out the high-pressure radial shaft oil seal. | Clear case-drain return hose restrictions and replace with a brand-new sealed motor unit. |
Transport Packaging & Fast Global Shipping

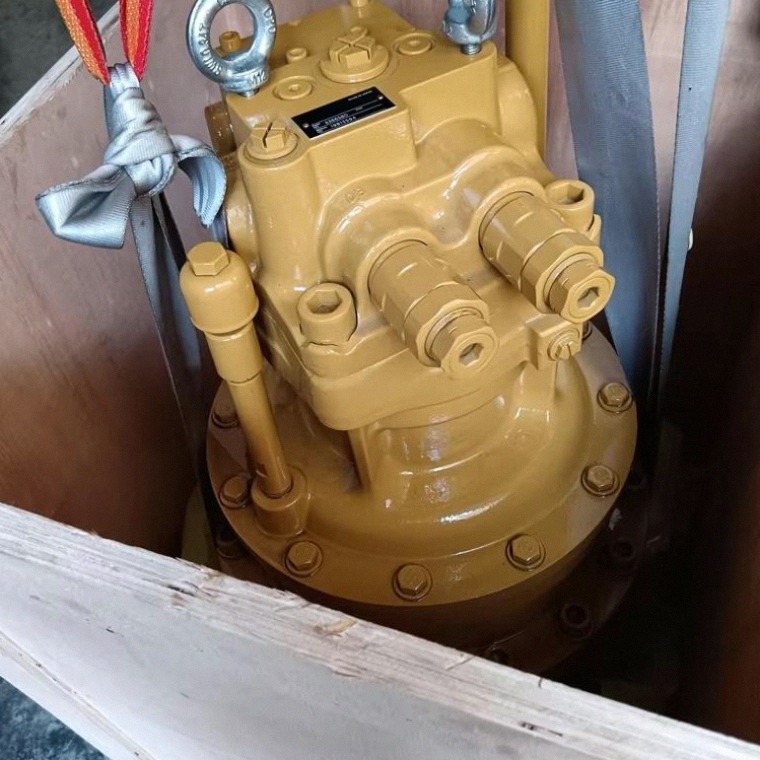

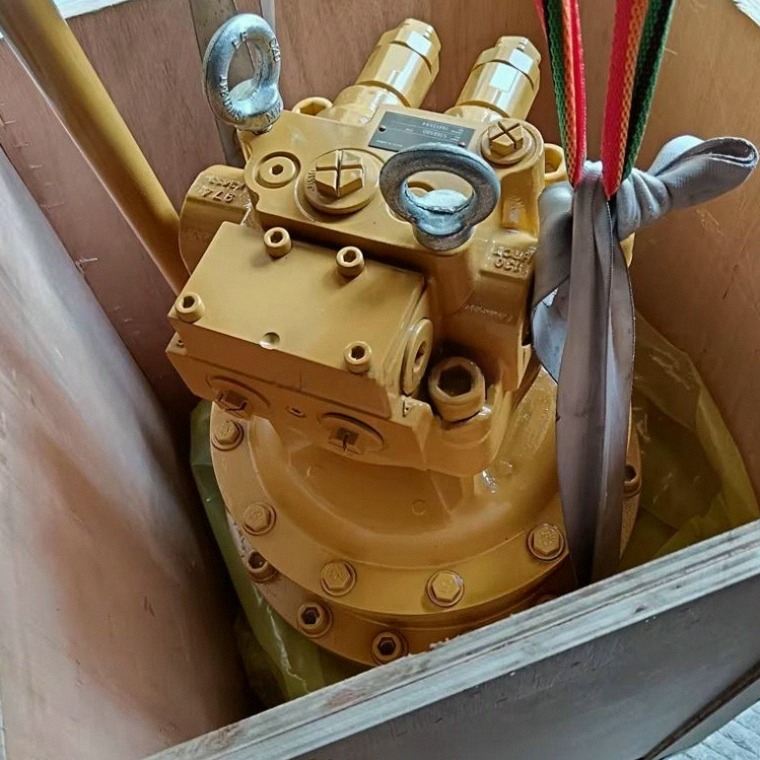

To ensure damage-free international transport, every Tatan swing motor assembly is sealed with anti-corrosion oil, fitted with heavy port plugs, and secured inside an export-grade fumigated wooden crate.
✈️ Express Air Courier
Partnered with DHL, FedEx, UPS, and TNT for 3-7 day express door-to-door delivery worldwide.
🚢 Sea Cargo Freight
LCL and FCL ocean container shipping for heavy hydraulic assemblies and bulk fleet replenishment.
📦 Export Wooden Cases
Fumigated solid wooden boxes with custom high-density foam inserts to prevent shipping shock.
Quality Control & International Certificates
Tatan hydraulic components are manufactured under ISO 9001 certified quality control systems and strictly comply with international CE safety standards.
M5X130 259-0816 Swing Motor Assembly FAQ & Related Categories
🔗 Frequently Purchased Together with CAT 323D Swing Motor:
* Note: Wholesale Reference Price Starts From $300.00. Please contact Gavin for a final customized quote.
