Description

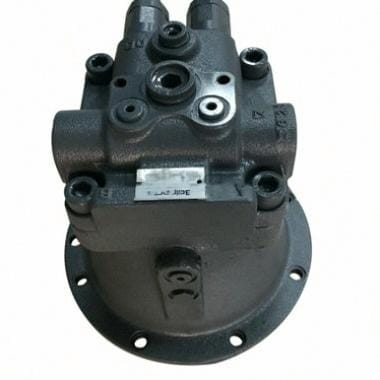

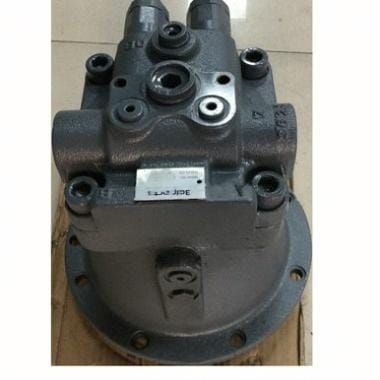

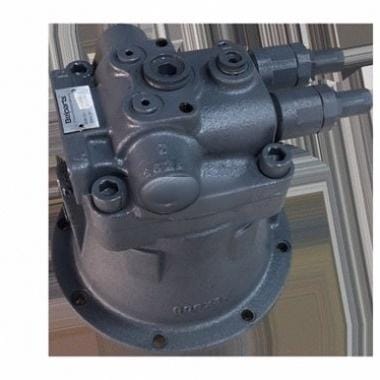

Tatan M2X96 4247870 Swing Motor Assembly Overview
The M2X96 4247870 Swing Motor is an axial piston rotary hydraulic unit built for the superstructure slewing circuit of Hitachi EX200-2, EX200LC-2, and EX200K-2 excavators. Built in accordance with ISO fluid power standards, installing this complete assembly resolves turret drift on slopes, internal oil bypass, and low slewing torque failures without requiring custom hydraulic line fabrication.
The unit incorporates a Kawasaki M2X96 rotating group, valve plate, housing, and internal mechanical parking brake mechanism, matching original mounting bolt circles and gearbox spline depths.
Key Attributes & Parameters for M2X96 4247870 Swing Motor
| Product Category | Swing Motor Assembly | Warranty | 1 Year / 12 Months |
| Specific Motor Model | Kawasaki M2X96 / M2X96B Slewing Motor | Brand Name | Tatan |
| Compatible Equipment | Hitachi EX200-2 | EX200LC-2 Excavator | OEM Part Number | 4247870 / 4247870-R / M2X96B |
| Rated Working Pressure | 28 – 32 MPa (280 – 320 Bar) | Braking System | Integrated Mechanical Parking Brake |
| Motor Structure Type | Axial Piston Rotary Motor Design | Relief Valve Type | Built-in Shockless Crossover Valves |
| Machinery Test Report | Provided (100% Torque Bench Tested) | Video Outgoing-Inspection | Provided Before Shipping |
| Application System | Superstructure Slewing Drive Unit | Place of Origin | Guangdong, China |
| Quality Status | 100% Brand New Swing Motor | Packaging | Export Wooden Box Packaging |
Precision Hydraulic Engineering & Brand Coverage
Tatan hydraulic motor assemblies are manufactured with high-hardness rotating groups and heat-treated valve plates:
Application Scenarios & Buyer Value
Practical deployment scenarios for the M2X96 4247870 Swing Motor across field operations:
| Application Scenario | Value Delivered to Buyer |
|---|---|
| Hitachi EX200-2 Field Replacement | Complete drop-in unit eliminates machine downtime caused by piecemeal seal and piston repairs. |
| Hydraulic Repair Workshops | Removes the risk of housing line-boring and trial-and-error valve plate lapping on worn cores. |
| Earthmoving Contractors | Restores precise turret holding force on gradients, eliminating bucket positioning drift. |
| Global Parts Stockists | Fully boxed, pre-tested heavy inventory ready for immediate distribution to regional fleets. |
M2X96 4247870 Swing Motor Diagnostic Guide
Technical troubleshooting steps for Hitachi EX200-2 slewing circuit faults:
| Hydraulic Symptom | Root Cause Analysis | Tatan Factory Solution |
|---|---|---|
| 1. Superstructure drifts downhill on an incline | Worn mechanical parking brake friction discs or internal piston block bypass. | Replace with complete Tatan M2X96 4247870 Swing Motor. |
| 2. Low slewing torque from a dead stop | Scored valve plate mating surfaces or weak crossover relief valve springs. | Check pilot pressure loop and install a new pre-tested motor assembly. |
| 3. Metallic grinding noise during rotation | Contaminated hydraulic oil causing planetary gearbox or bearing failure. | Clean swing reduction gearbox housing and install fresh motor assembly. |
| 4. External shaft oil leakage | Damaged high-pressure shaft seal due to high case-drain backpressure. | Inspect return line restrictions and replace motor unit. |
Transport Packaging & Fast Global Shipping
Every Tatan swing motor assembly is sealed with threaded port plugs, coated with anti-corrosion oil, and secured inside a fumigated wooden shipping crate.
✈️ Express Air Courier
Partnered with DHL, FedEx, UPS, and TNT for 3-7 day express door-to-door delivery worldwide.
🚢 Sea Cargo Freight
LCL and FCL ocean container shipping for heavy hydraulic assemblies and bulk stock orders.
📦 Export Wooden Cases
Fumigated solid wooden boxes with custom high-density foam inserts to prevent shipping shock.
Quality Control & International Certificates
Tatan hydraulic components are manufactured under ISO 9001 certified quality control systems and comply with international industrial standards.
M2X96 4247870 Swing Motor FAQ & Related Categories
* Note: Wholesale Reference Price Starts From $300.00. Please contact Gavin for a final customized quote.
