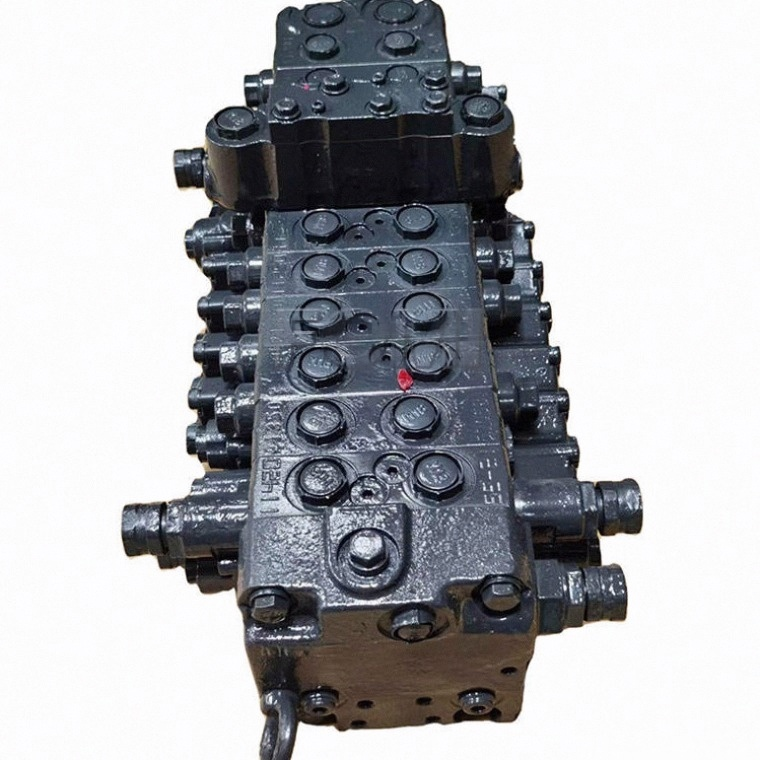

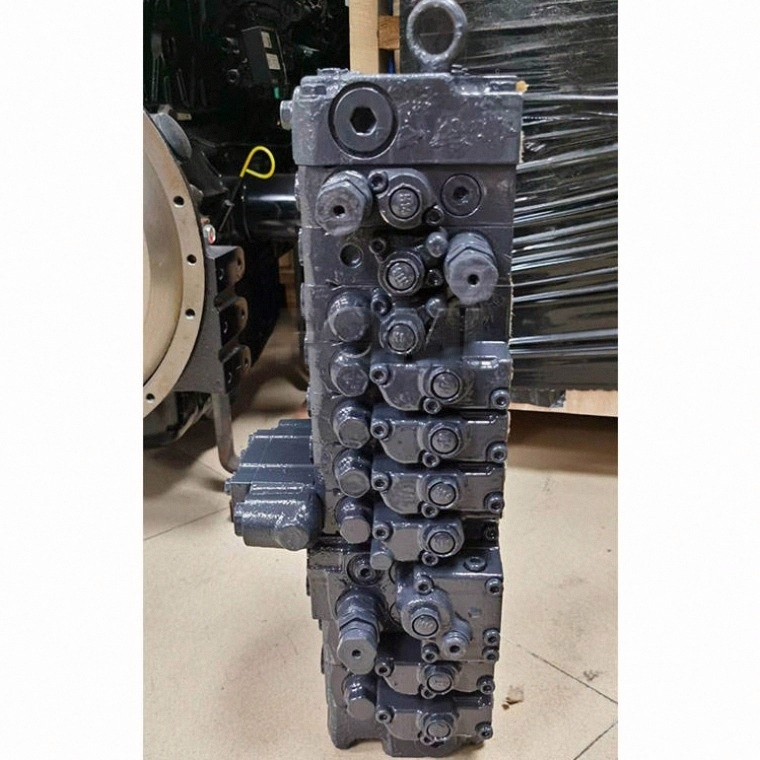

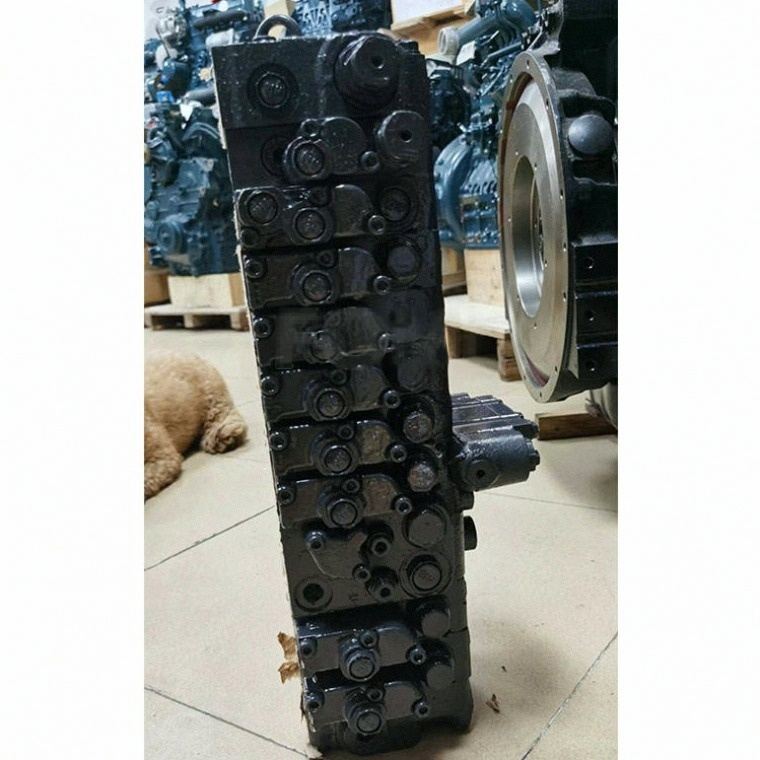

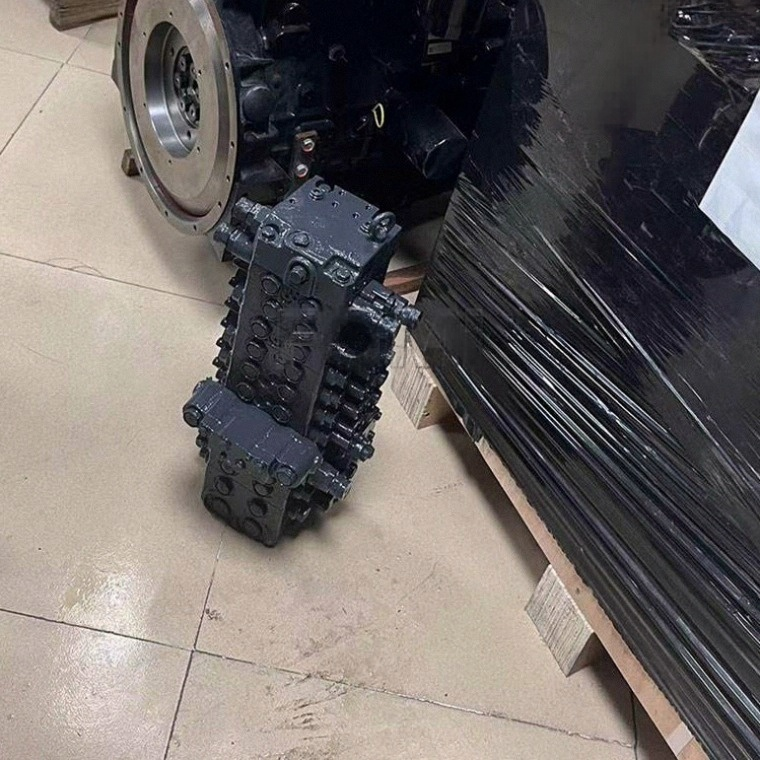

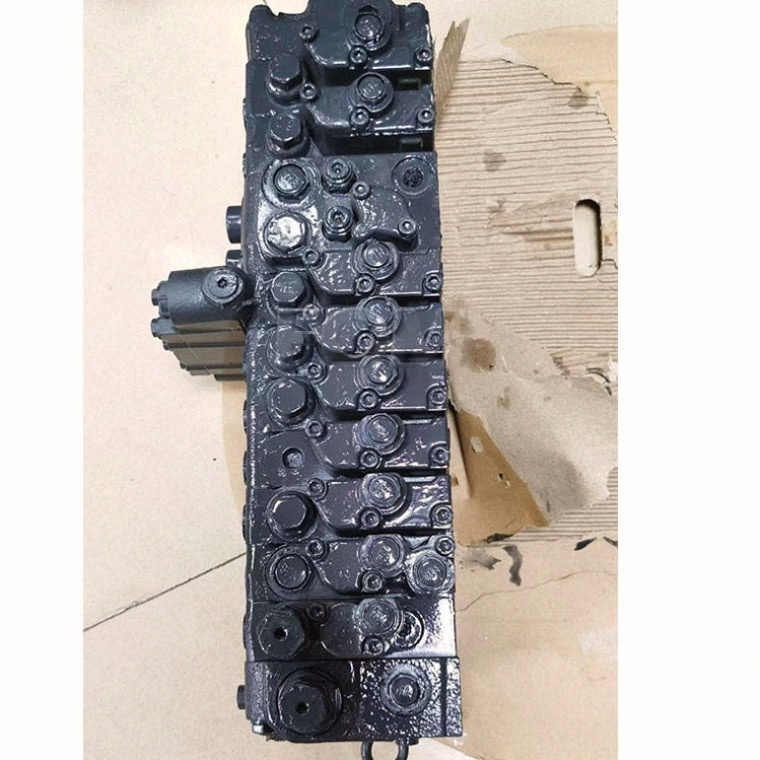

Komatsu PC35MR-2 Main Control Valve Assembly (OEM 709-70-51200)

Tatan Machinery supplies 100% Brand New CLSS main control valve assemblies (OEM part numbers: 709-70-51200 / 709-70-51201, interchangeable with 7097051200 / 709-70-51100) specifically engineered for Komatsu PC35MR-2, PC35MR-3, and PC30MR-2 tight-tail mini excavators. Operating under Komatsu’s advanced Closed-Center Load Sensing System (CLSS), this valve block uses integrated pressure-compensation spools to enable proportional, multi-function simultaneous digging regardless of load pressure. Backed by our 12-Month Comprehensive Replacement Warranty, each assembly is completely bench-tested for load-sensing response, anti-drift check sealing, and relief valve accuracy.

Supplier Information & Build Status

When to Replace the Control Valve on Komatsu PC35MR-2: Field Diagnostics

The PC35MR-2 features a zero-tail profile where the control valve is installed in an ultra-compact compartment under the operator cab floor. Poor heat dissipation and confined hydraulics cause unique failure modes:

• Inter-Section O-Ring Thermal Carbonization & External Weeping: Operating in tight, poorly ventilated zero-tail compartments causes ambient valve temperatures to exceed 85°C. Nitrile O-rings between valve sections bake hard and brittle, causing continuous hydraulic oil weeping between slices that cannot be cured by simple re-torquing.
• Pressure-Compensation Spool Sticking (Compounded Function Failure): The CLSS system relies on tiny shuttle spools. Fine silt or carbon particles jam these compensator pistons. When the operator lifts the boom while crowding the arm, the arm stops dead and the boom moves erratically.
• Boom Swing Section Creep & Side-Slew Drift: In foundation work, high side-wall leverage forces pressure past the boom swing (offset boom) port relief valves. Worn holding valves cause the excavator arm to swing off-center uncommanded.
• Load-Sensing (LS) Differential Pressure Collapse: Internal galling in the LS signal relief gallery preventing the main pump from destroke/upstroke modulation, causing high engine fuel consumption and constant pump cavitation noise.

Workshop Bench Testing & 12-Month Warranty Guarantee

Every 100% Brand New 709-70-51200 CLSS control valve supplied by Tatan Machinery comes backed by a 12-Month Comprehensive Replacement Warranty. Before export packaging, our technicians complete a 5-point quality validation:

1. CLSS Load-Sensing Signal & Compensation Calibration: Testing individual pressure-compensation spools under differential loads to guarantee smooth proportional multi-actuator flow.
2. Continuous High-Pressure Bench Hold Test: Main relief valve loaded to 26.5 MPa (270 bar) on a digital hydraulic test bench to verify body casting integrity and port relief seal tightness.
3. Spool Bypass Leakage & Neutral Hold Verification: Measuring micro-leakage past closed spools to ensure zero suspended boom drift and arm creep.
4. Pilot Actuation Pressure Sensitivity Check: Ensuring smooth spool shifting at low pilot pressures (1.5 to 3.9 MPa) without binding or jerky response.
5. Port Thread Gauge & Pilot Solenoid Seal Check: Precision inspection of all O-ring boss and pilot port threads to eliminate hose connection weeping in tight spaces.

Export Heavy-Duty Packaging Process

Precision valve spools must be guarded against particulate contamination and rough transit:

• 100% Sealed Port Caps: Every hydraulic work port, pump inlet, tank return, and pilot hose port is sealed with heavy-duty threaded protective plugs.
• Anti-Corrosion VCI Foil Wrapping: The valve block is sprayed with rust-preventive hydraulic oil and sealed inside moisture-proof VCI film.
• Custom Internal High-Density Cushioning: Bolted securely onto structural base timbers inside the crate to prevent any shift.
• ISPM 15 Fumigation-Free Solid Plywood Box: Fully enclosed export crate banded with high-tensile galvanized steel straps.

Actual sealed port caps and heavy-duty crating for 709-70-51200 control valve

Global Shipping & Customs Documentation

Fast, reliable dispatch tailored for commercial contractors and parts wholesalers worldwide:

• Emergency Machine Down Air Cargo: Fast air express via DHL Aviation, FedEx Freight, or international airlines within 3–7 business days.
• Consolidated Ocean Sea Freight (LCL / FCL): Direct containerized shipping to worldwide commercial ports.
• Clean Customs Clearance Paperwork: Commercial Invoices with correct HS Code (8481.20 – Valves for Oleohydraulic Transmission), Packing Lists, and Certificates of Origin for tariff optimization.

Container loading and air freight dispatch supported by global logistics partners

Critical Installation Guidelines (PC35MR-2 Hydraulic Technician Checklist)

To prevent instant spool contamination and maintain your 12-month warranty, technicians MUST adhere to these field rules:

1. Label Every Pilot Hose in the Tight Bay: The PC35MR-2 valve compartment is extremely cramped. Label every pilot line, boom swing hose, and LS sensing line before removal. Inverting a pilot signal hose will cause instant erratic cylinder movement!
2. MANDATORY: Hydraulic Tank Flush & New Filter Installation: If the old valve block was replaced due to metal contamination from pump seizure, flush the tank floor completely. Residual metallic particles will lodge in the post-spool pressure compensators within 60 seconds!
3. Verify Pilot Return Line Freedom: Check the pilot drain circuit back to the hydraulic tank. If there is backpressure in the pilot drain line (>0.2 MPa), the control spools will fail to center, causing the machine to slowly move on its own!
4. Bleed Air from Boom Swing & Offset Cylinders: Cycle the boom swing (left-right offset) cylinder to full strokes at low idle to vent all air bubbles before putting load on the main boom.
5. Confirm Main Relief & LS Pressure Setting: Connect pressure gauges to the pump gauge port and LS signal port. Confirm differential pressure is 2.0 MPa and main relief operates at 26.5 MPa before full-load trenching.
