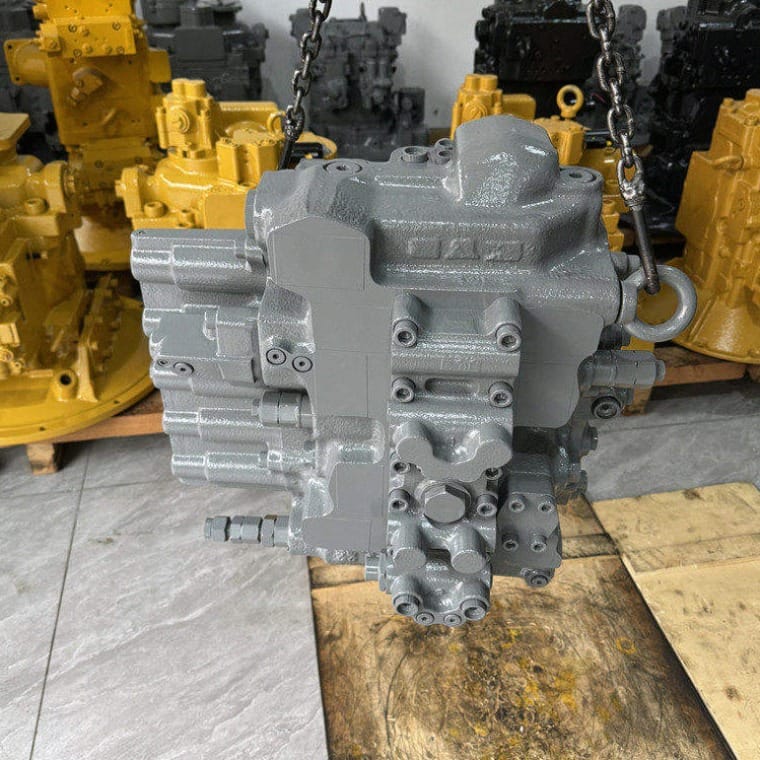

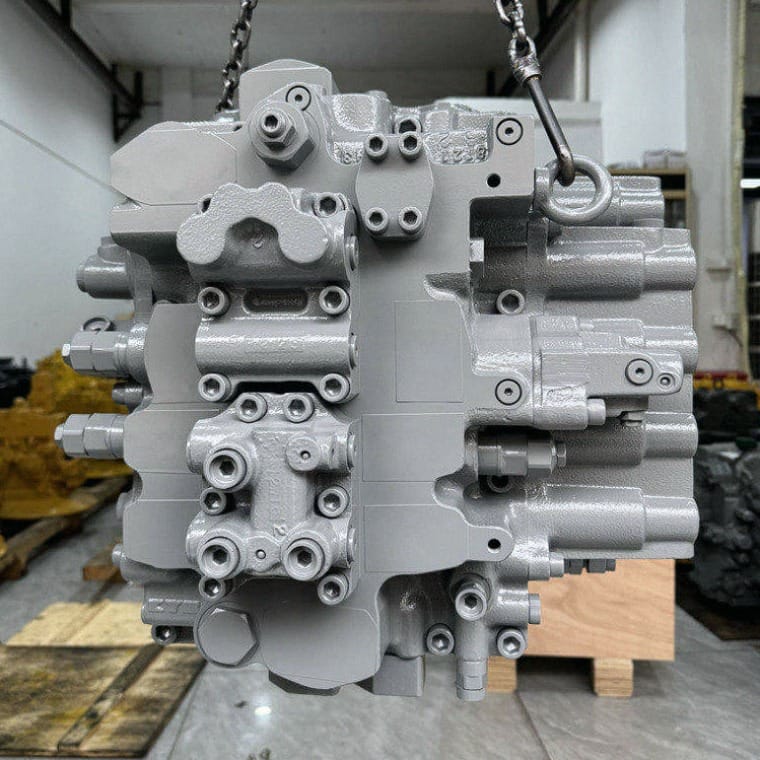

KMX15N 4372076 Main Control Valve Assembly Overview
The KMX15N 4372076 Main Control Valve Assembly manufactured by Tatan is a multi-spool hydraulic directional control block built in strict accordance with international ISO fluid power standards. Belongs to our Main Control Valve Assembly classification and engineered specifically for Hitachi EX200-5, EX200LC-5, and EX210-5 20-ton excavators, swapping to a complete KMX15N 4372076 Main Control Valve Assembly unit eliminates hydraulic cylinder drifting, sluggish boom hoist response, and compound movement lag.
Constructed from high-tensile alloy cast iron, this assembly houses precision-ground spools with micro-tolerances of 0.007 mm to minimize internal pressure loss. Pre-fitted with pilot-operated pressure relief valves and load-holding checks, it ensures exact flow division between dual hydraulic main pumps and attachment cylinders under demanding digging conditions.
Key Attributes & Parameters for KMX15N 4372076 Main Control Valve Assembly
| Product Category | Main Control Valve Assembly | Warranty | 1 Year / 12 Months |
| Specific Valve Model | Kawasaki KMX15N / KMX15NA Control Valve | Brand Name | Tatan |
| Compatible Equipment | Hitachi EX200-5 | EX200LC-5 Excavator | OEM Part Number | KMX15N / 4372076 / 4384394 |
| Main Relief Pressure | 34.3 MPa (343 Bar / 4975 PSI) | Port Overload Relief | 36.3 MPa (363 Bar / 5265 PSI) |
| Spool Bore Tolerance | 0.006 – 0.008 mm Precision Ground | Integrated Circuits | Boom Holding, Arm Merge, Bucket Merge |
| Machinery Test Report | Provided (100% Bench Pressure Tested) | Video Outgoing-Inspection | Provided Before Shipping |
| Body Metallurgy | High-Tensile Alloy Cast Iron Casting | Place of Origin | Guangdong, China |
| Quality Status | 100% Brand New Control Valve Unit | Packaging | Export Wooden Box Packaging |
Supported Machinery Brands & Control Valve Coverage
In addition to Hitachi, Tatan manufactures replacement complete main control valves, hydraulic manifolds, and spool cartridges for leading machinery brands:
Application Scenarios & Buyer Value
When resolving hydraulic distribution and control faults with our KMX15N 4372076 Main Control Valve Assembly, workshops and equipment contractors secure tangible operational benefits:
| Application Scenario | Value Delivered to Buyer |
|---|---|
| Hitachi EX200-5 Valve Bank Replacement | Swapping to the KMX15N 4372076 Main Control Valve Assembly completely eliminates machine downtime caused by internal spool scoring and housing micro-cracks. |
| Hydraulic Service Workshops | Avoids the high cost and failure rate of line-honing worn valve bodies and fitting oversized spools that cause ongoing leakage comebacks. |
| High-Production Earthmoving Fleets | Restores full 34.3 MPa digging breakout force and smooth compound boom-arm actions without engine lugging down under high hydraulic loads. |
| Global Heavy Machinery Stockists | Pre-calibrated, export-ready inventory ready for immediate shipment to international contractors operating classic Dash-5 machinery. |
KMX15N 4372076 Main Control Valve Assembly OEM Diagnostic Guide
Use this technical diagnostic guide to identify hydraulic control circuit faults on your Hitachi EX200-5 excavator:
| Hydraulic Circuit Symptom | Technical Cause Analysis | Tatan Factory-Grade Solution |
|---|---|---|
| 1. Boom drops or arm automatically drifts under bucket load | Internal seal deterioration on the boom holding valve poppet seat, or excessive spool-to-bore clearance (>0.015 mm) bypassing circuit oil to tank. | Replace with a complete factory-tested KMX15N 4372076 Main Control Valve Assembly. |
| 2. Individual attachment function moves slowly under full throttle | Port overload relief valve spring fatigue or contaminated poppet seat cracking below rated working pressure (<26.0 MPa). | Clean or replace individual overload relief cartridges or swap to a pre-calibrated complete valve bank. |
| 3. Joystick feels heavy or hydraulic spool sticks in stroke | Fine contamination scratching spool lands, uneven mounting bolt torque warping the casting, or varnished pilot end caps. | Flush hydraulic oil gallery, replace return line filters, and install a brand new valve bank with specified torque settings. |
| 4. Engine stalls or bogs down during simultaneous boom lift & swing | Stuck swing priority spool or clogged pilot orifice preventing proportional dual-pump flow merging across main sections. | Inspect pilot line pressure (3.9 MPa) and replace with a pre-adjusted complete valve assembly. |
Transport Packaging & Fast Global Shipping
To ensure 100% damage-free international transport, every Tatan main control valve assembly is preserved with anti-corrosion fluid, capped with steel threaded plugs, sealed in heavy waterproof film, and bolted inside an export-grade wooden crate.
✈️ Express Air Courier
Partnered with DHL, FedEx, UPS, and TNT for 3-7 day express door-to-door delivery worldwide.
🚢 Sea Cargo Freight
LCL and FCL ocean container shipping for heavy control valves and bulk fleet inventory.
📦 Export Wooden Cases
Fumigated solid wooden boxes with custom high-density foam inserts to prevent shipping shock.
Quality Control & International Certificates
Tatan hydraulic components are manufactured under ISO 9001 certified quality control systems and strictly comply with CE industrial pressure equipment safety directives.
KMX15N 4372076 Main Control Valve FAQ & Related Categories
* Note: Wholesale Reference Price Starts From $300.00. Please contact Gavin for a final customized quote.
