Description

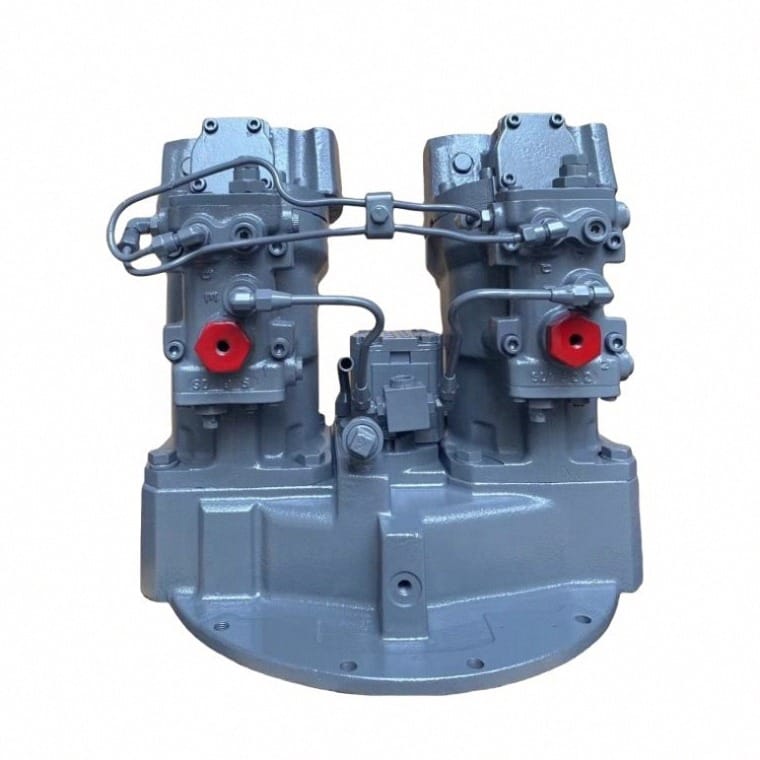

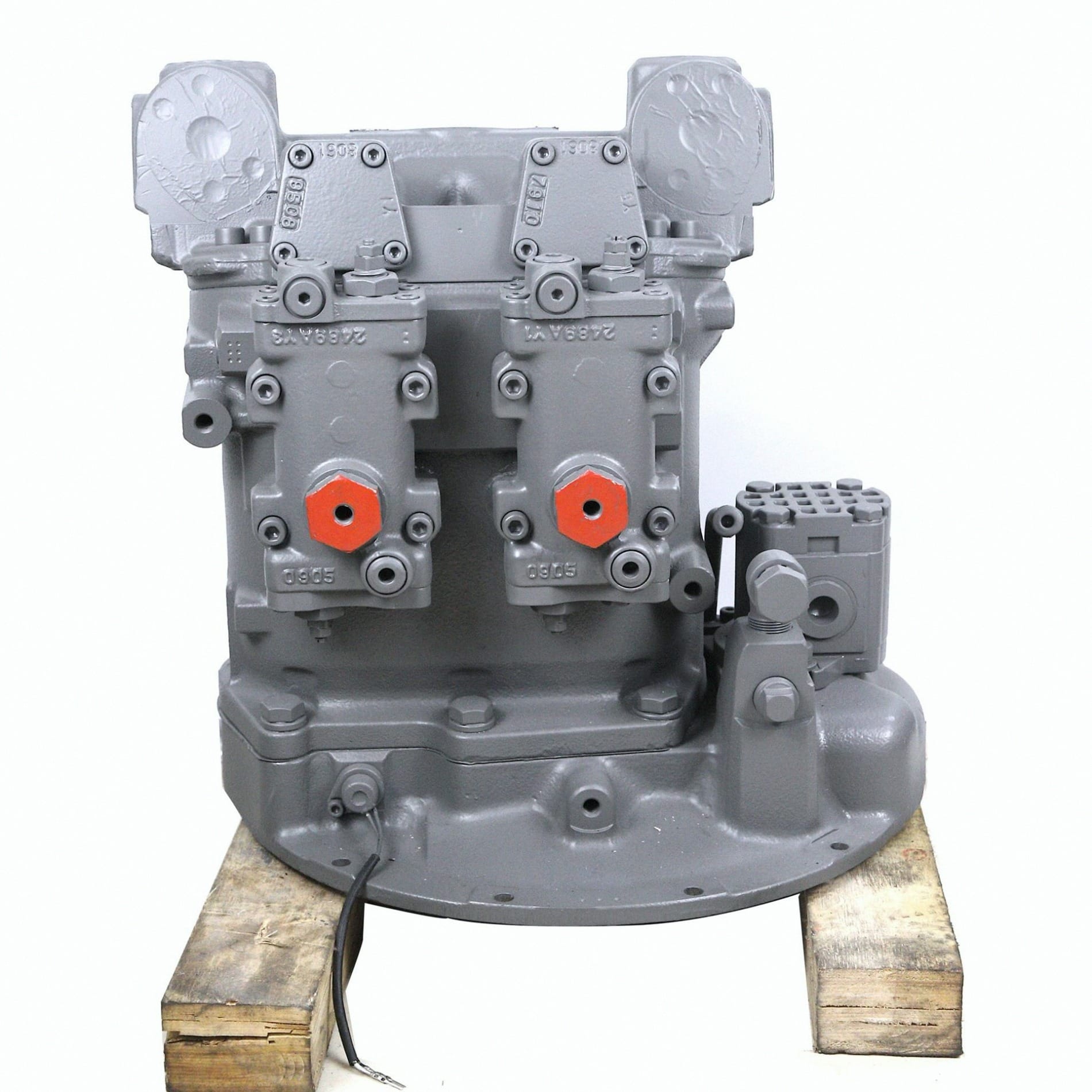

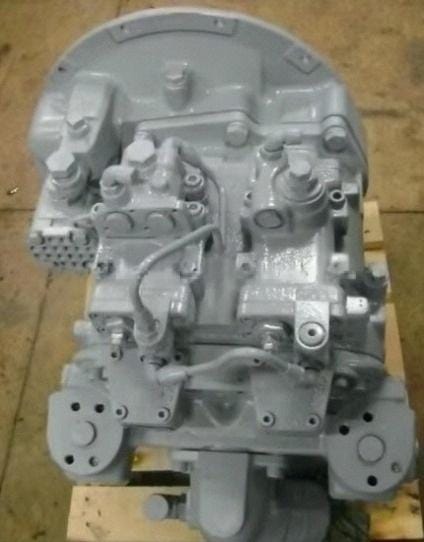

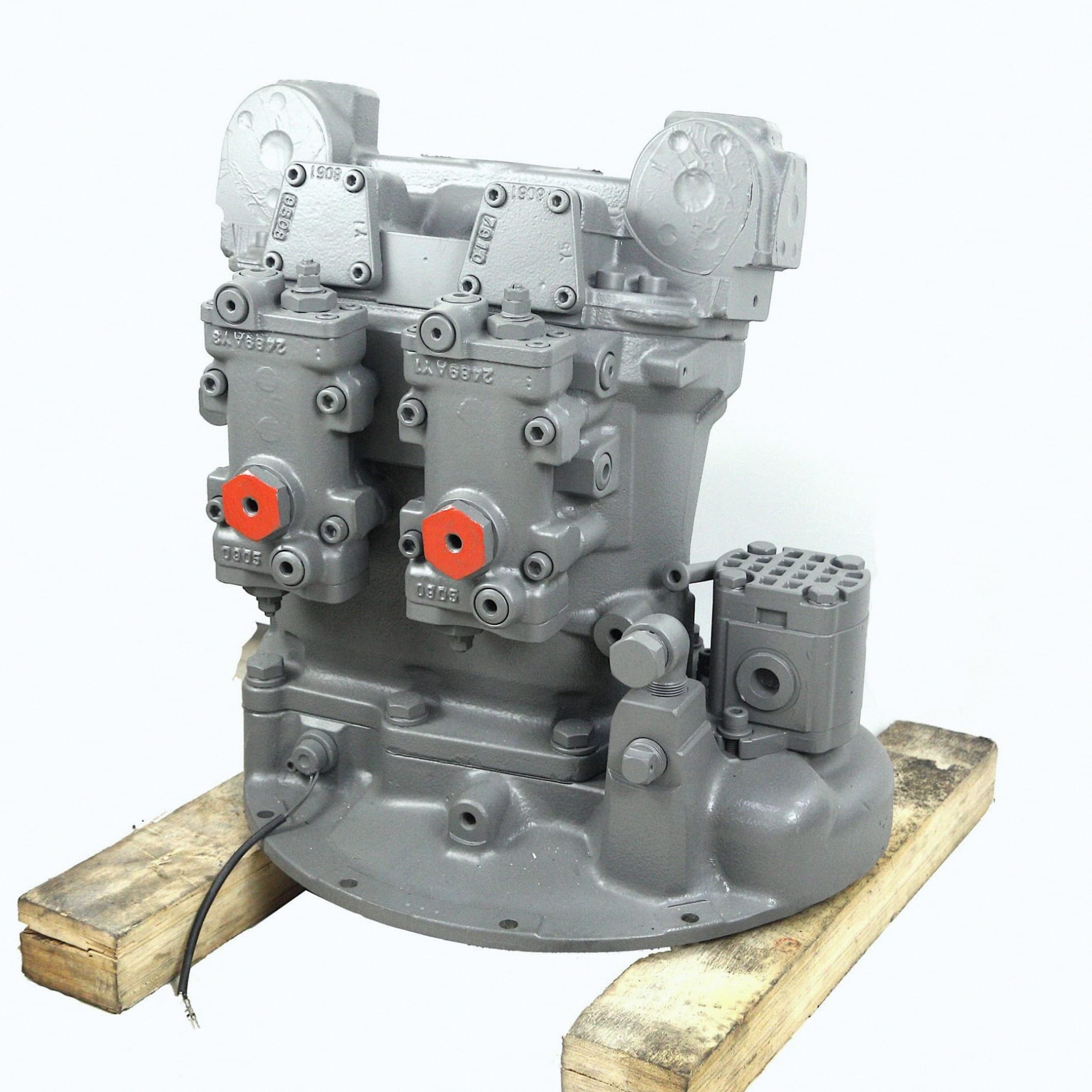

HPV118 YB60000068 Hydraulic Pump Assembly Overview
The HPV118 YB60000068 Hydraulic Pump assembly manufactured by Tatan is a heavy-duty tandem variable displacement axial piston unit belonging to our Hydraulic Pump Assembly classification. Engineered specifically for Hitachi ZX200-5G, ZX200LC-5G, ZX210H-5G, and ZX240-5G 20-ton crawler excavators, replacing your worn pump with a Tatan complete assembly eliminates compound motion deceleration, restores digging breakout power, and cures internal thermal bypass across demanding utility trenching and quarry projects.
Driven directly by the Isuzu CC-6BG1T diesel engine and routing pressure flow through the C0170 main control valve, this HPV118 YB60000068 Hydraulic Pump combines dual variable piston pumps (2 × 118 cm³/rev) with an integrated auxiliary pilot gear pump, ensuring 100% direct bolt-on installation with flywheel drive couplings and chassis hydraulic hard lines.
Key Attributes & Technical Parameters for HPV118 YB60000068 Hydraulic Pump
| Product Category | Hydraulic Pump Assembly | Warranty | 1 Year / 12 Months |
| Specific Valve Model | Hitachi HPV118 / HPV118JW Tandem Piston Pump | Brand Name | Tatan |
| Compatible Equipment | Hitachi ZX200-5G | ZX200LC-5G | ZX210H-5G | ZX240-5G | OEM Part Number | YB60000068 / YB60000069 / YB60000070 |
| Matched Engine Series | Isuzu CC-6BG1T 6-Cylinder Diesel (125 kW / 168 HP) | Place of Origin | Guangdong, China |
| Max Operating Pressure | 34.3 MPa (343 bar / 4975 PSI Continuous) | Power Boost Pressure | 36.3 MPa (363 bar / 5265 PSI Boost) |
| Spool Precision Spec | Micro-Lapped Bimetal Plate < 0.003 mm | Quality Status | 100% Brand New Assembly with Regulators |
| Machinery Test Report | Provided (100% Bench Flow Tested) | Video Outgoing-Inspection | Provided Before Shipping |
| Hydraulic Fluid Spec | ISO VG 46 Anti-Wear Hydraulic Oil | Packaging | Export Wooden Box Packaging |
Comprehensive Hydraulic Pump & Component Inventory
Tatan maintains extensive factory inventory of complete tandem piston pumps, regulators, pilot gear pumps, cylinder block rebuild kits, and bimetal valve plates across global machinery lines:
Supported Excavator Machinery Brands & Global Coverage
In addition to Hitachi crawler excavators, Tatan manufactures and supplies replacement hydraulic main pumps, regulators, and rotating barrel groups across global equipment brands:
Application Scenarios & Buyer Value
When contractors search to compare Hitachi ZX200-5G hydraulic pump replacement cost and upgrade their machine with our HPV118 YB60000068 Hydraulic Pump, they achieve direct machine uptime and lower cost per hour:
| Application Scenario | Value Delivered to Buyer |
|---|---|
| Hitachi ZX200-5G Pump Replacement | 1:1 direct bolt-on installation eliminates tracking pull and restores full digging power on boom and arm cylinders. |
| Heavy Equipment Repair Workshops | Avoids the complex labor of internal lapping; saves mechanic hours with pre-tested, factory-calibrated dual flow balance. |
| Quarry & Mining Earthmoving Fleets | Maintains stable 34.3 MPa operating pressures during continuous auxiliary breaker hammering and deep trenching. |
| Equipment Parts Stockists | High-demand 20-ton hydraulic pump inventory packaged in solid export wooden crates ready for immediate global dispatch. |
HPV118 YB60000068 Hydraulic Pump Diagnostic & Troubleshooting Guide
Use this technical guide to diagnose common hydraulic pump symptoms on Hitachi ZX200-5G series crawler excavators:
| Hydraulic Fault Symptom | Technical Cause Analysis | Tatan Factory-Grade Solution |
|---|---|---|
| 1. Boom hoisting slows down accompanied by engine bogging | HIOS III negative flow control regulator power-limiting spool sticking failing to destroke pump displacement as pressure exceeds 30 MPa. | Replace with Tatan complete HPV118 YB60000068 Hydraulic Pump assembly with factory-calibrated regulators matched to CC-6BG1T engine output. |
| 2. Single track pulls to one side during simultaneous blading | P1 or P2 rotary group volumetric loss or swashplate servo piston seal degradation causing uneven flow output. | Install Tatan new tandem pump with precision-matched dual rotating barrel groups; flush contaminated oil lines. |
| 3. Fine bronze glitter & copper dust in return filter element | Piston slipper pads worn thin or separated from swashplate thrust plate due to contaminated hydraulic fluid under heavy hammer vibration. | Stop machine immediately to prevent control valve contamination; install fresh complete pump and clean suction strainers. |
| 4. Digging breakout fades rapidly once oil reaches 75°C | Excessive clearance between cylinder barrel face and bimetal valve plate allowing high-pressure fluid to bypass into casing. | Install Tatan new hydraulic pump with micro-lapped bimetal valve plates (< 0.003 mm tolerance) and new suction O-rings. |
Transport Packaging & Certified Quality Assurance
Precision tandem hydraulic pumps require absolute shock protection. Every Tatan unit is sealed and packaged in solid export timber crates:
✈️ Express Air Courier
Partnered with DHL, FedEx, and UPS for 3-7 day priority delivery worldwide.
🚢 Sea Cargo Freight
LCL and FCL container ocean freight for bulk equipment parts replenishment.
📦 Export Wooden Crates
Solid fumigated timber cases lined with thick shockproof foam to prevent transit damage.
HPV118 YB60000068 Hydraulic Pump FAQ & Related Categories
* Note: Wholesale Reference Price Starts From $300.00. Please contact Gavin for a final customized quote.
