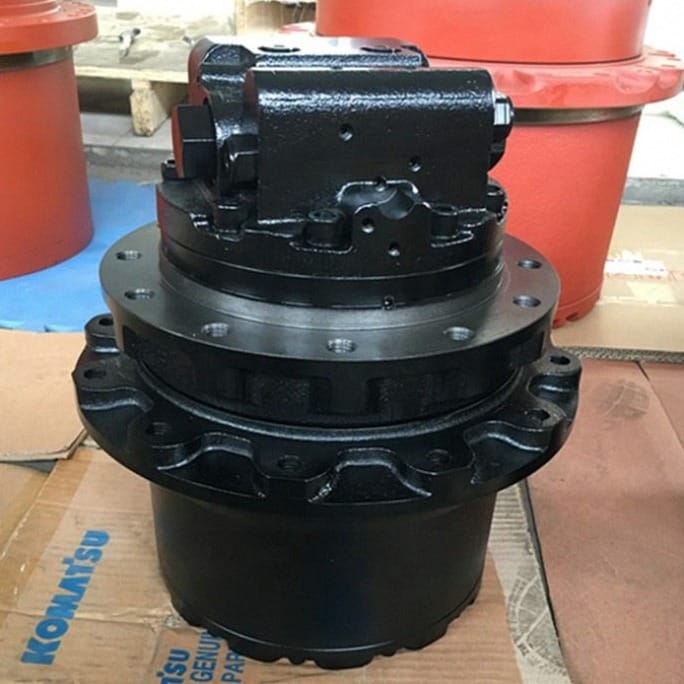

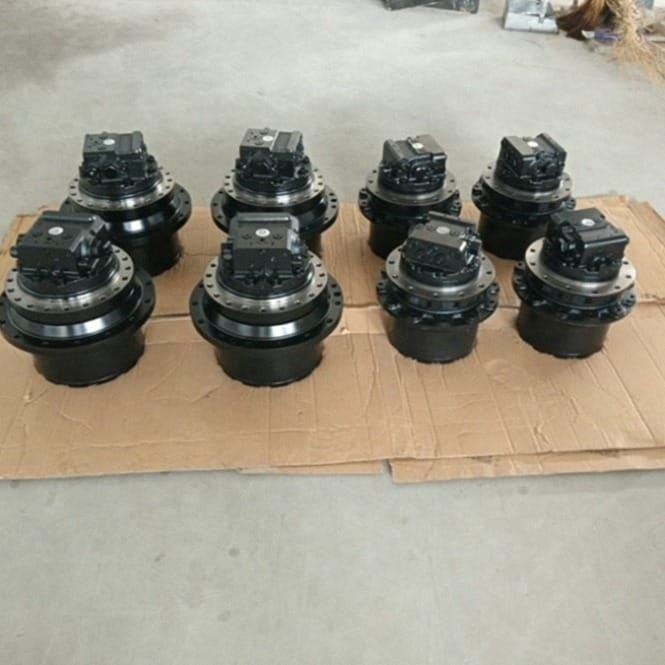

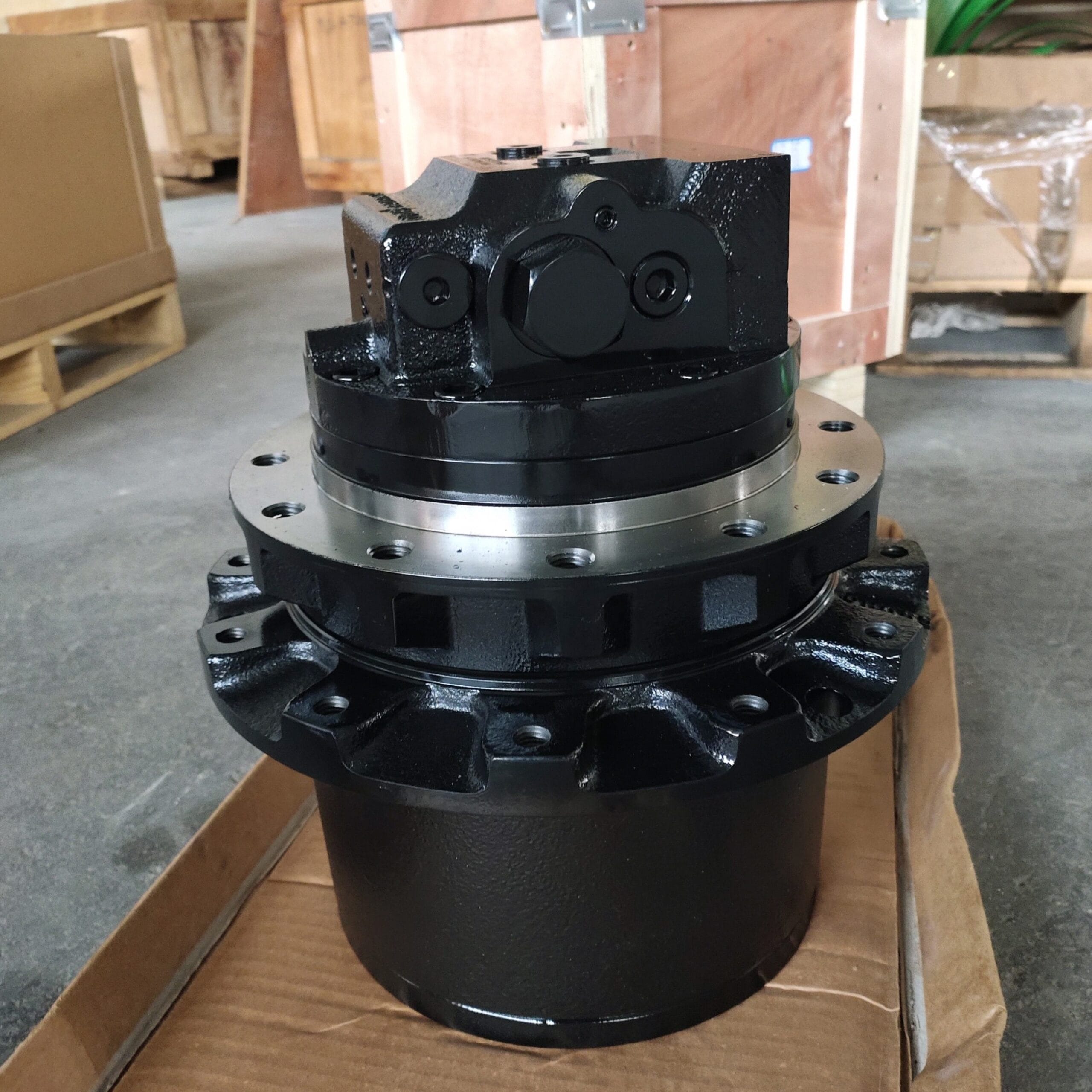

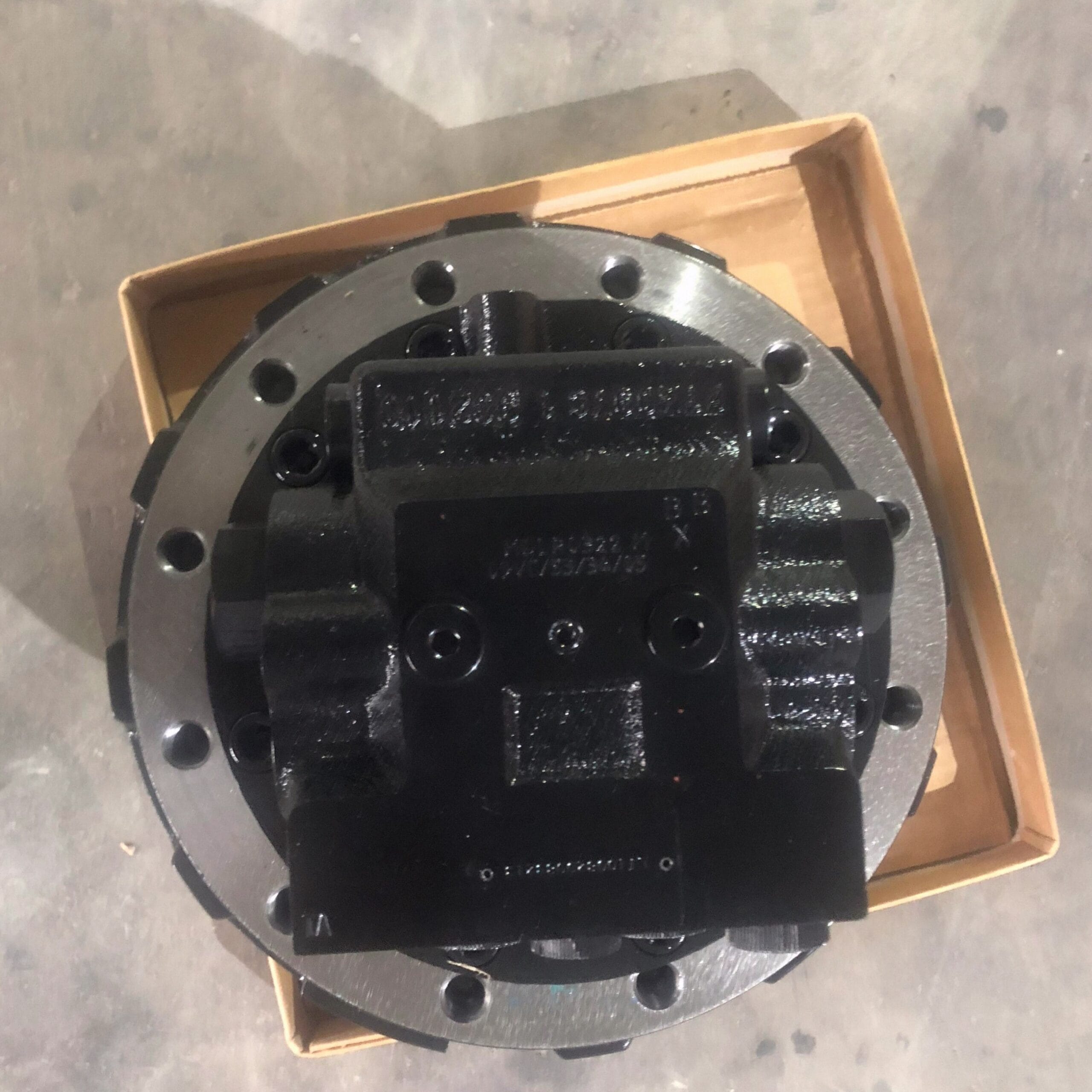

GM09 201-60-00100 Travel Motor Final Drive Assembly Overview
The GM09 201-60-00100 Travel Motor Final Drive Assembly (OEM Part Numbers: 201-60-00100, 201-60-00010, 201-60-00110, GM09) manufactured by Tatan is a heavy-duty Nabtesco series hydraulic travel device belonging to our Excavator Final Drive Travel Motor classification. Specially engineered for Komatsu PC70-8, PC70-8E, and PC78US-8 7.0-to-8.5 ton excavators, this complete travel motor with 2-stage planetary reduction gearbox delivers smooth 2-speed travel, powerful pulling force, and equal tracking torque under muddy and rocky job site conditions.
Constructed strictly according to original OEM specifications, this travel motor assembly integrates an axial piston motor and a heavy-duty planetary reduction gearbox, ensuring 100% direct bolt-on fitment to track frame sprockets without hose modification.
Key Attributes & Parameters for GM09 201-60-00100 Travel Motor
| Machine Model (适用机型) | Komatsu PC70-8 | PC70-8E | PC78US-8 | PC88MR-8 Excavator | ||
| Engine Model (适用发动机) | Komatsu SAA4D95LE-5 | 4D95LE-5 Engine | ||
| Product Category | Excavator Final Drive Travel Motor | Warranty | 1 Year / 12 Months |
| Specific Motor Model | Nabtesco GM09 / MAG-33VP Motor | Brand Name | Tatan |
| OEM Part Number | 201-60-00100 / GM09 | Place of Origin | Guangdong, China |
| Max Working Pressure | 26.5 MPa (265 bar / 3840 PSI) | Reduction Ratio | Heavy-Duty Gearbox (~45.5:1) |
| Floating Seal Type | Duo-Cone Mechanical Seals | Quality Status | 100% Brand New Assembly |
| Machinery Test Report | Provided (100% Bench Tested) | Video Inspection | Provided Before Shipping |
Supported Machinery Brands & Final Drive Parts Coverage
In addition to Komatsu, Tatan manufactures replacement complete travel motors and final drives for major excavator brands:
Application Scenarios & Buyer Value
When replacing your excavator undercarriage drive with our GM09 201-60-00100 Travel Motor, buyers achieve maximum operational uptime and pulling power:
| Application Scenario | Value Delivered to Buyer |
|---|---|
| Komatsu PC70-8 Travel Motor Replacement | Complete assembly replacement eliminates single-side off-tracking and restores equal 2-speed travel power. |
| Undercarriage Repair Workshops | Replaces complex planetary gear rebuilding; saves mechanic labor hours and prevents field leak warranties. |
| Parts Dealers & Stockists | High-demand 7-ton excavator final drive stock item ready for fast local sale to construction contractors. |
| Rental Fleet Maintenance | Extends excavator working hours and ensures maximum job site productivity. |
GM09 201-60-00100 Travel Motor OEM Diagnostic Guide
Use this OEM manual diagnostic guide to troubleshoot tracking and travel motor issues on your Komatsu PC70-8 excavator:
| Hydraulic/Mechanical Symptom | Technical Cause Analysis | Tatan Factory-Grade Solution |
|---|---|---|
| 1. Excavator tracking off-steer / One side slow | Worn motor piston cylinder block or pilot swashplate angle wear causing internal oil bypass under 26.5 MPa load. | Replace with Tatan GM09 complete 201-60-00100 final drive motor assembly; check center swivel joint seals. |
| 2. Gear oil leaking into track sprocket hub | Duo-Cone floating seal face damage or rubber O-ring degradation allowing gear oil to escape from hub. | Replace complete final drive assembly or install high-durability forged steel Duo-Cone floating seal kit. |
| 3. Loud metallic grinding noise during travel | 1st or 2nd planetary gear tooth breakage or needle bearing collapse due to insufficient gear oil lubrication. | Install Tatan new complete travel motor with gearbox; refill with SAE 80W-90 heavy-duty gear oil before operation. |
| 4. High-speed (Rabbit speed) shift failure | 2-speed shift pilot control spool sticking or pilot line pressure drop (<2.5 MPa) to swashplate piston. | Clean 2-speed control valve spool, check pilot shift pressure, or replace complete travel motor assembly. |
Transport Packaging & Fast Global Shipping
To ensure 100% damage-free international transport, every Tatan GM09 201-60-00100 travel motor final drive undergoes anti-rust oiling, waterproof plastic sealing, and solid export wooden box packaging.
✈️ Express Air Courier
Partnered with DHL, FedEx, UPS, and TNT for express door-to-door delivery worldwide.
🚢 Sea Cargo Freight
LCL and FCL ocean container shipping for heavy final drive assemblies and bulk orders.
📦 Export Wooden Cases
Fumigated solid wooden boxes with thick shockproof foam lining for maximum safety.
Quality Control & International Certificates
Tatan final drive travel motors are manufactured under ISO 9001 quality management systems and strictly comply with CE safety standards.
GM09 201-60-00100 Travel Motor FAQ & Related Categories
* Note: Wholesale Reference Price Starts From $300.00. Please contact Gavin for a final customized quote.
