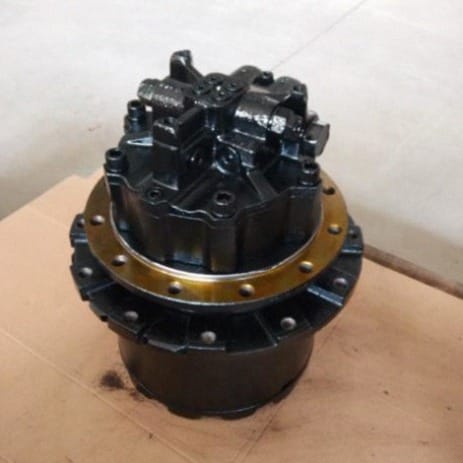

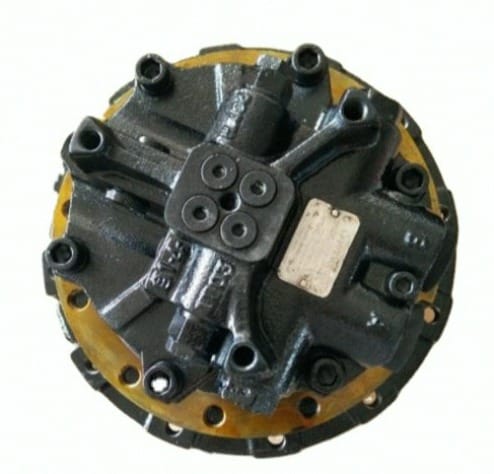

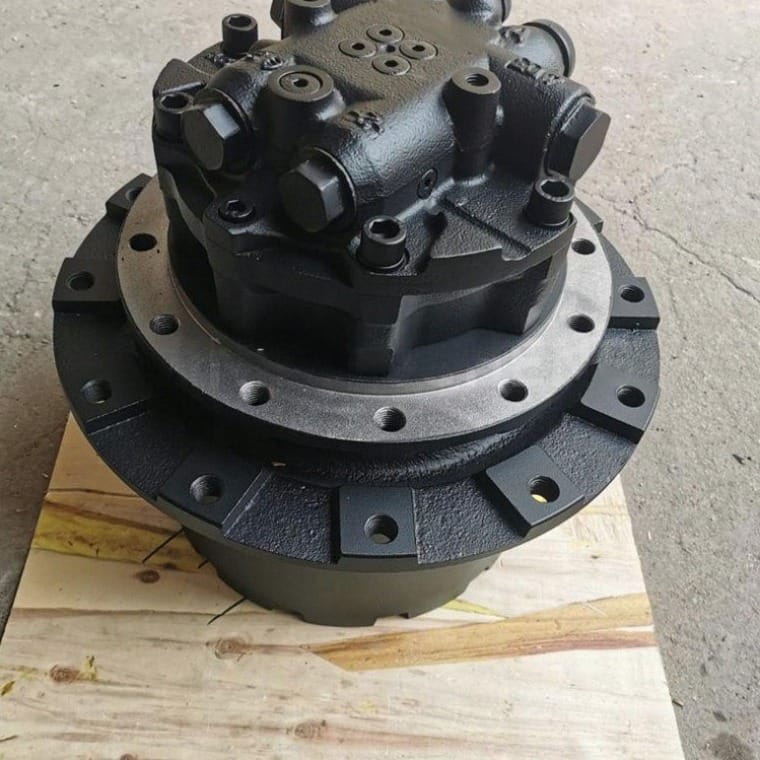

GM09 148-4736 Travel Motor Assembly Overview
The GM09 148-4736 Travel Motor assembly manufactured by Tatan is a heavy-duty integrated hydraulic final drive unit combining a dual-speed axial piston motor and planetary reduction gearbox. Belongs to our Travel Motor Final Drive Assembly classification. Engineered specifically for Caterpillar CAT 307, 307B, 307C, and 308C 7-to-8-ton crawler excavators, replacing your worn final drive with a Tatan complete assembly eliminates single-side track steering deviation, restores crawling gradeability on muddy inclines under 65 kN tractive demand, and cures planetary gear grinding across demanding utility trenching applications.
Driven directly by the machine’s AP2D36 hydraulic pump and routed through the KMX13 main control valve, this GM09 148-4736 Travel Motor incorporates 20CrNiMo carburized planetary gears, Duo-Cone mechanical face seals, a hydraulic parking brake pack, and a built-in counterbalance valve, ensuring 100% direct bolt-on installation with track frames, drive sprockets, and chassis hydraulic lines.
Key Attributes & Technical Parameters for GM09 148-4736 Travel Motor
| Product Category | Travel Motor Final Drive Assembly | Warranty | 1 Year / 12 Months |
| Specific Valve Model | Nabtesco GM09 / TM09 Dual-Speed Motor + Gearbox | Brand Name | Tatan |
| Compatible Equipment | Caterpillar CAT 307 | 307B | 307C | 308C | OEM Part Number | 148-4736 / 148-4567 / 171-9329 |
| Matched Engine Series | Mitsubishi 4M40 / 4D34 Diesel Engine (43.0 kW) | Place of Origin | Guangdong, China |
| Max Relief Pressure | 28.0 MPa (280 bar / 4060 PSI Travel Circuit) | Pilot Shift Pressure | 3.9 MPa (39 bar Shift Line) |
| Spool Precision Spec | Micro-Lapped < 0.003 mm Clearance | Quality Status | 100% Brand New Motor & Gearbox Unit |
| Machinery Test Report | Provided (100% Bench Tested) | Video Outgoing-Inspection | Provided Before Shipping |
| Gear Oil Spec | SAE 80W-90 / SAE 85W-140 EP | Packaging | Export Wooden Box Packaging |
Excavator Final Drive & Undercarriage Drive Assembly Lineup
Tatan supplies factory-built turnkey planetary final drives, track motors, hydraulic travel reduction gearboxes, and Duo-Cone replacement seal groups across global machinery brands:
Supported Excavator Machinery Brands & Final Drive Lineup
In addition to Caterpillar compact excavators, Tatan manufactures and supplies replacement travel motors, planetary gearboxes, and track drive components across global equipment brands:
Application Scenarios & Buyer Value
When contractors search to compare Caterpillar 307 final drive replacement cost and upgrade their undercarriage with our GM09 148-4736 Travel Motor, they secure measurable field reliability and lower cost per hour:
| Application Scenario | Value Delivered to Buyer |
|---|---|
| Caterpillar 307 Drive Replacement | 1:1 direct bolt-on installation eliminates track wandering on muddy terrain and restores full 4.6 km/h high-gear travel speed under 65 kN tractive force. |
| Compact Machinery Repair Workshops | Avoids the complex labor of pressing planetary gear carriers and setting bearing preload shims; drops on as a pre-tested sealed unit. |
| Landscaping & Civil Earthmoving Fleets | Carburized planetary gears and heavy Duo-Cone mechanical face seals withstand continuous mud immersion and rocky trail crawling. |
| Equipment Parts Stockists | High-demand 7-to-8-ton final drive inventory packaged in solid export wooden crates ready for immediate global air or ocean dispatch. |
GM09 148-4736 Travel Motor Diagnostic & Troubleshooting Guide
Use this technical guide to diagnose common final drive and planetary reduction gearbox issues on Caterpillar 307 series excavators:
| Hydraulic Fault Symptom | Technical Cause Analysis | Tatan Factory-Grade Solution |
|---|---|---|
| 1. Track pulling to one side during straight crawling | Travel motor valve plate scoring causing excessive case-drain bypass, or counterbalance spool sticking partially closed on weak side. | Replace with Tatan complete GM09 148-4736 Travel Motor assembly or flush counterbalance valve pilot galleries. |
| 2. Motor fails to shift between Low (Tortoise) and High (Hare) speed | Two-speed shift pilot spool jammed by oil contamination, or swashplate minimum angle control piston seals degraded. | Inspect 3.9 MPa shift pilot pressure at motor port, clean 2-speed selector valve, or replace travel drive unit. |
| 3. Black gear oil leaking from sprocket hub into track chains | Duo-Cone mechanical face floating seal rings worn out or wire/packing rope wrapped around sprocket cutting O-rings. | Stop machine immediately to prevent planetary gear seizure; install fresh Tatan factory-sealed final drive. |
| 4. Loud grinding & clunking sound from track drive hub | Planetary sun gear tooth fracture or needle roller bearing failure caused by operating with low gear oil level. | Drain gear oil to check for metal debris; replace complete gearbox assembly to prevent main track frame lockup. |
Transport Packaging & Certified Quality Assurance
Heavy-duty undercarriage drives require absolute vibration and contamination protection. Every unit is bolted in solid export timber crates:
✈️ Express Air Courier
Partnered with DHL, FedEx, and UPS for 3-7 day priority delivery worldwide.
🚢 Sea Cargo Freight
LCL and FCL container ocean freight for bulk equipment parts replenishment.
📦 Export Wooden Crates
Solid fumigated timber cases lined with thick shockproof foam to prevent transit damage.
GM09 148-4736 Travel Motor FAQ & Related Categories
* Note: Wholesale Reference Price Starts From $300.00. Please contact Gavin for a final customized quote.
