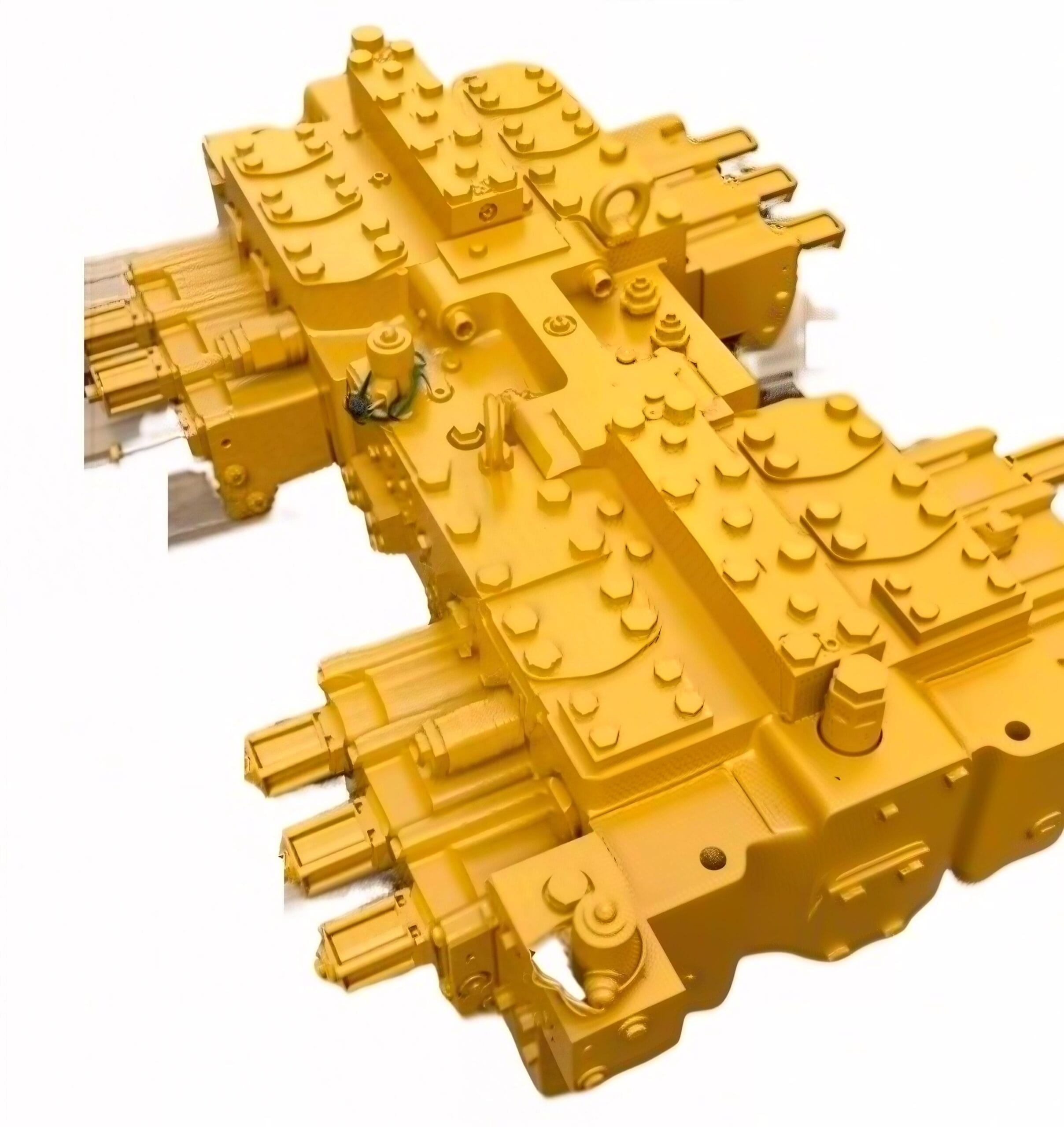

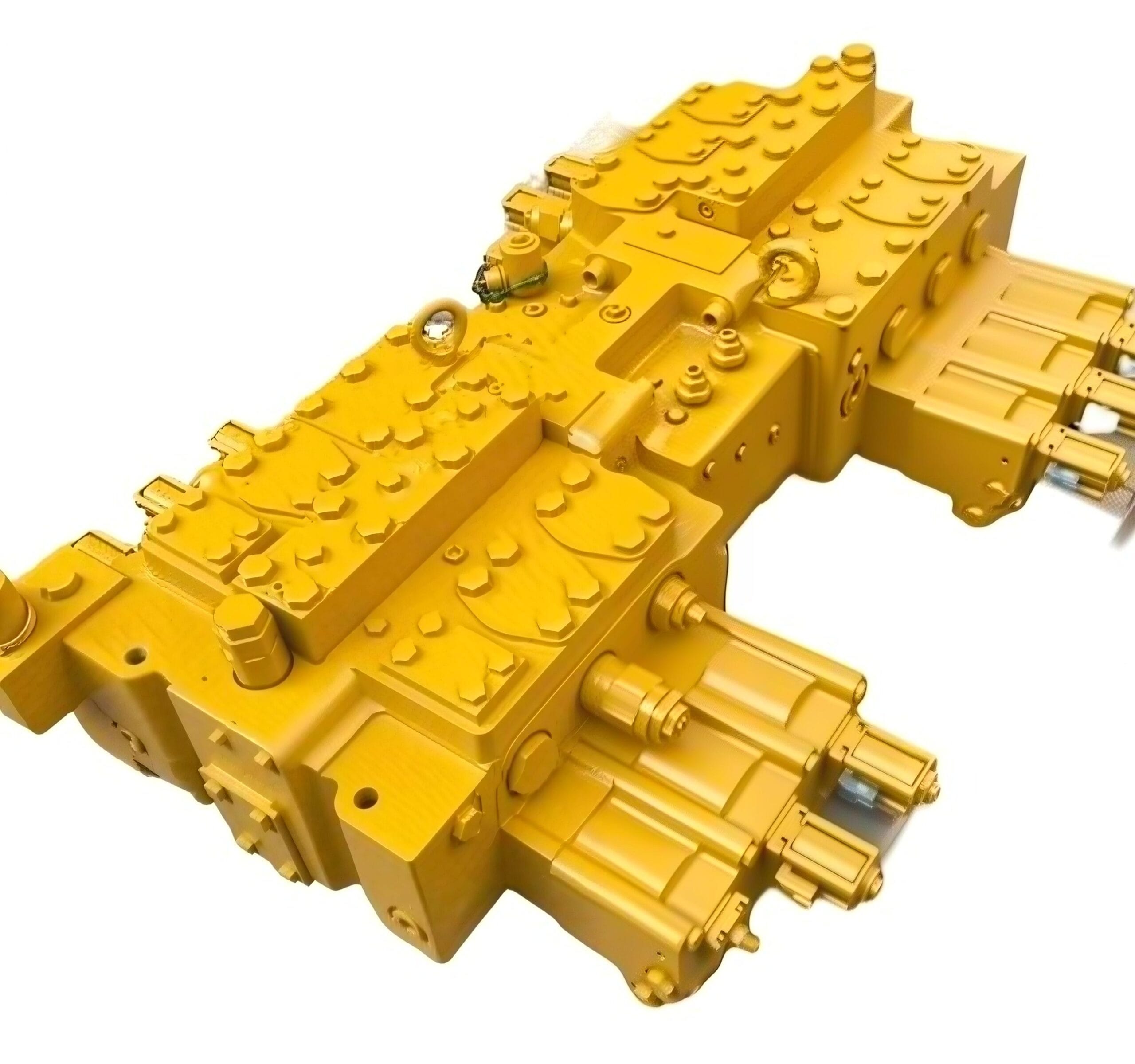

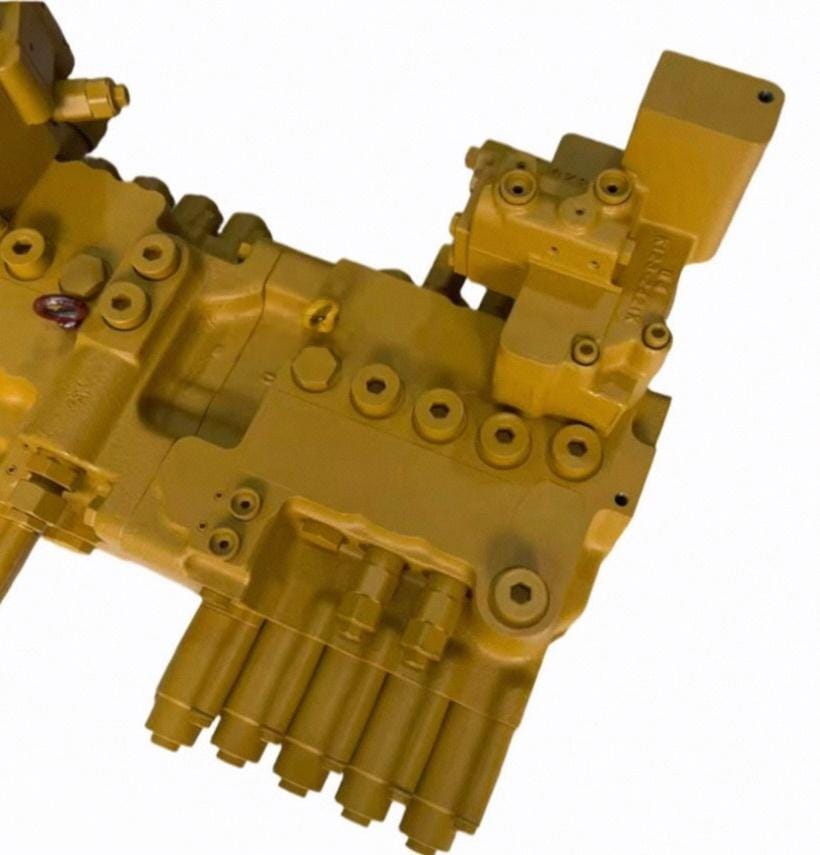

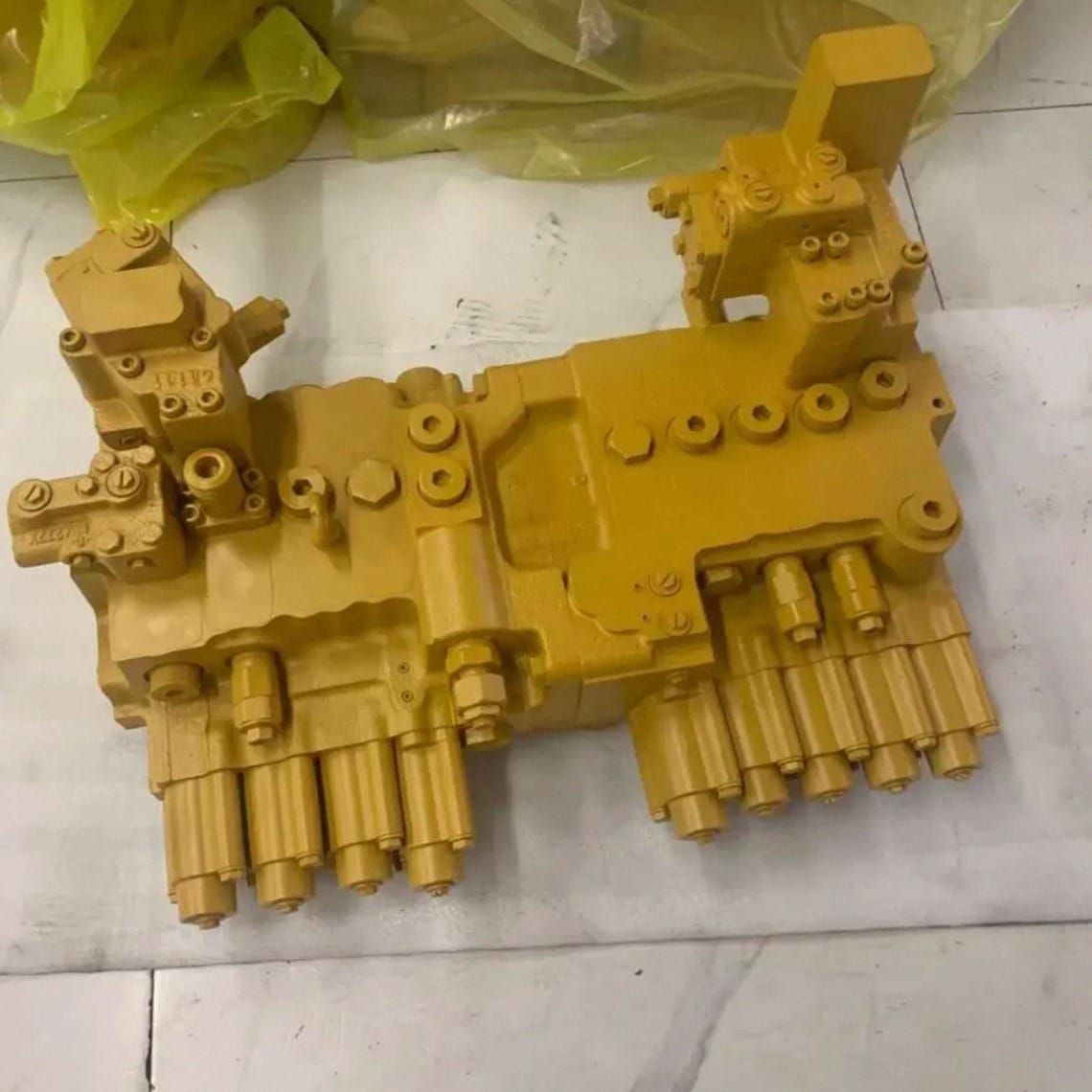

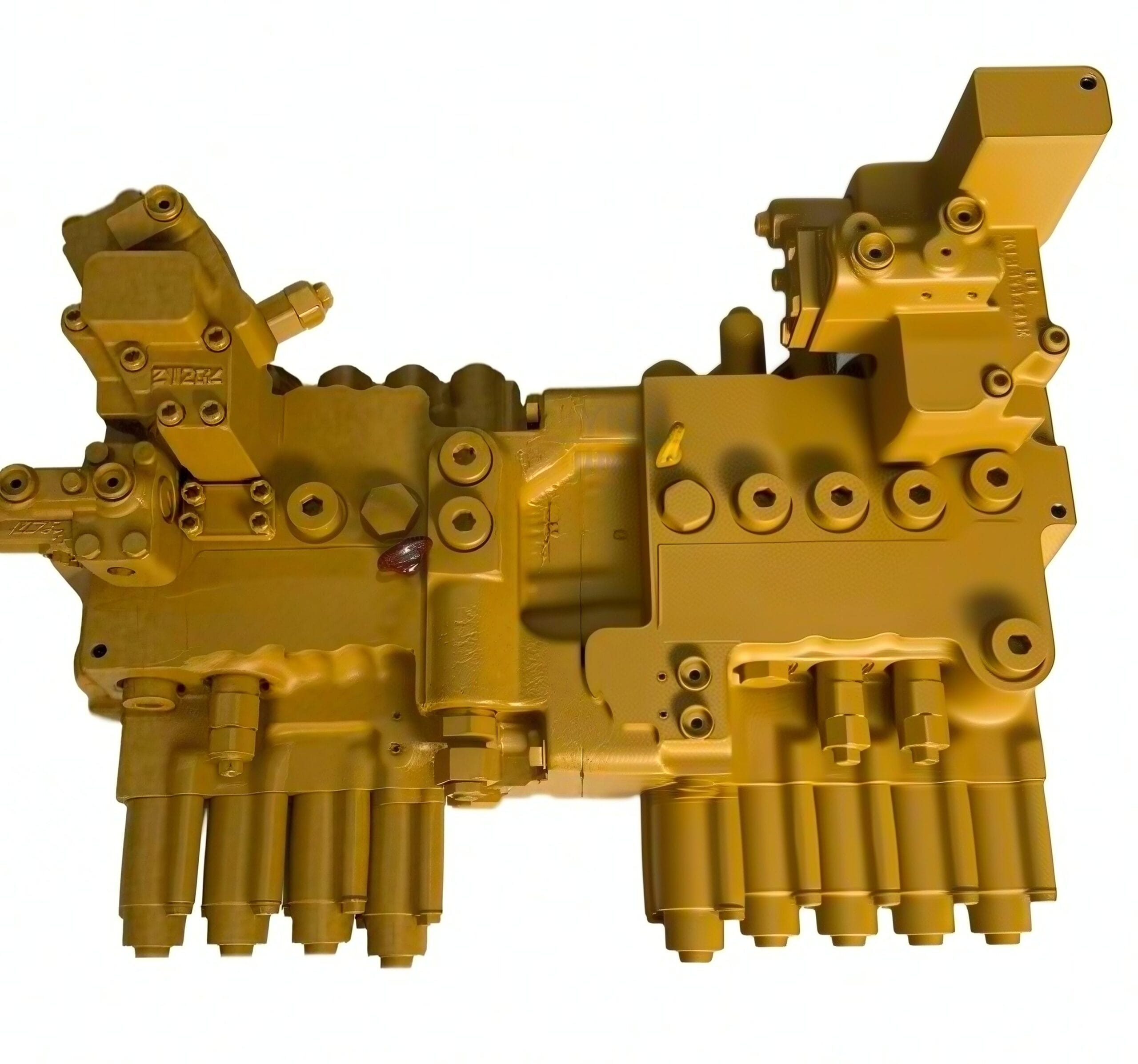

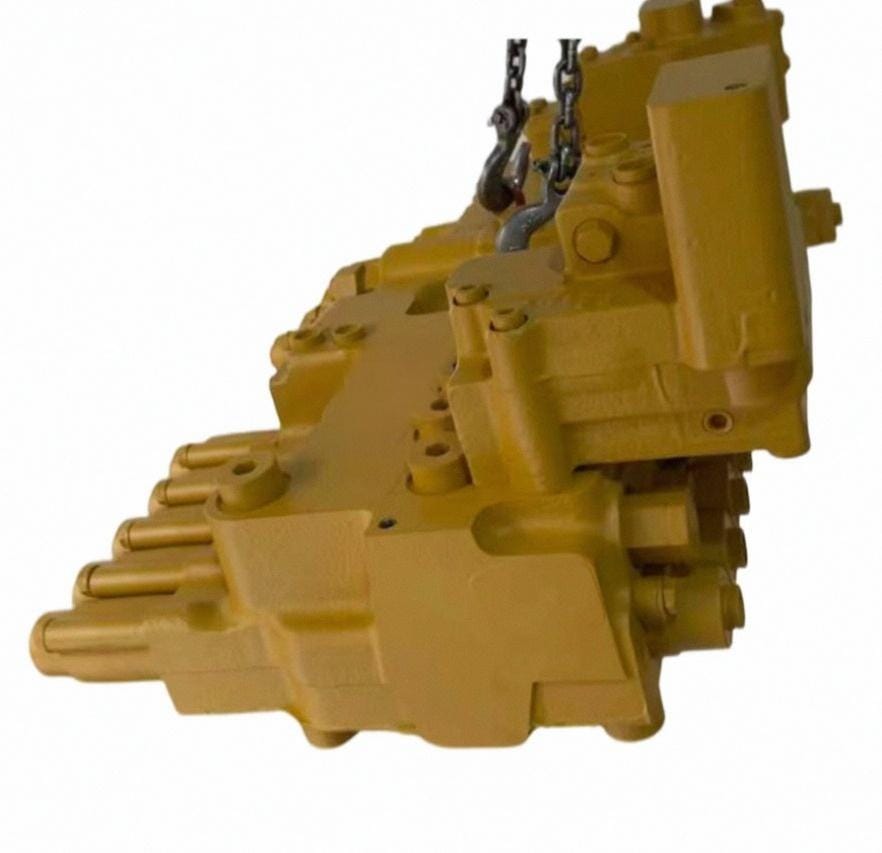

Caterpillar 330B Main Control Valve Assembly (OEM 116-6729 / 126-2068)

Tatan Machinery supplies 100% Brand New multi-spool hydraulic main control valve assemblies (OEM part numbers: 116-6729 / 126-2068, interchangeable with 138-0435 / 154-4735) engineered for Caterpillar 330B and 330B L heavy hydraulic excavators. Serving as the high-pressure hydraulic routing brain for 30-ton mass excavation, this dual-block monoblock assembly directs flow from both main variable pumps to the boom, stick, bucket, swing, and track motors. Fitted with integrated flow-merging spools, anti-drift check valves, and calibrated relief cartridges, every unit is backed by our 12-Month Comprehensive Replacement Warranty.

Supplier Information & Build Status

When to Replace the Main Control Valve on CAT 330B: Field Symptoms

The CAT 330B routinely operates with heavy 1.6m³ rock buckets or 3-ton hydraulic breakers. Sustained high-frequency backpressure pulses cause irreversible valve body erosion. Replace the complete assembly under these severe conditions:

• Dual-Pump Merging Valve Failure & Sluggish Boom Raising: When hoisting a loaded bucket, the boom raises at half speed. The internal boom/stick flow-merging spool or its pilot check valve has galled and stuck open, failing to combine flow from Pump 1 and Pump 2.
• Continuous Boom Drift & Arm Drop in Rock Trenching: When holding a hydraulic hammer or rock block off the ground, the cylinders rapidly drift downward. Spool clearances have enlarged beyond 0.018mm, dumping high-pressure holding oil directly into the tank return gallery.
• Internal Cast Partition Erosion & Circuit Crossover: Continuous operation with hot, contaminated oil washes out the narrow cast iron sealing lands between the swing and travel slices, causing uncommanded machine creep whenever the swing joystick is actuated.
• Blown Inter-Section O-Ring Seals under 350 Bar Peaks: Repeated hydraulic hammering shockwaves blow out the internal high-pressure O-ring packings between the front and rear valve monoblocks, causing massive external hydraulic leaks that simple re-torquing cannot cure.

Workshop Bench Testing & 12-Month Warranty Guarantee

Every 100% Brand New 116-6729 control valve supplied by Tatan Machinery comes backed by a 12-Month Comprehensive Replacement Warranty. Before export packaging, our hydraulic engineers complete a 5-point quality validation:

1. Dual Main Relief & Overload Pressure Calibration: Main relief cartridges set and locked to Cat 330B factory specs (31.4 MPa standard / 34.3 MPa heavy-lift) on our 450 kW digital hydraulic test stand.
2. Spool Neutral Holding & Bypass Leakage Test: Individual circuit testing under full working pressure to verify zero cylinder creeping and tight check-valve seat sealing.
3. Flow-Merging Spool Actuation Timing: Dynamic pilot actuation testing to verify seamless hydraulic oil merging for fast boom-up and stick-in cycle times.
4. Anti-Drift Valve Tight-Seat Verification: High-pressure static hold test on boom and arm lock valves to guarantee zero drift under full bucket weight.
5. SAE Flange Thread Depth & Face Planarity Check: CMM coordinate measurement of split-flange bolt holes and O-ring sealing grooves to eliminate joint leakage.

Export Heavy-Duty Packaging Process

A heavy 195 kg valve block requires clinical protection against contamination and transit shock:

• Heavy Steel Blanking Plates: All SAE high-pressure split-flange ports and pilot connections sealed with O-ring steel blanking plates.
• VCI Vapor-Phase Anti-Corrosion Wrap: The bare valve block is coated with rust-inhibiting hydraulic film and hermetically vacuum-sealed in VCI plastic foil.
• Custom Internal Structural Timber Bolting: The valve block is bolted down to heavy timber skids to prevent tipping.
• ISPM 15 Fumigation-Free Solid Plywood Box: Fully enclosed export crate banded with multiple high-tensile galvanized steel straps.

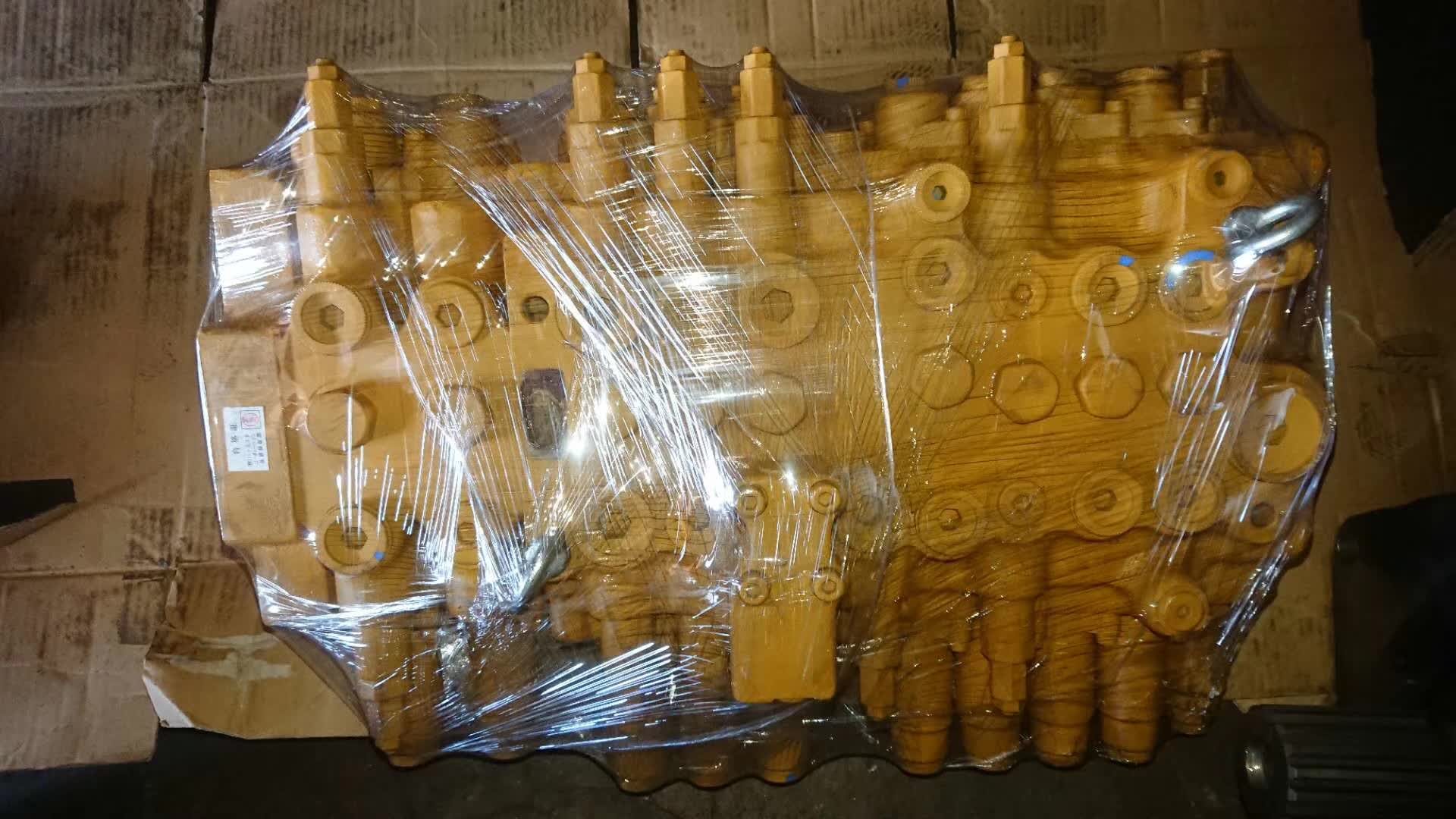

Actual sealed port caps and heavy-duty crating for 116-6729 control valve

Global Shipping & Customs Documentation

Direct international dispatch tailored for commercial contractors and parts distributors:

• Emergency Machine Down Air Cargo: Fast air express via DHL Aviation, FedEx Freight, or international airlines within 3–7 business days.
• Consolidated Ocean Sea Freight (LCL / FCL): Direct containerized shipping to worldwide commercial ports.
• Clean Customs Clearance Paperwork: Commercial Invoices with correct HS Code (8481.20 – Valves for Oleohydraulic Transmission), Packing Lists, and Certificates of Origin for tariff optimization.

Container loading and air freight dispatch supported by global logistics partners

Critical Installation Guidelines (CAT 330B Hydraulic Technician Checklist)

To prevent instant spool contamination and maintain your 12-month warranty, technicians MUST adhere to these field rules:

1. MANDATORY: Drain & Chemical Flush 300L Hydraulic Tank: In a 30-ton excavator, pump failure or broken cylinder seals leave pounds of copper and steel particles at the bottom of the oil reservoir. You MUST completely drain the oil, wipe the tank floor with lint-free towels, and install brand-new suction and return filter cartridges!
2. Reverse-Flush Steel Delivery Hardlines: High-pressure hardlines between the SBS120 main pump and the 116-6729 valve block must be chemically flushed. A single trapped metal flake will instantly score a brand-new spool bore!
3. Pre-Fill Pilot Filter & Purge Air: Fill the pilot circuit filter bowl with clean hydraulic oil. Air trapped in the pilot logic lines will cause jerky joystick response and violent pressure spikes.
4. SAE Split-Flange Torque Pattern: Lubricate all SAE Code 62 O-rings with clean hydraulic oil. Torque 4-bolt flange clamps evenly in a cross-pattern to prevent high-pressure blowout under 350 bar surges.
5. Initial Relief Pressure Verification: Connect a 60 MPa pressure gauge to the main pump delivery test port. Cycle boom and stick slowly at low idle before placing the machine under heavy quarry digging loads.
