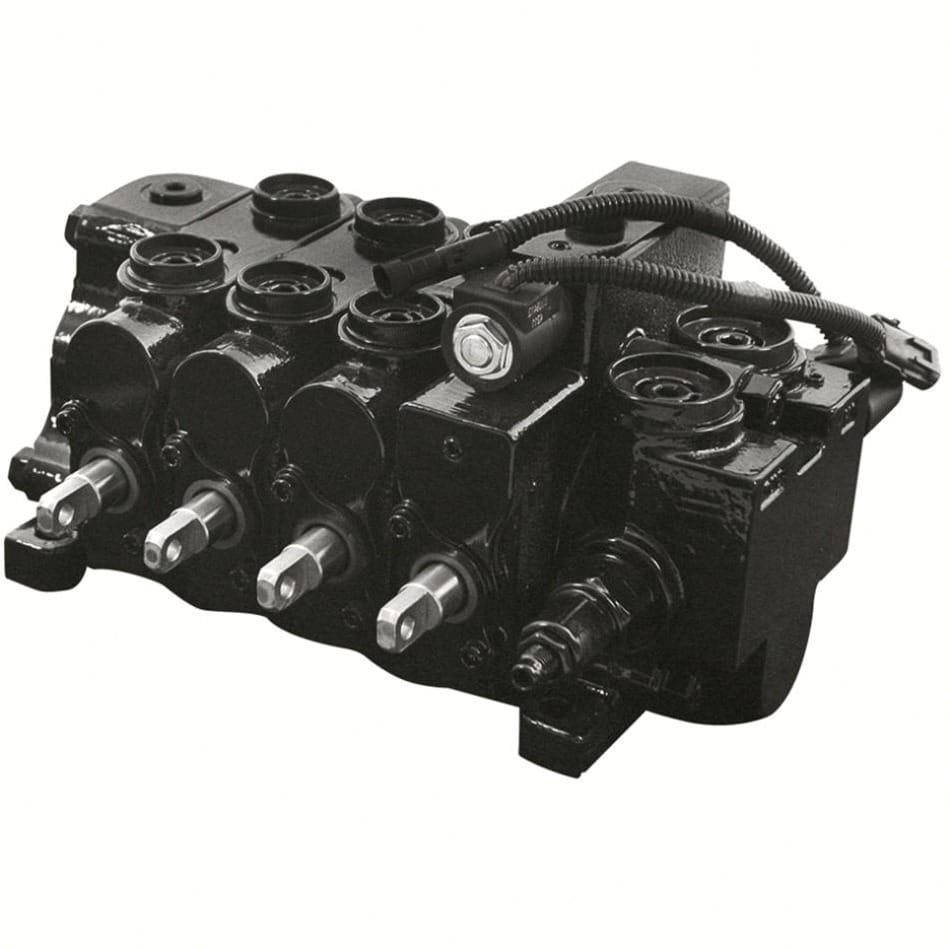

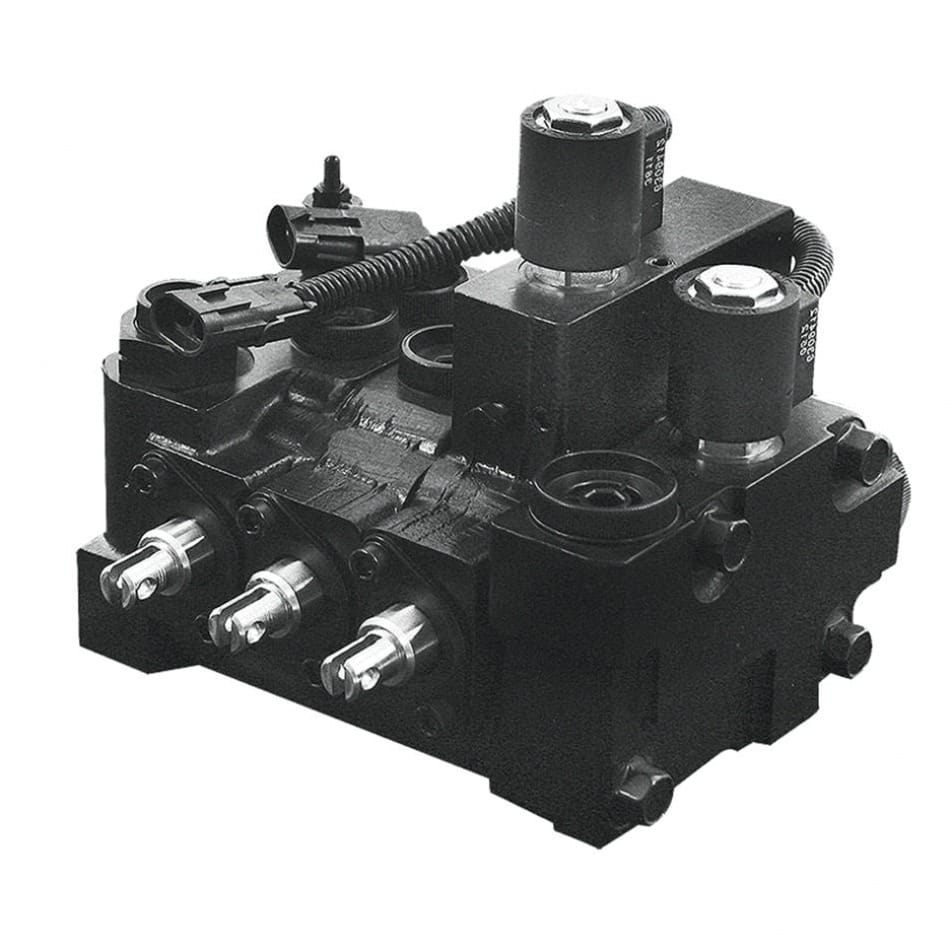

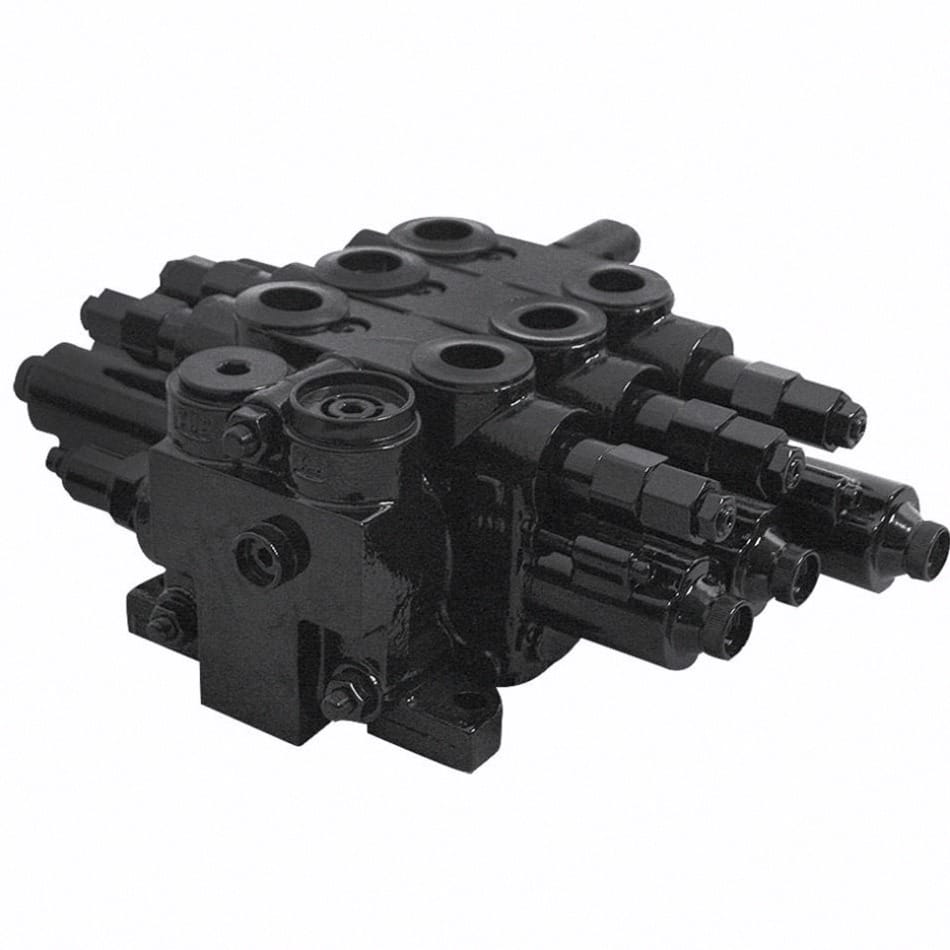

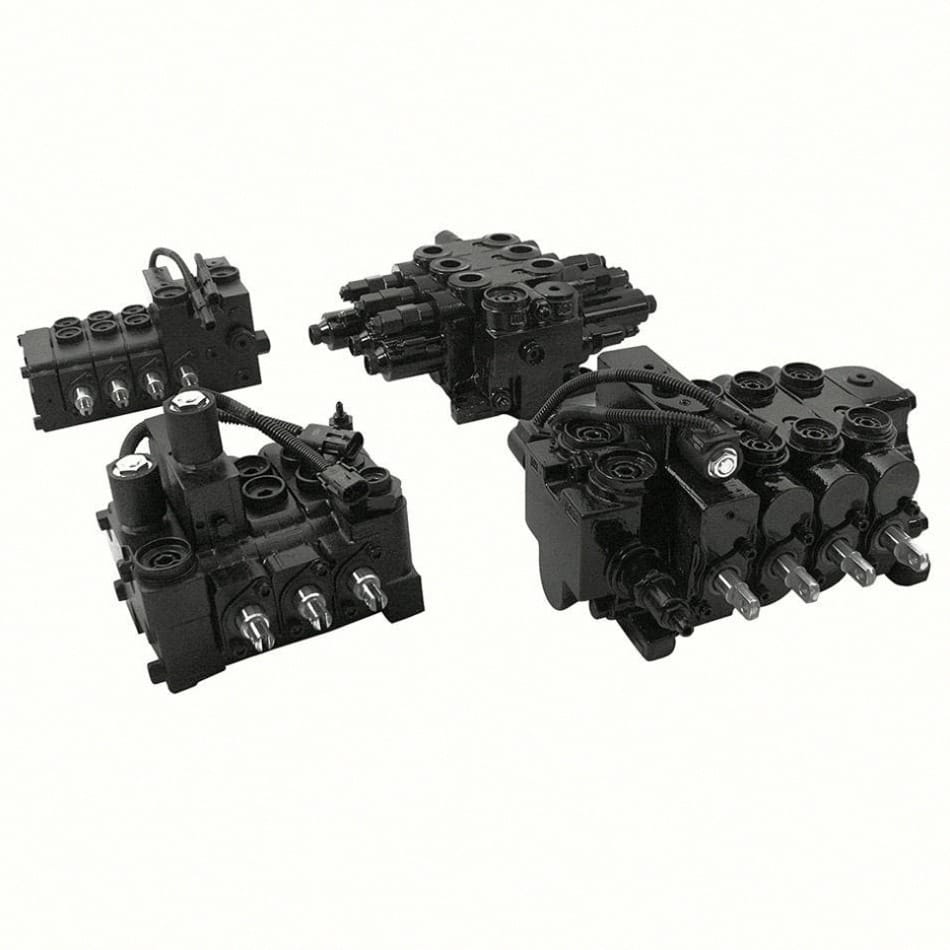

4254443 Main Control Valve Assembly Overview
The 4254443 Main Control Valve assembly (OEM Part Numbers: 4254443, 4189397, 4228399, 4200874) manufactured by Tatan is a heavy-duty hydraulic distribution manifold engineered specifically for the classic Hitachi EX100-1, EX100M-1, and EX100WD-1 11-ton excavators. On mature excavators where years of thermal cycling cause internal spool body scoring and cross-port bypass, installing this brand-new monoblock valve restores factory 31.4 MPa digging pressure, smooth compound multi-function operations, and zero boom leakage.
Machined from high-tensile alloy cast iron with precision-ground spool bores, this control valve directly accommodates the high flow output of the Isuzu 4BD1 engine and HPV091 hydraulic pump system, guaranteeing perfect mechanical alignment without pipe bending or bracket rework.
Key Attributes & Parameters for 4254443 Main Control Valve
| Product Category | Main Control Valve Assembly | Warranty | 1 Year / 12 Months |
| Specific Valve Model | EX100-1 Multi-Spool Monoblock Valve | Brand Name | Tatan |
| Compatible Equipment | Hitachi EX100-1 | EX100M-1 Excavator | OEM Part Number | 4254443 / 4189397 |
| Matched Engine Series | Isuzu 4BD1 / 4BD1T Diesel Engine | Place of Origin | Guangdong, China |
| Main Relief Setting | 31.4 MPa (314 bar / 4550 PSI) | Overload Port Relief | 34.3 MPa (343 bar / 4970 PSI) |
| Spool Bore Tolerance | Sub-Micron Lapped < 0.003 mm | Hydraulic Port Spec | JIS 30° Metric Flare Flange Pattern |
| Machinery Test Report | Provided (100% Bench Tested) | Video Outgoing-Inspection | Provided Before Shipping |
| Quality Status | 100% Brand New Complete Unit | Packaging | Export Wooden Box Packaging |
Supported Machinery Brands & Control Valve Coverage
In addition to Hitachi, Tatan manufactures replacement main control valves and hydraulic distribution manifolds for leading excavator brands:
Application Scenarios & Buyer Value
When rebuilding or replacing aging hydraulic systems with our 4254443 Main Control Valve, workshops and equipment owners eliminate repetitive downtime:
| Application Scenario | Value Delivered to Buyer |
|---|---|
| EX100-1 Cylinder Drift Resolution | Instantly stops boom, arm, and bucket creeping down during stationary trench holding or pipe laying. |
| Hydraulic Overhaul Workshops | Avoids the high cost and unpredictable results of chrome-plating and re-honing severely worn 30-year-old valve castings. |
| Forestry & Drainage Contractors | Restores strong, simultaneous digging and swinging speed without the engine dragging down or hydraulic oil overheating. |
| Export Parts Stockists | Ready-to-ship replacement unit for overseas markets where Hitachi Dash-1 machines remain reliable workhorses. |
4254443 Main Control Valve OEM Diagnostic Guide
Use this technical diagnostic guide to identify hydraulic faults originating in the main control valve on your Hitachi EX100-1:
| Hydraulic Symptom | Technical Cause Analysis | Tatan Factory-Grade Solution |
|---|---|---|
| 1. Boom drops rapidly when joystick is released | Erosion on the boom load holding check valve poppet seat, or excessive clearance between boom spool and valve casting. | Install Tatan 4254443 complete valve assembly; flush hydraulic reservoir and replace 10μm pilot filter element. |
| 2. Weak arm crowding & bucket force under load | Main relief valve cartridge spring fatigue or internal bypass dropping main system pressure below 31.4 MPa. | Verify pump output pressure; if pump is sound, replace with Tatan pre-calibrated control valve assembly. |
| 3. Hydraulic fluid temperature spikes (>85°C) rapidly | High-pressure oil continuously short-circuiting across worn spool lands into the low-pressure tank passage. | Replace complete monoblock assembly to restore tight <0.003 mm spool clearances and eliminate internal bypass heat. |
| 4. External fluid pooling around pilot end covers | Hardened, brittle NBR pilot end-cap O-rings and backup rings failing under pilot return backpressure spikes. | Tatan valve comes pre-fitted with high-temp fluororubber (FKM) end-cap seals rated for continuous heavy cycling. |
Transport Packaging & Fast Global Shipping
To ensure 100% damage-free international transport, every Tatan 4254443 main control valve is preserved with anti-corrosion oil, sealed in heavy poly film, and strapped inside an export-grade wooden crate.
✈️ Express Air Courier
Partnered with DHL, FedEx, UPS, and TNT for 3-7 day express door-to-door delivery worldwide.
🚢 Sea Cargo Freight
LCL and FCL ocean container shipping for heavy control valve assemblies and bulk orders.
📦 Export Wooden Cases
Fumigated solid wooden boxes with custom high-density foam inserts to prevent shipping shock.
Quality Control & International Certificates
Tatan hydraulic components are manufactured under ISO 9001 certified quality control systems and strictly comply with CE safety standards.
4254443 Main Control Valve FAQ & Related Categories
* Note: Wholesale Reference Price Starts From $300.00. Please contact Gavin for a final customized quote.
