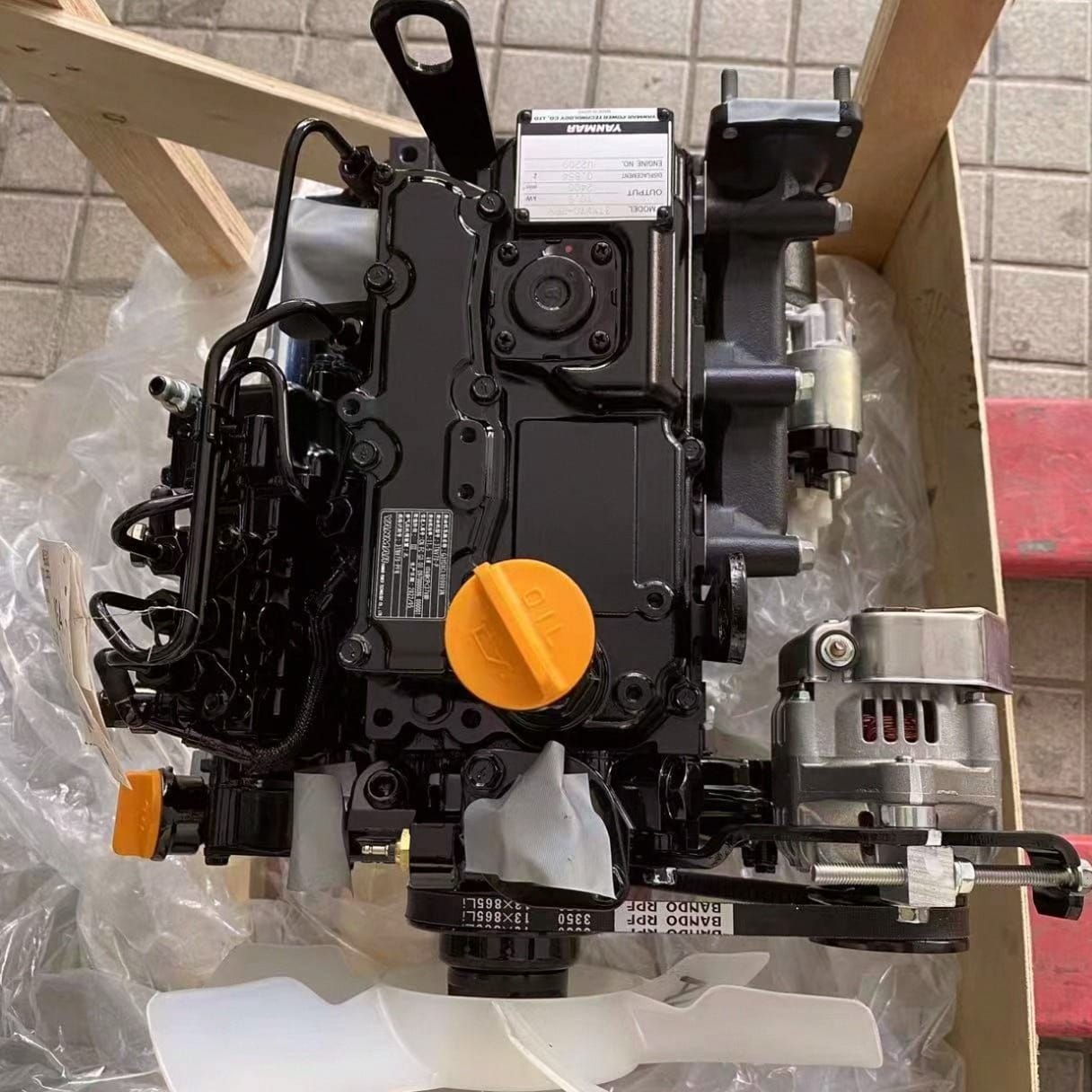

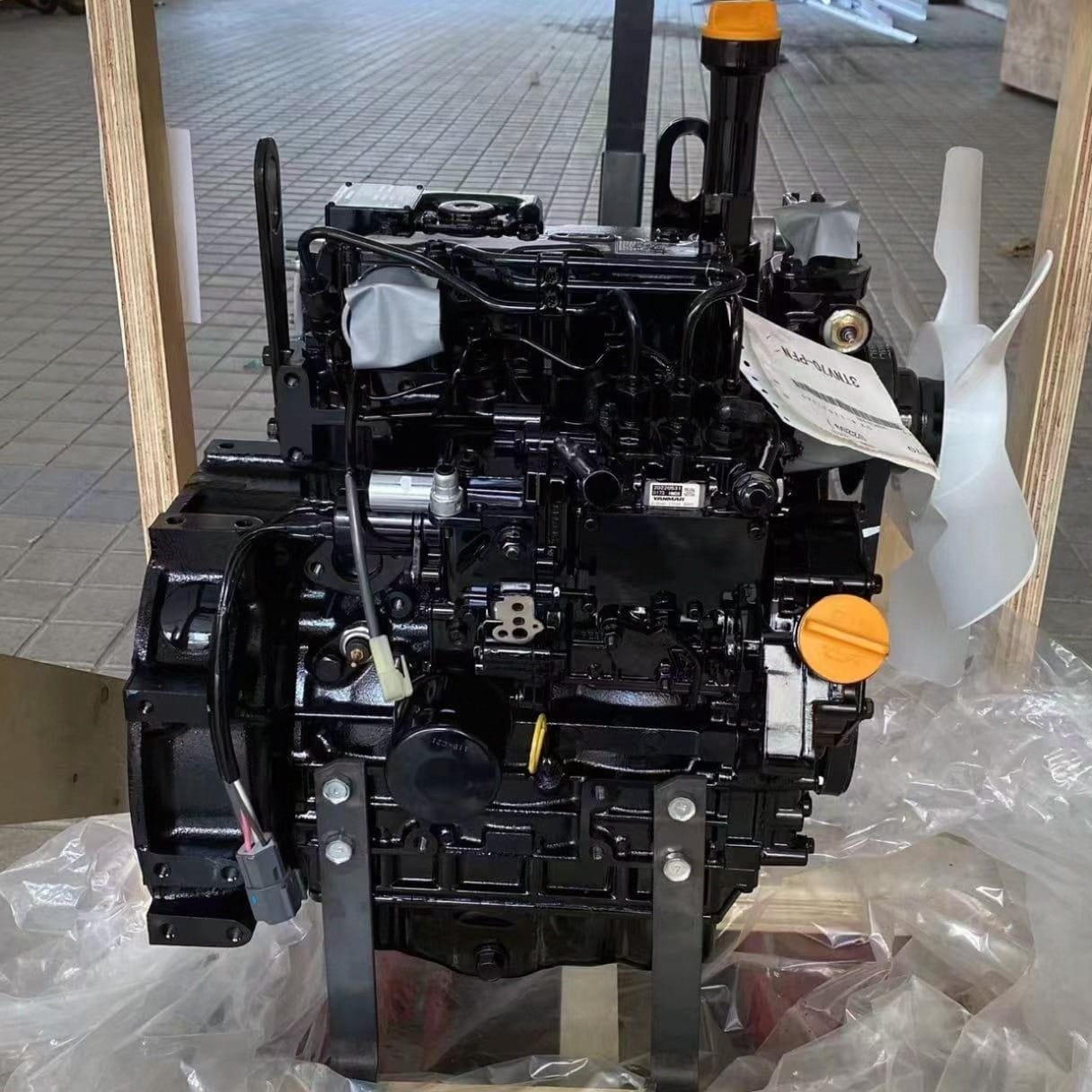

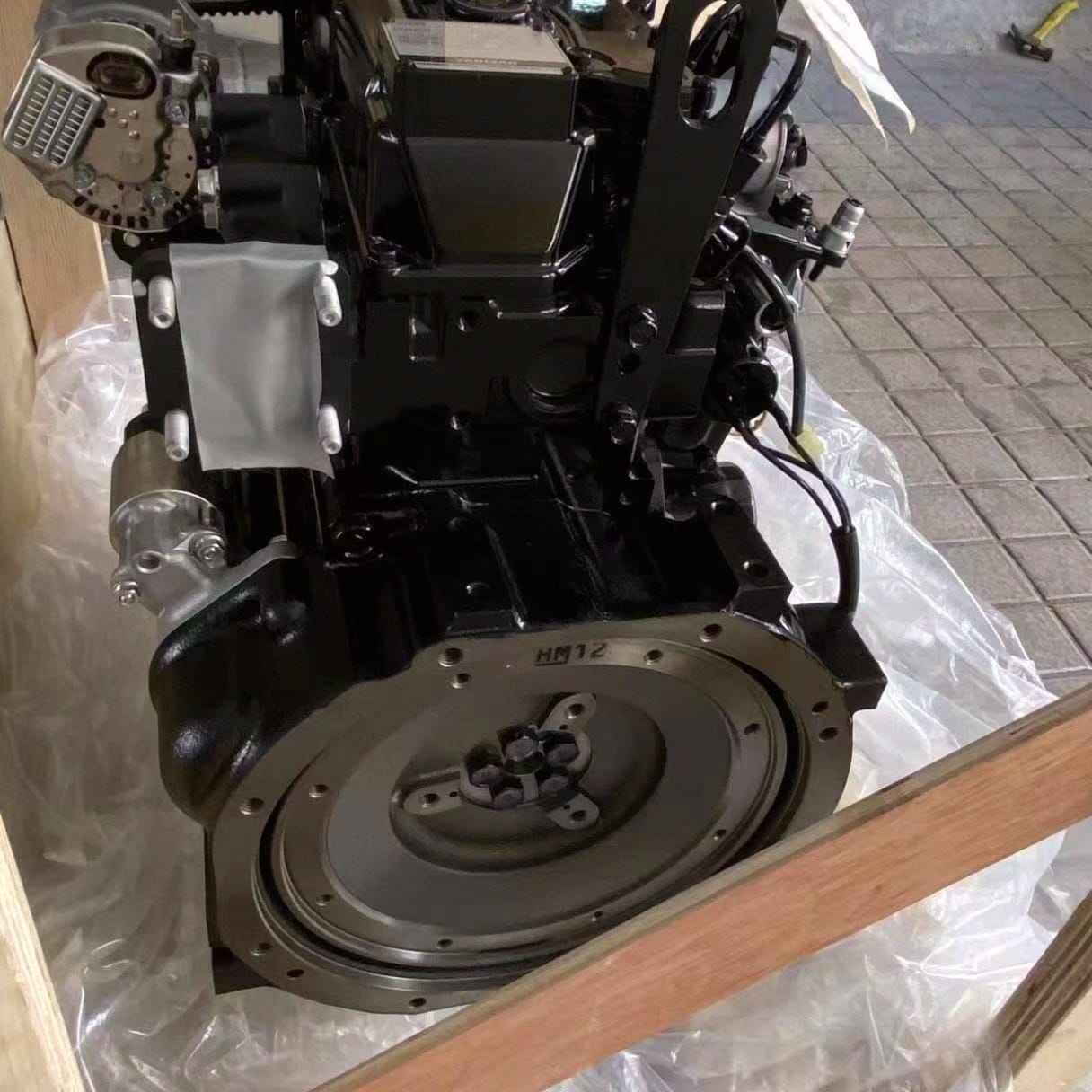

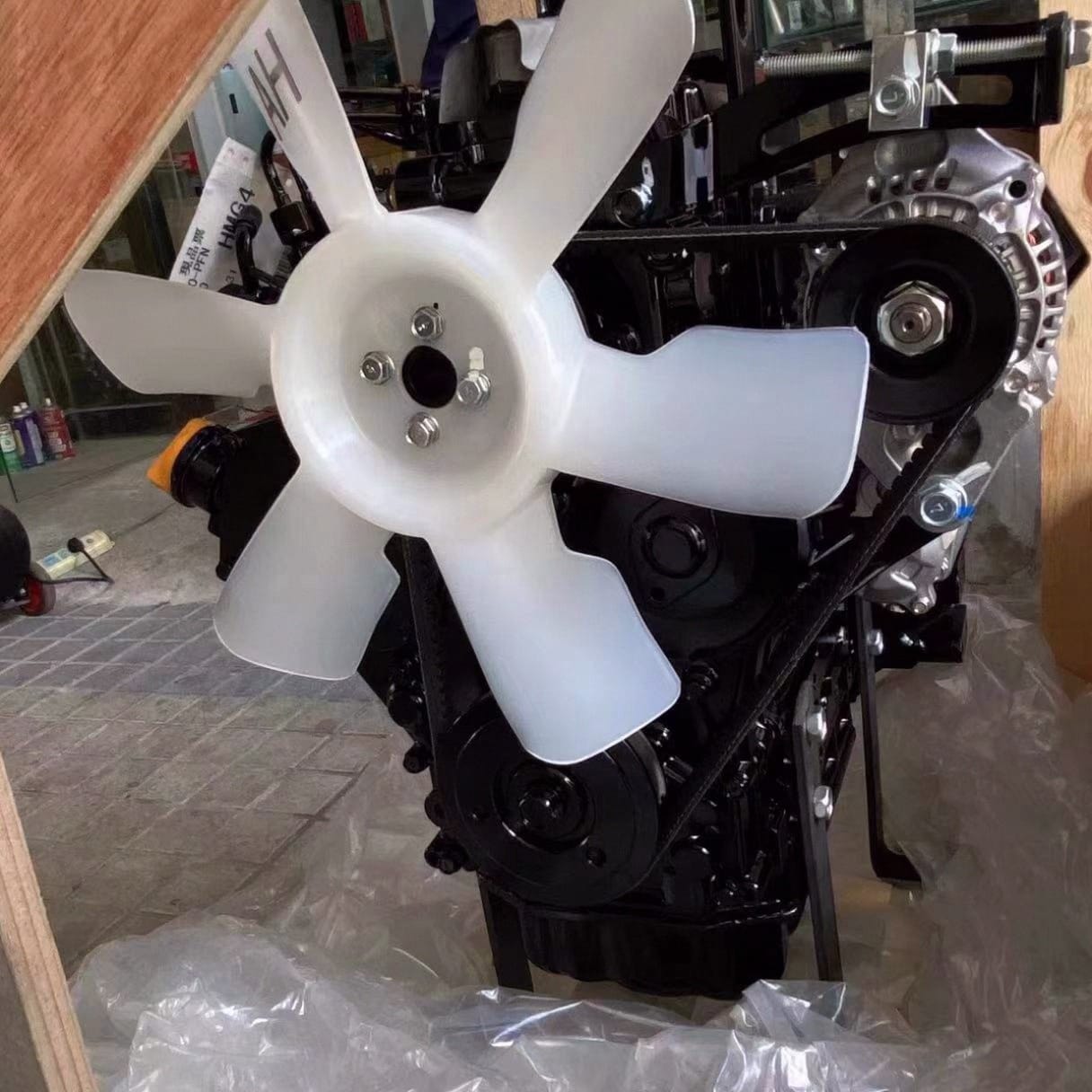

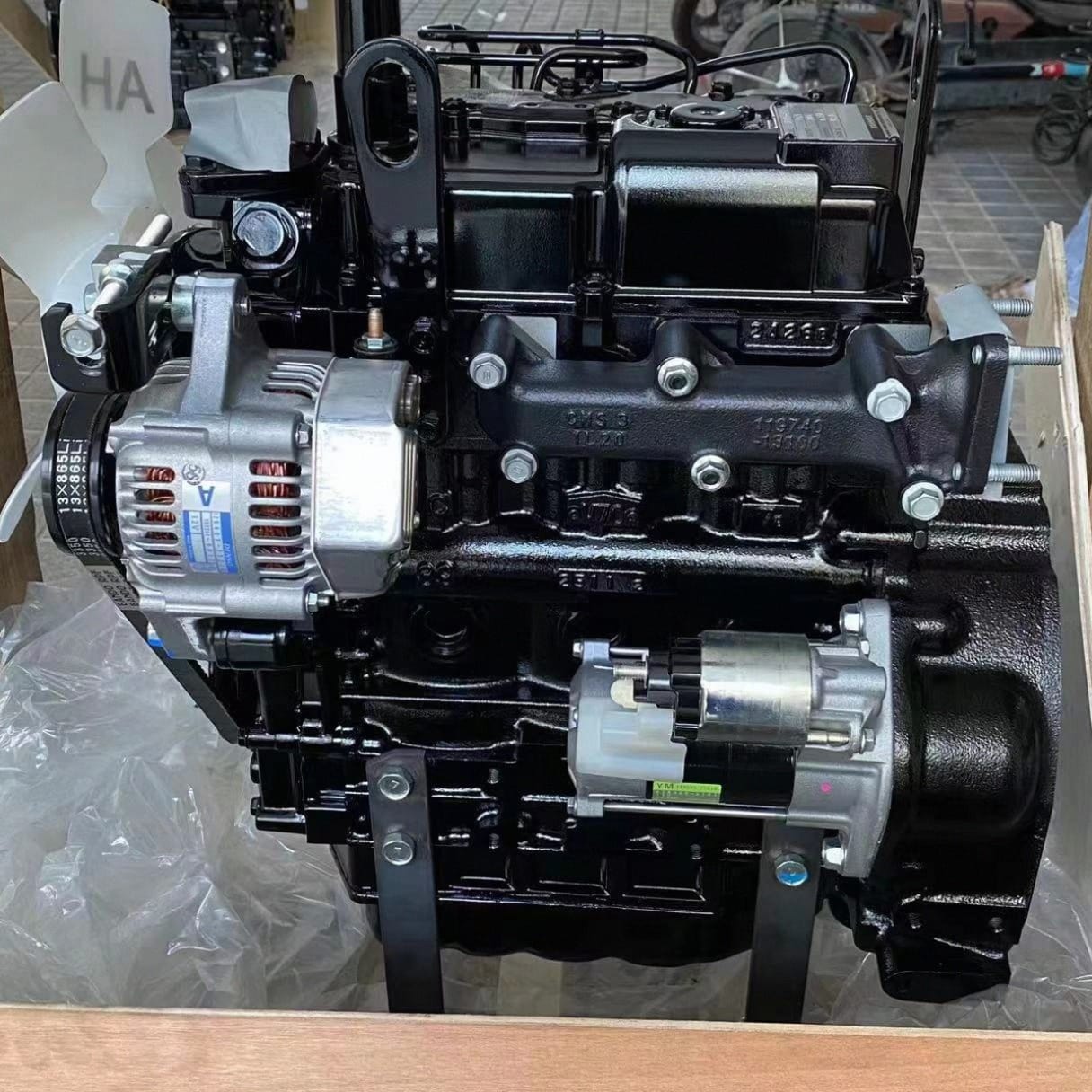

3TNV88 400901-00022 Engine Assembly Overview
The 3TNV88 400901-00022 Engine Assembly manufactured by Tatan is a 1.642L 3-cylinder naturally aspirated water-cooled diesel engine belonging to our Diesel Engine Assembly classification. Engineered specifically for Doosan DH35Z, DX35Z, and Solar 035 3.5-ton mini excavators, replacing your worn engine with a Tatan complete assembly eliminates machine downtime, excessive blow-by, and severe hydraulic power loss instantly.
Built strictly according to original Yanmar OEM specifications, this complete engine assembly comes pre-assembled with direct injection pump, fuel injectors, starter motor, and alternator, ensuring 100% direct bolt-on fitment with hydraulic pump couplings and engine mount brackets.
Key Attributes & Parameters for 3TNV88 400901-00022 Engine Assembly
| Product Category | Diesel Engine Assembly | Warranty | 1 Year / 12 Months |
| Specific Engine Model | Yanmar 3TNV88 / 3TNV88-BDSA Engine | Brand Name | Tatan |
| Compatible Equipment | Doosan DH35Z | DX35Z Mini Excavator | OEM Part Number | 400901-00022 / 3TNV88 |
| Engine Displacement | 1.642 Liters (1642 cc / 1.6L) | Cylinder Arrangement | 3 Cylinders Inline (I-3) 4-Stroke |
| Horsepower & RPM | 20.2-22.5 kW (27-30 HP) @ 2200-2400 | Cooling System | Water-Cooled / Liquid Cooled |
| Machinery Test Report | Provided (100% Dyno Tested) | Video Outgoing-Inspection | Provided Before Shipping |
| Aspiration Type | Naturally Aspirated (NA) | Place of Origin | Guangdong, China |
| Quality Status | 100% Brand New Engine | Packaging | Export Wooden Box Packaging |
Supported Machinery Brands & Engine Parts Coverage
In addition to Doosan and Yanmar, Tatan manufactures replacement complete diesel engines and overhaul components for leading machinery brands:
Application Scenarios & Buyer Value
When replacing your mini excavator engine with our 3TNV88 400901-00022 Engine Assembly, buyers achieve maximum operational uptime and power efficiency:
| Application Scenario | Value Delivered to Buyer |
|---|---|
| Doosan DH35Z / DX35Z Engine Swap | Complete engine swap cuts machine repair downtime by up to 70% compared to internal rebuilding. |
| Excavator Overhaul Workshops | Eliminates tedious line-boring, sleeve honing, and crank fitting; saves mechanic labor hours. |
| Engine Distributors & Stockists | High-demand 1.6L mini excavator engine ready for immediate resale to plant hire fleets and repair networks. |
| Rental Fleet Maintenance | Extends 3.5-ton mini excavator working lifespan and restores full digging hydraulic torque under load. |
3TNV88 400901-00022 Engine Assembly OEM Diagnostic Guide
Use this OEM manual diagnostic guide to troubleshoot operational engine symptoms on your Doosan DH35Z mini excavator:
| Engine Symptom | Technical Cause Analysis | Tatan Factory-Grade Solution |
|---|---|---|
| 1. Hard cold starting & dense white smoke | Mechanical injection pump timing retarded or low compression (<2.8 MPa) in 3 cylinders due to piston ring wear. | Adjust Yanmar injection pump timing or replace with Tatan complete 3TNV88 engine assembly. |
| 2. Severe power loss & black smoke under hydraulic load | Fuel injection pump governor spring fatigue or clogged mechanical fuel injectors causing incomplete combustion. | Inspect fuel injection pressure or swap to a Tatan factory pre-tested 3TNV88 complete engine. |
| 3. High engine oil consumption & heavy crankcase blow-by | Scored 1.6L cylinder liners, stuck oil rings, or valve stem seal wear allowing engine oil into combustion chambers. | Install Tatan new 3TNV88 complete engine; flush engine oil gallery and replace oil filter. |
| 4. Engine overheating & coolant surge into expansion tank | Water pump impeller erosion, clogged radiator core, or cylinder head gasket leaking combustion gas into cooling jacket. | Replace thermostat (82°C), flush cooling system, or swap to a new 3TNV88 complete engine assembly. |
Transport Packaging & Fast Global Shipping
To ensure 100% damage-free international transport, every Tatan 3TNV88 400901-00022 engine assembly undergoes anti-rust oiling, waterproof plastic sealing, and solid export wooden box packaging.
✈️ Express Air Courier
Partnered with DHL, FedEx, UPS, and TNT for express door-to-door delivery worldwide.
🚢 Sea Cargo Freight
LCL and FCL ocean container shipping for heavy engine assemblies and bulk orders.
📦 Export Wooden Cases
Fumigated solid wooden boxes with thick shockproof foam lining for maximum safety.
Quality Control & International Certificates
Tatan diesel engines are manufactured under ISO 9001 quality management systems and strictly comply with CE safety standards.
3TNV88 400901-00022 Engine FAQ & Related Categories
🔗 Explore Related Doosan & Heavy Equipment Spare Parts:
* Note: Wholesale Reference Price Starts From $300.00. Please contact Gavin for a final customized quote.
