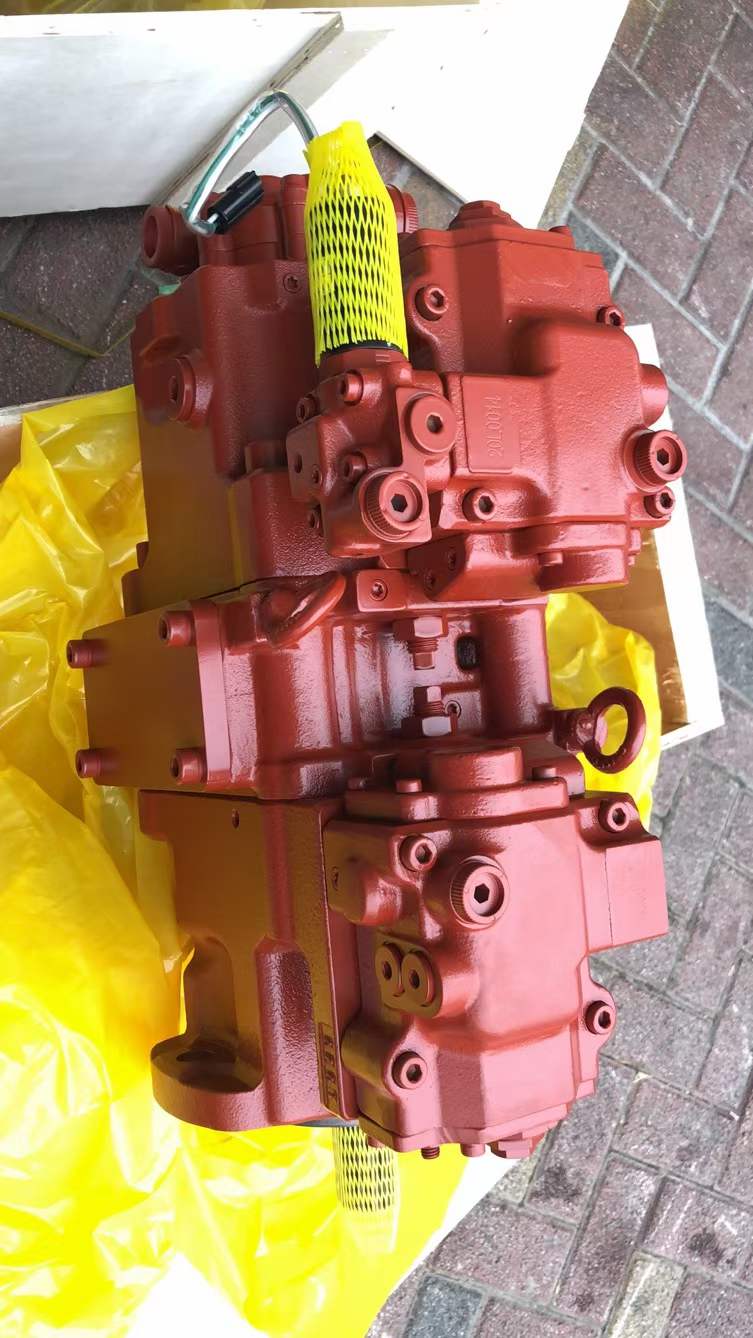

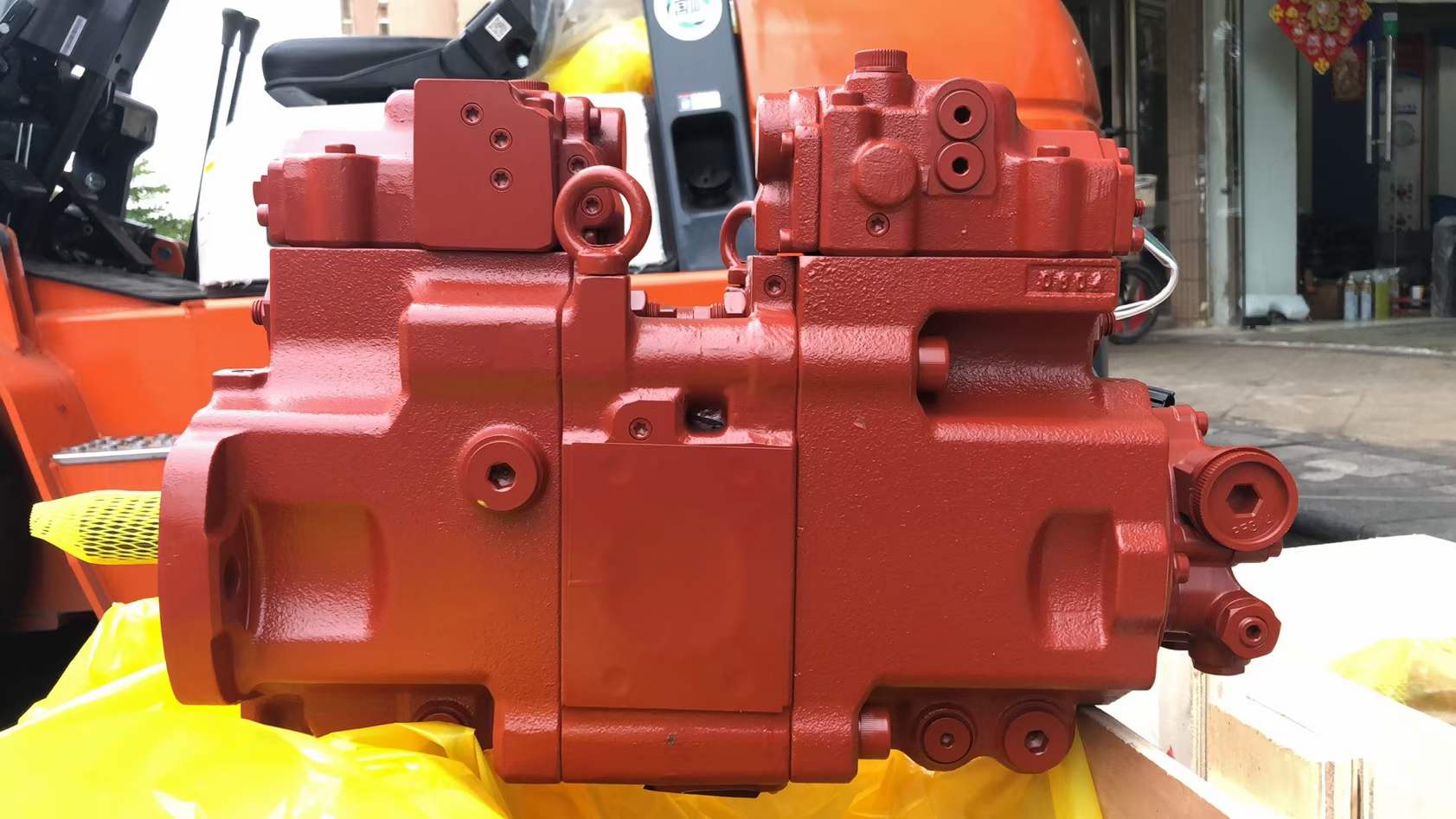

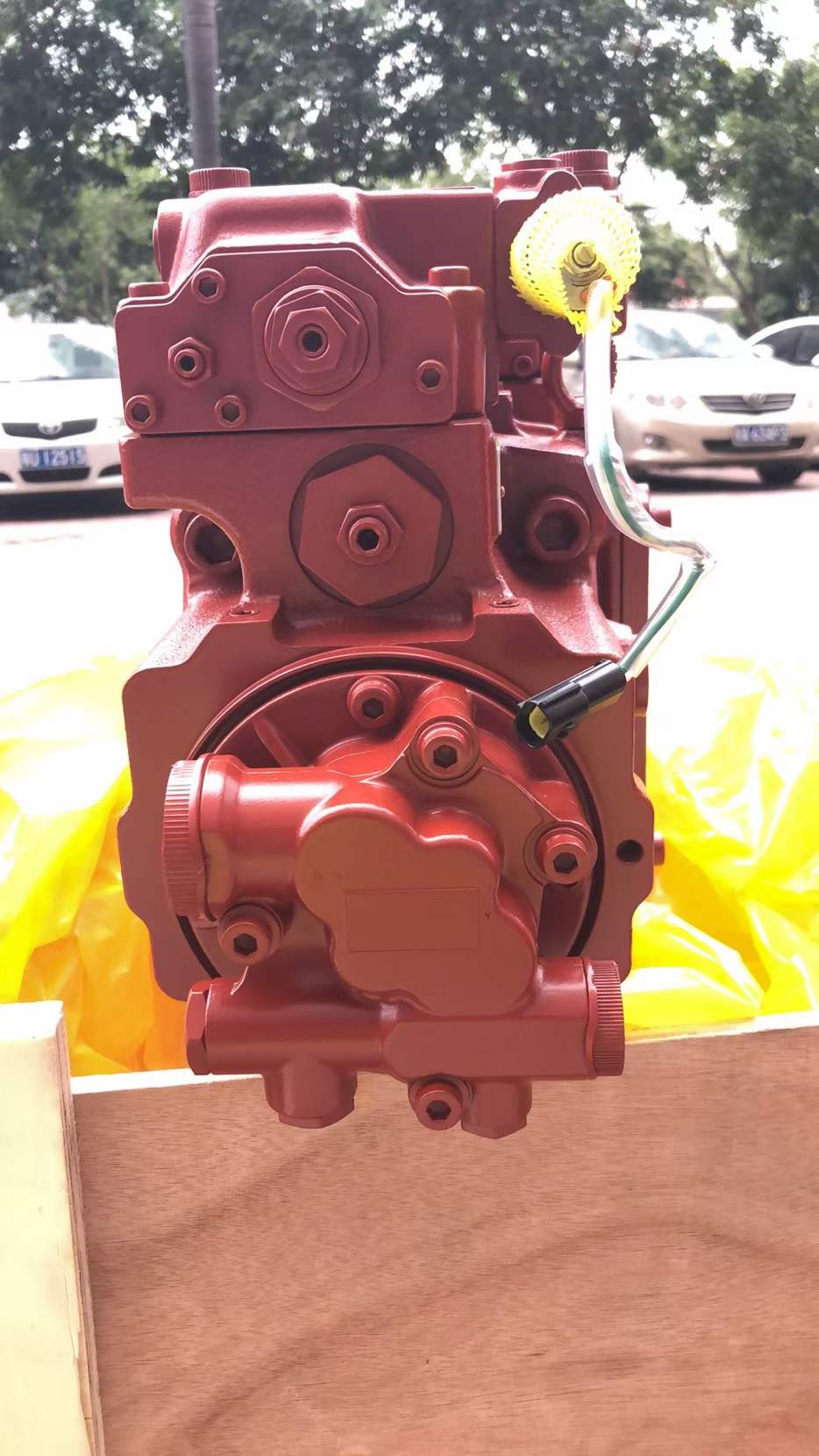

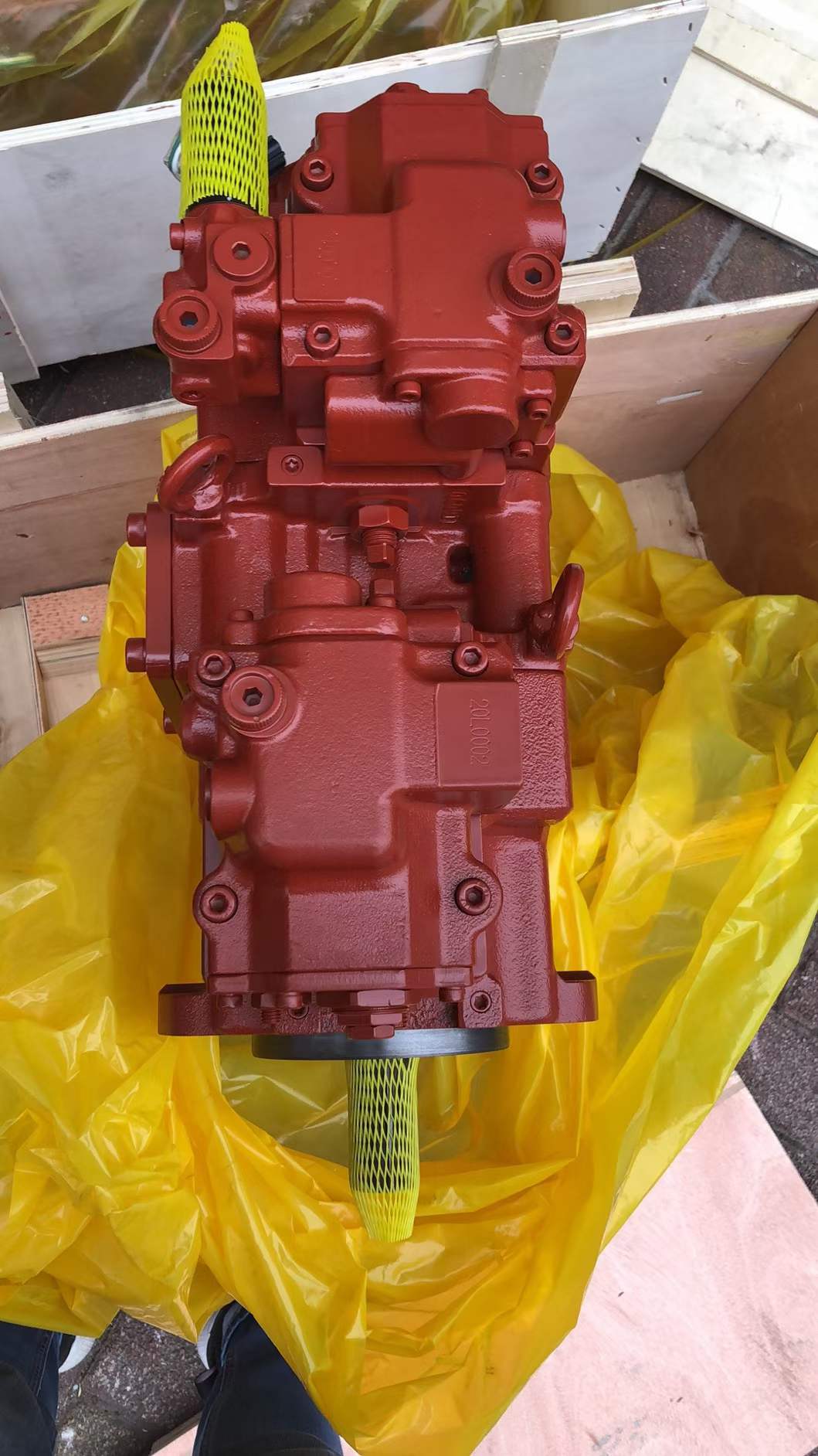

2401-9285 Hydraulic Pump Assembly Overview
The 2401-9285 Hydraulic Pump Assembly (Kawasaki K3V63DT series, OEM Part Numbers: 2401-9285, 400912-00015, K3V63DT) manufactured by Tatan is a heavy-duty Kawasaki series axial piston double pump belonging to our Hydraulic Pump Assembly classification. Engineered specifically for Doosan Daewoo DX140W, DX140W-3, and Solar 140W-V 14-ton wheel excavators and loaders, replacing your worn main pump with a Tatan complete pump assembly restores original 34.3 MPa working pressure and hydraulic flow capacity instantly.

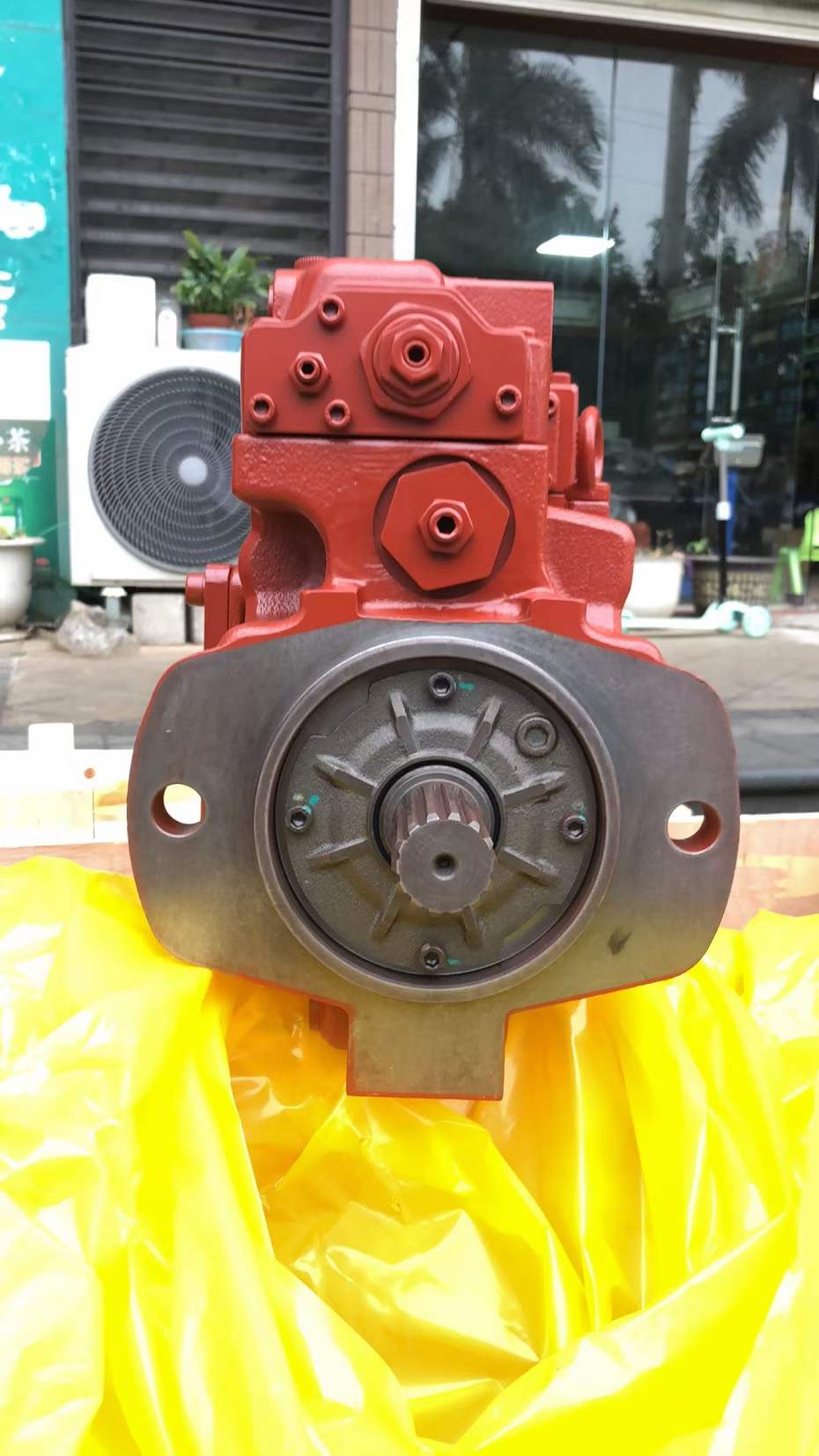

Built strictly according to original OEM specifications, this Kawasaki K3V63DT hydraulic main pump features 1:1 mounting flange dimensions and a 13-teeth spline shaft that couples directly to Doosan DL06 engine flywheels without hose or regulator modifications.
Key Attributes & Parameters for 2401-9285 Hydraulic Pump Assembly
| Product Category | Hydraulic Pump Assembly | Warranty | 1 Year / 12 Months |
| Specific Pump Model | Kawasaki K3V63DT Series Pump | Brand Name | Tatan |
| Compatible Equipment | Doosan DX140W | Wheel Excavator | OEM Part Number | 2401-9285 / K3V63DT |
| Matched Engine Series | Doosan DL06 / DB58TIS Engine | Place of Origin | Guangdong, China |
| Max Relief Pressure | 34.3 MPa (343 bar / 4970 PSI) | Rated Flow Output | 2 x 130 L/min @ 2000 RPM |
| Drive Shaft Spec | 13-Teeth Spline (13T / CW) | Control Mechanism | Negative Flow & Total Power Control |
| Machinery Test Report | Provided (100% Bench Tested) | Video Outgoing-Inspection | Provided Before Shipping |
| Quality Status | 100% Brand New with NOK Seals | Packaging | Export Wooden Box Packaging |
Supported Machinery Brands & Hydraulic Parts Coverage
In addition to Doosan, Tatan manufactures replacement main hydraulic pumps and components for major excavator brands:
Application Scenarios & Buyer Value
When upgrading or replacing your wheel excavator hydraulic system with our 2401-9285 Hydraulic Pump Assembly, buyers achieve maximum operational uptime and power efficiency:
| Application Scenario | Value Delivered to Buyer |
|---|---|
| Doosan DX140W Main Pump Replacement | 1:1 direct bolt-on replacement eliminates machine downtime and restores original digging speed. |
| Hydraulic Repair Workshops | Replaces tedious internal component rebuilding; reduces labor hours and eliminates aftermarket warranty risks. |
| Parts Dealers & Stockists | High-demand replacement pump ready for immediate resale to contractors and plant hire companies. |
| Rental Fleet Maintenance | Cost-effective replacement option extending total Doosan 14-ton wheel excavator & loader service lifecycle. |
2401-9285 Hydraulic Pump Assembly OEM Diagnostic Guide
Use this OEM manual hydraulic diagnostic guide to troubleshoot operational symptoms on your Doosan DX140W wheel excavator:
| Hydraulic Symptom | Technical Cause Analysis | Tatan Factory-Grade Solution |
|---|---|---|
| 1. Slow attachment movements & weak travel under high oil temp | Bimetallic valve plate or cylinder block surface scoring causing high-pressure internal oil bypass (>34.3 MPa drop). | Install Tatan K3V63DT complete hydraulic main pump assembly; flush tank lines and replace 10μm oil return filter. |
| 2. Engine stalling / Lugging down when pulling hydraulic pilot levers | Negative flow control regulator spool sticking or torque spring fatigue, overloading the Doosan DL06 engine. | Disassemble and clean pump regulator; lap spool clearance to 0.005mm tolerance or install a new complete pump assembly. |
| 3. Loud cavitation noise & oil foaming in hydraulic reservoir | Air ingress through suction flange O-rings or cracked suction rubber hose causing vacuum cavitation. | Reseal suction intake with high-temp HNBR O-rings; check hydraulic oil level and bleed air from pump casing. |
| 4. Front shaft oil seal blowout into engine flywheel housing | Casing drain line blockage or internal bypass wear causing drain pressure to exceed 0.2 MPa. | Clear case drain return lines, replace front shaft seal with high-pressure NOK seal, and test casing relief pressure. |
Transport Packaging & Fast Global Shipping
To ensure 100% damage-free international transport, every Tatan 2401-9285 Hydraulic Pump Assembly undergoes anti-rust oiling, waterproof plastic sealing, and solid export wooden box packaging.
✈️ Express Air Courier
Partnered with DHL, FedEx, UPS, and TNT for express door-to-door delivery worldwide.
🚢 Sea Cargo Freight
LCL and FCL ocean container shipping for heavy hydraulic pump assemblies and bulk orders.
📦 Export Wooden Cases
Fumigated solid wooden boxes with thick shockproof foam lining for maximum safety.
Quality Control & International Certificates
Tatan hydraulic pumps are manufactured under ISO 9001 quality management systems and strictly comply with CE safety standards.
2401-9285 Hydraulic Pump Assembly FAQ & Related Categories
🔗 Explore Related Doosan & Heavy Equipment Spare Parts:
* Note: Wholesale Reference Price Starts From $300.00. Please contact Gavin for a final customized quote.
