Excavator Swing Motor FAQs
Q: What is the main function of a hydraulic swing motor in heavy equipment?
A: The hydraulic swing motor drives the excavator's upper structure rotation. It converts high-pressure oil from the main pump into high-torque rotation through a swing reduction gearbox, enabling 360-degree digging and dumping operations.Q: How do you verify swing motor compatibility before international shipping?
A: Swing motors vary depending on drive shaft pinion gear teeth count and mounting flange bolt patterns. Simply send us your machine model, PIN plate, or old motor casting numbers, and Tatan Machinery’s technical team will verify fitment 100% free of charge.Q: Are swing reduction gearboxes included with the swing motor assembly?
A: We offer both complete swing assemblies (hydraulic motor + reduction gearbox) as well as individual hydraulic motors and planetary gear rebuild kits.Q: How do I troubleshoot excavator swing drift or sluggish turning?
A: Swing drift on slopes is usually caused by worn hydraulic parking brake discs or leaking crossover relief valves. Sluggish turning occurs when internal motor piston shoes wear out. We provide 24/7 technical guidance to assist your service engineers.Q: What is the warranty coverage and export packaging for swing motor assemblies?
A: All complete swing motors come with a 12-month quality warranty. Motors are thoroughly flushed, oil-sealed, protected with VCI anti-corrosion film, and shipped inside steel-reinforced wooden export boxes.
A Guide to Excavator Swing Motor and Their Uses
Construction Machinery Hydraulic Swing Motor Applications
Precision Swing & Slewing Control
Delivers smooth 360-degree continuous rotation for high-cycle digging, trenching, and truck loading operations.
Heavy Quarrying & Mining Duty
Withstands severe inertia shock loads and continuous high pressure during quarrying and mining extraction.
Infrastructure & Slope Works
Ensures drift-free swing holding and exact positioning via integrated mechanical parking brakes when working on steep slopes.
Overhaul & Repair Workshops
100% bolt-on replacement swing motors and planetary gearbox rebuild kits for quick equipment repair turnaround.
A Comprehensive Buyer’s Guide to Construction Machinery Hydraulic Swing Motors
The hydraulic swing motor is the primary slewing actuator in heavy construction equipment, converting high-pressure fluid flow into high rotational torque to swing the machine's upper structure. Swing motor efficiency dictates cycle times, smooth acceleration, and exact bucket placement. Tatan Machinery supplies genuine and OEM-standard swashplate axial piston swing motors engineered with integrated relief valves and friction brake discs to handle continuous high-vibration mining and construction environments."As documented in Parker Hannifin Hydraulic Motor Technical Guidelines: 'Swashplate axial piston swing motors integrated with mechanical parking brakes and crossover anti-rebound valves eliminate hydraulic shock and upper-structure drift when swinging heavy excavator booms on steep incline slopes.'" — Official Source: Parker Hannifin Hydraulic Motor Technical Publications
Popular Hydraulic Swing Motor Series We Support
Below is a comprehensive list of high-frequency hydraulic swing motor and slewing drive series supported by Tatan Machinery across major construction equipment brands:| Brand / Manufacturer | Popular Swing Motor Series | Available Rebuild Components |
|---|---|---|
| Kawasaki Series | M2X63, M2X96, M2X120, M2X150, M2X170, M5X130, M5X180 | Complete swing assemblies, cylinder blocks, pistons, drive shafts, brake discs |
| KYB (Kayaba) Series | MSG-27P, MSG-44P, MSG-88P, MAG-18, MAG-26, MAG-33V | Complete swing motors, mini equipment motors, planetary gears, friction plates |

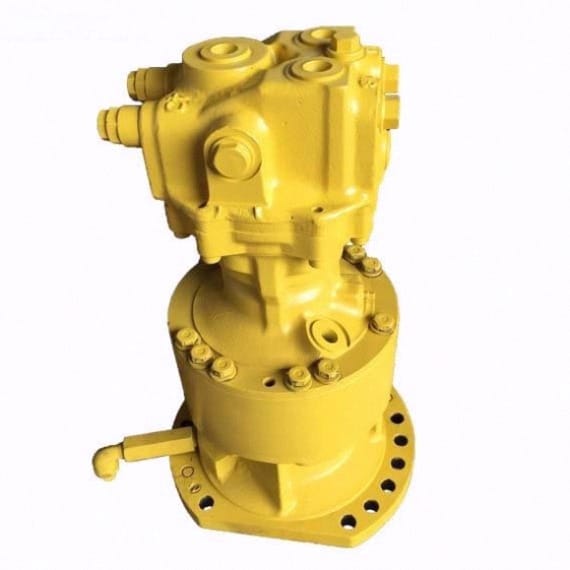

| Komatsu Series | 708-7W-00030 (PC200-8), 708-7W-00100 (PC300-8), KMF40, KMF90 | Swing motor units, relief valve cartridges, pinion shaft gears, seal kits |
| Hitachi & Rexroth | 4635100 (ZX200-3 / HPV118), 4642642 / A6VM80, A6VM107, A6VM160 | Bent-axis swing motors, reduction gearsets, swashplate cradle bearings |

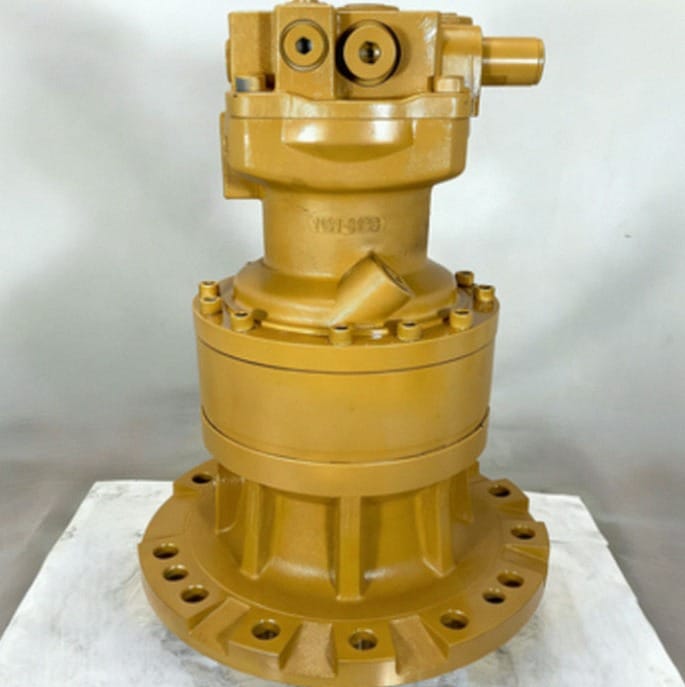

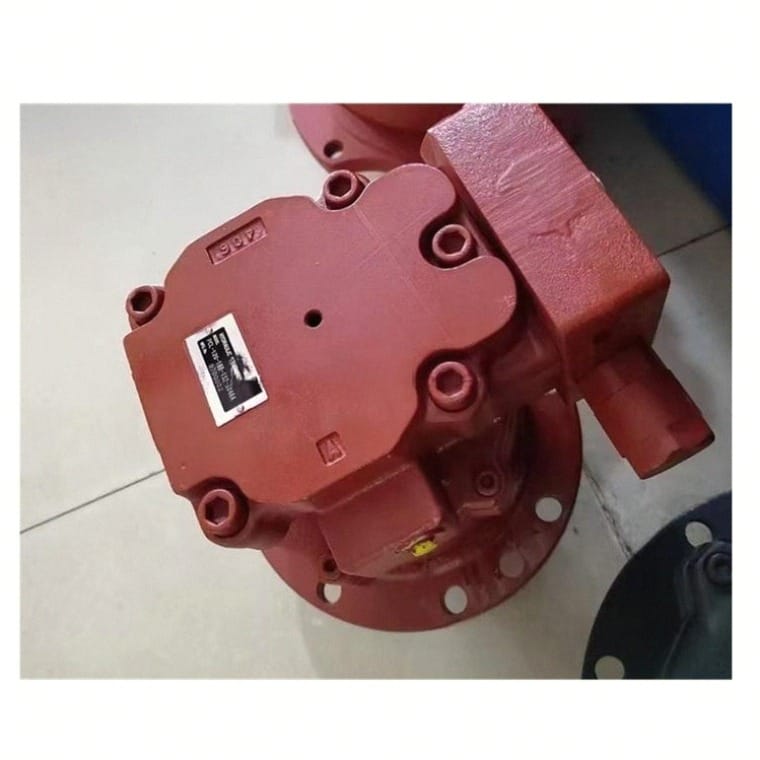

1. Caterpillar (CAT): CAT 320D (326-4634 / M5X130), CAT 323D, CAT 330D (M5X180), 345D Swing Motor

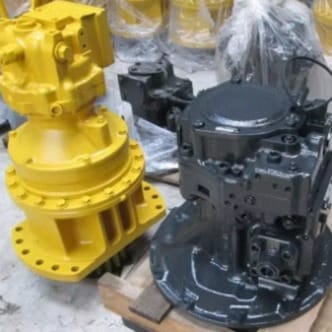

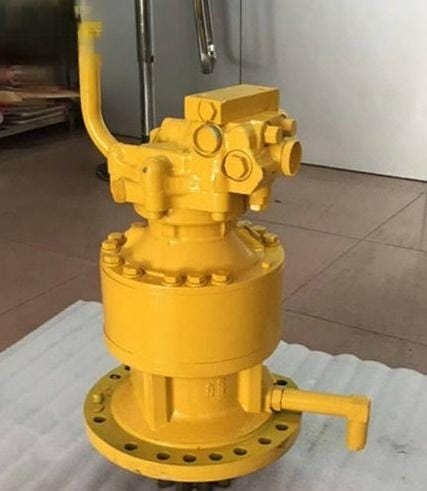

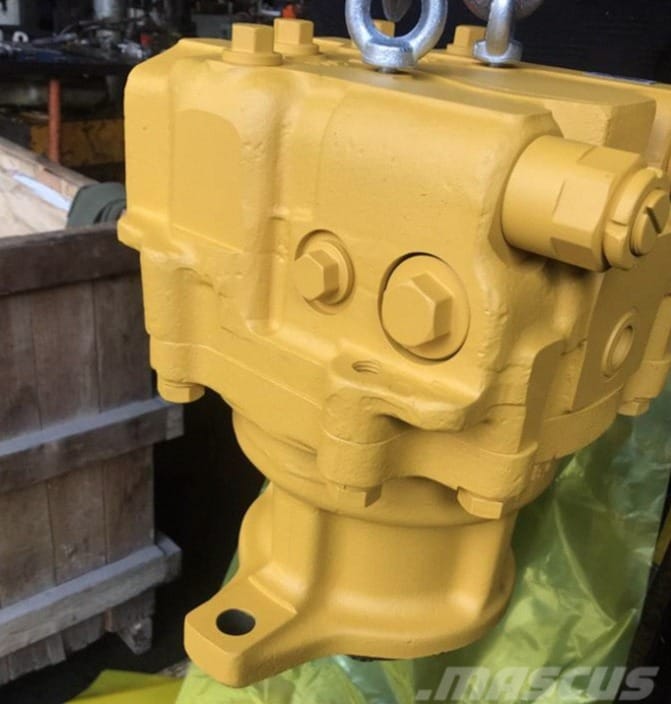

2. Komatsu: PC200-8 (708-7W-00030), PC220-8, PC300-8 (708-7W-00100), PC400-7 Swing Motor

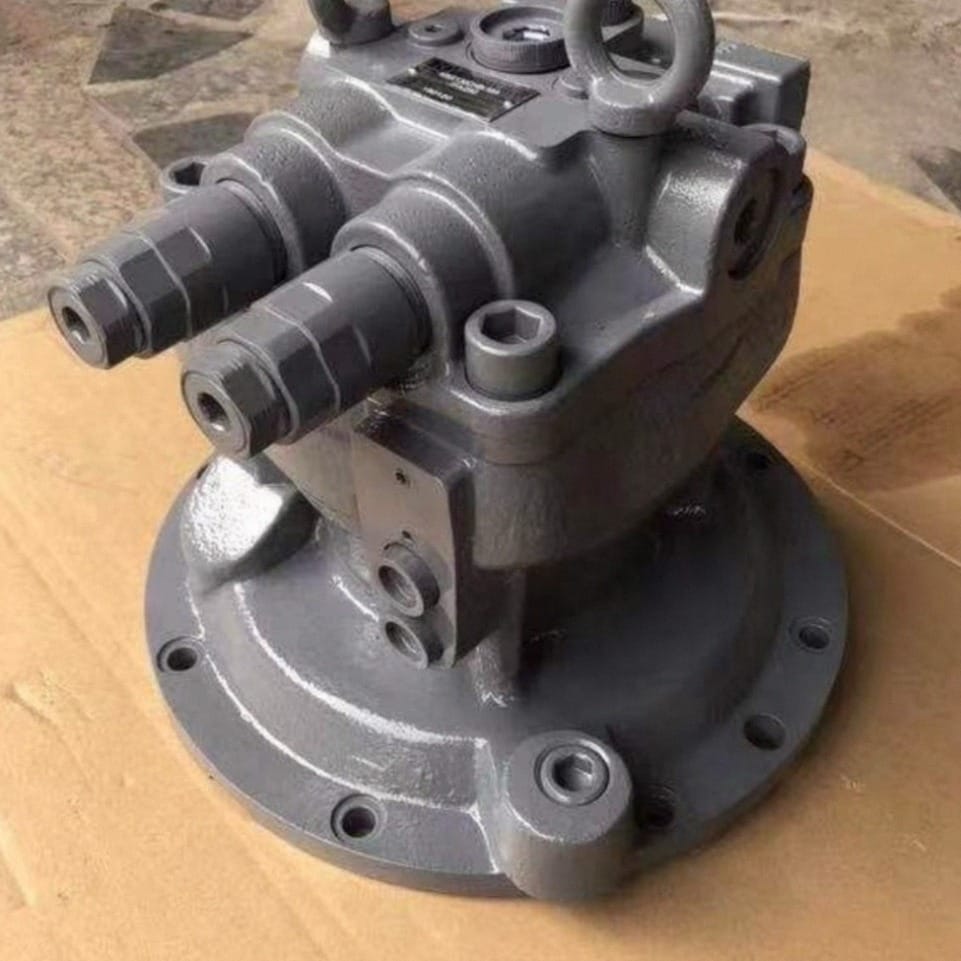

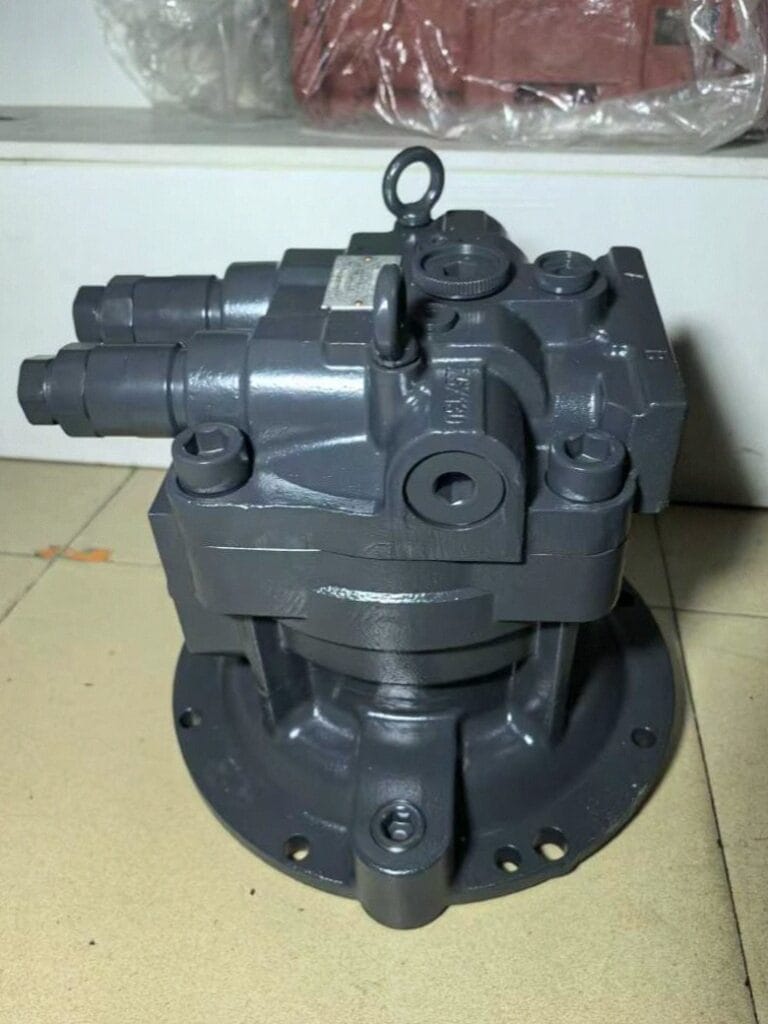

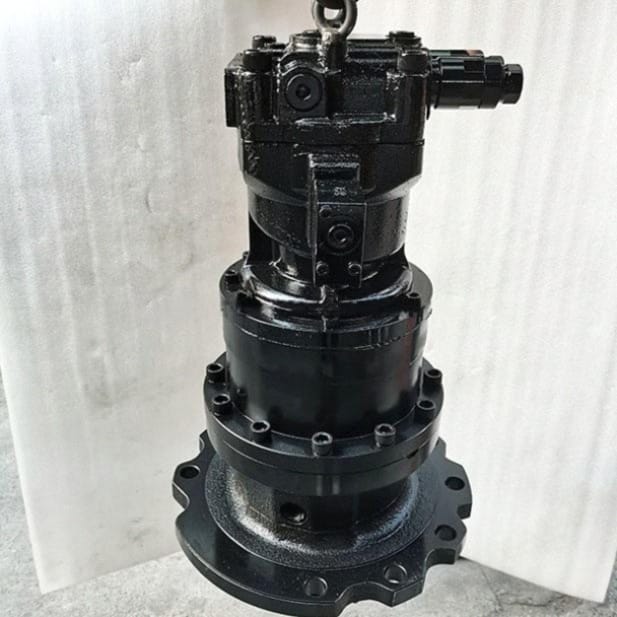

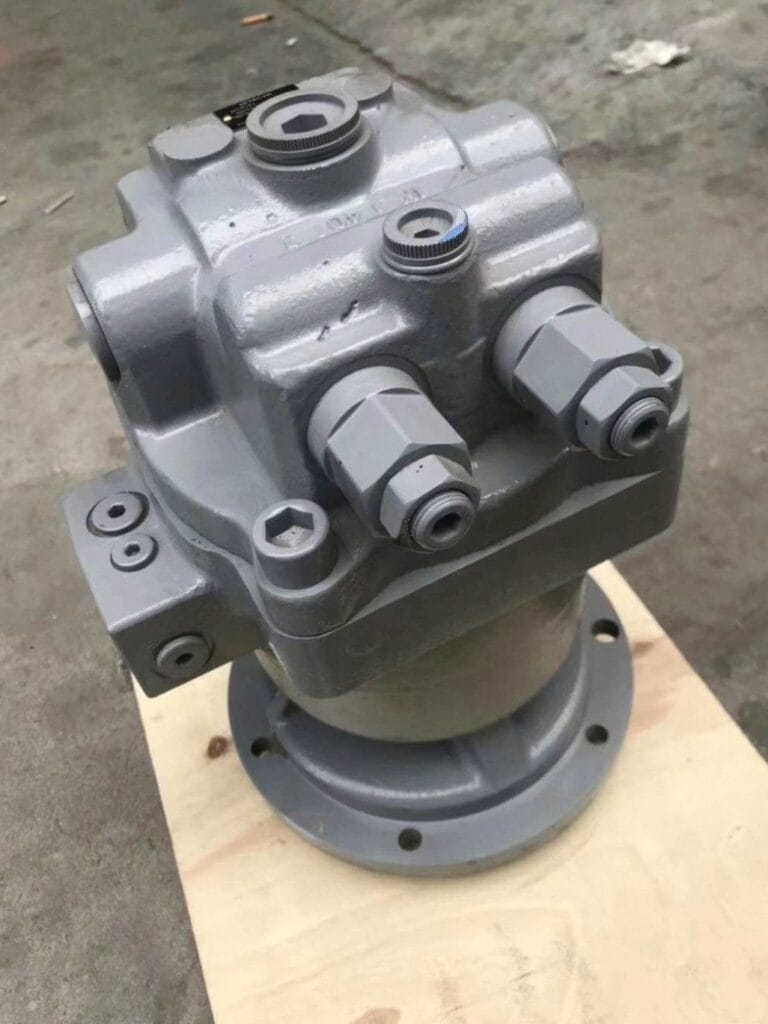

3. Hitachi: ZX200-3 (4635100 / HPV118), ZX210-5G, ZX330-3, EX200-5 Swing Motor Assembly
4. Volvo: EC210B (VOE14528731 / M2X120), EC240B, EC380D (M5X180) Swing Motor Assembly
5. Kobelco: SK200-8 (MSG-27P / YN15V00021F1), SK210-8, SK350-8 (M5X180) Swing Motor

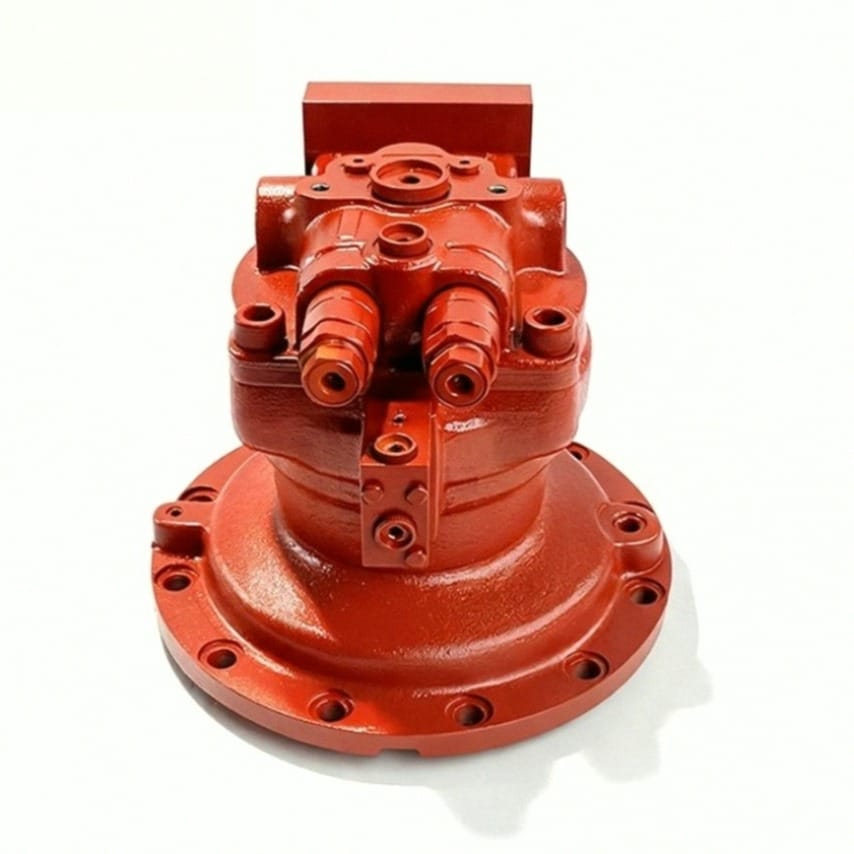

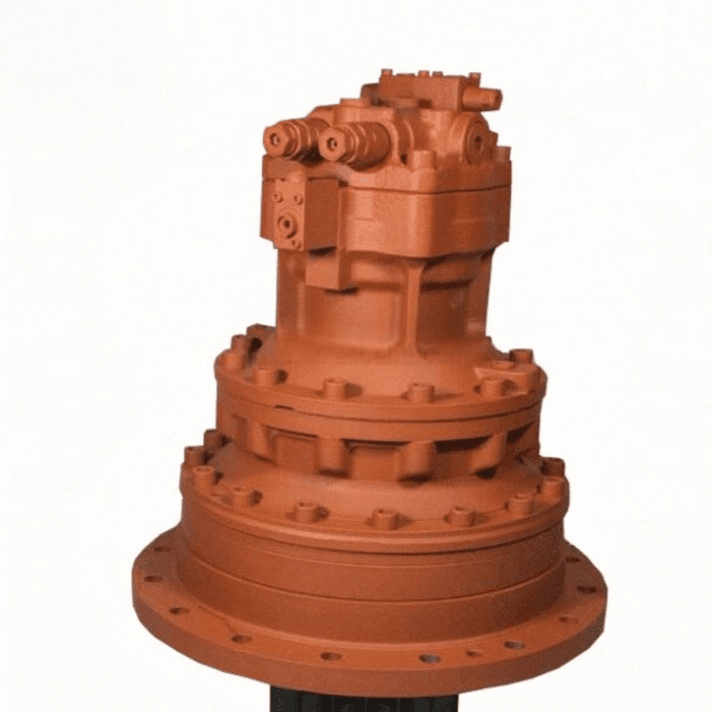

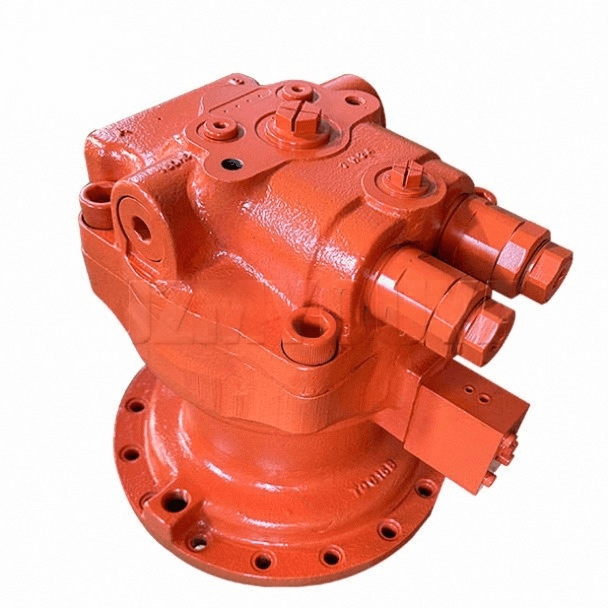

6. Doosan: DX225LC-5, DX300LC, DH220-5 (2401-9287) Hydraulic Swing Motor Assembly
7. Hyundai: R210LC-7 (31N6-10110), R220LC-9S (31Q6-10110), R305-7 Swing Motor Assembly
8. SANY: SY215C, SY235C, SY365H, SY500H Hydraulic Swing Motor Assembly
9. Kubota & Yanmar Mini: Kubota KX161 (MAG-18), U35, Yanmar ViO35, ViO55 Mini Swing Motor
10. JCB & Takeuchi: JCB JS220 (332/K1200), JS330, Takeuchi TB175 Hydraulic Swing Motor
Key Takeaways for Sourcing Hydraulic Swing Motors
- Rotational Torque Rating: Heavy-duty swashplate axial piston swing motors deliver 1,800–6,800 N·m torque for continuous 10–12 RPM slewing operations.
- Integrated Mechanical Parking Brake: Spring-applied, hydraulic-release multi-disc brakes prevent boom drift when holding heavy loads on steep inclines.
- Anti-Rebound Crossover Valves: Built-in shock relief valves cushion hydraulic surges during rapid joystick stops, protecting gearboxes.
- 100% Pre-Shipment Bench Testing: Every swing motor undergoes full-pressure hold, brake release, and output torque inspection before export.
- Pinion Shaft & Flange Fitment: Verifying drive pinion gear tooth count (e.g. 12T, 14T, 15T) ensures 100% bolt-on installation on your machine.
Understanding Heavy Equipment Hydraulic Swing Motors
The Mechanics of Swashplate Axial Piston Slewing Motors
Hydraulic swing motors utilize fixed or variable swashplates housing reciprocating axial pistons. As high-pressure oil enters the motor ports, pistons push against the swashplate, converting hydraulic force into rotational torque. An integrated planetary reduction gearbox further multiplies torque to swing heavy equipment upper structures effortlessly.| Swing Motor Metric | Engineering Standard & Operational Description |
|---|---|
| Working Pressure | Standard operating pressure ranges from 30 MPa (4,350 PSI) to 34.3 MPa (4,970 PSI) with 36 MPa relief. |
| Parking Brake Release Pressure | Hydraulic pilot release pressure operates at 2.5–3.2 MPa (360–460 PSI). |
| Rotary Group Material | High-copper bronze cylinder alloy with hardened nitrided steel pistons to withstand friction torque. |
| Volumetric Efficiency | Precision-ground valve plates maintain 92%–95% volumetric efficiency at rated 10–12 RPM slewing speeds. |
Swing Motor Displacement, Torque & Speed Metrics
| Machinery Class | Motor Displacement (cc/rev) | Output Torque (N·m) | Slewing Speed (RPM) | Working Pressure (MPa) |
|---|---|---|---|---|
| 3.5 – 8 Ton Mini Equipment | 28 – 45 cc/rev | 400 – 850 N·m | 10 – 12 RPM | 21 – 25 MPa |
| 13 – 22 Ton Medium Machinery | 80 – 130 cc/rev | 1,800 – 3,500 N·m | 10 – 11.5 RPM | 32 – 34.3 MPa |
| 24 – 35 Ton Heavy Duty | 140 – 180 cc/rev | 4,200 – 6,800 N·m | 9 – 10.5 RPM | 34.3 – 35 MPa |
| 38 – 50+ Ton Mining Equipment | 200 – 250+ cc/rev | 8,500 – 14,000+ N·m | 8 – 9.5 RPM | 35 MPa |
Technical Feature Matrix: Kawasaki M5X130 & Komatsu 708-7W Standards
Below is a detailed technical matrix for industry-standard 20-ton equipment hydraulic swing motors:| Technical Feature | Engineering Specification & Operational Standard |
|---|---|
| Standard Motor Models | Kawasaki M5X130 / Komatsu 708-7W-00030 / CAT 326-4634 / Hitachi 4635100 |
| Rated Operating Pressure | 34.3 MPa (350 kgf/cm² / 4,970 PSI) |
| Brake Release Pressure | 2.5–3.0 MPa pilot oil release pressure for mechanical friction discs |
| Recommended Hydraulic Oil | ISO VG 46 Anti-Wear Hydraulic Oil (Filtration cleanliness ISO 18/16/13) |
| Relief Valve Crack Setting | Pre-set crossover shock relief valves operating at 27.5–29.0 MPa |
Practical Guide to Sourcing Heavy Equipment Hydraulic Swing Motors
1. Checking Supplier Credibility & Bench Test Standards
When sourcing hydraulic swing motors internationally, supplier testing standards are paramount. Partner with suppliers who operate high-pressure hydraulic test stands capable of 35MPa pressure hold, swing torque verification, and brake release checks. Tatan Machinery subjects every swing motor to 100% pre-shipment bench testing with complete video test logs."As documented in Bosch Rexroth Mobile Hydraulics Technical Guidelines: 'Pre-installation hydraulic circuit flushing and 100% bench testing of mechanical brake release pressure eliminate initial swing drift and gear fatigue, ensuring smooth 360-degree rotation and operator safety under heavy loads.'" — Official Source: Bosch Rexroth Mobile Hydraulics Technical Publications
2. Verifying Pinion Gear Teeth Count & Mounting Flange Dimensions
Swing motors drive planetary gearboxes through drive pinion shafts. Before ordering, verify the pinion gear teeth count (e.g. 12T, 14T, 15T, 17T) and mounting flange bolt dimensions. Tatan Machinery’s technical specialists cross-reference these specs using OEM casting numbers to guarantee 100% bolt-on compatibility.3. Preventing Hydraulic Shock & Fluid Contamination
Hydraulic fluid cleanliness is vital for swing motor lifespan. Silt and metal particles cause piston shoe wear and valve plate scoring. Always replace pilot filters, flush hydraulic lines, and refill with clean ISO VG 46/68 oil when installing a replacement swing motor.Why Choose Tatan Machinery: Swing Motor Supplier Comparison
Below is a clear comparison showing why repair workshops, mining operators, and fleet managers trust Tatan Machinery over generic traders:| Key Metric | Tatan Machinery Standard | Typical Generic Traders | Buyer Advantage |
|---|---|---|---|
| Pre-Shipment Testing | 100% 35MPa Bench Torque & Brake Release Tested (with Video Log) | Visual Inspection Only | Zero Risk of Swing Drift |
| Fitment Verification | Free OEM Casting No. & Pinion Shaft Tooth Count Verification | Generic Model Matching | 100% Precision Bolt-On Fit |
| Warranty Coverage | 12 Months Warranty on Complete Assemblies | 30–90 Days / Limited Warranty | Full Capital Protection |
| Technical Support | 24/7 Dedicated Hydraulic Engineers (Reply < 1 Hr) | Sales Team Only (Slow Reply) | Fast Jobsite Troubleshooting |
| Export Packaging | Flushed & Port-Plugged + VCI Film + Steel Wooden Box | Standard Cardboard / Pallet | Zero Transit Rust or Damage |
